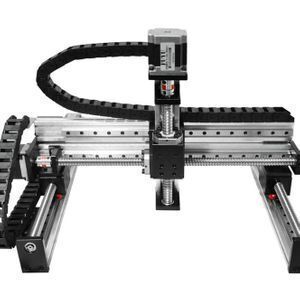

multi-axis ball screw linear motion gantry module cartesian robot

Product details
Movement Life:20000km;Payment Terms:L/C,D/P,T/T,MoneyGram;
Supply Ability:2000 Piece/Pieces per Month;Vertical Loading Range:10-15kg;
Material:Aluminum;Model Number:FTS40 XYZ-L;
Place of Origin:Sichuan China;Horizontal Loading Range:20-25kg;
Without loading speed:250mm/s;Drive Type:Ball Screw;
Position Accuracy:0.05mm;Port:shenzhen/shanghai/tianjin/dalian;
Brand Name:FUYU;Horizontal Full Speed:80-230mm/s;
Vertical Full Speed:40-85mm/s;Thrust Range:225N/452N/565N;
Packaging Detail:Inner package: Foam Outer package: Carton;Noise:70dB;
Applicable Industries:Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Construction works ,Energy & Mining,Advertising Company;
Product Description

Linear Motion Stage

FTS40 XYZ-L


Pre-engineered

Easily mounted

Plug and play

Ready to run

SPECIFICATIONS FOR FTS40XYZ-X LINEAR MOTION STAGE

 Mechanical Dimensions
Stroke length Lx
mm
100-1000
Stroke length Ly
mm
100-1000
Stroke length Lz
mm
50-500
Mechanical Dimension
Model Type
Dia.(mm)
Lead(mm)
Accuracy Class
G1204 (100~500mm stoke)
12
4
C7
G1610(600~1000mm stroke)
16
10
C7
Motor Parameter

Model
Step

Angle
Flange

Size
Body

Length
Torque
Current
Resistance
Inductance
Rotor

Inertia
Lead
FM5756SSD04
1.8°
57mm
56mm
0.93
N.m
2.0A
1.32Ω
3.19mH
188
g.cm⊃2
No.4
Detailed Images



Special made motor with

high speed up to 1200rpm





extra support unit
to enhance stability






Attached chains

makes better appearance






Ball screw position
accurancy class C7

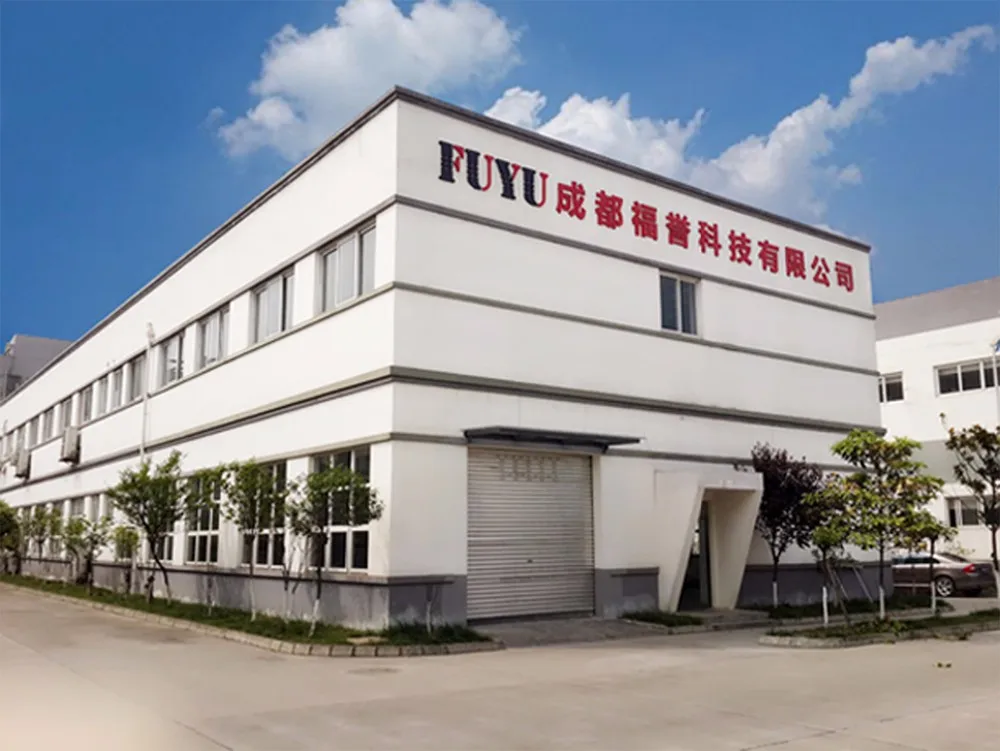

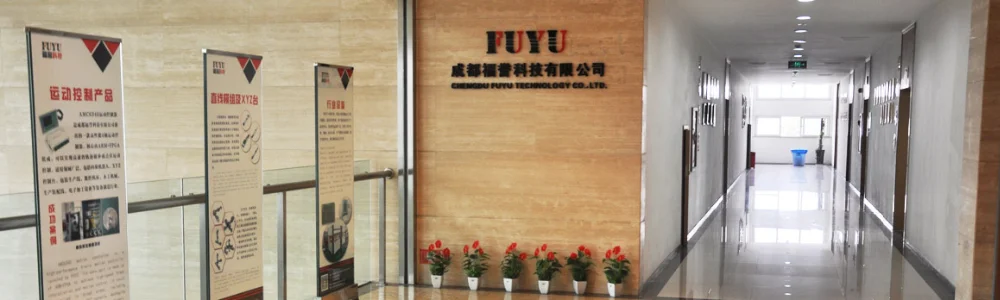

Factory Tour

CHENGDU FUYU TECHNOLOGY CO.LTD

has a development perspective of the world, all products are in strict accordance with the production process and standards, the 70 patents cover various aspects of the new module and controller technology.With advanced technology and sincere cooperation attitude, we will, as always, go hand in hand with our customers with high quality products, reasonable prices and professional services to create brilliant future.

About us

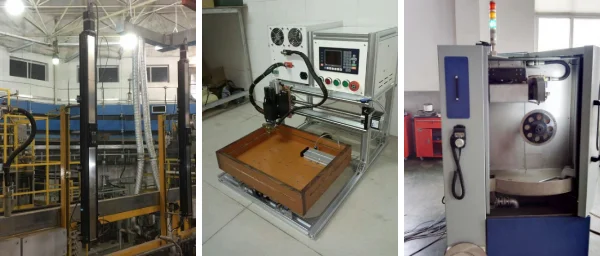

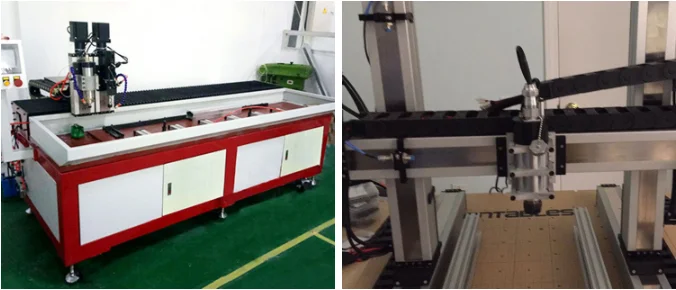

Motorized linear axis could be assembled to positioning systems/motion stages, which fulfill various tech requirements for engraving , welding, drilling, milling, dispensing, packaging, 3d printing and other cnc automatic Industrial machines. At present, our linear guide has obtained international related certifications: IP66, CE, ROHS, FCC. The intellectual property rights involved 2 invention patents, 32 utility models, 13 appearance patents and more than 20 software copyrights.

Customer service officer

Our customer service personnel are experienced product specialists who can answer your questions 7 days a week from

9 am to 5 pm.

Contact us now.

OEM / ODM

Our professional staffs allow us to have the capability to design and manufacture a wide range of new items according to the buyer's requirements. Our ability to provide buyers labels and design services for our clients make us an attractive choice.

Firm team

FUYU is committed to delivery quality products. We guarantee our products to be free from manufacture defects.

We offer one-month of return & exchange service, one-year of parts replacement and lifetime tech support.

Certification

At present, it has been certified by the relevant national departments:"National High-tech Enterprise" and "Dual-soft Enterprise". The intellectual property rights involved 2 invention patents, 32 utility models, 13 appearance patents and more than 20 software copyrights; Has obtained international related certification,  IP66,  CE,  ROHS,  FCC certification.

DETAILS CREATE QUALITY AND TECHNOLOGY LEADS FUTURE

You can design by yourself or tell us your technical requirements and we will give you're a technical solution. Then we will complete the production, testing and delivery according to the technical plan within the time agreed by both parties.

The products purchased by users from our company are all covered by the warranty service. During this period, our company will provide you with free telephone consultation services, video teaching, free replacement of parts and components, and remote troubleshooting.

FAQ

1.Product sources

All the products sold in this store are FUYU brand, factory-direct sale, no branch.

2.Model selection

Before purchasing, please contact us to confirm the model no and specifications to avoid any misunderstanding.

Before our production, we will offer drawings for you to confirm.

3.Payment

Sample fee should be fully paid before production, for bulk order, 50% advance is needed and balance before shipment.

Paypal is accepted.

4.Delivery

Samples in stock will be delivered within 7 days and customized samples will be delivered within 30 days.

Delivery date for bulk order depends on order quantity.

5.After-sale service

Any flaws found by customers within 30 days upon receiving the goods could be changed to new products.

Free maintenance within 12 months. Lifetime technical support.
