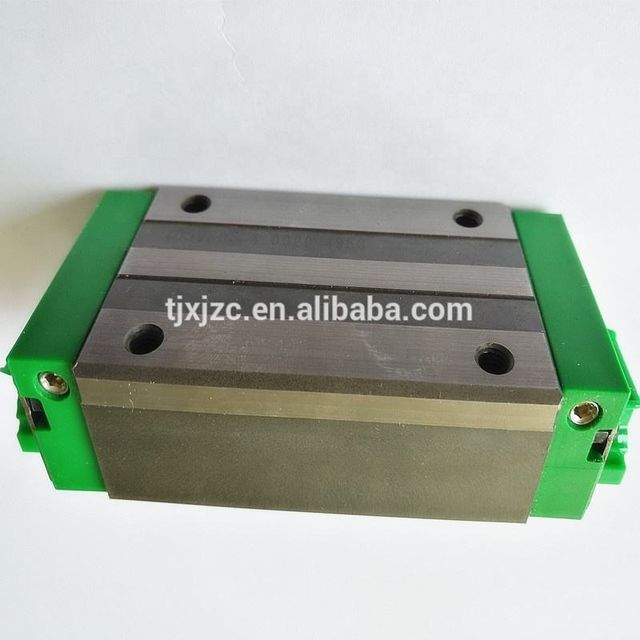

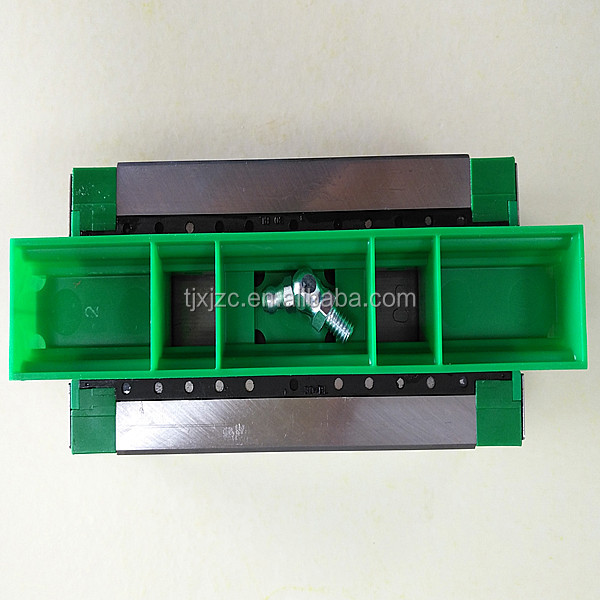

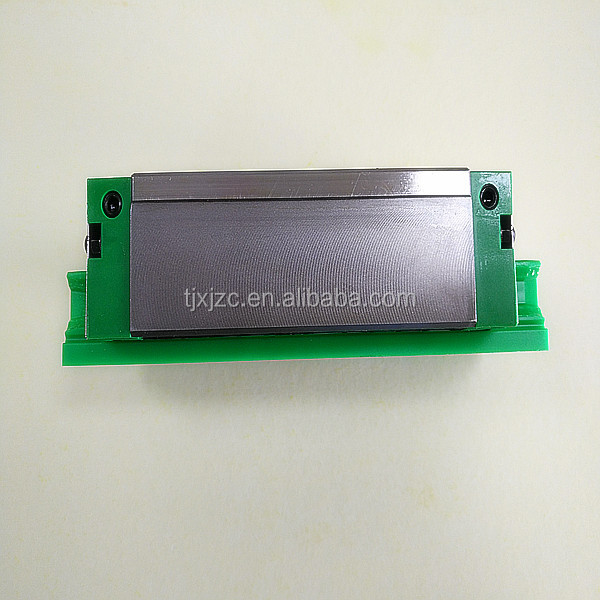

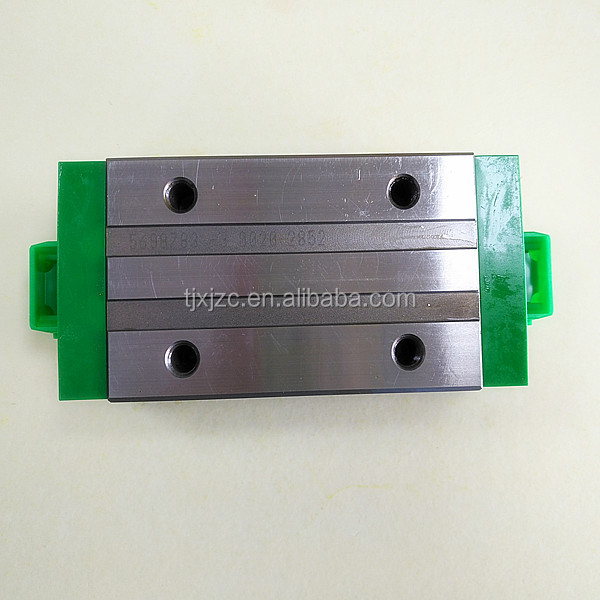

KWVE15-BH-G3-V1 German linear ball slider bearing KWVE15B slide KWVE15 B G3 V1

Supplier: Tianjin Xurui Hengda International Trading Co., Ltd.
Region: Tianjin, China
Contact: Mr Xianliang Tian
Price: $60.00 / 1 - 49 units
$58.00 / >=50 units
Min. Order: 1 unit

Click here to contact

Product details

Bearing blocks and rails:	KWVE25 KWVE25B KWVE25BS KWVE25BSL KWVE256BSNL	Material:	Bering steel
Block model:	KWVE30BSLG4V1,KWVE30-B,KWVE30B	Place of origin:	Germany
Place of origin:	Germany	Packaging details:	standard packaging
Blockage:	KWVE15 KWVE15B KWVE15BH KWVE15BS block	Block type:	KWVE15 KWVE15B KWVE15BH KWVE15BS
model:	KWVE15-BH-G3-V1 KWVE15B	brand:	german brand
Sales unit:	Single product	type:	KWVE30-BSL-G4-V1
product name:	KWVE15BS KWVE15BSH KUVE15BS KUVE15W	Single piece packaging size:	1X1X1cm
Other names:	KWVE30BSLG4V1 KWVE30BSLG3V1 KWVE30BSL	Blockage:	KWVE35 KWVE35B KWVE35BS KWVE35BSL KWVE356BSNL
Gross weight of single piece:	6.000kg	car:	KWVE45 KWVE45B KWVE45BS KWVE45BSL KWVE456BSNL

Product Description

KWVE15-BH-G3-V1 German linear ball slider bearing KWVE15B slide KWVE15 B G3 V1

KWVE55 KWVE55B KWVE55BS KWVE55BSL KWVE556BSNL

KWVE45 KWVE45B KWVE45BS KWVE45BSL KWVE456BSNL

KWVE35 KWVE35B KWVE35BS KWVE35BSL KWVE356BSNL

KWVE25 KWVE25B KWVE25BS KWVE25BSL KWVE256BSNL

There are many models of carriages to choose from. Their saddle plates feature hardened and precision-ground rolling element raceways, in which the balls are recirculated through closed channels and plastic return elements. Conveniently located lubricant grooves on the carriage provide ample grease storage space;

guide

The guide rails are made of hardened steel with all surfaces ground and the rolling element raceways precision ground.

Use four spacers:

The KUVE..-B-KT series corresponds to a fully complementary design. However, to prevent noise from recirculation, the rolling elements are guided by plastic spacers, called quad spacers. As a result, these guidance systems operate less noisily than fully complementary variants.

A quad spacer accommodates two rolling elements, one each from a compression raceway and a tension raceway. Since the quad spacers are not connected chain elements, bending and tensile stresses are eliminated, especially in the return area.

Used in many industrial fields, such as:

Power transmission, transformation and electrical engineering

Construction, building materials and mining machinery, marine engineering, civil engineering

Precision engineering and medical equipment

Delivery trucks, conveying and warehousing equipment

Rubber and plastic processing machinery, chemical industry machinery

Hydraulic and Pneumatic Engineering

agricultural machinery

Assembly, handling and industrial robots

Passenger cars and station wagons, automotive supplier industry

electrical tools

rail vehicle

Toys, bicycles and sports equipment

steel industry

Internal combustion engines, outboard engines for gardening and forestry equipment

Machine tools and production systems

household appliances

Model	Well	mm	Length mm
KWVE15B	twenty four	47	61,2
KWVE20B	30	63	71,4
KWVE25B	36	70	83,3
KWVE30B	42	90	99
KWVE35B	48	100	112
KWVE45B	60	120	140,6
KWVE55B	70	140	173,6
KWVE20BL	30	63	88,9
KWVE25BL	36	70	109,1
KWVE30BL	42	90	127
KWVE35BL	48	100	145
KWVE45BL	60	120	172,7
KWVE55BL	70	140	211,6
KWVE15BH	28	34	61,2
KWVE20BH	30	44	71,4
KWVE25BH	40	48	83,3
KWVE30BH	45	60	99
KWVE35BH	55	70	112
KWVE45BH	70	86	140,6
KWVE25BHL	40	48	109,1
KWVE30BHL	45	60	127
KWVE35BHL	55	70	145
KWVE45BHL	70	86	172,7
KWVE15BEC	twenty four	52	44,5
KWVE20BEC	28	59	50,4
KWVE25BEC	33	73	58,2
KWVE30BEC	42	90	69
KWVE35BEC	48	100	76,2
KWVE45BEC	60	120	97,8
KWVE15BESC	twenty four	34	44,5
KWVE20BESC	28	42	50,4
KWVE25BESC	33	48	58,2
KWVE30BESC	42	60	69
KWVE35BESC	48	70	76,2
KWVE45BESC	60	86	97,8
KWVE20BN	27	63	71,4
KWVE25BN	31	70	83,3
KWVE30BN	38	90	99
KWVE35BN	44	100	112
KWVE45BN	52	120	140,6
KWVE20BNL	27	63	88,9
KWVE25BNL	31	70	109,1
KWVE30BNL	38	90	127
KWVE35BNL	44	100	145
KWVE45BNL	52	120	172,7
KWVE15BS	twenty four	34	61,2
KWVE20BS	30	44	71,4
KWVE25BS	36	48	83,3
KWVE30BS	42	60	99
KWVE35BS	48	70	112
KWVE45BS	60	86	140,6
KWVE55BS	70	100	173,6
KWVE20BSL	30	44	88,9
KWVE25BSL	36	48	109,1
KWVE30BSL	42	60	127
KWVE35BSL	48	70	145
KWVE45BSL	60	86	172,7
KWVE55BSL	70	100	211,6
KWVE20BSN	27	44	71,4
KWVE25BSN	31	48	83,3
KWVE30BSN	38	60	99
KWVE35BSN	44	70	112
KWVE45BSN	52	86	140,6
KWVE20BSNL	27	44	88,9
KWVE25BSNL	31	48	109,1
KWVE30BSNL	38	60	127
KWVE35BSNL	44	70	145
KWVE45BSNL	52	86	172,7
KWVE25BHS	36	70	89,3
KWVE25BHSN	31	70	89,3
KWVE25BHSH	40	48	89,3
KWVE25B high speed steel	36	48	89,3
KWVE25BHSSN	31	48	89,3
