brand: | China/Import | application: | skate |
Accuracy class: | P6 | payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal |
product name: | Deep groove ball bearing rodamientos 608 6203 6205 6000 6201 | Serve: | OEM/ODM customization |
structure: | deep groove | Packaging Details: | rodamiento aveo 1. Use a thicker carton to prevent bearing collision damage. 2. Multi-layer thickened plastic film inside the carton can prevent moisture from entering. 3. Large quantity, wooden box packaging 4. Customized brand typing according to customer requirements |
Cage material: | Chrome Steel Cage | Seal type: | Rubber/open type/iron seal |
Key words: | rodamiento aveo | port: | Rodamiento aveo Tianjin port, Shenzhen port Customer designated port |
Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, construction, energy and mining | Bearing material: | Bearing steel\Gcr15 |
Aperture: | 15 - 25mm | place of origin; place of origin: | China (Mainland)/Import |
model: | rodamiento aveo | pack: | original packaging |
Types of: | ball | feature: | long-term sustainable work |
accurate: | P0 P4 | Rows: | single row |
Supply capacity: | 100000 sets per week |
product name | Low friction deep groove ball bearings rodamientos 608 6203 6205 6000 6201 | ||||
Sealed | Open, Z, ZZ, RZ, 2RZ, RS, 2RS | ||||
Quality Standard | ISO9001:2000 standard | ||||
Other series models | 1) 6000 series: 604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.6012 2) 6200 series: 3) 6300 series: 4) 6400 series: 5) 6700 series: 673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705 6) 6800 Series: 7) 6900 series: 8) 16000 series: 16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015 | ||||
Serve | OEM/ODM service | ||||
delivery time | 1.stock product: whthin 5-7days 2.7-30 days according to large quantity and design | ||||
pack | Industrial packaging and according to customer requirements 1. Industrial packaging: plastic bag + carton plywood pallet 2. Plastic bag+white box+carton+plywood pallet 3. Commercial packing: plastic bag+color box+carton+plywood pallet | ||||
Advantage | Low friction, long service life, enhanced operational reliability, roller profile and dimensional consistency, rigid bearing applications, reduced temperature peaks during run-in, separable and interchangeable |

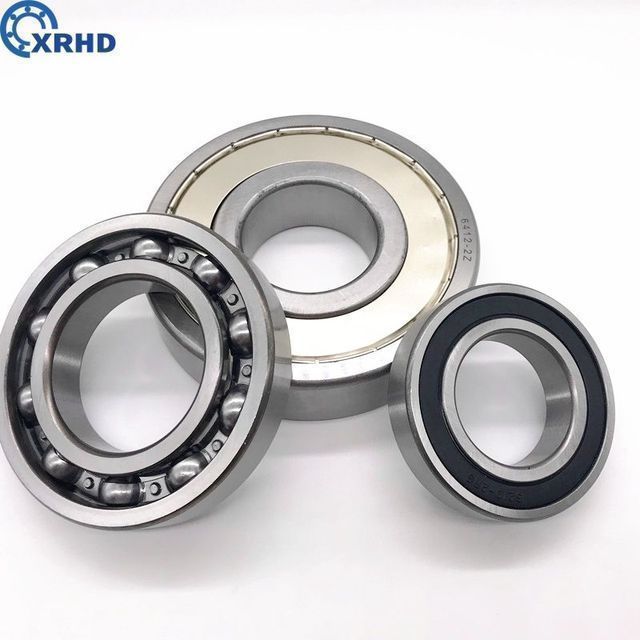

Low friction deep groove ball bearings rodamientos 608 6203 6205 6000 6201
Description of deep groove ball bearings
Deep groove ball bearings (GB/T 276-1994), also known as single row radial ball bearings, are the most widely used rolling bearings. It is characterized by small frictional resistance and high speed. It can be used for parts that are subjected to radial loads or combined radial and axial loads. It can also be used for parts subject to axial load, such as small power motors. Automotive and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
Low friction deep groove ball bearings rodamientos 608 6203 6205 6000 6201
The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of
cage. There are two types of deep groove ball bearings: single row deep groove ball bearings and double row deep groove ball bearings.
Deep groove balls are divided into two types: sealed type and open type. Open type means that the bearing has no sealing structure. Sealed deep groove balls are divided into dust-proof seals and oil-proof seals. seal. The material of the dust-proof sealing cover is stamped from steel plate, which simply prevents dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease inside the bearing from overflowing.
Low friction deep groove ball bearings rodamientos 608 6203 6205 6000 6201
iron seal model | Rubber seal model | Inner diameter Ø d (mm) | Outer DiameterØD (mm) | Width B (mm) | Minimum value (mm) | Dynamic load(kN) | Static load (kN) | Weight (kg) |
6000ZZ | 6000RS | 10 | 26 | 8 | 0,3 | 4,55 | 1,96 | 0,02 |
6200ZZ | 6200RS | 10 | 30 | 9 | 0,6 | 6 | 2,6 | 0,032 |
6300ZZ | 6300RS | 10 | 35 | 11 | 0,6 | 8,15 | 3,45 | 0,057 |
6001ZZ | 6001RS | 12 | 28 | 8 | 0,3 | 5,1 | 2,36 | 0,022 |
6201ZZ | 6201RS | 12 | 32 | 10 | 0,6 | 6,95 | 3,1 | 0,039 |
6301ZZ | 6301RS | 12 | 37 | 12 | 1 | 9,65 | 4,15 | 0,064 |
6002ZZ | 6002RS | 15 | 32 | 9 | 0,3 | 5,6 | 2,85 | 0,033 |
6202ZZ | 6202RS | 15 | 35 | 11 | 0,6 | 7,8 | 3,75 | 0,045 |
6302ZZ | 6302RS | 15 | 42 | 13 | 1 | 11,4 | 5,4 | 0,09 |
6003ZZ | 6003RS | 17 | 35 | 10 | 0,3 | 6 | 3,25 | 0,04 |
6203ZZ | 6203RS | 17 | 40 | 12 | 0,6 | 9,5 | 4,75 | 0,067 |
6303ZZ | 6303RS | 17 | 47 | 14 | 1 | 13,4 | 6,55 | 0,117 |
6004ZZ | 6004RS | 20 | 42 | 12 | 0,6 | 9,3 | 5 | 0,068 |
6204ZZ | 6204RS | 20 | 47 | 14 | 1 | 12,7 | 6,55 | 0,105 |
6304ZZ | 6304RS | 20 | 52 | 15 | 1,1 | 16 | 7,8 | 0,153 |
6404ZZ | 6404RS | 20 | 72 | 19 | 1,1 | 29 | 16,3 | 0,415 |
6005ZZ | 6005RS | 25 | 47 | 12 | 0,6 | 10 | 5,85 | 0,077 |
6205ZZ | 6205RS | 25 | 52 | 15 | 1 | 14,3 | 8 | 0,125 |
6305ZZ | 6305RS | 25 | 62 | 17 | 1,1 | 22,4 | 11,4 | 0,232 |
6405ZZ | 6405RS | 25 | 80 | twenty one | 1,5 | 33,5 | 19 | 0,56 |
6006ZZ | 6006RS | 30 | 55 | 13 | 1 | 12,7 | 8 | 0,115 |
6206ZZ | 6206RS | 30 | 62 | 16 | 1 | 19,3 | 11,2 | 0,192 |
