Product name: | manufacturer supply bearing housing conveyor roller bearing housing; | item: | labyrinth seal bearing; |
Single gross weight: | 0.25 KG; | Feature: | Long Life Dust Proof; |
Keyword: | conveyor roller bearing; | Selling Units: | Single item; |
Material: | SPHC, SPHD, SPHE, SPCC; | Place of Origin: | Jiangsu China; |
Application: | Conveyors used bearing housing set; | Package: | Standard Wooden Case; |
Description: | bearing housing TK/DTII/TKII/TD75; | Brand Name: | NA; |
Single package size: | 15X15X15 cm; | Packaging Detail: | standard wooden case packing or as customer's demand; |
Conveyor component: | Stamping Conveyor Roller Bearing Housing; | Type: | TK/DTII/TKII/TD75; |
Model Number: | conveyor roller bearing; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Construction works ,Energy & Mining; |
Service: | OEM Customized Services; |
manufacturer supply bearing housing set conveyor roller bearing housing
Conveyor idler roller bearing housing and labyrinth seal bearing / Conveyor Idler bearing housing:
Stamping bearing housing and its supporting seals, relying on the advantages of strong molds, the selection of high-quality materials, stamping housings with high precision, good gloss, no tensile scars and burrs, etc., is the preferred accessory for roller manufacturers. The variety of production is complete.
The roller bearing seat is composed of a seat body and a bearing mounted in the seat body, a labyrinth inner and outer seal ring, and an outer ring and a large end face of the inner seal ring have an annular waterproof and dustproof cover at the corresponding end. The inner and outer seals have a labyrinth gap at the shroud.
Since the protective cover and the dust cover in the original structure are omitted, the structure is simple, the parts are reduced, the depth of the seat body is reduced, the material is saved, and the manufacturing cost is greatly reduced. At the same time, by extending the gap and length of the labyrinth, the sealing effect is improved, and the service life of the roller can be extended.
The good sealing of the roller bearing housing requires strict quality control of the components, ensuring the structural and sealing properties of the components, and the roller bearing housing has a good sealing performance. A good roller seal will also bring you better benefits. Our main varieties are DT-II type, TK type, TR type, TD-75 type and other types of roller bearing housings and matching seals.
Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
Brief information of bearing housing:
Name | Flanged Bearing House for Conveyor Roller Idler | ||
Material | SPHC, SPHD, SPHE, SPCC | ||
Bearing Size | 6204/6205/6206/6305/6306/6307/6308/6310 | ||
Types | TK/DTII/TKII/TD75/customized special type | ||
Thickness | 2.5mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm | ||
Structure | Relative Seals | ||
Standard | ISO 9001:2015 | ||
Application | Conveyor Roller spare parts | ||
Package | Wooden Cases or as demand | ||
Size: | Min OD56/bearing type202 - Max OD265/bearing type312 |

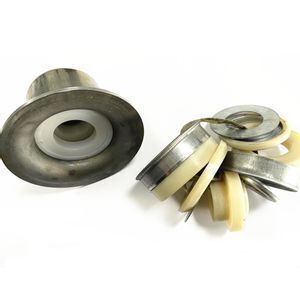

Pictures for reference:
manufacturer supply bearing housing set conveyor roller used pressed labyrinth seal bearing
Size and dimension of labyrinth seal bearing/bearing housing set :
manufacturer supply bearing housing set conveyor roller used pressed labyrinth seal bearing
type | OD | |||||||||||||||||||
56 | 60 | 63 | 76 | 89 | 102 | 108 | 114 | 127 | 133 | 140 | 152 | 159 | 165 | 176 | 194 | 219 | 245 | 265 | ||
6202 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
6203 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||
6204 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
6205 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
6206 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
6207 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
6305 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
6306 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
6307 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||
6308 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
6309 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||
6310 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||
6311 | √ | √ | √ | √ | √ | √ | √ | |||||||||||||
6312 | √ | √ | √ | √ | √ |
Other service:
We can also provide OEM customer service |
