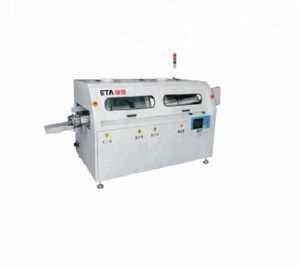

Good Price Wave Soldering Machine for DIP Inserting Line

Product details
Place of Origin:Guangdong China;Usage:SMT LED DIP THT;
Applicable Industries:DIP, THT, PCBA;Port:Shenzhen;
Power(W):3P5W;Dimension(L*W*H):3600*1250*1500;
Supply Ability:100 Set/Sets per Month dip wave soldering machine;Warranty:1 Year;
Condition:New;Packaging Detail:Vacuum packed in wooden cases;
Type:Automatic;Control system:PLC+Computer;
Voltage:380V;Weight:Approx.1200KG;
Brand Name:ETA;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Product name:Wave Soldering Machine for DIP line;Name:Dip Wave Soldering Machine;
After-sales Service Provided:Engineers available to service machinery overseas;Application:Wave Soldering for DIP, THT;
Certification:ISO CE CCC;
Product Description

Good Price Wave Soldering Machine for DIP Inserting Line

ETA lead-free wave soldering machine, after many years market testing, is ETA's mature product. ETA lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.

Features of Wave Soldering Machine:

■ Nozzle: Japan Kuroda Seiko nozzles, ensuring the long time spray uniformity and reliability.
■ ETA Wave Soldering MachinePneumatic components: Japan SMC pneumatic components and other import brands,ensuring gas supply accurate and steady.
■ Spray control: computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.
■ Cleaning device: automatic cleaning, modular design, easy maintenance.
■ Temperature Protection:ETA using third-party over-temperature protection, multiple protection layers to ensure safe operation.
■ ETA Wave Soldering Machine comply with CE, CCC, UL and other standards and specifications.
■ User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.
■ Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity (to meet the soldering of automotive electronics, communications, electronics, computers and mobile phones, and other consumer electronics.).
■ Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
■ Temperature control: PLC + PID independent temperature control, real-time monitoring preheat temperature.
■ Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs.
■ Customers can choose different configurations of flux processing system according to their own production characteristics, to ensure the furnace hall clean.
■ Closed-loop transmission speed control systems, transportation control accuracy ± 2mm / min, ensuring the transmission speed more stable.
■ Dross Collection: Automatic dross return channel,the most energy-efficient channel design, minimizing the amount of oxidation.

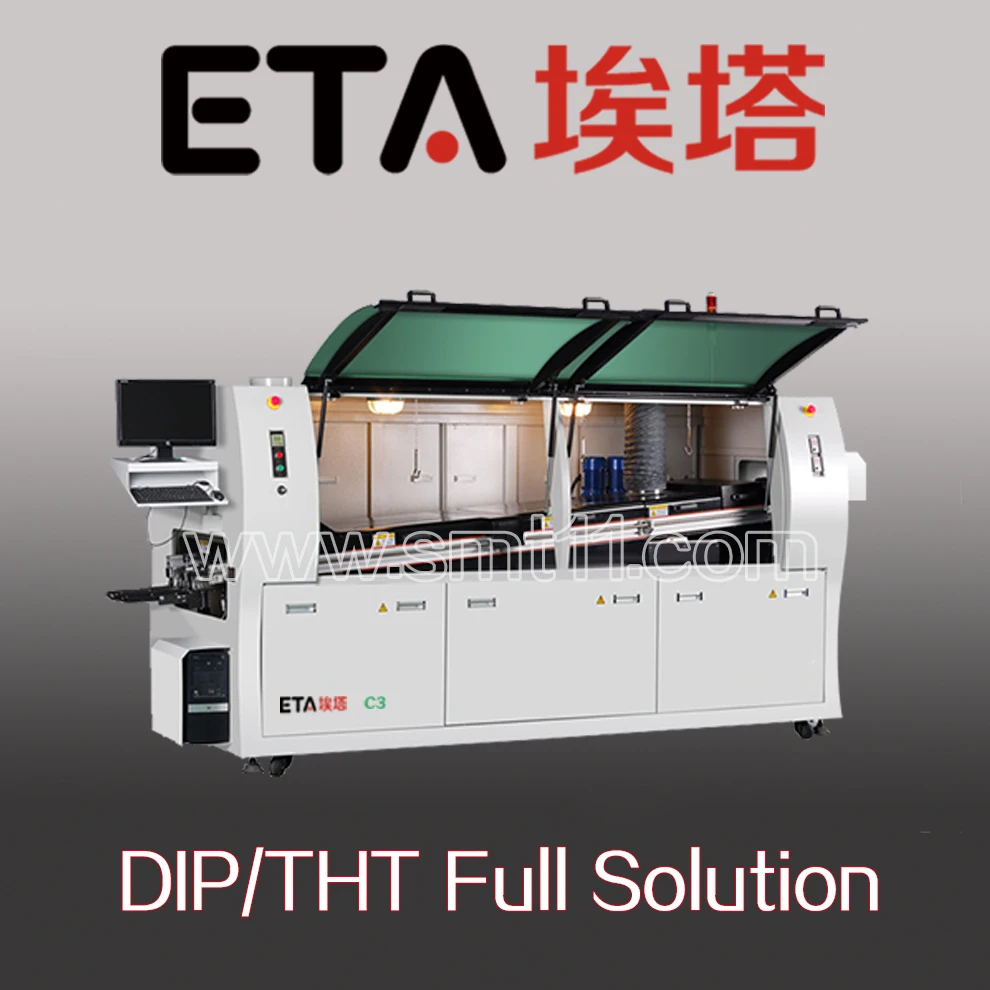

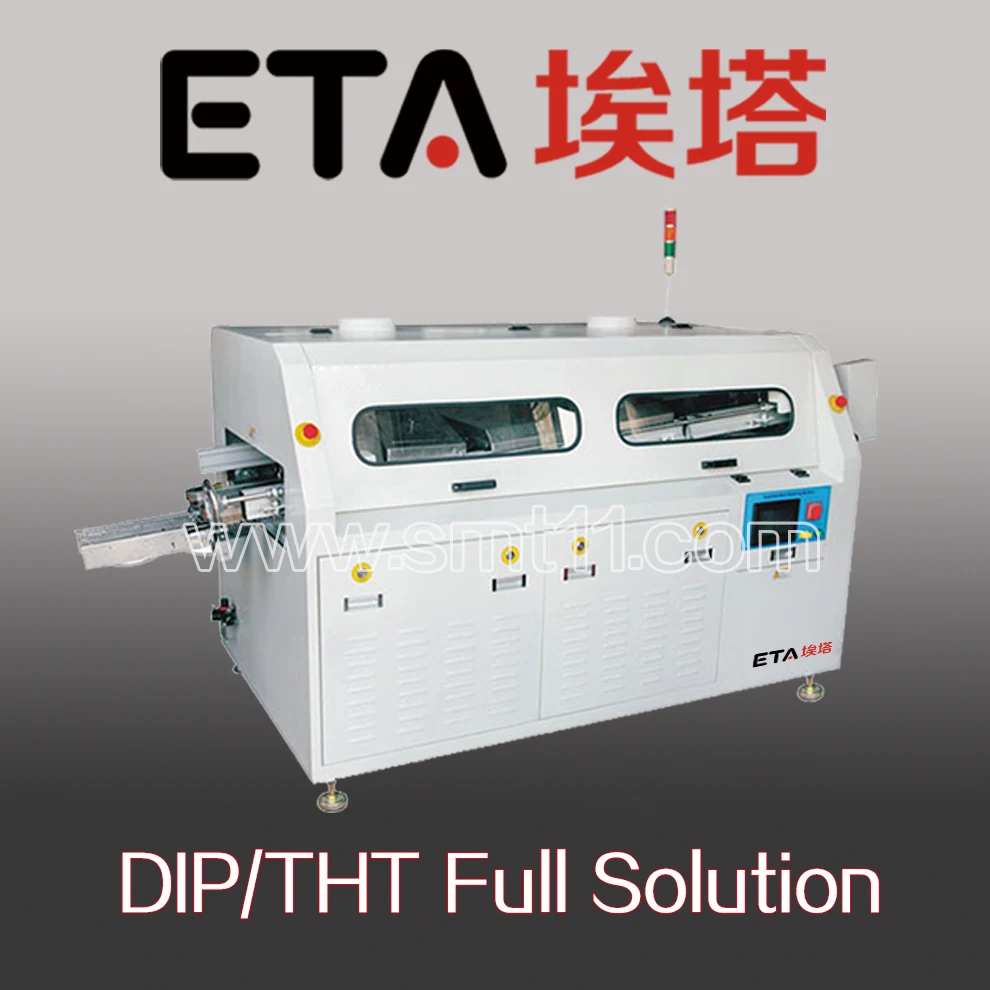

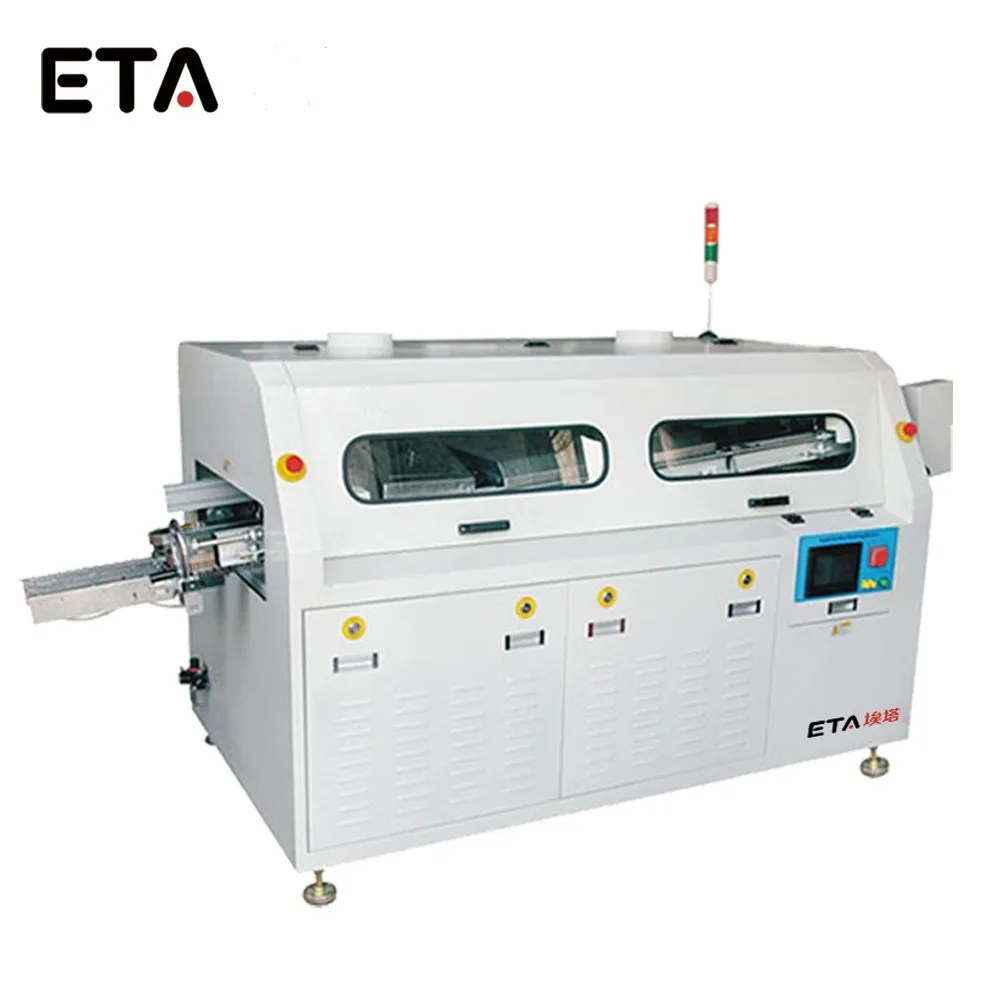

ETA Lead Free Wave Soldering Machine
Specifications
ETA W4
ETA W3
ETA W2
Dimension:(mm)
4200X1250X1500
3600X1250X1500
2900X1160X1500
Weight(kg)
Approx.1500kg
Approx.1200kg
Approx.790kg
Power Supply
                                                         3P5W, 380/220V 50Hz
Startup Power
32KW
24KW
16KW
Operation Power
12KW
9KW
7KW
Spray Pressure
                                                            0.25Mpa--0.4Mpa
Flux flow
                                                              10--100ml/min
Related Products

SMT Pick and Place Machine

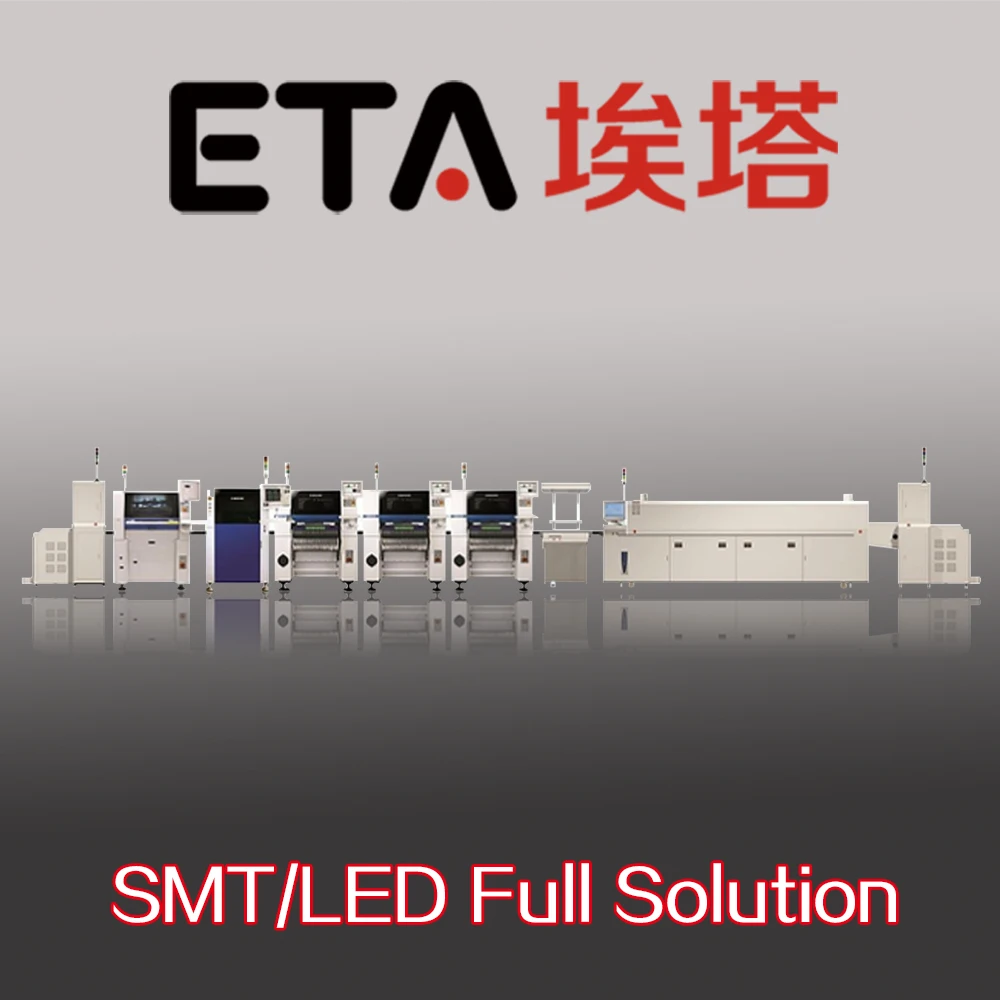

SMT Production Line

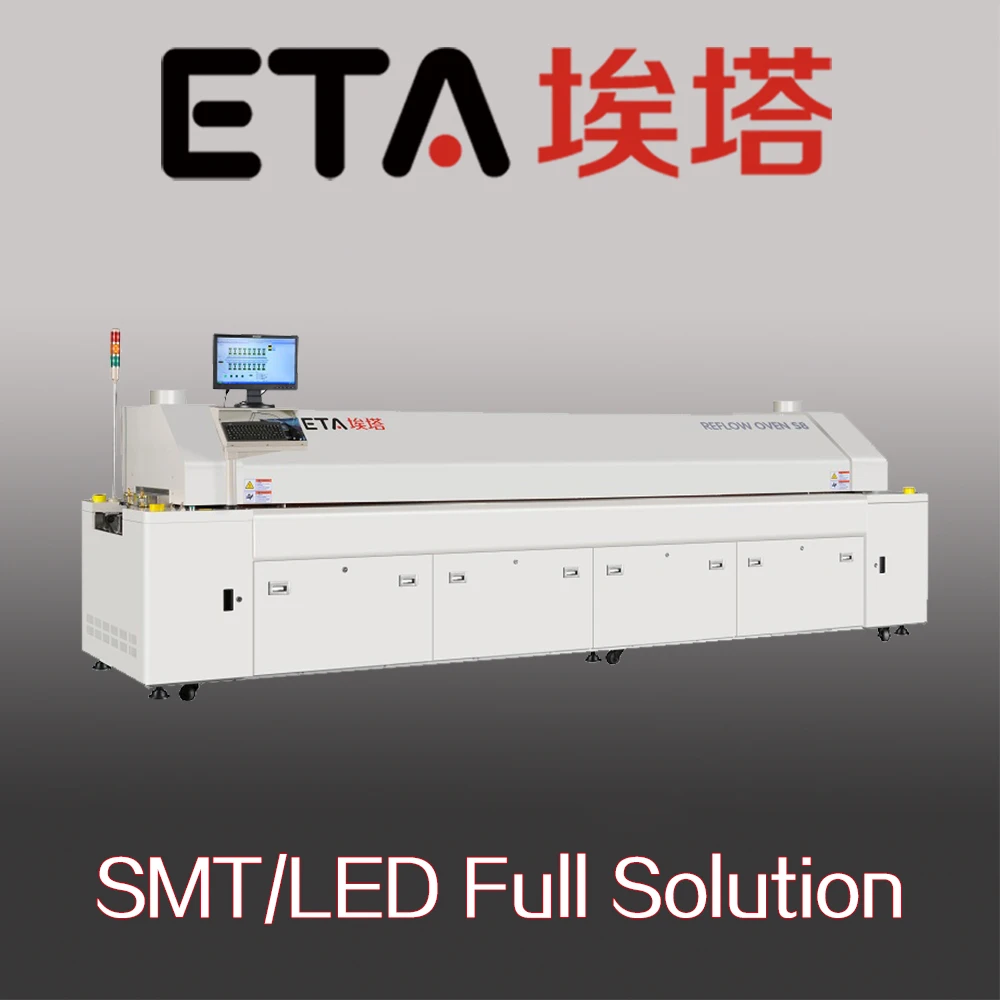

SMT Reflow Oven

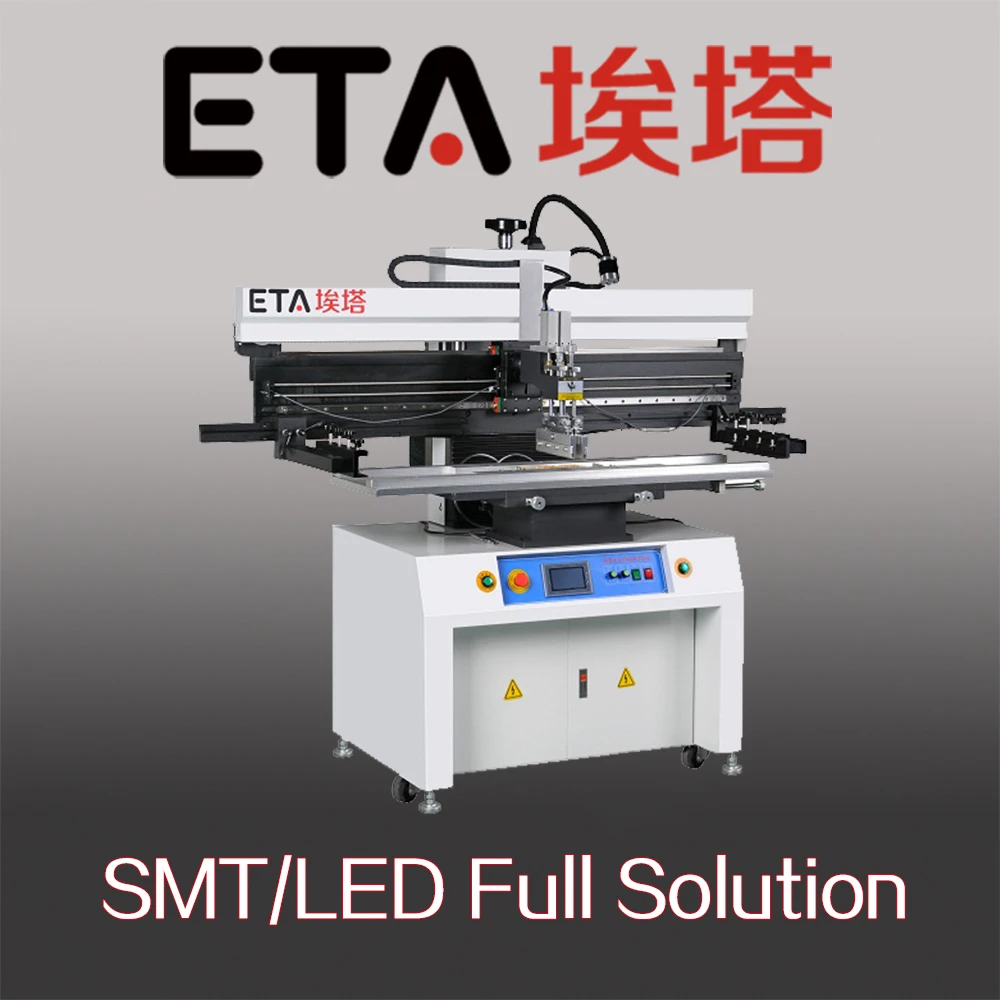

SMT Stencil Printer


LED Production Line


LED Stencil Printer


Click Here for More Information!!!

Certifications
Company information

ETA is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service. We have 22 years experience about SMT factories, offering full solution for global clients with our advantaged sources in China. Our core technology team members are all from Foxconn, Huawei, Siemens and other companies. We not only provide a full set of equipment, we also provide full smt technical support and services. Besides we give customers more reasonable and professional suggestions. We have already helped many customers to establish factories in LED, TV, Phone, DVB, EMS and other filed around the world. We are worthy of trust!

Main Products: SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line, LED Assembly Line, SMT LED Machine.

Successful Experience:
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.

Packing & Delivery
Packaging
PCB Size
5500 (L) * 1690 (W) * 1700 (D)
Weight
Approx.2250KG



Packaging Details
The normal package is vacuum wooden box(Size: 5500L*1690W*1700H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery time:45 days
Transport:The railway, shipping,air freight
Our Service

ETA Engineers installed in Russia

ETA Engineers installed in Iran

ETA Engineers installed in Vietnam

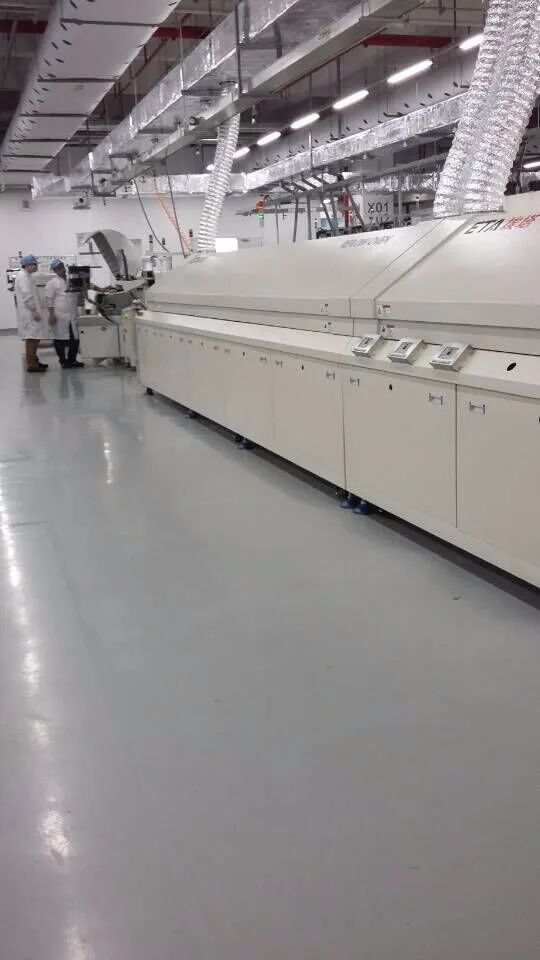

ETA Machine for mobile phone

ETA Machine with YAMAHA

ETA Machine for HUAWEI

Eta's customer in 35 countries around the world

1.We have been helping customers to build a lot of new factories around the world.

2.Training more than 500 experts and technician for customers.

3.Became the most reliable Chinese partner for you.

FAQ
1.Are you a trade company or a manufacturer?
We are an ISO,SGS,CE,ULapproved manufacturer specialized in SMT Machine,LED Machine,Pick and Place Machine,SMD Reflow Soldering Oven,SMT Stencil Printer,SMT Production Line and other SMT Products. OEM & ODM service are available.
2.Why us?
ETA is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service.22 years experience.
1.We have been helping customers to build a lot of new factories around the world
2.Training more than 500 experts and technician for customers
3.Became the most reliable Chinese partner for you.
3.What is your delivery date?
The delivery date is about 35 days after receipt of payment.
4.What is your payment terms?
30% deposit in advance and 70% balance before shipment.
5.What your main customers?
Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
