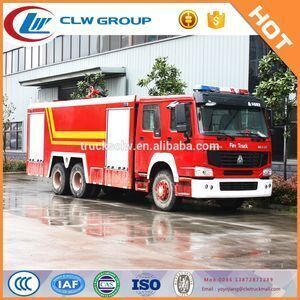

SINOTRUCK HOWO foam fire truck from Chinese manufacturers

Click here to contact

Product details

foam tanker capacity:	3300L;	Emission Standard:	Euro 3;
water tanker capacity:	12700 L;	Size:	1060524803550;
Water And Foam Flow:	64L/S;	Fuel Type:	Diesel;
Engine:	221kw;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Transmission Type:	Manual;	Drive Wheel:	4x2;
Max. Work Height:	60m;	Port:	any port of China;
Emission Standard:	Euro 3/Euro 4;	Supply Ability:	80000 Unit/Units per Year;
Place of Origin:	Hubei China;	Condition:	New;
Brand Name:	SINOTRUK HOWO;	Type:	Tanker;
Foam Range:	≥60;	Horsepower:	251 - 350hp;
Packaging Detail:	The truck waxed to prevent sea corrosion;	Tank Capacity:	> 10000L;
Water Range:	≥65;	Gun Pressure:	≤1200;
Delivery Detail:	7-25 days;	Model Number:	clw523GD383;

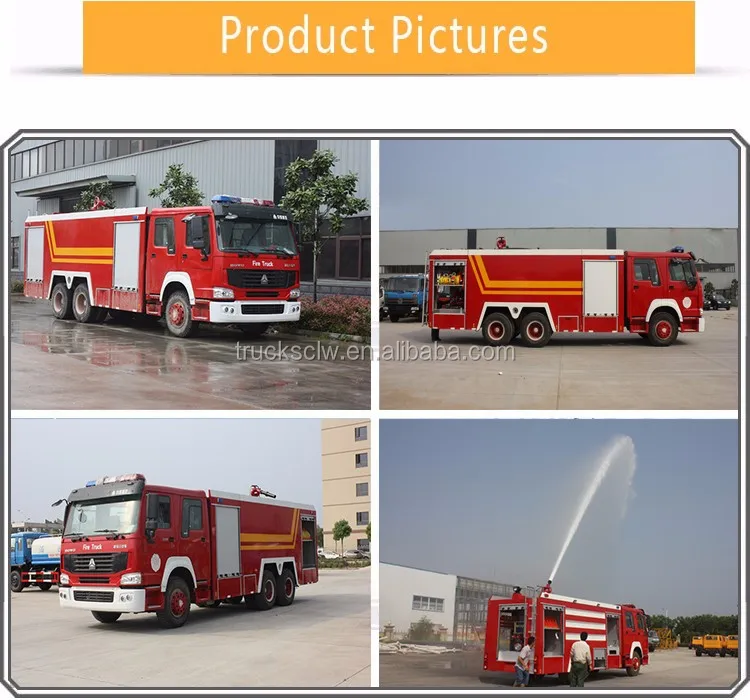

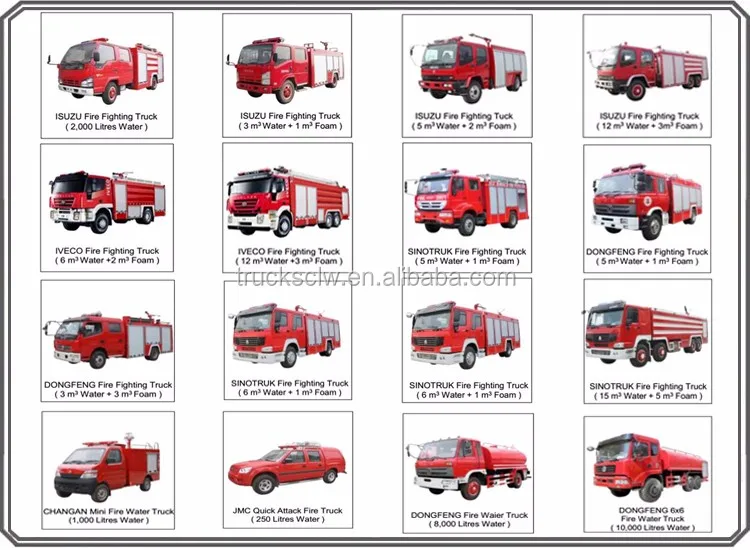

Product Pictures

Mainly Parameter

SINOTRUCK HOWO foam fire truck from Chinese manufacturers
General
Truck Name	Foam Fire Truck
Dribe Type	6*4
Vehicle Brand	CLW
Chassis Brand	HOWO
Overall Dimension	10605×2480×3550
GVW/Kerb Weight	31200/14750kg
Cab
Cab Capacity	2+4
Steel Wheel	Power-assisted left hand drive
Engine
Engine Brand	HOWO
Fuel Type	Diesel
Power	221kw
Displacement	9726ML
Emission Standard	Euro 3/Euro 4
Engine Type	4 cylinders in line,turbo-charged diesel engine,inter-cooling,high pressure common rail
Chassis
Chassis Brand	HOWO
Wheelbase	4600+1350 mm
Drive Type	6*4, left or right hand drive
No.of axle	3
Tyre Specification	12.00-20
Tyre Number	10
Max Speed	80 km/h
Paint	Metallic paint
Approach/departure angle(°)	16/9
Front/rear hang(mm)	1500/3055
Superstructure
Tank Material	Carbon Steel/Stainless Steel
Tank Capacity	Water Capacity(L)	12700
	Foam Capacity (L)	3300(could be adjusted)
Fire Pump	Low Pressure(L/S/MPa)		70.0/1.0
	Medium Pressure(L/S/MPa)		40.0/2.0
	Low and Medium Pressure (L/S/MPa)	Low Pressure	35.0/1.0
		Medium Pressure	20.0/2.0
Fire Gun	Water	Flow(L/S)	64
		Nozzle Pressure(kpa)	≤1200
		Range(m)	≥65
	Foam	Flow(L/S)	64
		Pressure(kpa)	≤1200
		Firing Range(m)	≥60
		Mixing Ratio	6~7
	Other	Rotation Angle	360
		Angle of Pitch	-15~45
Hose	High quality ,wire stregthened hose,with cooper wire,antistatic
Optional
Accessories:Typical modern fire apparatus carries equipment for a wide range of fire fighting and rescue.
NOTE:Any part can be customized depending on customers' demand.
