Good price 350HP workover rigs

Supplier: Dongying Jintan Petroleum Technology Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Fuhua Ai
Price: $45010.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Oil Well;	Packaging Detail:	standard export packaging;
Features:	Top-drive Head Water;	Supply Ability:	300 Set/Sets per Year;
type:	Rotary Drilling Rig;	Warranty:	12 Months;
Drilling depth:	4500-7000m;	Purpose:	Oil Tunnel Drilling;
Power(W):	12 KW;	Drilling Rig Type:	Workover Machine;
Type:	workover rig;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:	380V;	Application:	Oil Coal Field;
Brand Name:	JT;	Model Number:	XJ350;
Name:	XJ850 Workover Rig;	Place of Origin:	Shandong China;
Power Type:	Diesel;	Construction technology:	DTH Hammer Drilling Technology;
Dimension(LWH):	Required;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	API;	Weight:	Actual Weight;
Offical Product Name:	Workover Rig;	Drilling rig type:	Workover Machine;
Port:	Qingdao;	Condition:	New;

Product Description

We have developed series of workover rigs with maximum static load ranging from 300 to 2250kN ( 67440-505800 lbs ) and installed power ranging from 235 to 1300HP, including XJ150, XJ250, XJ350, XJ400, XJ450, XJ550, XJ650, XJ750, XJ850, XJ1000 and XJ1200. The power system, drawworks system and driving system are all installed on a carrier, therefore it is easy for installation and movement. These rigs are suitable for workover operation for wells ranging from 1000 m to 9000 m , and for drilling operation for medium and shallow wells if equipped with a rotary table.

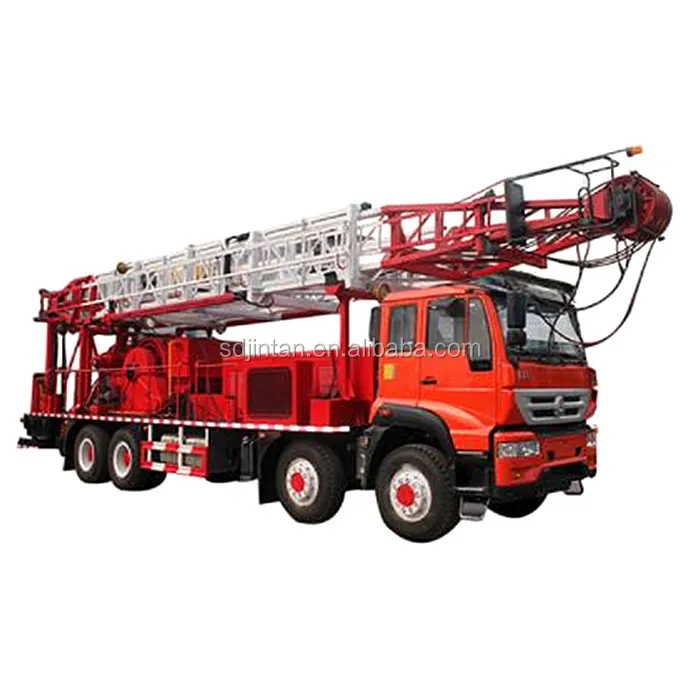

A self-propelled workover rig is mainly composed of chassis, power and driving system, drawworks system, mast, hydraulic/ air/ electric control system and rotary system. The rig travelling and operation are all powered by a deck engine.

1. We can provide a complete line of products to meet various neaeds for workover operations.
2. Mast and operation parts are all installed on a chassis which will ensure easy installation and fast movement.
3. Well-known engine and hydromechanical transmission are adopted.
4. Self-propelled chassis will be more suitable for complicated oilfield conditions.
5. The integral Lebus groove in main drum will make lines in good order and avoid intertwist.
6. Power for chassis and deck operation parts are taken from engine respectively through a transfer case.

7. Many parts are standardized, thus different equipment can share parts.

XJ850 Workover Rig

XJ850 workover rig, with 2250kN of max. static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations. It is equipped with a lifting system and a rotary operating system. It is widely applied in many fields. It can be used for workover and lateral drilling operations if equipped with a rotary table and relevant parts. Reasonable layout, compact structure, easy transportation, convenient operation and main

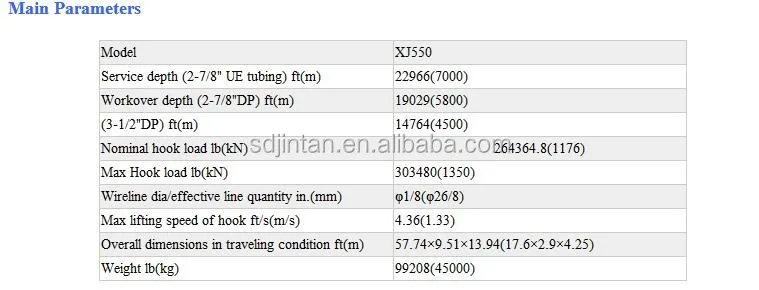

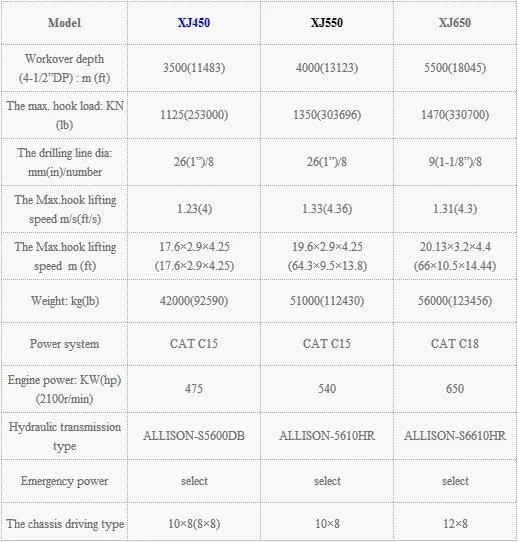

XJ550 Workover Rig

XJ550 workover rig, with 1350kN/30348 of max. static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations. It is equipped with a lifting system and a rotary operating system. It is widely applied in many fields. It can be used for workover and lateral drilling operations if equipped with a rotary table and relevant parts. Reasonable layout, compact structure, easy transportation, convenient operation and maintenance.

1. 105 ft ( 32m ) double section mast, hydraulically raised and telescoped.
2. 10×8 self-propelled chassis.
3. A hydromatic brake is often used, and Eaton water-cooled disc brake or air tong brake is also available.
4. 5 forward 5 reverse speeds rotary drives equipped with torque release device.
5. Rod hanger is available.

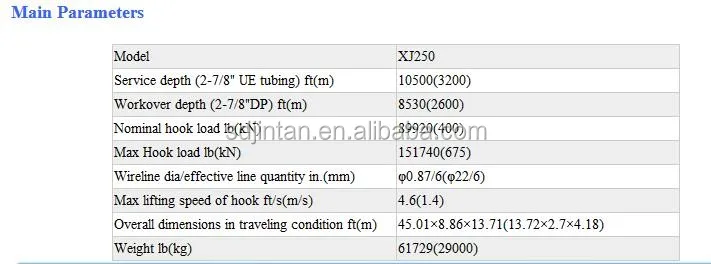

XJ250 Workover Rig

XJ250 workover rig is one of light-duty self-propelled rig, and mainly used for shallow well workover , oil testing, fishing and pump check operations. It is equipped with a lifting system,single drum drawworks, hydraulically raised double or single mast and famous engine and ALLISON hydromechanical transmission. It is easy for transportation and convenient for installation, operation and maintenance.

1. 68.90 ft ( 21m ) double section mastor 59.06 ft ( 18m ) single section mast.
2. 6×6 full drive chassis, fast movement, good cross-country capability.
3. Double drum drawworks, band brake,without auxiliary brake.
4. Mast base and simple operation platform are hanged on the rear.
5. Rotary driving system can be equipped.

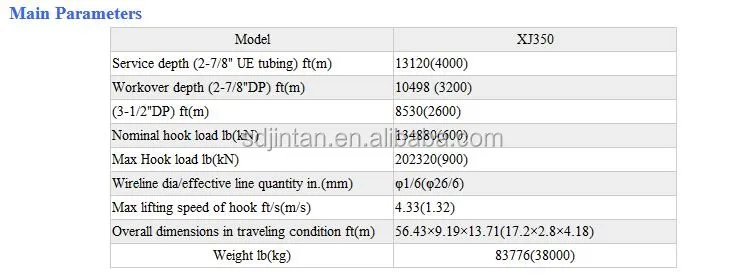

XJ350 Workover Rig

XJ350 workover rig is the smallest self-propelled rig, and mainly used for shallow well workover , oil testing, fishing and pump check operations. It is equipped with a lifting system, single drum drawworks, single mast, engine and hydromechanical transmission, without a rotary system. It is easy for transportation and convenient for installation, operation and maintenance.

52.49 ft ( 16m ) or 59.06 ft ( 18m ) single section mast.

1. 6×6 full drive chassis, fast movement, good cross-country capability.

2. Single drum drawworks, band brake,without auxiliary brake.

3. Mast base and simple operation platform are hanged on therear.

4. Hydraulic rotary table is available.

Packaging & Shipping

Carton, pallet, wooden case, wooden pallet, as per customers' requirement.

Shipping: BY AIR, SEA OR TRAIN.
