Usage: | For drilling muad and fluids handing; | Certification: | API, CE, ISO; |
Max. Bowl Speed(RPM): | 3900RPM; | Separation: | Solid-liquid Centrifuge; |
Power(W): | 22-50KW; | Type: | Fixed speed and VFD; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Product Type: | Oil and industrial decanter centrifuge; |
Port: | Shanghai, Tianjin or as customer's requirements; | Supply Ability: | 50 Set/Sets per Month Decanter Centrifuge; |
Place of Origin: | Shaanxi China; | Machine type: | Oilfield Decanter Centrifuge; |
Warranty: | 1 Year; | Weight: | 2350-3600KG; |
D50 (μm) Separation point: | 4~7 or 2~7; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining; |
Dimension(L*W*H): | depends on specification; | Application: | Oilfield and industrial services; |
Material: | Stainless Steel; | Type: | Separation equipment; |
After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Voltage: | 380V or 460V or customized; |
Brand Name: | KOSUN; | Max Capacity(m3/h): | 35/45; |
Packaging Detail: | Standred shipping package; | Condition: | New; |
Feature: | Long service life; |
High quality decanter centrifuge manufacturer

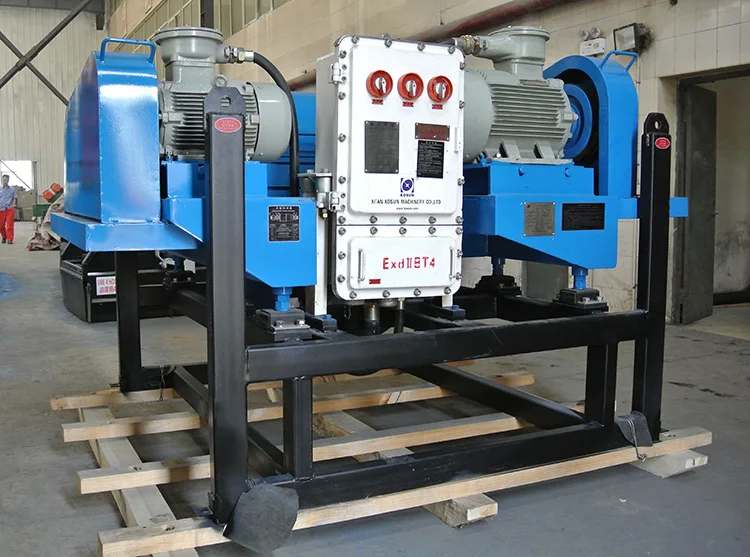

KOSUN DC series decanter centrifuge is used in separating suspension of solid phase with particle diameter d≥2μm for drilling mud and fluids handling, the mud can achieve ideal viscosity and proportion. Ruggedly built for oilfield and industrial services, it is especially effective in environmentally sensitive areas. It delivers high fluid-recovery rates and efficient solids control to significantly reduce the costs of makeup fluids and disposal. KOSUN decanter centrifuge can meet with different requirements of mud treatment under various drilling conditions. The centrifuge must test the dynamic balance for smooth operation over long periods. seeed ranging from 0 to 3900RPM, generating centrifugal forces reach up to 3000G.
________________DC series Decanter Centrifuge __________________
SPECIFICATION FOR CENTRIFUGAL PUMP | |||||||||
Model | DC450S | DC450L | DC355 | DC600 | |||||
Type | Fixed Speed | VFD | Fixed Speed | VFD | Fixed Speed | VFD | Fixed Speed | Fixed Speed | |

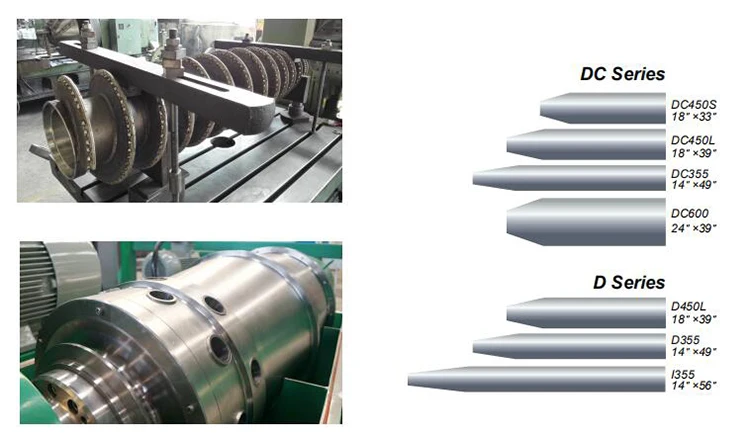

Bowl Diameter(mm)/(in) | 450 / 18 | 450 / 18 | 450 / 18 | 450 / 18 | 355 / 14 | 355 / 14 | 600 / 24 | 600 / 24 | |
Bowl Length(mm)/(in) | 842/33 | 842 / 33 | 1000 / 39 | 1000 / 39 | 1257 / 49 | 1257 / 49 | 1000 / 39 | 1000 / 39 | |
Max. Bowl Speed(RPM) | 3900 | 3900 | 3900 | 3900 | 3900rpm | 3900rpm | |||
Typical Bowl Speed(RPM) | 1800/2200/ 3300 | ~3300 | 1800/2200 | ~3300 | 2800/3300 | ~3200rpm | 1500 | 2000 | |
G-Force | 820/1215/ 2740 | 2740 | 820/1215 | ~2740 | 1556/2160 | ~2032 | 755 | 1341 | |
Differential Speed(RPM) | 21/32/30 | ~60 | 21/34 | ~60 | 30/39 | ~60 | 23 | 37 | |
Max Capacity(m³/h) | 45m3/h | 45m3/h | 45m3/h | 45m3/h | 35m3/h | 35m3/h | 60m3/h | 60m3/h | |
D50(μm) Separation point | 2~7 | 2~5 | 4~7 | 2~5 | 2~7 | 2~7 | 5~7 | 4~7 | |
Main Motor(kW) | 22/22/30 | 30 | 30 | 30 | 30 | 30 | 45 | 55 | |
Back Drive Motor(kW) | 5.5/5.5/7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | |
Electrical control panel | Material | Welded-Steel Plate/stainless steel | |||||||
IP code | IP65/IP65 | ||||||||
Ex-mark | ExdⅡBT4/ ExdⅡCT3 | ||||||||
Type of Gearbox | cycloidal-pin wheel | cycloidal-pin wheel | cycloidal-pin wheel | cycloidal-pin wheel | planery | planery | cycloidal-pin wheel | cycloidal-pin wheel | |
Dimension: L×W×H(mm) | 2630x1710x 1650 | 2630x1710x1650 (excluding VFD cabinet) | 2800x 1710x 1700 | 2800x1710x1700 (excluding VFD cabinet) | 2830x1555x 1760 | 2830x1555x1760 (excluding VFD cabinet) | 2940x 1900x 2010 | 2940x 1900x 2010 | |
Weight(KG) | 2350 | 2750 | 2600 | 3050 | 2300 | 2800 | 3550 | 3600 | |
Power | 380V/50Hz or 460V/60Hz or customized | ||||||||
Optional | Electric cabinet material:(1)Welded-Steel Plate(2)stainless steel | ||||||||
Remark | No fluid coupling | No fluid coupling | No fluid coupling | No fluid coupling | No fluid coupling | No fluid coupling | with fluid coupling | with fluid coupling |
