Application: | Solid control system,For drilling purification system; | Voltage: | 380V, 460V or Customized; |
Weight: | 1925Kgs; | Usage: | Remove drilling cuttings above 75μm from drilling fluid; |
Shaker screen: | 2.7㎡; | Treating Capacity: | 136-170 m3/h; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Splash prevention: | Availible; |
Dimension(L*W*H): | 2998*1856*1522mm; | Motor: | Import motor Martin; |
Condition: | New; | Type: | Solid control equipment; |
Name: | High Quality Mud system linear motion shale shaker for sale; | Brand Name: | KOSUN; |
Production Capacity: | 20 per month; | Place of Origin: | Shaanxi China; |
Port: | Shanghai/ Tianjin; | Features: | Solid Control Shale Shaker; |
After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Warranty: | 1 YEAR; |
Supply Ability: | 20 Set/Sets per Month shale shaker for sale; | Shale Shaker Screen type: | Frame/Pre-tensioned; |
Packaging Detail: | Wooden case or according to customer's request; | Model Number: | KOSUN 584 series; |
Feature: | G-forces linear motion up to 7.1G(adjustable); | Certification: | API, ISO, CE, QMS, IAF, IADC; |
________________________Product Description_________________________

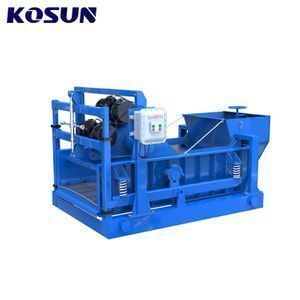

KOSUN 584 serise Mud Shaker are an ideal and effective solid control equipment for high-capacity treating in the heavy loading and tough drilling conditions , its easy to maintain, the single side screens tension system make it easy to change the screens. The AWD system could change the angle of shaker deack from -1°~5°,it can remove cuttings above 75μm brought from the drilling.
SPECIFICATION FOR OIL FIELD MUD SHALE SHAKER | ||||
Specification | Model | KOSUN LS584 | BLACK RHINO | KOSUN ES584 |
Vibrating Motion | Linear motion | Linear motion | Balanced Elliptical Motion | |
Vibrator Mode (Martin) | Stander Design | Stander Design | Tubular Design | |
Treating Capacity m3/h/GPM | 136-170/600-750 | 136-170/600-750 | 136-170/600-750 | |
Motor Power kW/HP | 2*1.72kW(2*2.3hp)(Italy Oli) 2*1.86kW(2*2.5hp)(Martin) | |||
G-force G | 7.1 (6.5-7.5 Adjustable) | 7.1 (6.5-7.5 Adjustable) | 6.3 (5-6.3 Adjustable) | |
Deck Adjustment | -1° to +5° | -1° to +5° | -1° to +5° | |
Power | 380V/50HZ, 460V/60HZ, or Customized | |||
Shaker Screen m2/Ft2 | 2.7/29 | 2.7/29 | 2.7/29 | |
Screen Type | Frame/Pre-tensioned | Frame/Pre-tensioned | Frame/Pre-tensioned | |
Screen No. | 4 | 4 | 4 | |
Screen Dimension mm/in | 585*1165/23*46 | 585*1165/23*46 | 585*1165/23*46 | |
Weir Height mm/in | 780/30 | 780/30 | 780/30 | |
Dimension mm | 2998*1856*1522 | 2998*1856*1515 | 2998*1856*1500 | |
Noise dB | <85 | <85 | <85 | |
Weight kg | 1925 | 1935 | 1917 | |
Remarks | The color of shale shaker can be customized | |||
Payment | Small Value: 30% T/T in advance, 70% balance payment before shippment | |||
Large Order: Negotiation | ||||
After sales | 1 Year guarantee period from machine shipment date | |||
Abundant spare parts in stock could offer quickly | ||||
our technical engineer could be dispatched for overseas service | ||||
7*24 hours technical support | ||||
Your worker could get trained both in our factory and yours if needed | ||||
Routine tracing till the machine work proerly will be done timely | ||||
Your suggestions or any feedback would be treated in priority |
