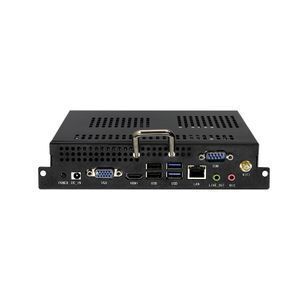

intel i3 i5 i7 industrial computer OPS for electronic whiteboard
-
Supplier: Shenzhen Evolution Computer Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Annie Wang -
Price: $180.00 /unit -
Min. Order: 1 unit
| Memory: | DDR3 1333 1600 MHz, MAX 8GB; | Storage: | 1 mSATA slot, 2 SATA bay; |
| Products Status: | Stock; | Display: | 1 HD-MI, 1 VGA; |
| LAN: | 1 Lan; | USB: | 2 USB3.0, 2 USB2.0; |
| Brand Name: | EVC; | OS: | Win XP 7 8 10, Linux; |
| Power supply: | DC 19V/4.7A; | Chipset: | Intel H61; |
| Type: | Embedded Computer; | Port: | Shenzhen; |
| Place of Origin: | Guangdong China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| CPU: | Intel Core 2nd & 3rd i3 i5 i7; | Warranty: | 1 Year; |
| Supply Ability: | 1000 Set/Sets per Month; |
intel i3 i5 i7 industrial computer OPS for electronic whiteboard

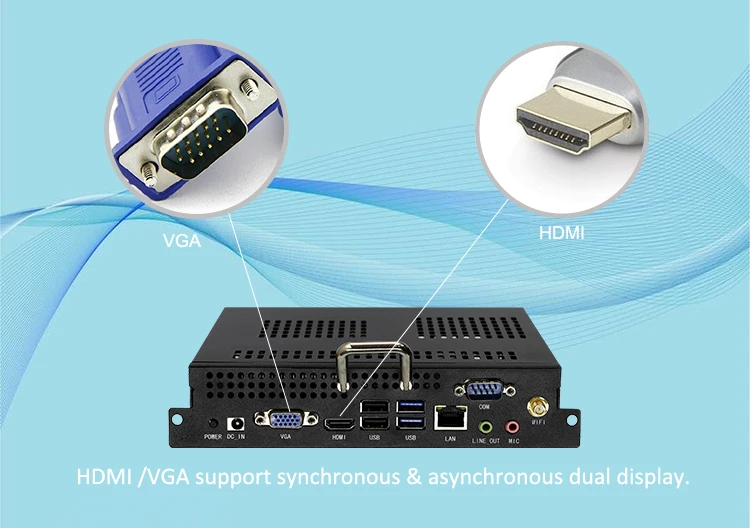

1. Integrated Intel HD Graphic card, HD-MI & VGA full HD 1080p Dual Display,enable an extraordinary visual experience for home theater or gaming purpose.

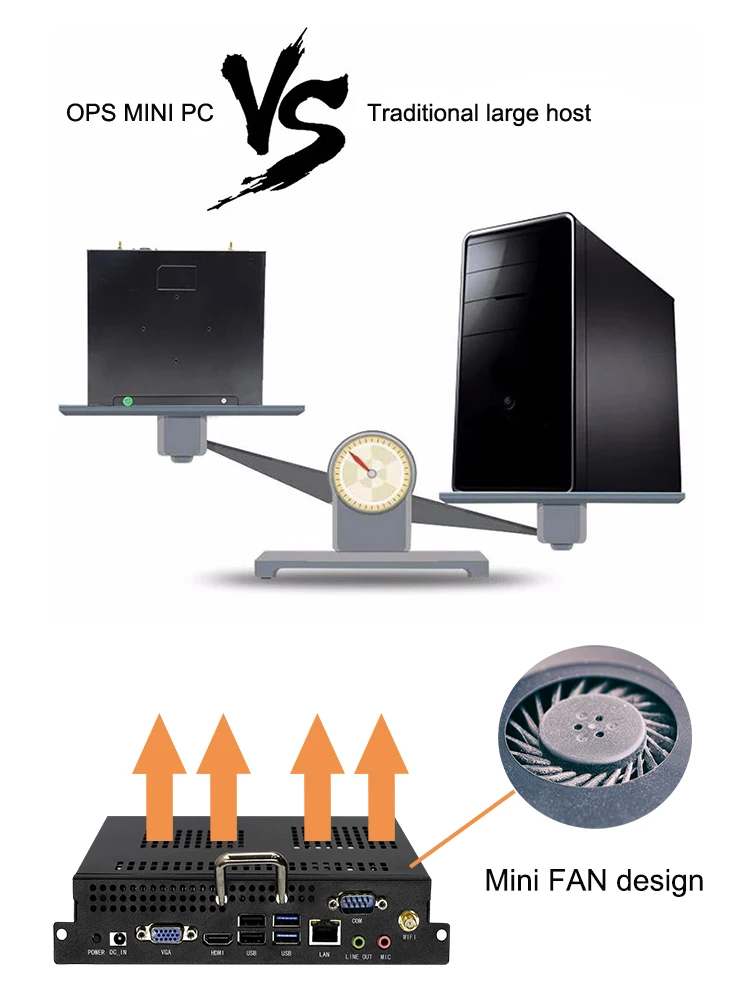

2. Fan design with high-quality pure aluminum housing, industrial standard, mini fan design & quick heat dissipation,enjoy quietness & durability.
| Description | Front port | ||
| CUP | Intel® Core™ 2nd/3rd i3/i5/i7, optional | Button | 1*Power Button |
| RAM | Dual DDR3 1333/1600 MHz MAX 8GB | Reset | 1*Reset Button |
| Chipset | Intel H61 | Indicator | 1*Power indicator |
| Graphic | Integrated Intel® HD Graphics | Display | 1*HD-MI, 1*VGA |
| Network | 2*Realtek RTL8111H LAN IC, 1000M lan | USB port | 2*USB3.0, 2*USB2.0 |
| 1*mini-PCIe port(support WIFI 2.4G/5.2G) | LAN | 1*LAN | |
| Audio | Realtek ALC662 HD Audio(5.1 sound channel) | Audio port | 1*Mic-in |
| Storage | 1*mSATA slot, 2*SATA bay | 1*Line-out | |
| USB | 2*USB3.0, 2*USB2.0 | ||
| COM | 1*TTL | ||
| Watch Dog | Yes | Back port | |
| 3G & 4G | Yes | Audio port | 1*Line-out |
| Wake On Lan | Yes | USB port | 2*USB2.0, 2*USB3.0 |
| Electricity boot | support by BIOS | OPS | 1*OPS(80pin) |
| DC | 1*DC port | ||
| Power | Display | 1*HD-MI | |
| Power adapter | DC 19V/4.7A | Switch | 3*JSW |
| OS | |||
| Operating System | Win XP 7 8 10, Linux | Other | |

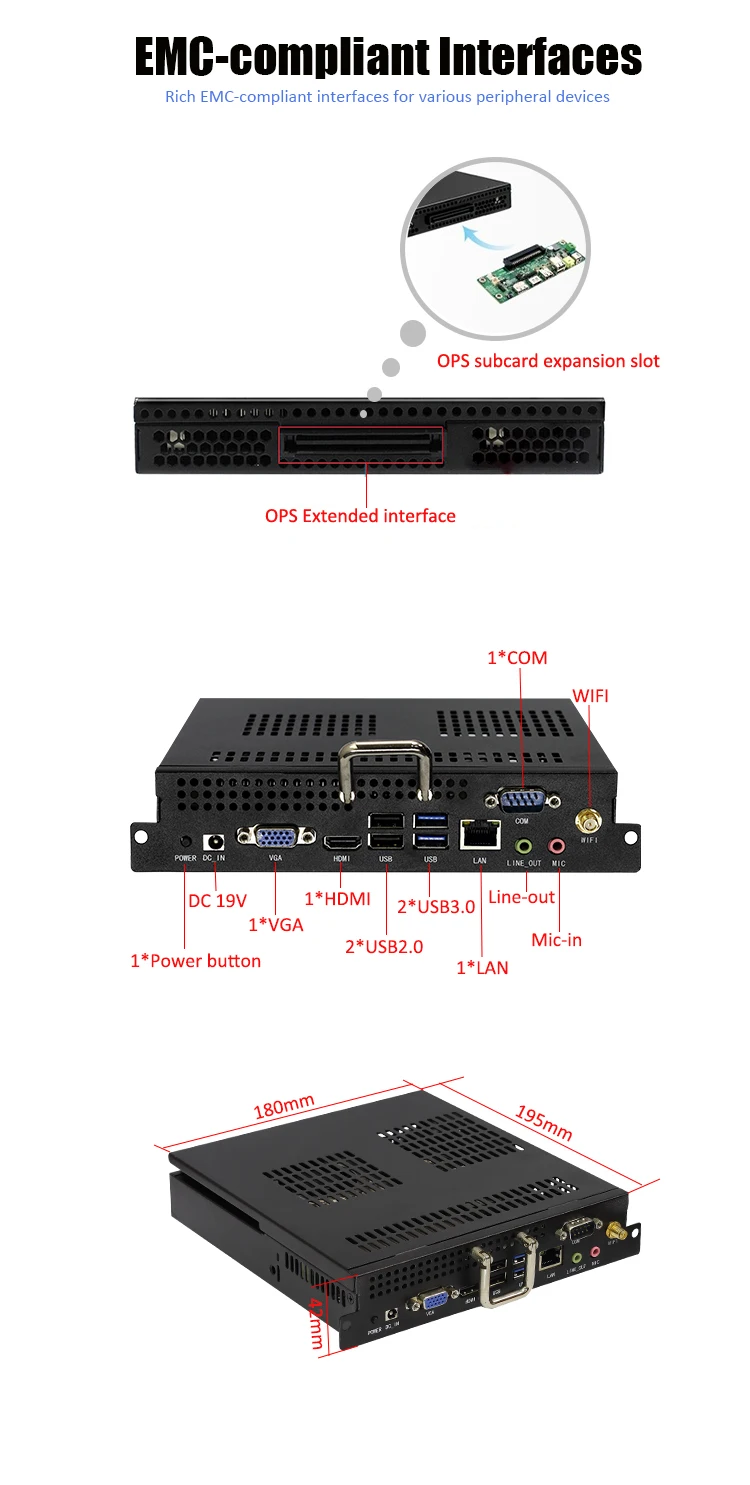

| Dimensions | 195*180*42mm(W*D*H) | ||
| Temperature & Humidity | Weight | 1.5KG(N.W.) | |
| Working Temp. | 0°C ~ 50°C (32°F ~ 122°F) | Way of packing | Carton Packing |
| Storage Temp. | -20°C ~ 70°C (-4°F ~ 158°F) | Security Lock | N/A |
| Working Humidity | 10% - 95% @40°C non-condensing | Heat-dissipating method | Mini Fan design |
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
-
