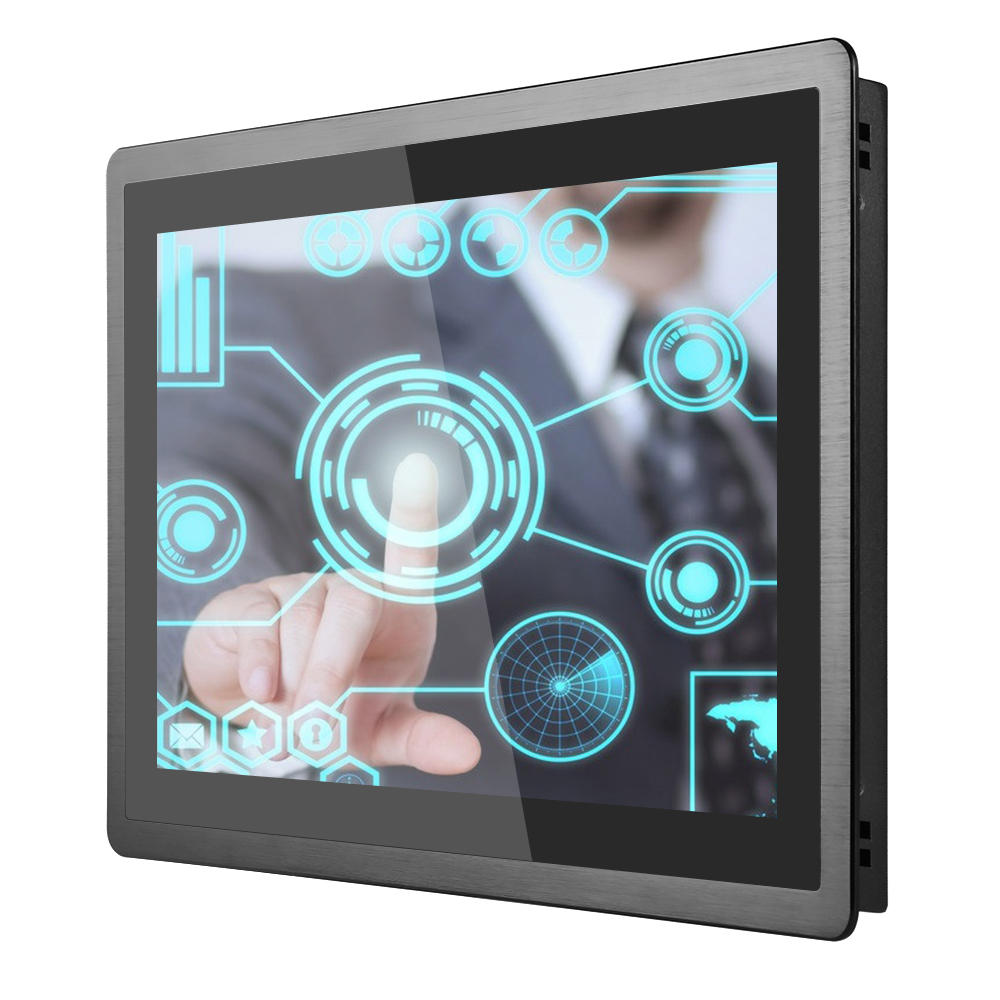

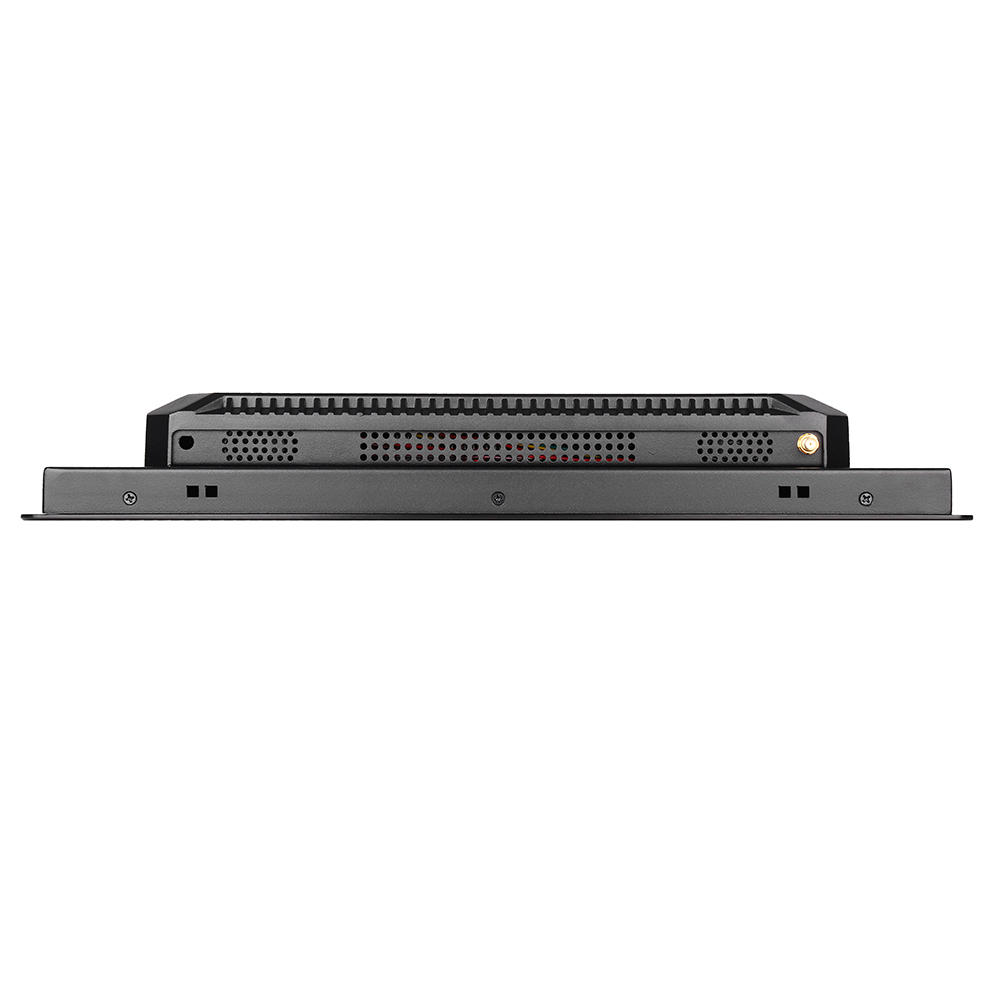

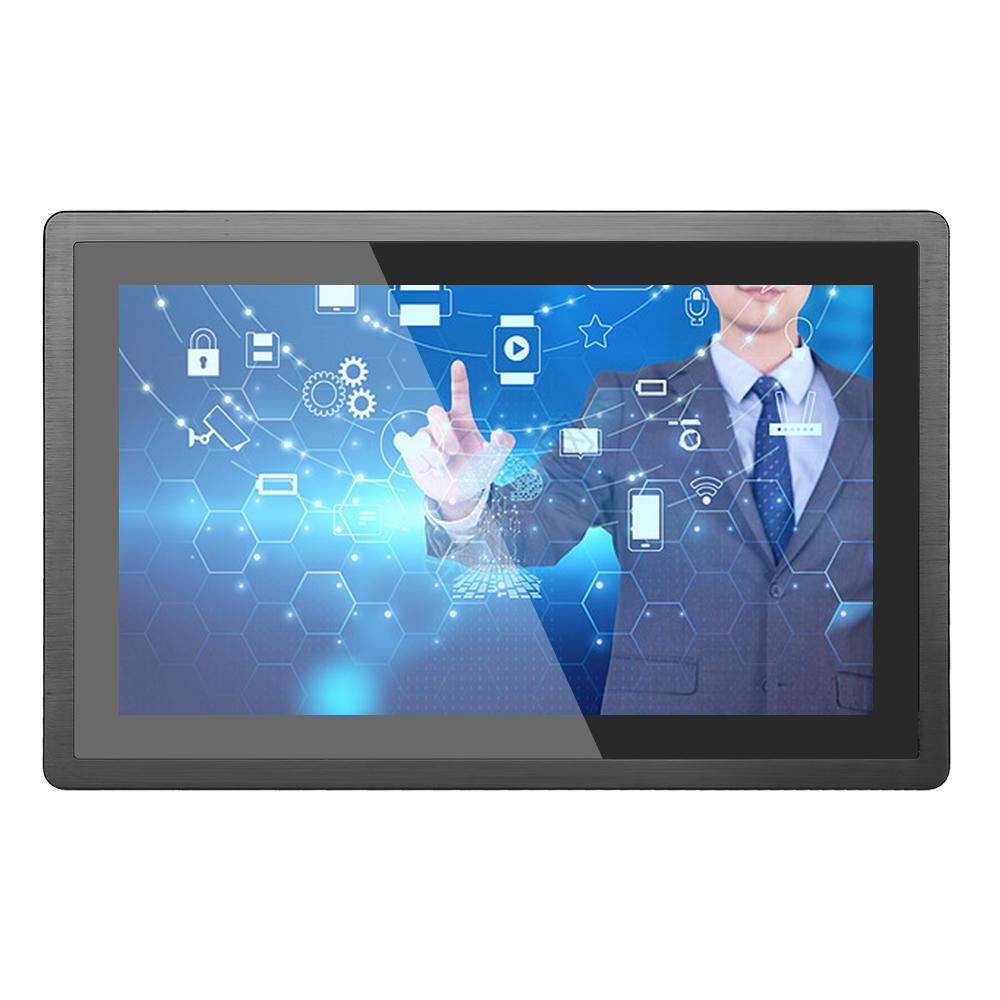

15.6 inch Embedded Custom Industrial All-in-One Tablet PC Full HD Waterproof Computer Capacitive Touch 16:9 Kisko Display

  • Supplier: Shenzhen BestView Electronic Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Cathy Bestview
  • Price: $299.00 / 1 - 49 pieces
    $294.00 / 50 - 999 pieces
    $278.00 / >=1000 pieces
  • Min. Order: 1 piece
Product details
Origin:Guangdong, ChinaSupply capacity:5000 pieces per month
brightness:250 cadmium/square meterPackaging Details:15.6 inches all-in-one industrial computer inbox + carton; gift carton, standard carton, natural carton or customized.
Package preview:payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
hard disk:64GB (128GB, 256GB, 512GB, 1TB)port:Shenzhen
CPU:Celeron J1900 (i3/i5/i7 optional)brand:Neutral/Jiashi/OEM
operating system:Win7/8/10/Linux/Ubuntuinterface:VGA/LAN/USB/COM/DC input/HDMI/MIC/EAR/WIFI
product name:All-in-one industrial touch panel computerWarranty:1 year
product status:in stocktype:tablet
size:15.6 inches (13.3 inches, 18.5 inches, 21.5 inches)solve:1920*1080
touch screen:capacitive touch screen
Product Description
Industrial All-in-One LCD Touch Screen Tablet PC/Monitor 7''/8''/10.1''/10.4''/12.1''/13.3''/15''/15.6''/17''/18.5''/ 19''/21.5''/23.6''/23.8''/27''/35''/43''/55''/65''
dropshipping/good after-sales service/made in China/manufacturer/MOQ: 1 piece
Specification

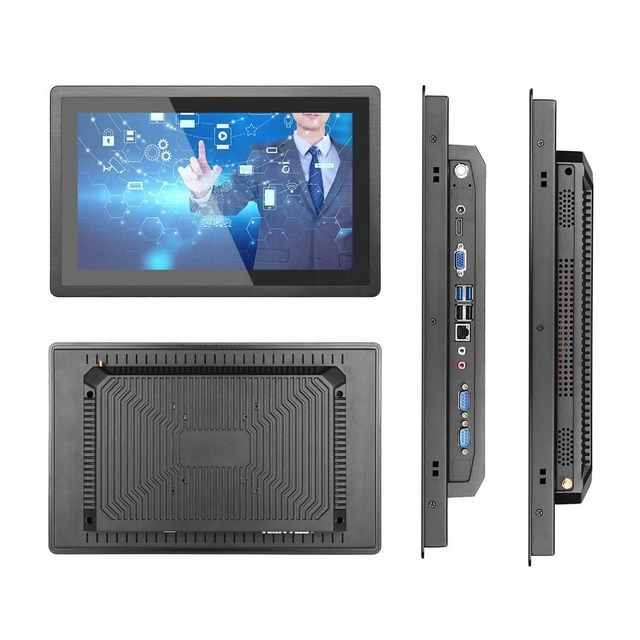

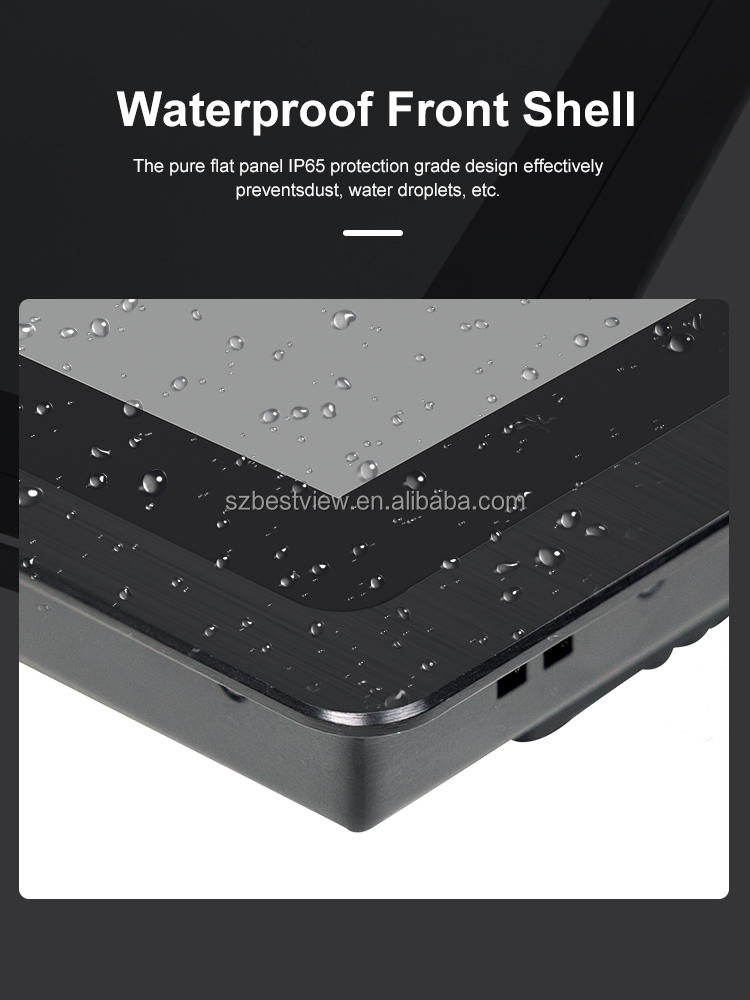

15.6 inch embedded aluminum all-in-one industrial computer high brightness waterproof computer capacitive touch 16:9 outdoor computer
personal computer
CPU
Intel® Celeron J1900 2.0GHz quad-core (Core i3, Core i5, Core i7 optional)
memory
4G DDR3, (up to 8G)
Hard drive capacity
64G SSD
Hard disk optional
SSD: 32GB, 64GB, 128GB, 256GB, 512GB, 1TB
Hard disk: 500GB, 1TB
graphics
CPU integrated graphics card HD Graphics and supports 1080p high-definition photo quality
sound
Realtek ALC662, High Definition Audio (HD), Line-in, Line-out
network
1×Realtek RTL 8111E Gigabit Ethernet Controller
wireless network
WIFI optional

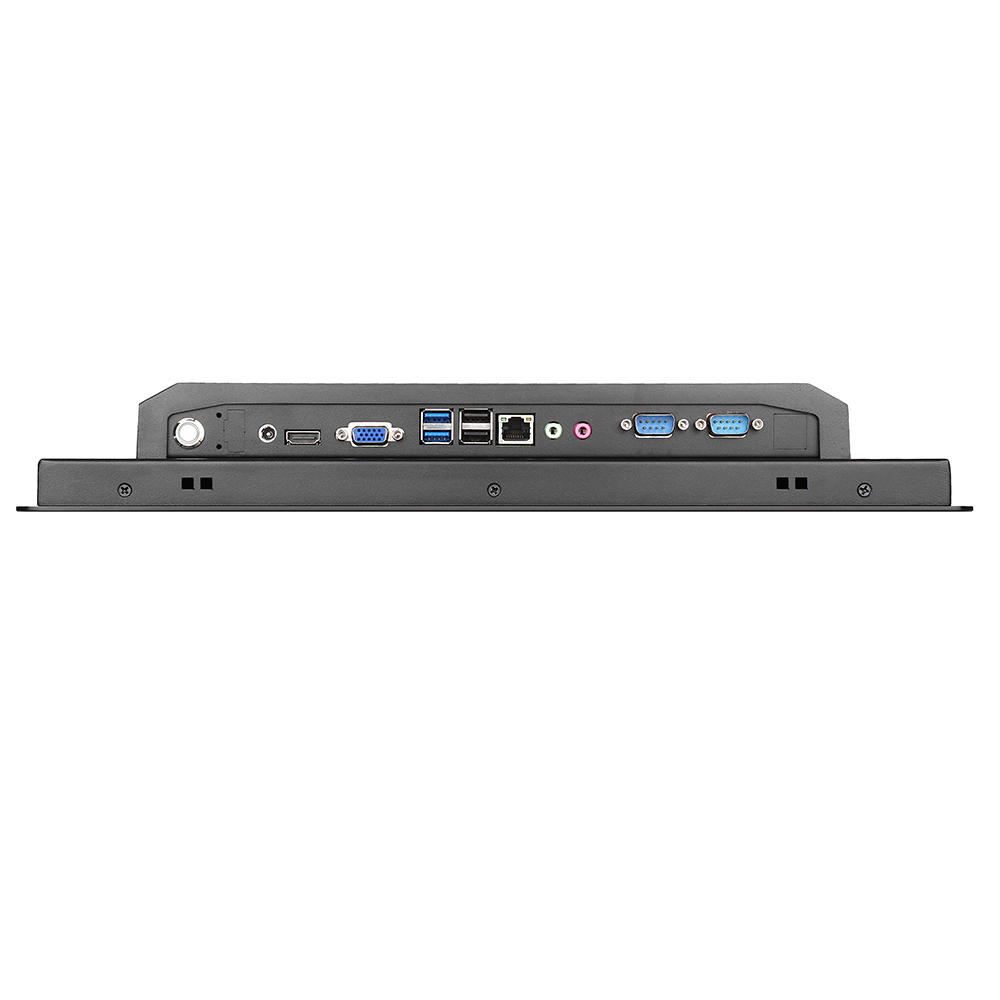

input/output interface
2×USB2.0/USB3.0/COM, 1×Lan(RJ45), 1×VGA/HDMI/MIC/EAR/POWER DC
operating system
Pre-installed test version Win7/8/10, Linux
LCD panel
panel size
15.6 inches
solve
1920*1080
Brightness (cd/square meter)
250
Response time
15 milliseconds
contrast
1000:1
angle of view
80°/80°/80°/80° (right/left/up/down)
touch panel
touch screen type
Capacitive touch optional
touch interface
USB
touch response time
<8 milliseconds
Luminosity
75-85%
power supply
External power supply
AC 100-240V
Operating Voltage
DC 12V
energy consumption
≤18W
operating environment
temperature range
Operating: -10 to 60°C, Storage: -20 to 70°C
Relative humidity
5%~95% @ 40°C, non-condensing
vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
packaging details
Accessories
Power adapter, wifi antenna
other
install (option)
1) Provide wall mount bracket, VESA 100×100mm
2) Provide a stable metal stand to support the monitor
certified
CE, FCC, RoHS
Warranty
1 year warranty

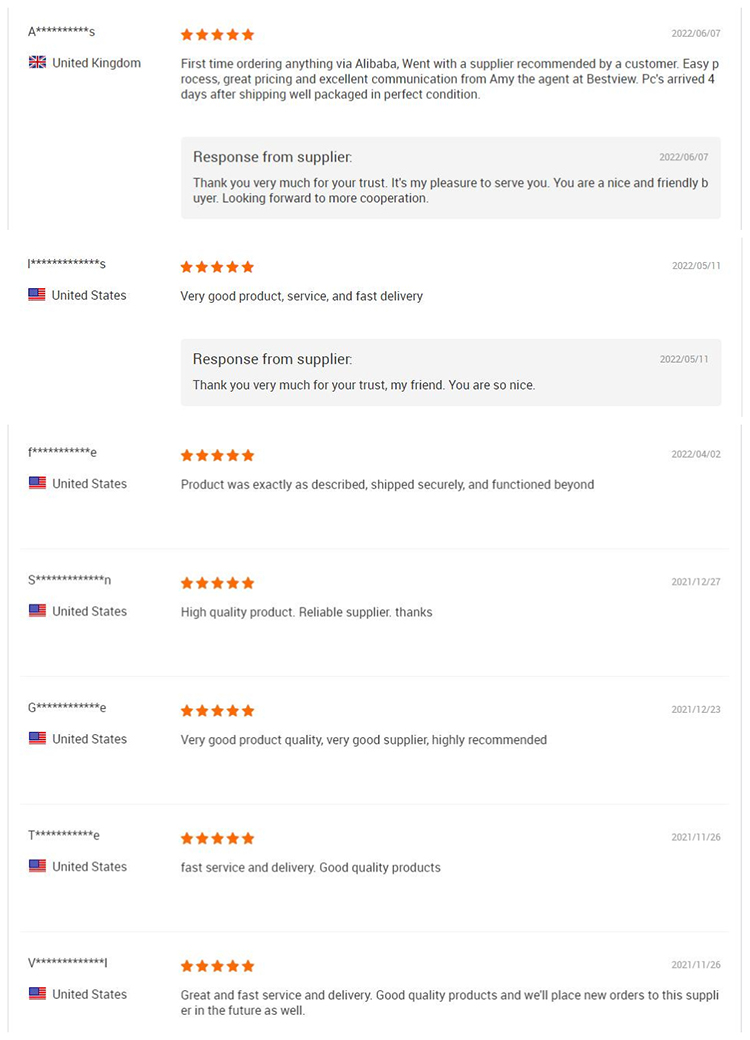

praise
Product Usage
Common faults and solutions for industrial computer maintenance
(1) Common faults of touch screen in industrial computer maintenance
1. There is a display when the industrial computer is turned on, but the screen is very dark. debug no change
With brightness adjustment function keys;
2. When the touch screen of the industrial computer is turned on, the touch screen is white (no text and image) or the screen is blurred.
But the external monitor is fine;
3. There are horizontal or vertical bright lines and bright bands on the touch screen of the industrial computer;
4. The screen of the industrial computer turns black, but the image of the external monitor is normal.
5. Can't touch or touch offset
Solution: replace the LCD screen or touchpad

(2) Common faults of hard disk in industrial computer maintenance
1. The speed of the hard disk is very slow when running the program, and it also crashes;
2. The startup screen of the industrial computer prompts that the hard disk cannot be found;
3. The hard disk makes a rattling sound, and the system cannot be started;
4. The circuit board of the hard disk is burned and smokes;
5. Data recovery from accidental deletion, formatting, cloning, partitioning, virus intrusion, etc.
Solution: backup data, reinstall the system
