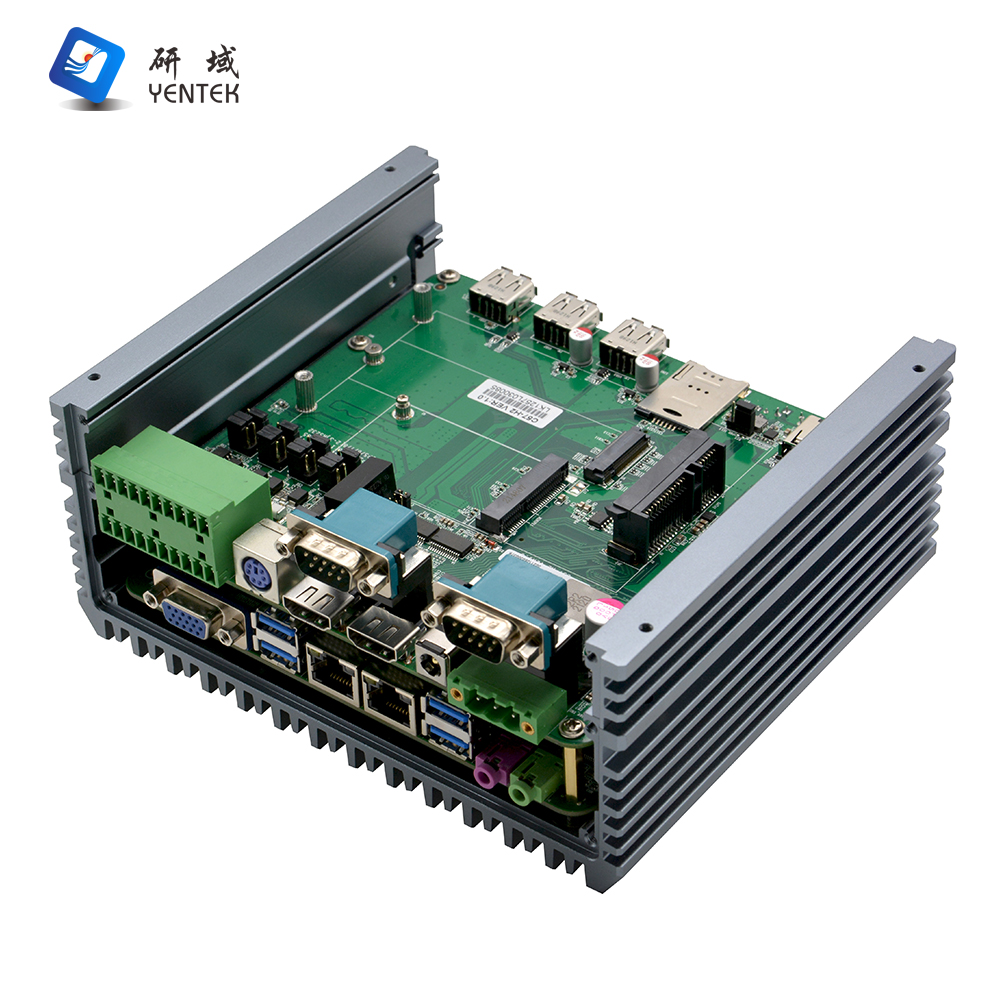

YENTEK C5760S-H2 manufacturer fanless industrial computer with onboard intel i5 7360u processor 2*DDR4 6*COM 2*HDTV

Product details
Sales unit:single productStorage:1* MSATA slot/1* M.2 slot
type:embedded computerbrand:YENTEK
Packaging Preview:Packaging Details:Standard carton
memory:2*SO-DIMM DDR4 2133MHzcommunication:6* RS232 DB9 serial port
operating system:Win7/8/10/linuxproduct name:Industrial Embedded Computer
USB port:4*USB3.0/3*USB2.0local area network:2* I211AT Gigabit Ethernet
HD:2*HDMI compatibleSingle package size:1X1X1 cm
Certification:CE/CCC/FCC/ROHS/ISO9001place of origin; place of origin:Guangdong, China
CPU:Intel i5-10210U/8265U/6200U/5205U)product status:in stock
Gross weight per piece:4.000 kg
Product Description

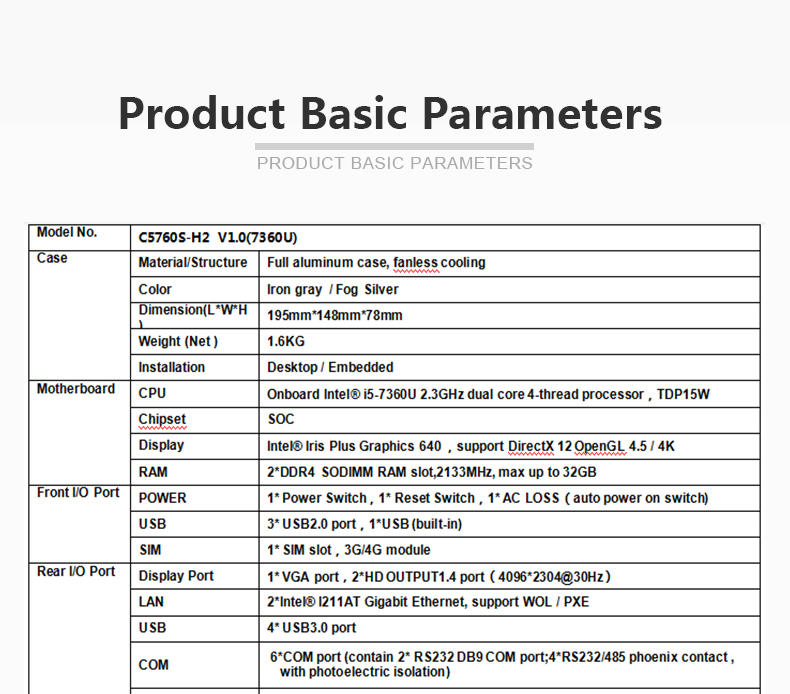

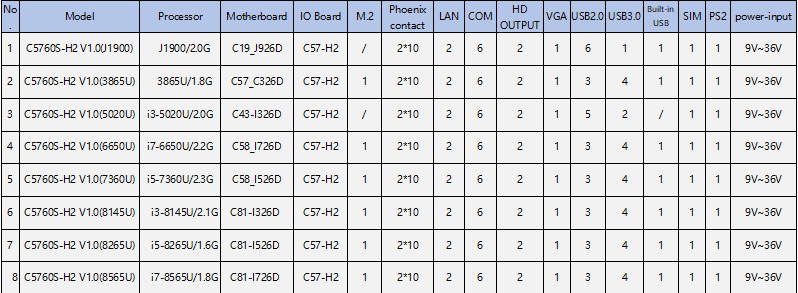

model.
C5760S-H2 V1.0(7360U)

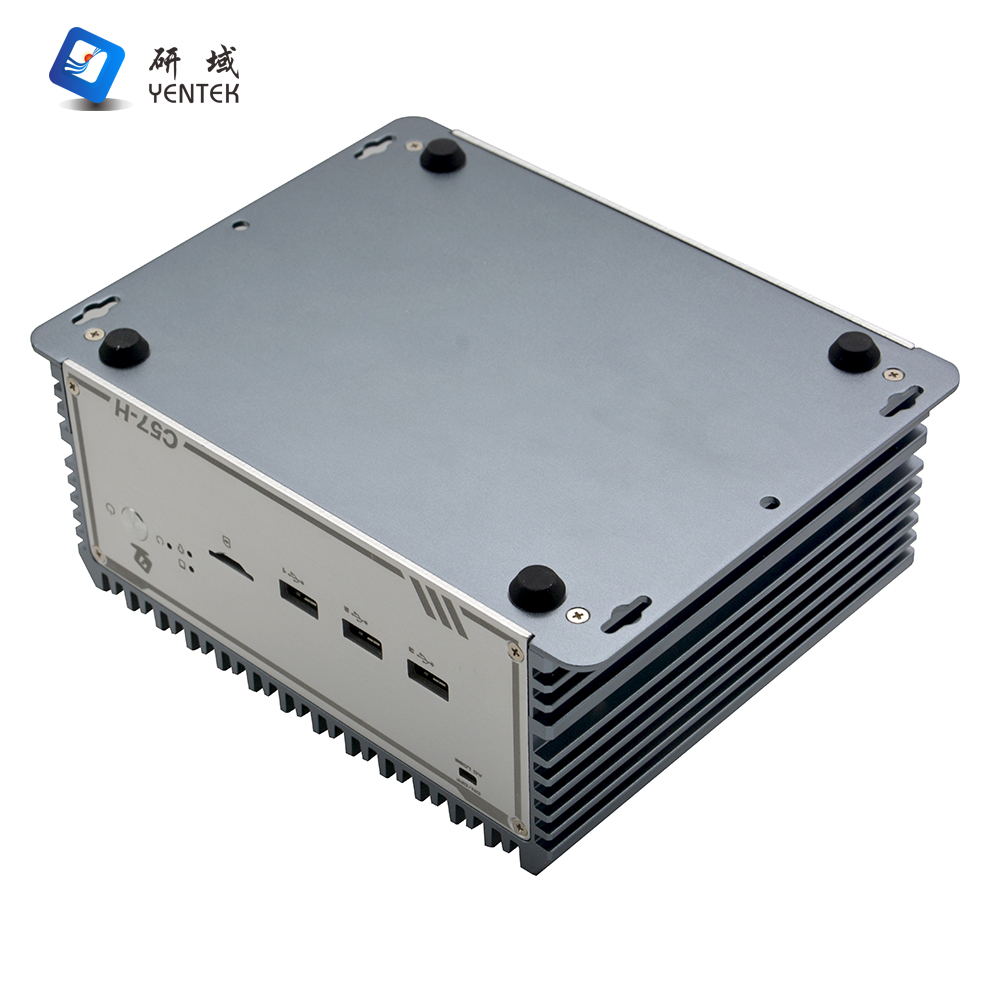

case
material/structure

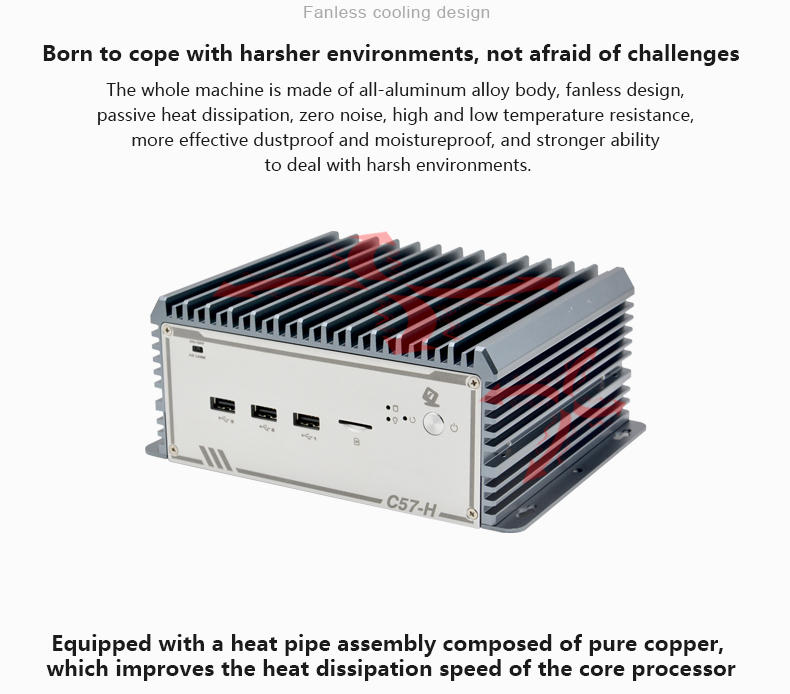

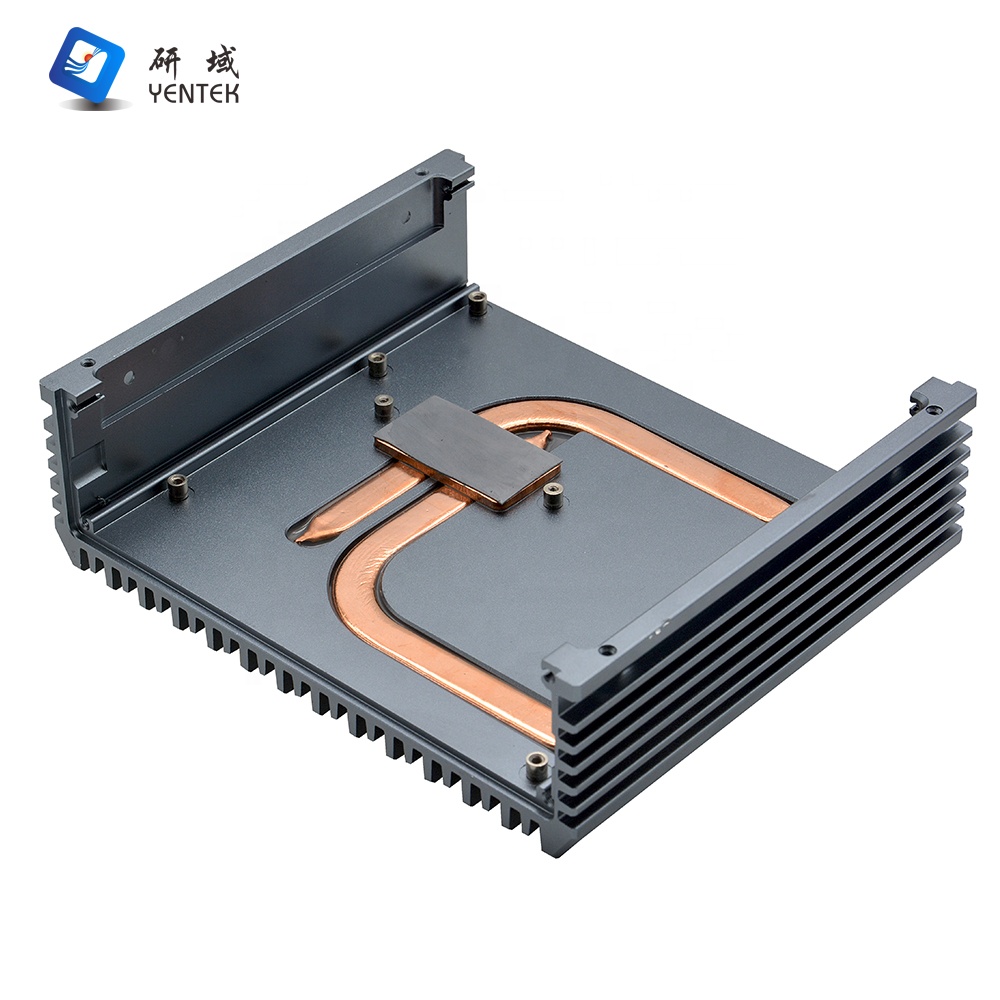

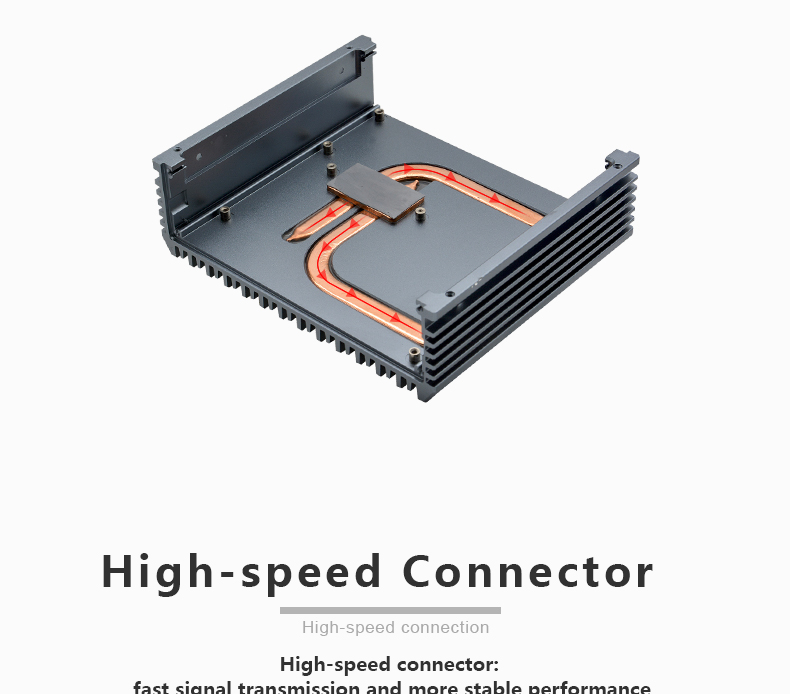

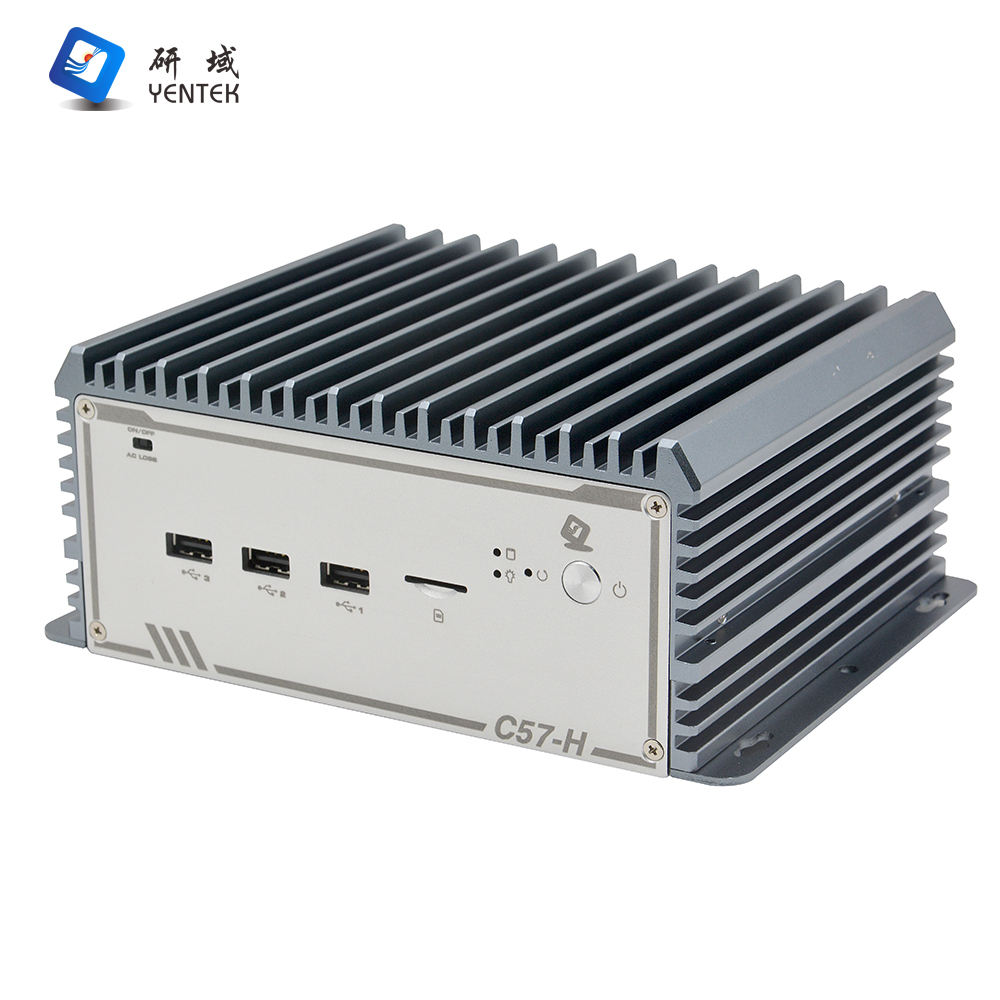

All aluminum shell, fanless cooling
color
Iron Grey/Mist Silver

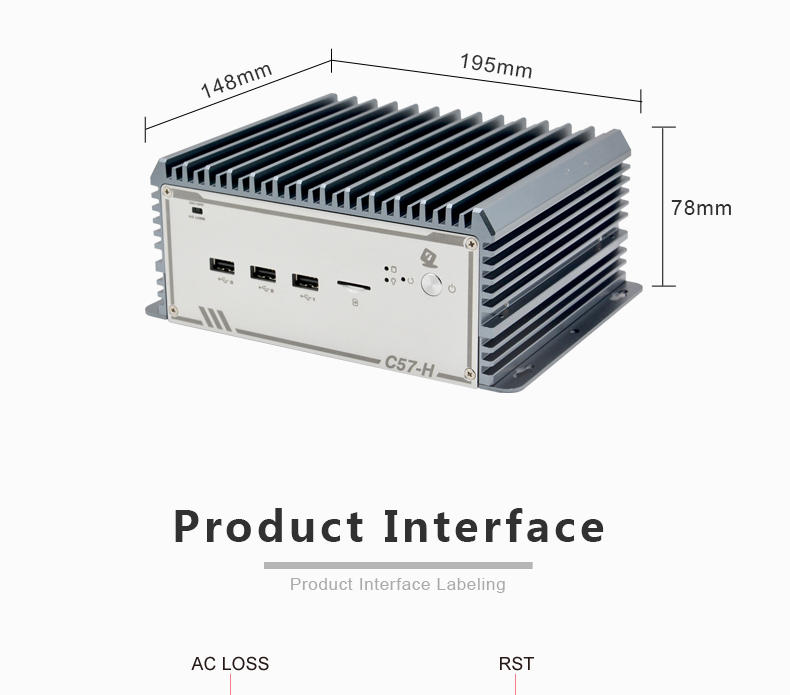

Size (L*W*H)
195mm*148mm*78mm
Weight (net weight)
1.6KG
Install
Desktop/Embedded

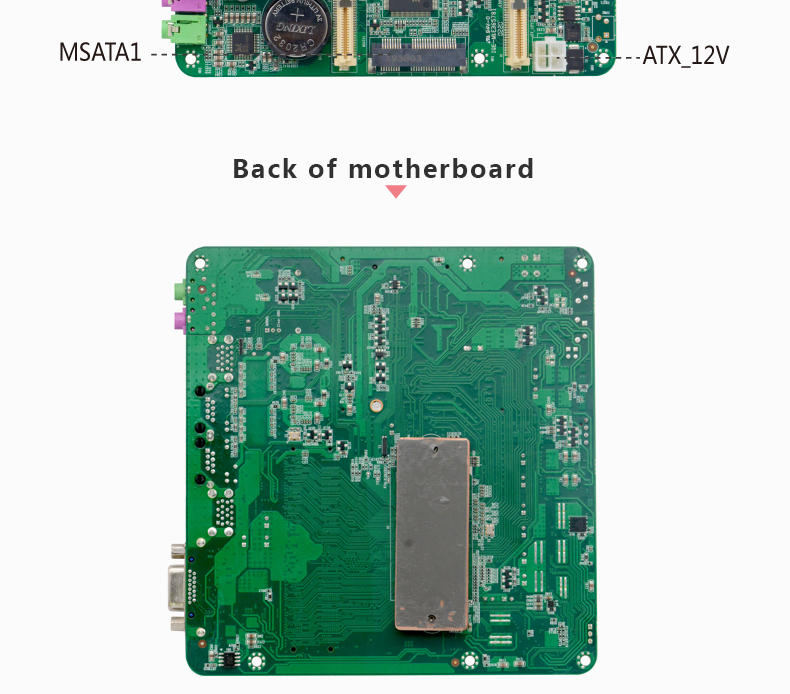

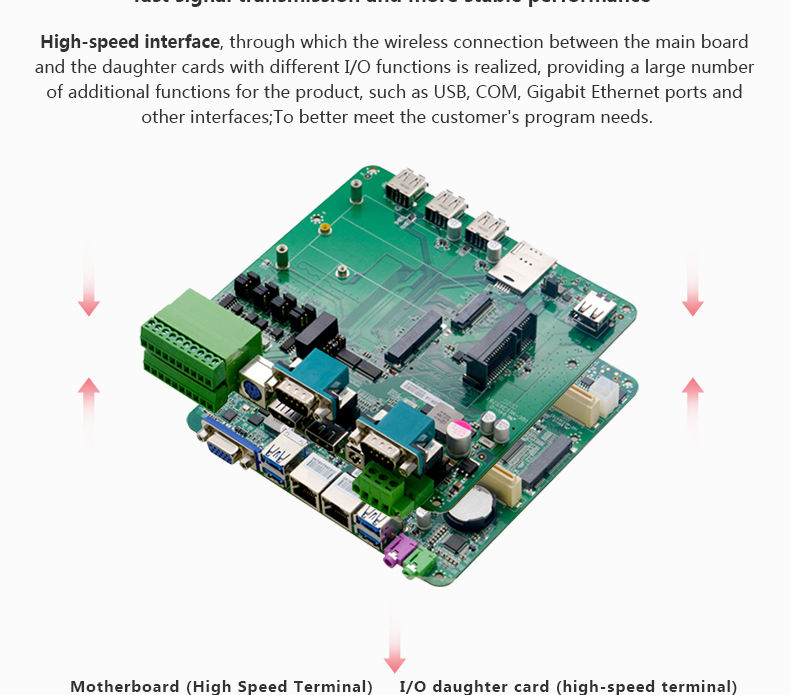

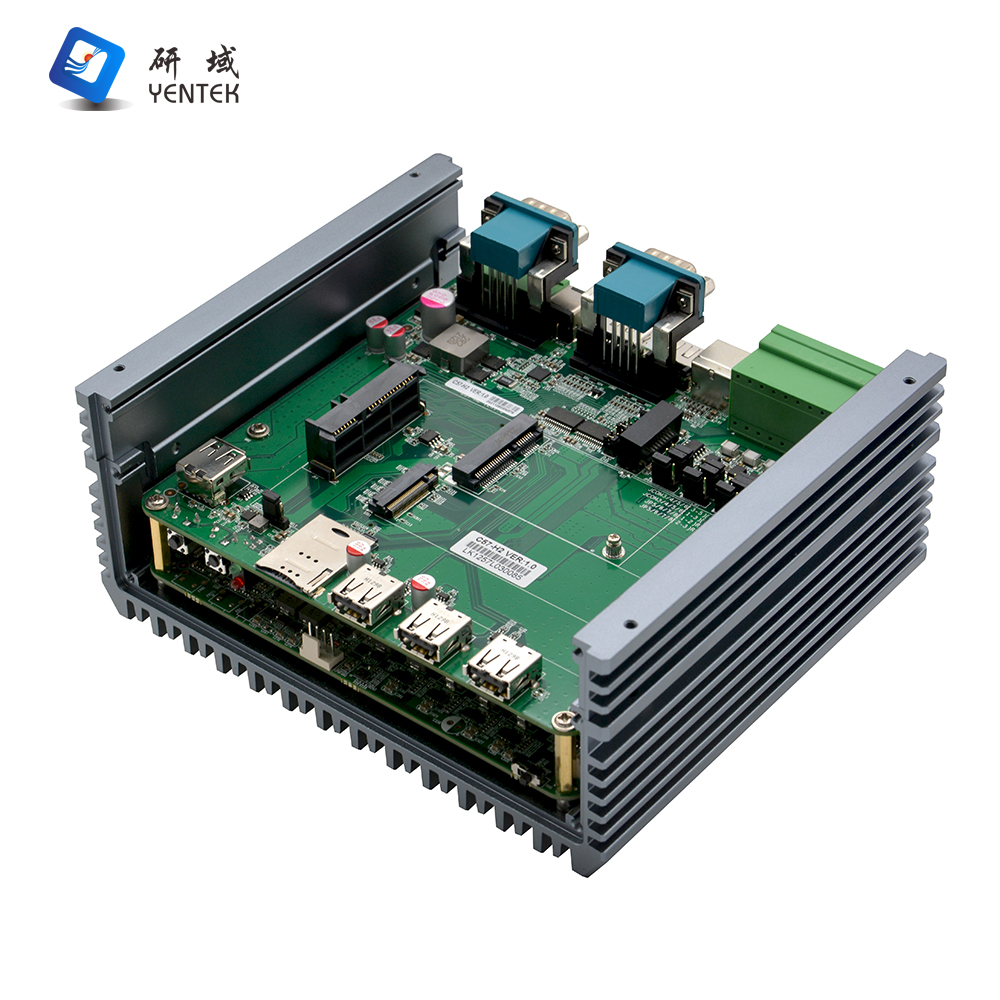

motherboard
CPU
Onboard Intel® i5-7360U 2.3GHz dual-core 4-thread processor, TDP15W
chipset
SOC
exhibit
Intel® Iris Plus Graphics 640 with DirectX 12 OpenGL 4.5 / 4K support
Memory

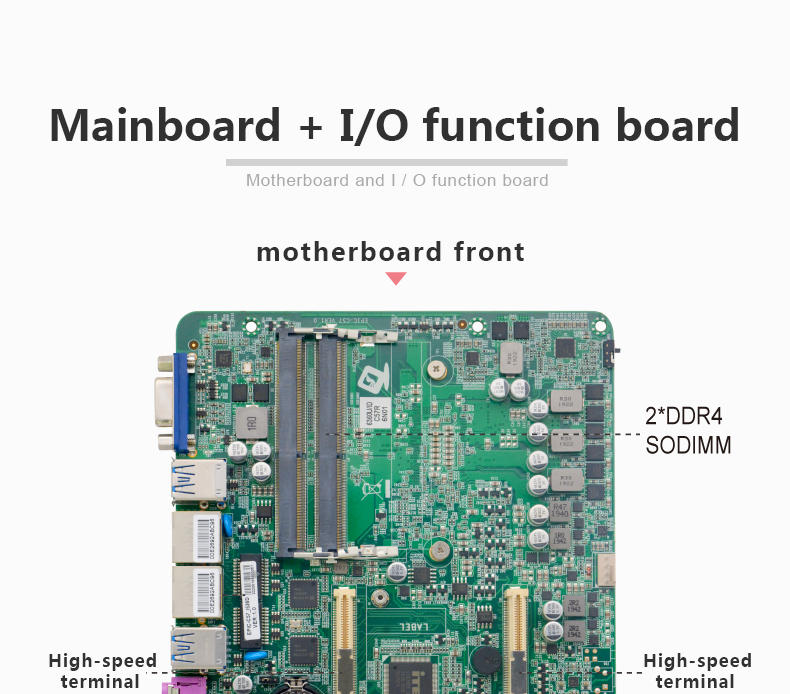

2*DDR4 SODIMM RAM slots, 2133MHz, up to 32GB
Front I/O ports
strength
1* Power Switch, 1* Reset Switch, 1* AC LOSS (Auto Power On Switch)
USB
3* USB2.0 interface, 1*USB (built-in)
SIM card
1* SIM card slot, 3G/4G module

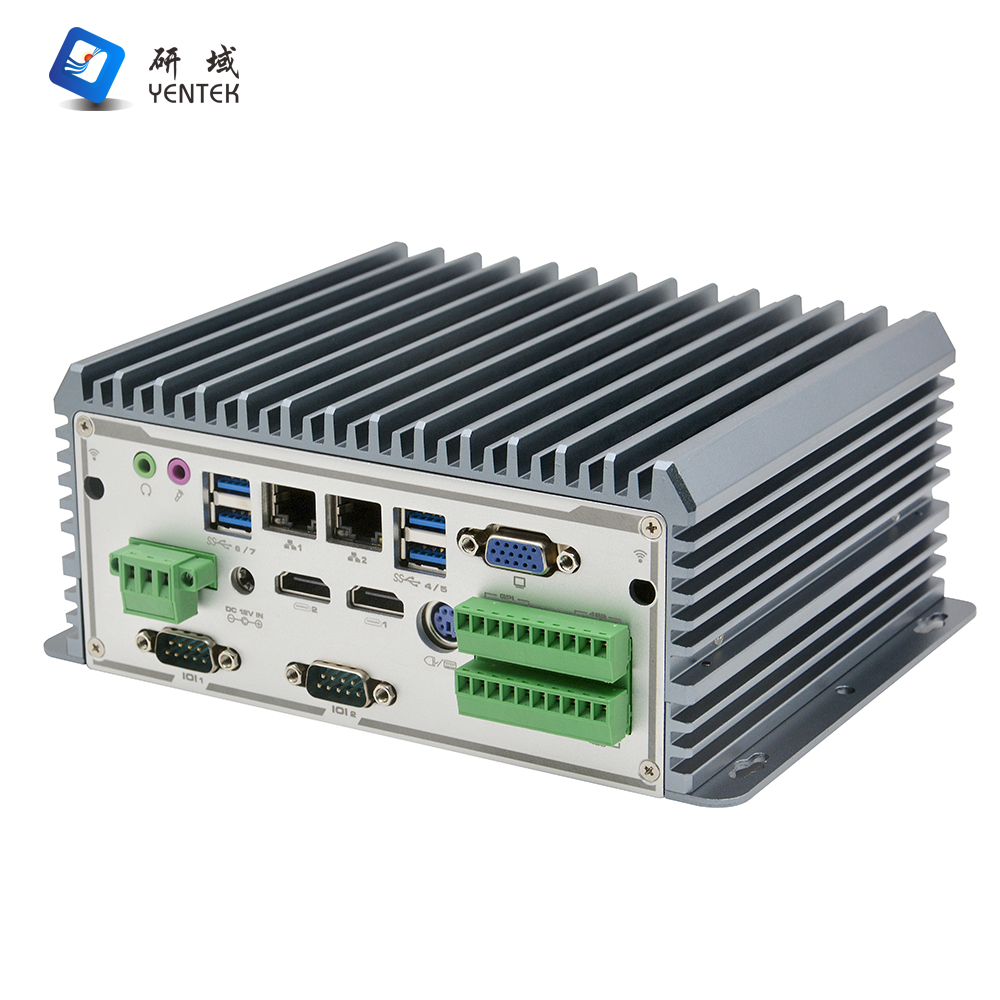

Rear I/O port
display port
1*VGA port, 2*HD OUTPUT1.4 port (4096*2304@30Hz)
local area network
2*Intel® I211AT Gigabit Ethernet, support WOL / PXE
USB
4* USB3.0 interface
communication
6*COM ports (including 2*RS232 DB9 COM ports; 4*RS232/485 Phoenix contacts,
with photoelectric isolation)

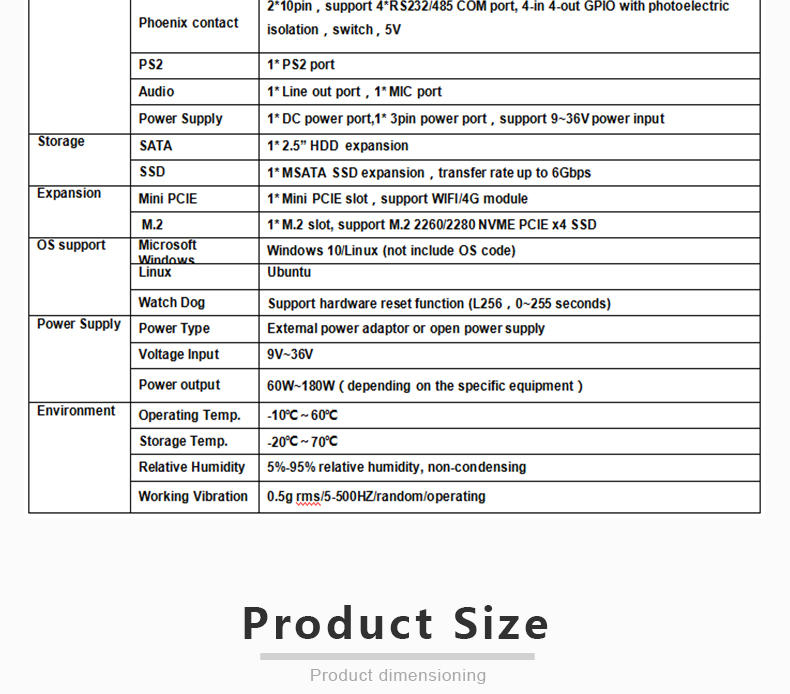

Phoenix Contact
2*10pin, support 4*RS232/485 COM port, 4 in 4 out GPIO with photoelectric
Isolation, Switching, 5V
PS2
1* PS2 port
vocal
1* Line out port, 1* MIC port
power supply
1* DC power port, 1* 3pin power port, support 9~36V power input

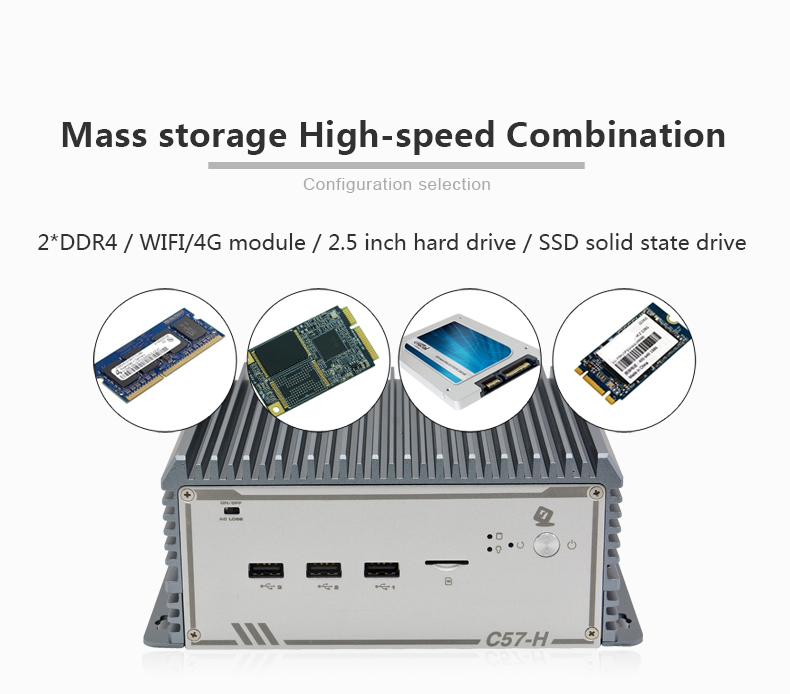

storage
SATA
1* 2.5” HDD expansion
SSD
1* MSATA SSD expansion, transfer rate up to 6Gbps

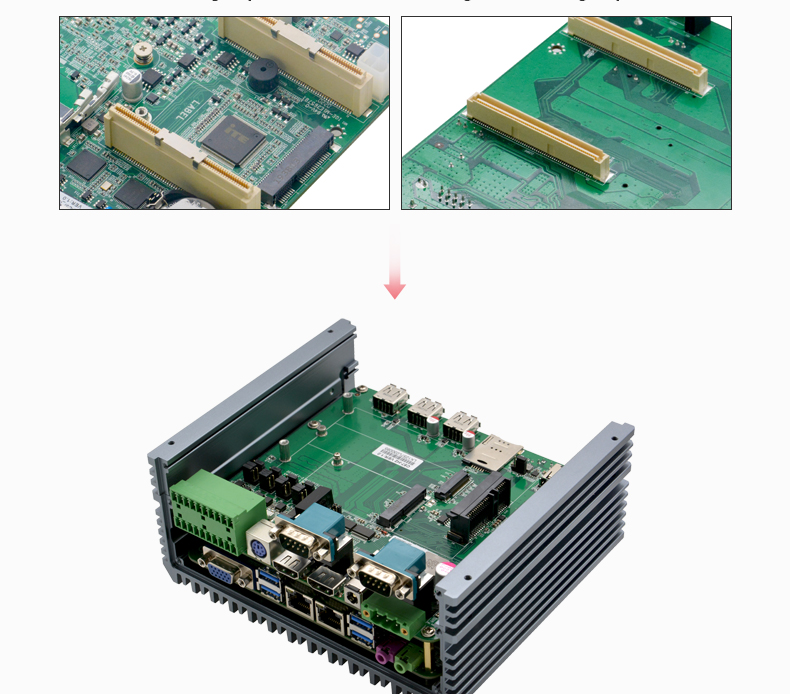

expansion
Mini PCIE
1* Mini PCIE slot, support WIFI/4G module
M.2
1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 SSD
OS support
Microsoft Windows
Windows 10/Linux (excluding OS code)
Linux
Ubuntu
watchdog
Support hardware reset function (L256, 0~255 seconds)
power supply

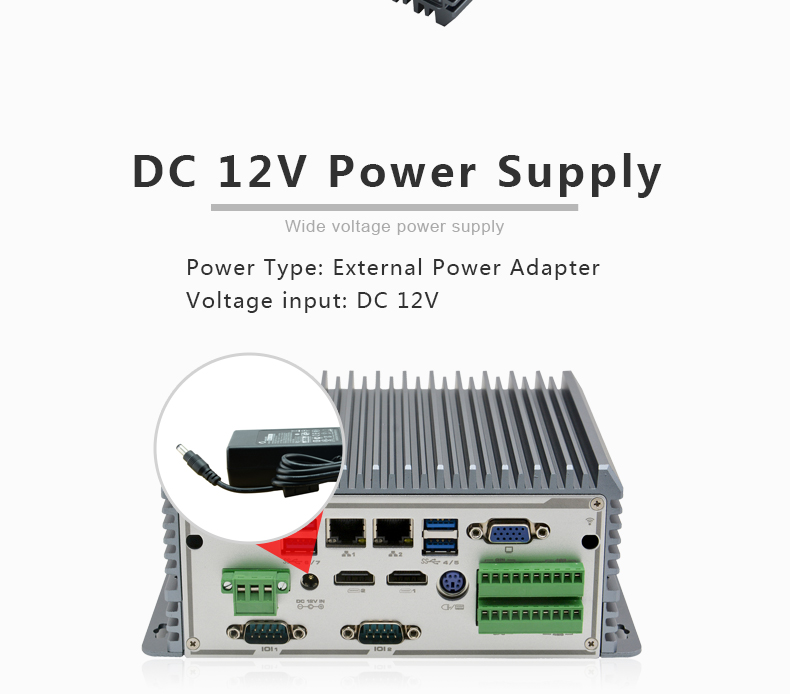

Power Type
External power adapter or open power supply
Voltage input
9V~36V
power output
60W~180W (depending on the specific equipment)
surroundings
Operating temperature
-10℃~60℃
Storage temperature
-20℃~70℃
Relative humidity
5%-95% relative humidity, non-condensing
work vibration
0.5g rms/5-500HZ/random/work
  • Product performance description


●Onboard Intel® i5-7360U 2.3GHz dual-core four-thread processor ● 2*DDR4 SODIMM RAM slots, 2133MHz, up to 32GB ● 2*HD OUTPUT1.4 ports, 1*VGA port ● 2* I211AT Gigabit Ethernet network, support WOL / PXE ● 6*COM ports (including 2*RS232 DB9 COM ports; 4*RS232/485 phoenix contacts, with photoelectric isolation) ● 2*10PIN phoenix contacts, 4 in 4 out GPIO, with photoelectric isolation , switch, 5V ● 4*USB3.0 interface, 3*USB2.0 interface ● 9~36V power input ● All aluminum shell, no fan cooling
