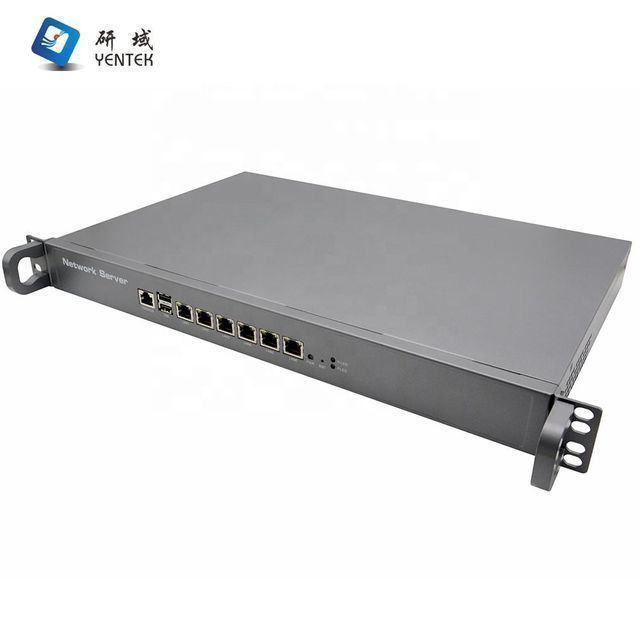

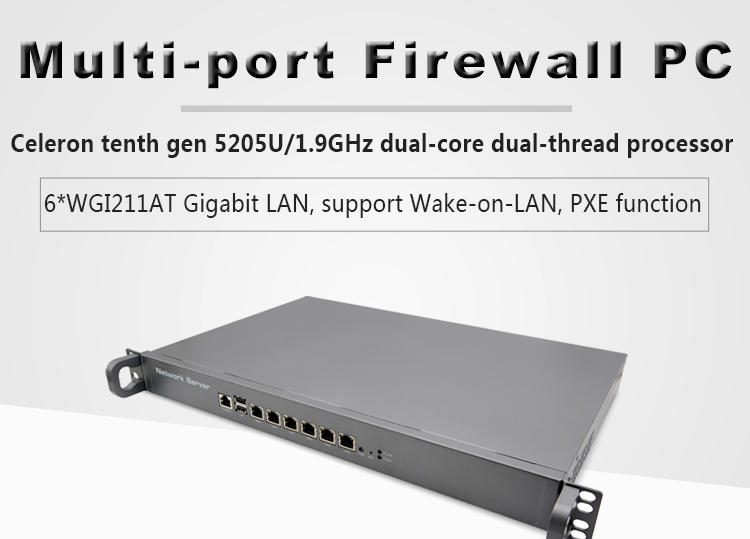

YENTEK R280E 1U Rackmount Firewall Hardware VPN Network Security Appliance router PC with Intel Celeron 5205U 1.9GHz

Supplier: Shenzhen Hanzsung Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Yanyu gongkong
Price: $172.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

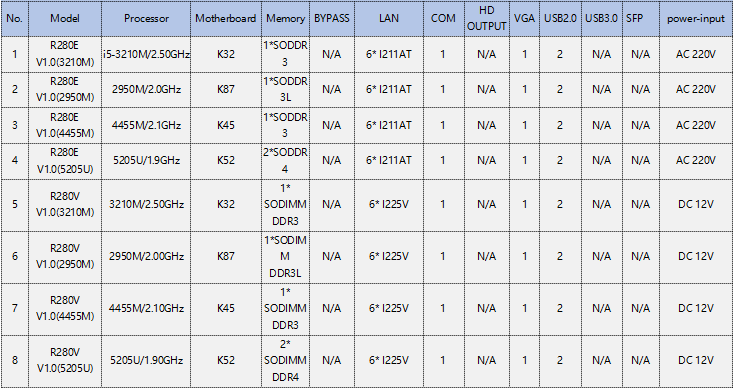

model:	R280E V1.0(3210M), R280E V1.0(2950M), R280E V1.0(4455M), R280E V1.0(5205U), R280E V1.0(1135G7), R280V V1.0(3210M), R280V V1 .0(2950M), R280V V1.0(4455M), R280V V1.0(5205U)	VPN support:	Yes
product name:	firewall industrial computer	port:	Shenzhen
type:	wired	operating system:	Win7/8/10/Linux
USB port:	2*USB2.0 interface	Packaging Details:	standard carton
Storage:	1* MSATA slot/1* M.2 slot	local area network:	6* Gigabit Ethernet
CPU:	Intel i5-5205U/3210M/2950M/4455M/1135G7	Origin:	China
Package preview:		memory:	1*SO-DIMM DDR4 2400MHz
brand:	Yuan Tai	product status:	in stock
Supply capacity:	10000 sets per month	payment terms:	wire transfer
Certification:	CE/CCC/FCC/ROHS/ISO9001	serial port:	1* RS232 serial port
graphics card:	1*VGA display output

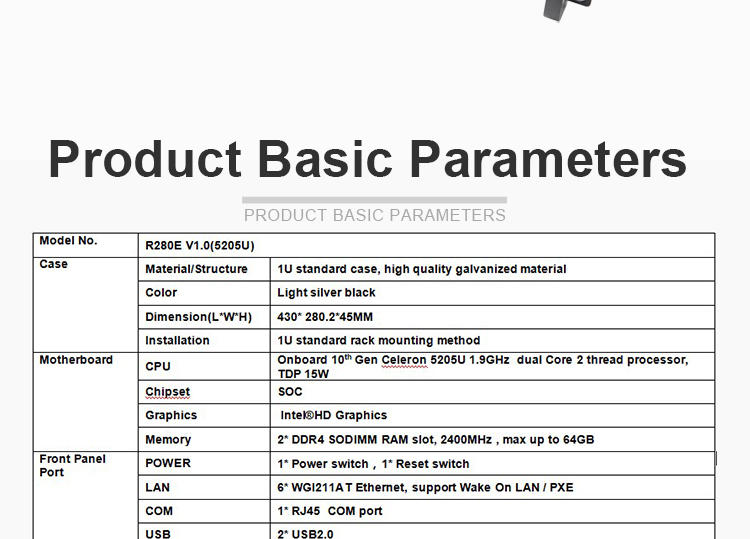

Product Description

model.	R280E V1.0(5205U)
case	Material/Structure	1U standard chassis, high-quality galvanized material
	color	light silver black

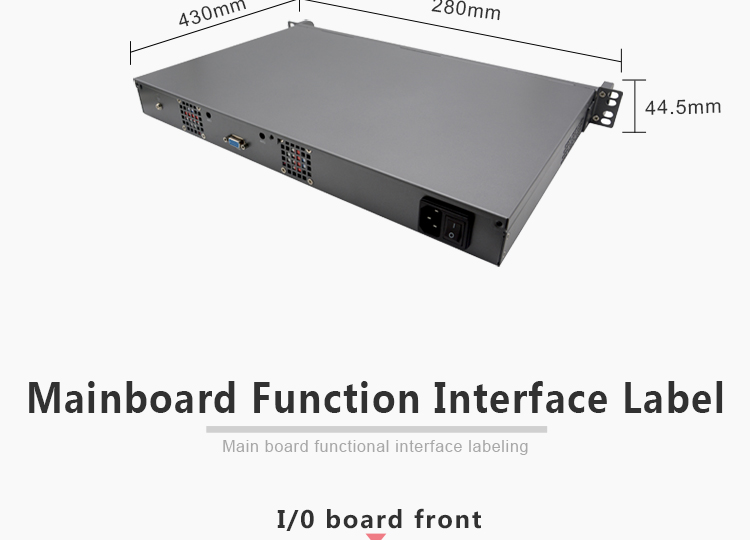

	Dimensions (LWH)	430* 280.2*45MM
	Install	1U standard rack installation
motherboard	CPU	Onboard 10th generation Celeron 5205U 1.9GHz dual-core 2-thread processor, TDP 15W
	chipset	SoC
	graphics	Intel® HD Graphics
	memory	2* DDR4 SODIMM memory slots, 2400MHz, up to 64GB

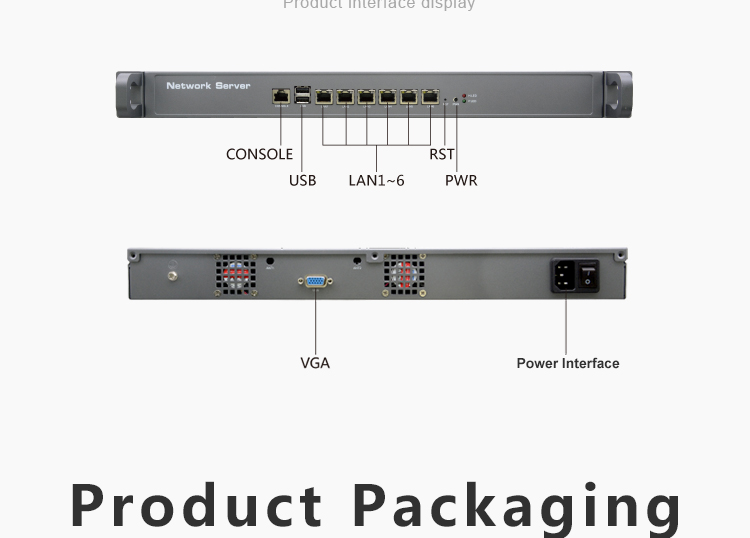

front panel ports	strength	1* power switch, 1* reset switch
	local area network	6* WGI211AT Ethernet, support Wake-on-LAN/PXE
	serial port	1* RJ45 serial port
	USB	2*USB2.0
	to lead	1* HDD light, 1* Power light

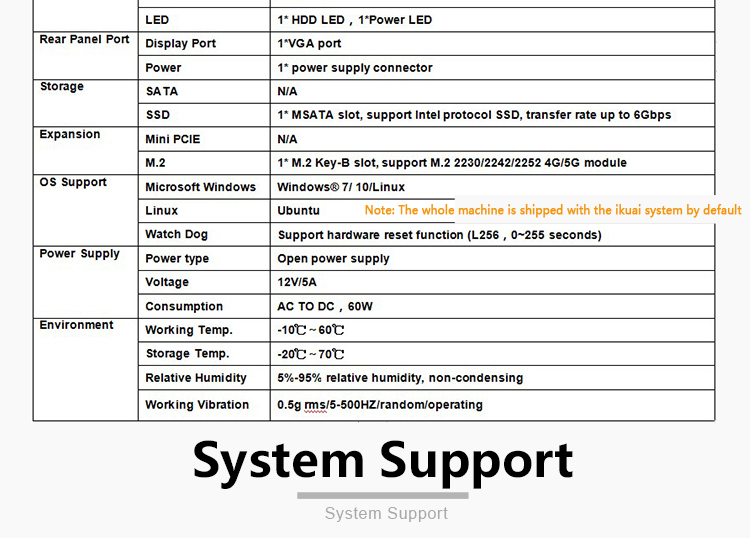

rear panel ports	display port	1*VGA port
	strength	1* Power connector
storage	SATA	not applicable
	SSD	1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps
expansion	Mini-PCIE	not applicable

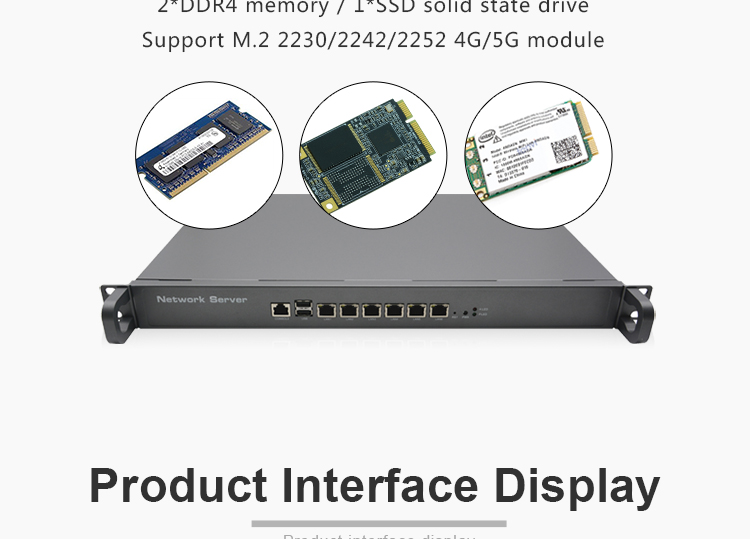

	M.2	1* M.2 Key-B slot, support M.2 2230/2242/2252 4G/5G module
operating system support	Microsoft Windows	Windows® 7/ 10/Linux
	Linux	Ubuntu
	watchdog	Support hardware reset function (L256, 0~255 seconds)

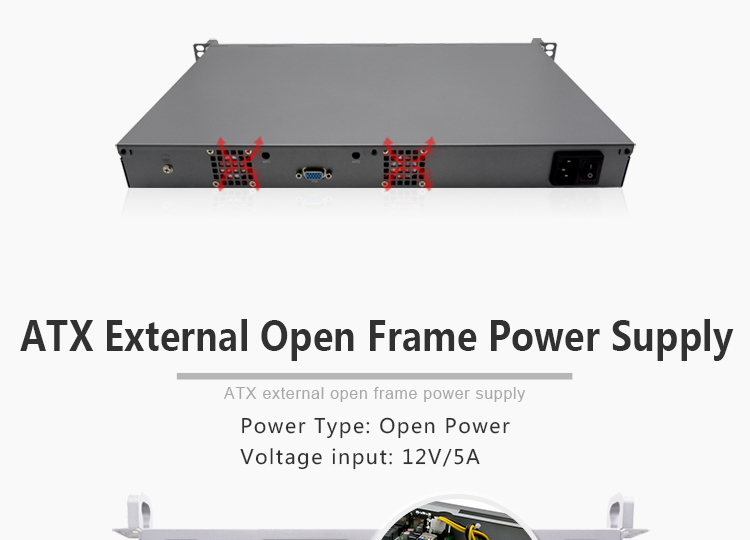

power supply	Power type	Turn on the power
	Relative humidity	5%-95% relative humidity, non-condensing
	work vibration	0.5g rms/5-500HZ/random/working
environment	Operating temperature	-10℃～60℃
	Storage temperature	-20℃～70℃
	Relative humidity	5%-95% (relative humidity, non-condensing)
	work vibration	0.5g rms/5-500HZ/random/working
environment	Operating temperature	-10℃～60℃
	Storage temperature	-20℃～70℃
	Relative humidity	5%-95% relative humidity, non-condensing
	work vibration	0.5g rms/5-500HZ/random/working
	Relative humidity	5%-95% relative humidity, no condensation
	work vibration	0.5g rms/5-500HZ/random/working

Product performance description

● Onboard 10th Gen Celeron 5205U 1.9GHz dual-core 2-thread processor ● 2* DDR4 SODIMM memory slots, 2400MHz, maximum 64GB ● 1* VGA port ● 6* WGI211AT Ethernet, support Wake On LAN / PXE ● 1* RS232 COM Interface ● 2* USB2.0 interface ● 1U standard chassis, high-quality galvanized steel material
