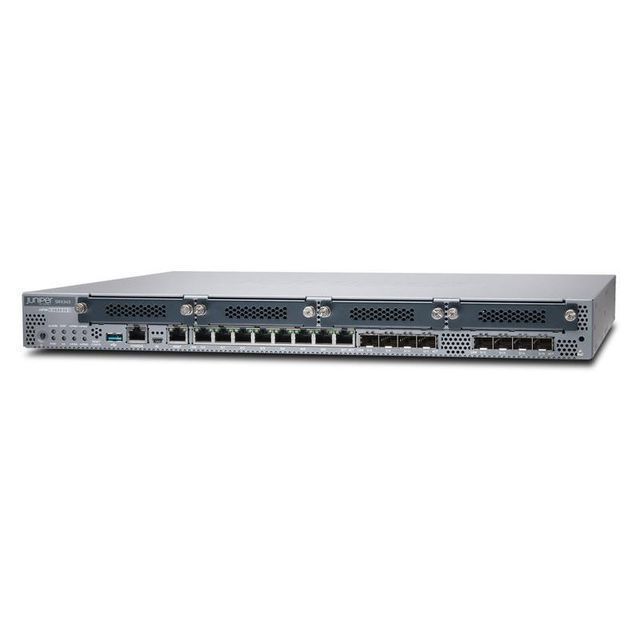

part number: | SRX345-SYS-JB | port: | Beijing |
payment terms: | Western Union, T/T, MoneyGram | Certification: | ce, RoHS |
brand: | Juniper | System Memory (RAM): | 4GB |
place of origin; place of origin: | China | Onboard RJ-45 ports: | 8x1GbE |
type: | wired | Supply capacity: | 25 pieces per day |
USB 3.0 port (Type A): | 1 | Throughput: | 2Gbps |
PoE+ port: | 0 | VPN Support: | Yes |
product status: | in stock | model: | SRX345-SYS-JB |
Console (RJ-45 + miniUSB): | 1 | Ports that support MACsec: | 16x1GbE |
Out-of-band (OOB) management port: | 1x1GbE | Packaging Details: | original juniper packaging |
Mini PIM (WAN) slot: | 4 | Total number of onboard ports: | 16x1GbE |
Specification | SRX300 | SRX320 | SRX340 | SRX345 | SRX380 | |||||
connectivity | ||||||||||
Total number of onboard ports | 8x1GbE | 8x1GbE | 16x1GbE | 16x1GbE | 20 (16x1GbE, 4x10GbE) | |||||
Onboard RJ-45 port | 6x1GbE | 6x1GbE | 8x1GbE | 8x1GbE | 16x1GbE | |||||
Onboard Small Form-Factor Pluggable (SFP) Transceiver Ports | 2x1GbE | 2x1GbE | 8x1GbE | 8x1GbE | 4x10GbE SFP+ | |||||
Ports that support MACsec | 2x1GbE | 2x1GbE | 16x1GbE | 16x1GbE | 16x1GbE | |||||
4x10GbE | ||||||||||
Out-of-band (OOB) management port | 0 | 0 | 1x1GbE | 1x1GbE | 1x1GbE | |||||
Mini PIM (WAN) slot | 0 | 2 | 4 | 4 | 4 | |||||
Console (RJ-45 + miniUSB) | 1 | 1 | 1 | 1 | 1 | |||||
USB 3.0 port (Type A) | 1 | 1 | 1 | 1 | 1 | |||||
PoE+ port | Not applicable | 62 | 0 | 0 | 16 |
Product number | describe |
SRX300-SYS-JB | The SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G flash, power adapter and cables) and Junos Software Base (firewall, NAT, IPSec, Routing, MPLS, and Switching). Does not include RMK. |
SRX320-SYS-JB | SRX320 Services Gateway includes hardware (8GbE, 2 MPIM slots, 4G RAM, 8G Flash, power adapter and cables) and Junos software base (Firewall, NAT, IPSec, Routing, MPLS and Switching). Does not include RMK. |
SRX320-SYS-JB-P | The SRX320 Services Gateway includes hardware (8GbE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapters and cables) and Junos Software foundation (firewall, NAT, IPSec, routing, MPLS and switching). Does not include RMK. |
SRX340-SYS-JB | SRX340 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cables and RMK) and Junos software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching) |
SRX345-SYS-JB | SRX345 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cables and RMK) and Junos software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching) |
SRX345-SYS-JB-2AC | SRX345 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, dual AC power, cables and RMK) and Junos Software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching) |
SRX345-SYS-JB-DC | The SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, single DC power supply, cables and RMK) and Junos software foundation (firewall, NAT, IPSec, routing, MPLS, and switching) |
SRX380-P-SYS-JB-AC | SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cables and RMK) and Junos software foundation (firewall, NAT, IPSec, routing, MPLS and switching) |
