Mikrotik I7 6 Port Lan Ntp Desktop Network Server Protection Opnsense Pfsense Router Firewall 8Gb Ram Mini Pc

Product details
type:wired and wirelessStorage:Support 1*MSATA SSD + 1*2.5" HDD
brand:XCYCPU:Celeron, Core i3 i5 i7
Throughput:-product status:in stock
size:209MM*150MM*58MMSimultaneous sessions:-
VPN support:YesWarranty:1 year
Memory:1*DDR3L 1333/1600Mhz SODIMM (Max: 8G)operating system:Linux/Win XP/Win7/8/10/PFSense
Origin:Guangdong, Chinamodel:X44
Name:6 LAN Firewall Router Mini PCpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:2*USB, 1*HD, 1*serial, 6*networklocal area network:6* RJ45 Gigabit Ethernet
cooling system:Fanless passive cooling
Product Description

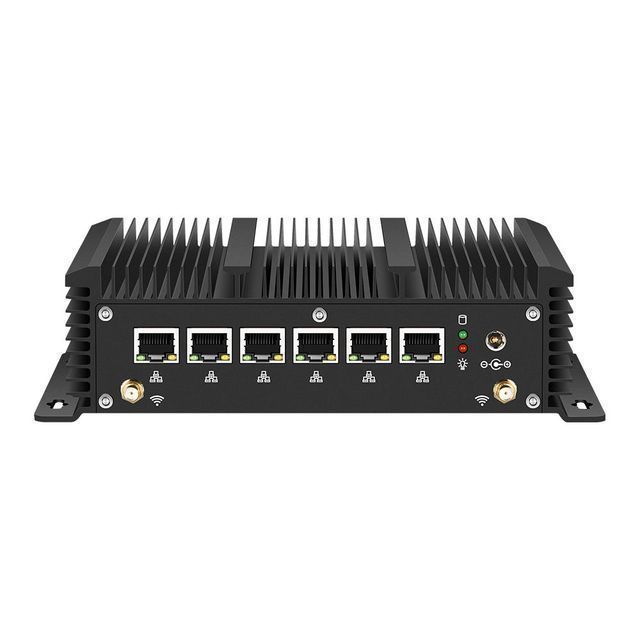

X44 6-LAN Firewall Appliance 3865U Mini PC
Intel Pentium Gold 5405U processor, 2M cache, 2.30 GHz, 2 cores and 4 threads, TDP: 15W
-In-tel Ce-leron Processor 2955U,2M Cache,1.40 GHz,2 Core 2 threads,TDP:15W In-tel Ce-leron Processor 3865U,2M Cache,1.80 GHz,2 Core 2 threads,TDP:15W In-tel Ce -leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 In-tel Core i3-7100U Processor,3M Cache, 2.40 GHz,2 Core 4 threads,TDP:15W In-tel Core i5-7200U Processor,3M Cache , up to 3.10 GHz, 2 cores 4 threads, TDP: 15W threads- With 1 channel 1.35V DDR3L 1066/1333/1600MHz memory, maximum support 8GB; - Support 1x mSATA SSD and 1x SATA 2.5 inch HDD/SSD; - Compatible with 6x LAN In-tel 210AT 10/100/1000Mbps, 2x USB 3.0, 2x USB 2.0, 1x HD-MI, 2x COM ports (one is RJ45 to RS232 console); - The operating system supports Windows 7/8/10, Linux, Ubuntu, CentOS, LEDE, Pfsense, SohpOS, ESXI6.7, etc.; - Support Wake-on-LAN, virtualization, automatic power-on when power off. - 1 slot Mini PCIE for WiFi / 3G 4G module; - Fanless passive cooling, aluminum case.
Package List: 1 x Mini PC 1 x AC Adapter 1 x Power Cord 1 x SATA Power and Data Cable 1 x User Manual

detailed drawing
processor
In-tel Ce-leron processor 2955U, 2M cache, 1.40 GHz, 2 cores and 2 threads, TDP: 15W
In-tel Ce-leron processor 3865U, 2M cache, 1.80 GHz, 2 cores and 2 threads, TDP: 15W
exhibit
GPU: Intel HD Graphics
HDMI: maximum resolution 1920x1080@60Hz
memory
2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V
1*204-pim SO-DIMM
Maximum capacity: 8G
hard disk
SSD: 1*full height mSATA slot, 16GB/30GB/60GB/120GB/240GB/500GB/1TB mSATA SSD
Hard disk: support SATA2.5" hard disk
Supported OS
Official Win7/8/10 ubuntu/LINUX/CENTOS/ LEDE /ESXI6.7
Note: We pre-installed Win7/8/10 operating system for testing only, if you need legal genuine Win7/8/10 operating system or other operating systems such as Linux, Ubuntu,
Pfsense..., please contact us in time.

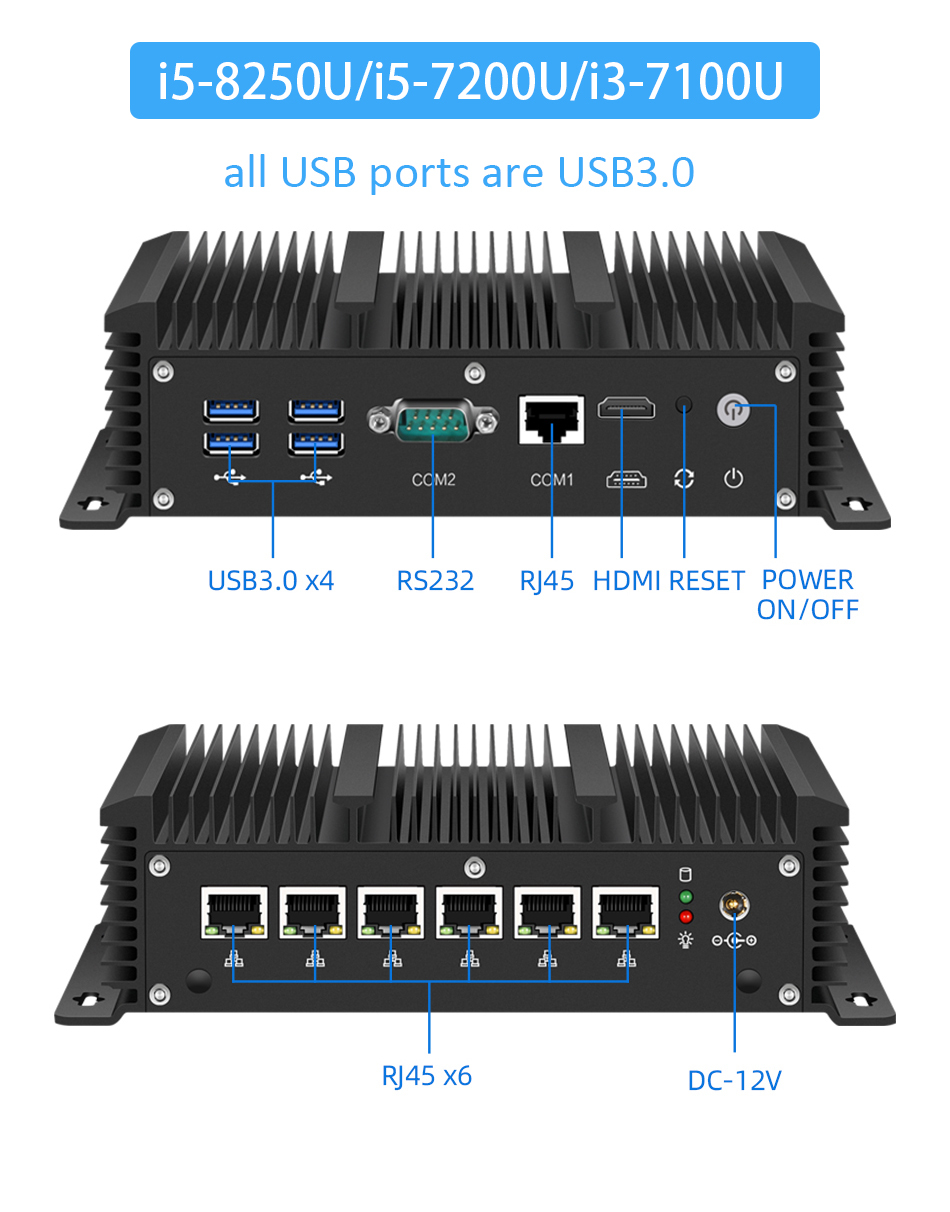

port
2xUSB3.0 (Mainboard can expand 2*USB2.0)
2xUSB2.0
2xRS232 COM (the motherboard can expand COM3)
6xLAN 10/100/1000/ Mbps Intel 210AT, supports Wake-on-LAN, S5 RTC wake-up settings
1x HD
1x switch
expand
Mini-PCIe:1* half-height Mini PCIe for WIFI/3/4G
electricity demand
Power type: DC-IN5.5*2.5
Power input voltage: 12V
Power input current: 5A
working environment
Working temperature'-20-65℃
Storage temperature 15°C-35°C
Relative humidity 5%~95% (non-condensing)
aspect
209MM*150MM*58MM
Package Contents
1 x Mini PC
1 x User Manual
1 power adapter
1 x SATA data and power cable
