PfSense Firewall i7 1165G7 i5 1135G7 N5105 4 i225 2.5G LAN 2 DDR4 NVMe Fanless Industrial Mini PC OPNsense

  • Supplier: Shenzhen Inctel Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Sophia Song
  • Price: $114.00 / 1 - 19 pieces
    $104.00 / 20 - 49 pieces
    $99.00 / >=50 pieces
  • Min. Order: 1 piece
Product details
Processor model:N5105/i3 1115G4/i5 1135G7/i7 1165G7Packaging Details:carton
product status:in stockNetwork Ethernet:4*In-tel 2.5G RJ45 network
Image:Intel UHD Graphicsfeature:Fanless system 0.00dB
Supply capacity:5000 pieces per monthpower supply:DC 12V
port:ShenzhenOrigin:Guangdong, China
Storage:1 x m.2 2280 NVME SSD and 1 x 2.5” SSD/HDDtype:wired and wireless
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPalVPN support:Yes
Synchronous meeting:30000brand:Stakeholders
memory:2 x sodimm ddr4 2933MHz, max 32gbsize:178×122×55mm
model:H7,H7Throughput:About 1G
case:All Aluminum
notes: We have different kinds of Firewall Mini PCs, if you are interested and would like more details, please feel free toClick hereContact us, we will offer you the best price.
Specification

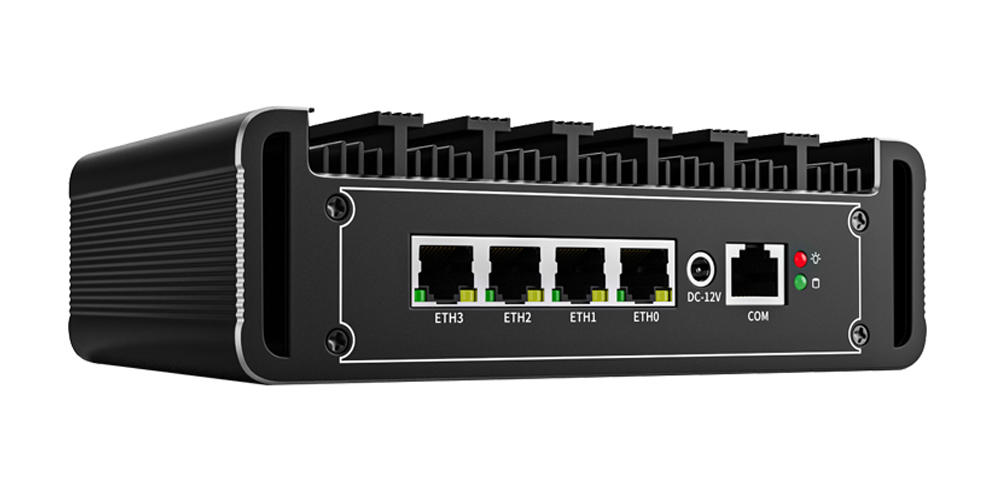

-4xIntel i225-V B3 2.5G RJ45 LAN, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ecc memory slots, up to 32GB.
-Support two kinds of storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.

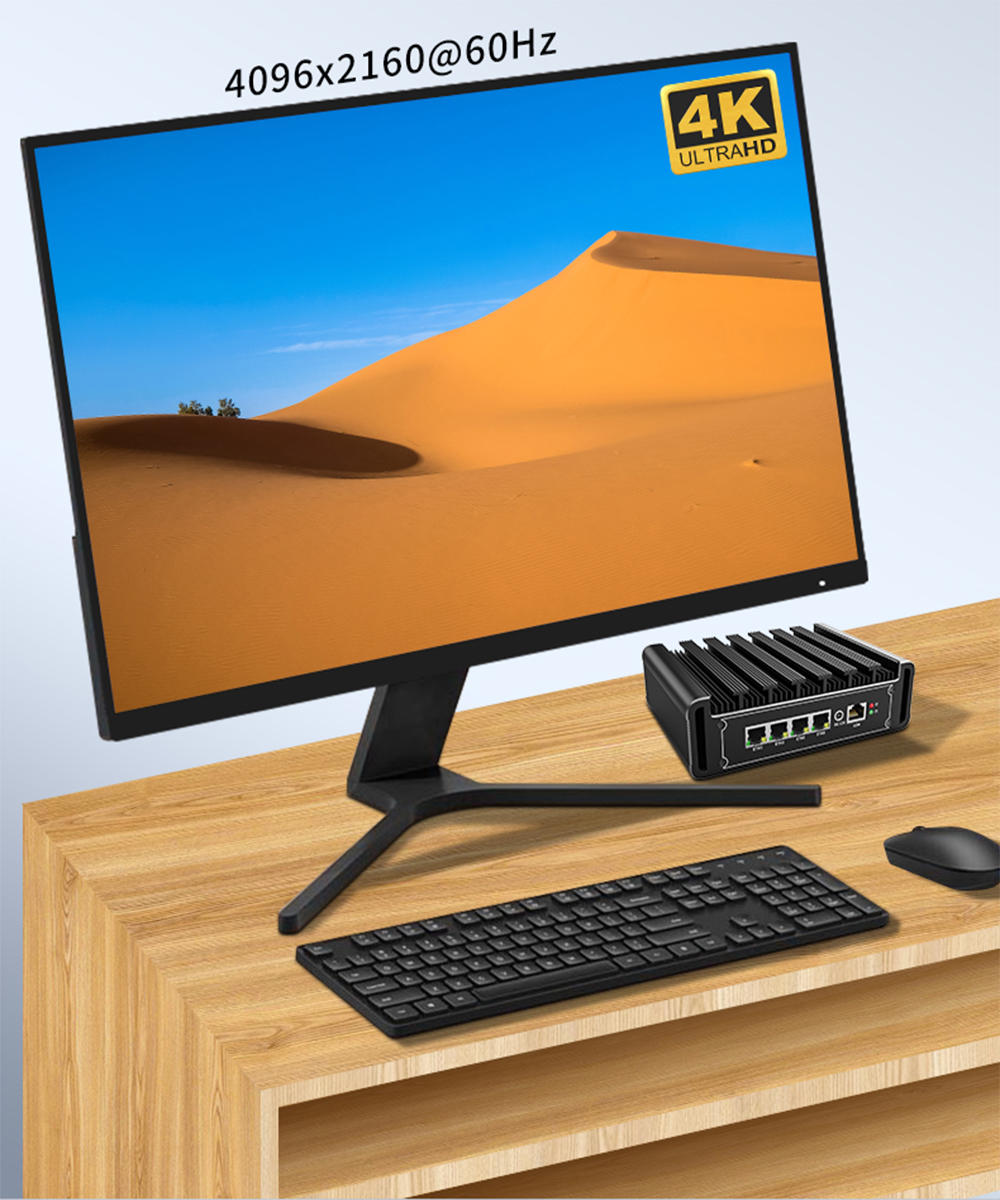

-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz ultra-high-definition video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G (3 choose 1) connection.
-Support AES-NI, ESXI, PVE, watchdog, auto boot, RTC, PXE boot, wake on LAN, etc.
- All aluminum alloy high-quality solid shell, three-sided icicles, excellent heat dissipation performance, exquisite
The production process on the appearance design.
- Fanless system, no need for cooling fan, no noise and durable, suitable for industrial site, working time up to 7x24 hours.
-Low power consumption TDP, can be mounted on the back of the monitor with VESA bracket (optional).
model:Sharer H7
chassis:All Aluminum
CPU:Intel Celeron Processor N5105 (4M Cache, up to 2.90 GHz)
AES-NI supports:Yes
memory:2 x sodimm ddr4 2400/2666/2933 MHz
HDD/SSD:1 x m.2 2280 nvme SSD and 1 x 2.5 inch SSD/HDD (SATA interface M.2, PCIe 2X not supported)
Ethernet:4*Intel I225(10/100/1000/2500M)
Input/Output Ports:4 x LAN, DC_IN, RJ45 COM, 2 x USB2.0, power switch, 2 x USB3.0, 1 x HDMI, 1 x DP, SIM slot, WIFI hole
expansion:Support 1*Mini PCIE(WiFi/BT), 1*SIM slot(4G)
strength:DC100-240v AC/50-60hz, 12v/4a

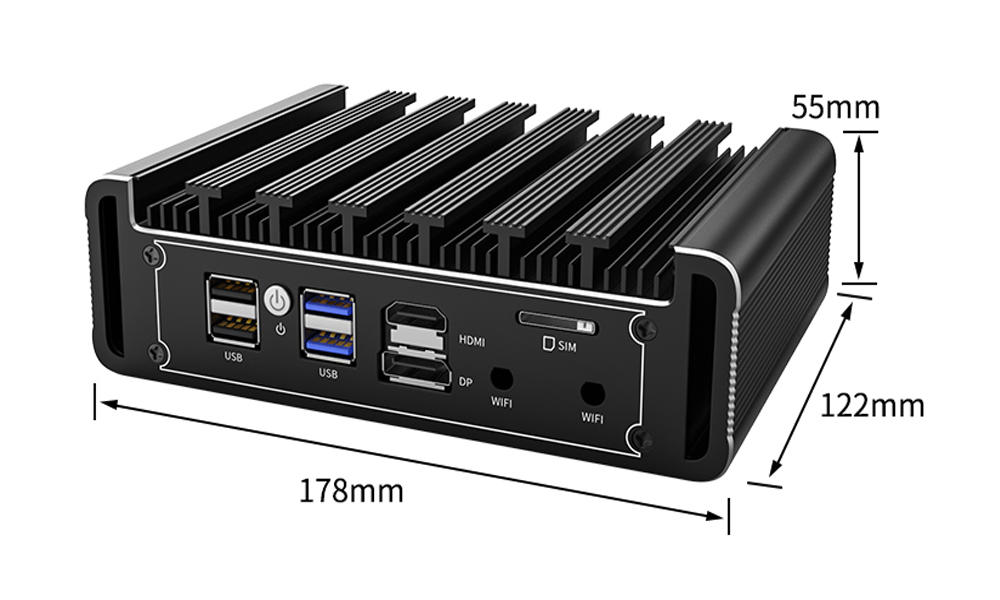

size:178×122×55mm
weight:1.5 kg
Operating temperature:0°C~70°C (32°f~140°f)
Storage temperature:-20°c~80°c Celsius (-68°f~176°f)
Relative humidity:10%~90% (non-condensing)
General development plan:10W
Function:Support hardware automatic boot (default enabled), network wake-up, system power management, temperature management
cooling system:fanless
System support: support 5.10.x and above core-based freebsd router system, linux distribution or win.os;
packing list:Firewall device + rack ears + power cord
compatibility:Firewalls tested with pfsense, untangle, opnsense and other popular open source software solutions
tip:For other operating system requirements, you need to leave a message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 ports, different CPU, 1U/2U
Rack-mounted and desktop-mounted, we have them all in our store.
