place of origin; place of origin: | Guangdong, China | Packaging Details: | standard packaging |
operating system: | Windows 7/Windows 8/10 Linux | type: | wired and wireless |
VPN Support: | Yes | Certification: | European Union, Federal Communications Commission |
brand: | Tometek | Ethernet port: | x4 Ethernet port |
payment terms: | L/C,T/T,Western Union | memory: | Maximum 8G |
Supply capacity: | 1000 units per month | Concurrent meeting: | / |
Storage: | 1*MSATA | product status: | in stock |
processor: | Dual Core Intel CPU | port: | Shenzhen |
power supply: | DC12V/3A 5A | Throughput: | / |
SFP ports: | x4 SFP | model: | Pro SSCC |
Display port: | 2*HD ports | Warranty: | one year |

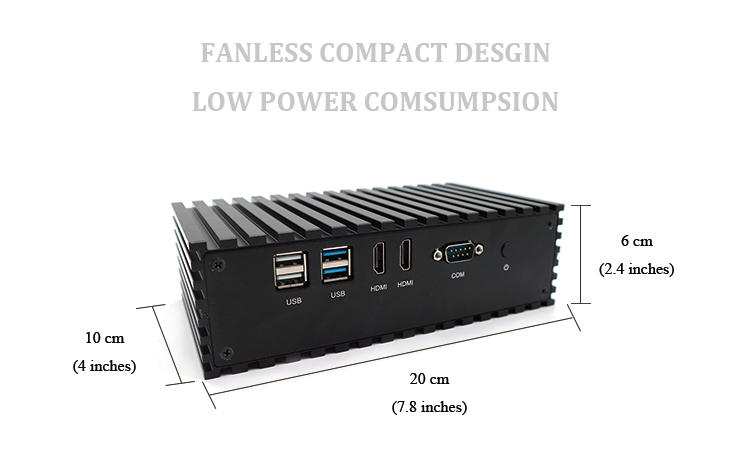

Dimensions (W*D*H, mm): | 18*10*6 |
part number# | Pro SSCC |
CPU/GPU | Intel SkyLake/KabyLake U series CPU (Celeron 3855U/3865U , Core i3 / i5, HD Graphics 510/610) |
memory | 1 x DDR3L SODIMM, up to 8gb |
storage | 1x Mini-PCIE for Msata SSD |

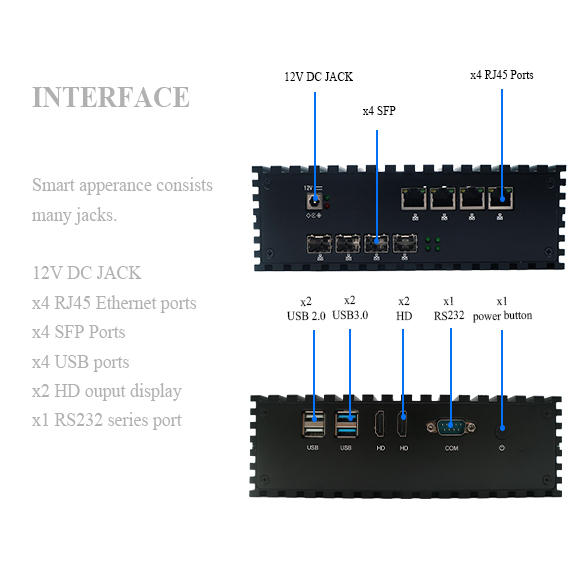

Front-end I/O | 2 USB 3.0 ports, 2 USB2.0 ports 2 HDMI ports 1 x DB9 COM RS232 port |

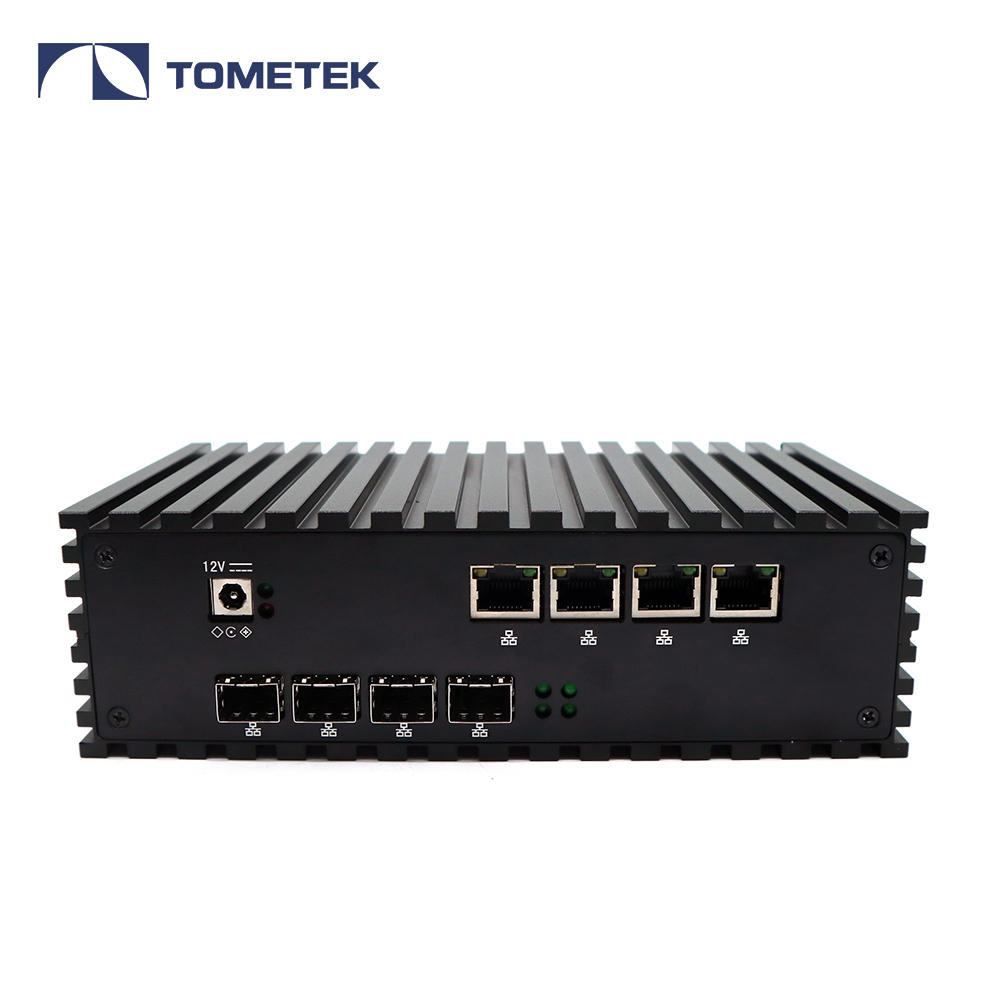

Rear I/O | 1x 5.5mm x 2.5mm DC jack 4 SFPs 4 x 10/100/1000M BASE-T Intel® Ethernet Controller I211 Series |
operating system | Windows 7, Windows 10, Linux |
strength | DC12V @ 3A (no SPF+ models) |
temperature | Working temperature -20~55℃, storage temperature -40~85℃ |
