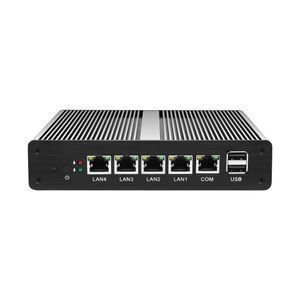

New router motherboard CNC Intel J1900 J1800 Specification: |
Onboard CPU | Intel Celeron Processor J1800(dual-Core 1 MB L2, 2.41GHz, up to 2.58 GHz) |
Memory | 1* SO-DIMM Solt Support DDR3L 1333/1600 MHz, 1.35V Max support up to 8GB Memory |
Hard Disk | Supports 1 * mSATA SSD |
Integrated Graphics | Intel HD Graphics (Base Frequency 688.00 MH,Max Dynamic Frequency 792.00 MHz) |
Onboard LAN | 4 x Intel I211-AT- 10/100/1000 Controller |
Audio Card | Realtek ALC662 HD Audio CODEC |
Front-Panel Connectors | • Power on/off • Power LED ( POWER/ SSD) • 2 x USB 2.0 Ports • 4 x Lan port |
Internal Connectors | • 1 x Mini pcie port (only for mSATA SSD) • 1 x DDR3L SO-DIMM Memory Slot • 1 x Automatically boot jumper |
Back-Panel Connectors | • 1 × DC 12V input • 1 x VGA
|
Operating System | Support Windows 7/8/10, Linux, etc |
RAM(optional) | 2GB / 4GB / DDR3L SO-DIMM |
SSD/HDD(optional) | 8G/16G/32G/64G/128G/256G/512G mSATA SSD |
Power Consumption | TDP 10W |
Case Color | Black (Other Color Can Be Customized) |
Power | DC100-240V AC/50-60Hz |
Operating Temperature | (-10°C~70°C ) |
Storage Temperature | (-20℃-80℃) |
Relative Humidity | 10%~90% (non-condensing) |
Dimension | 175x12.6x3.7 cm |
Gross Weight | 1.35kg |

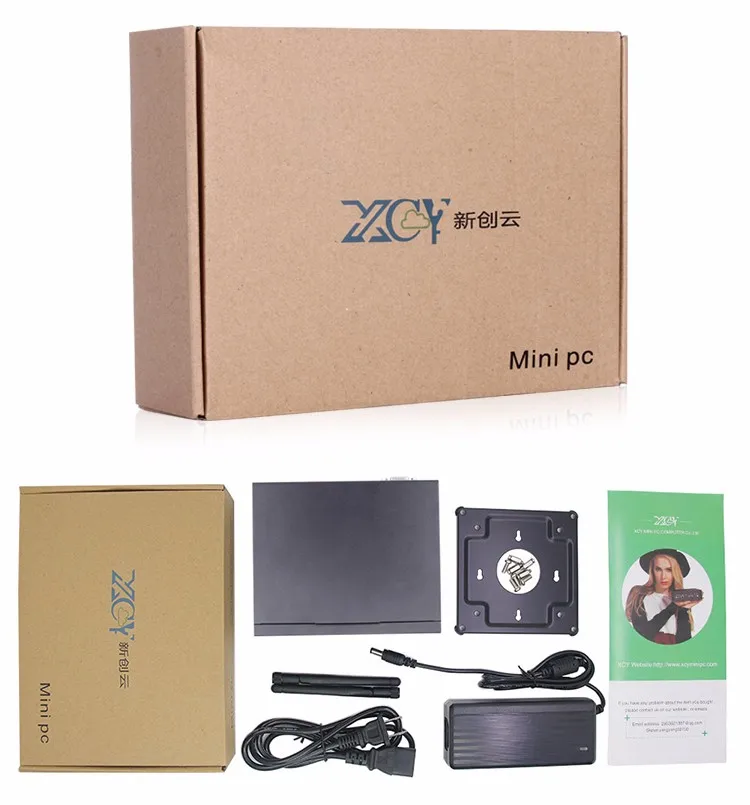

Accessories | 1 x mini Embedded computer 1 x Power adapter 1 x User manaul & warranty card |
Configurations on this link |
Memory | NONE(for option) |
Hard Disk | NONE(for option) |
WiFi / Bluetooth | NO Design |
