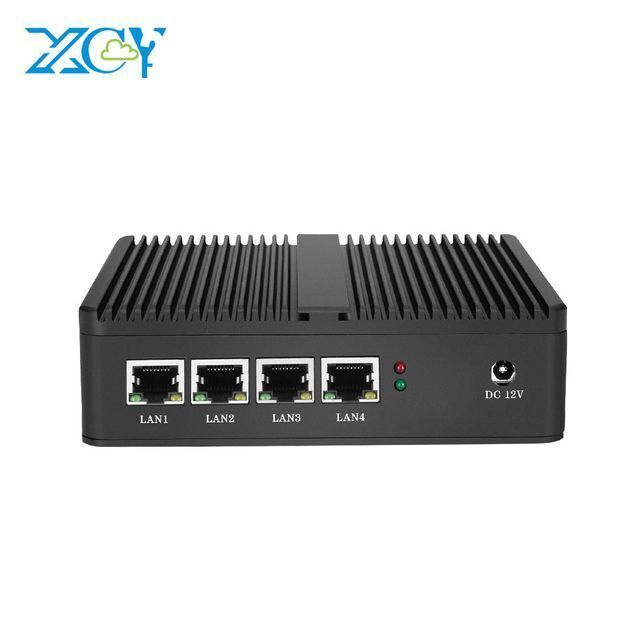

XCY Firewall Appliance Mini PC N2830 4 Gigabit Ethernet RJ45 In-tel i211AT NIC Pfsense Server

Click here to contact
Product details
WiFi:802.11b/g/n(Optional);Single package size:25X19X10 cm;
Onboard CPU:N2830;Brand Name:XCY;
Simultaneous Sessions:4;Place of Origin:China;
Keywords:Firewall;Model Number:X30;
Audio Chip:Realtek ALC662 H-D Audio;Integrated Graphics:In-tel H-D Graphics;
Single gross weight:1.500 KG;Memory:DDR3L 1333/1600 MHz, 1.35V;
Operating System:Support Win 7/8/10, Linux, Pfense etc;VPN Support:Yes;
Type:Wired & Wireless;NIC:In-tel i211AT 10/100/1000M Gigabit Ethernet;
Selling Units:Single item;Products Status:Stock;
Hard Disk:Supports 1 * mSATA SSD;Onboard LAN:1000M LAN;
Customizable

We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:

☑ Logo(Packing , Computer Logo)                               ☑ Computer Colors
☑ Security                                                                                ☑ Interfaces Customization
☑ Virtualisation                                                                    ☑ And so on...
☑ Data Protection


For more information, Pls leave email.

Product Description
Features:
• Support N2830
• One channel DDR3L 1333/16000
• Support 1 x mSATA
• With 4 x gigabit Ethernet
• Support automatic start the computer when plug in power
• Support wake up on Lan
• OS Support: Support Win7/8/10, Linux, Pfsense etc
• Palm-size from factory: 13.5*12.5*3.8CM
• Fan-less design, 0dB noise, Low power consumption
X30-N2830 Firewall Mini computer Specification:
Onboard CPU
Processor N2830
Memory
1* SO-DIMM Solt Support DDR3L 1333/1600 MHz, 1.35V Max support up to 8GB Memory
Hard Disk
Supports 1 * mSATA SSD
Integrated Graphics
In-tel H-D Graphics (Base Frequency 688.00 MH,Max Dynamic Frequency 792.00 MHz)
Onboard LAN
4 x In-tel I211-AT- 10/100/1000 Controller
Audio Card
Realtek ALC662 H-D Audio CODEC
I/O Port
• Power on/off
• Power LED ( POWER/ SSD)
• 1 x USB 2.0 Ports + 1 x USB 3.0
• 4 x Lan port
• 1 x H-D
Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Operating System
Support Pfsense/Win7/8/10, Linux,Pfsense  etc
RAM(optional)
2GB / 4GB / DDR3L SO-DIMM
SSD/HDD(optional)
32G/64G/128G/256G/512G mSATA SSD
WIFI
mPCIe half-size for 150M WIFI ( 2 WIFI antennna)( for optional)
Case Color
Black (Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-20°C~80°C )
Storage Temperature
(0℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
135*125*38MM
Gross Weight
1.3kg
Accessories
1 x Power adapter
1 x WiFi ( barebone PC NO SSD NO RAM, package come no with WiFi, other bundle with WiFi)
1 x User manaul & warranty card
Packing & Delivery

Payment:
we are support "L/C; DA; DP; T/T; Paypal. "But according the contract and which country"


Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)

1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual

Delivery :

we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,We will choose the right logistics according to your country.

Our Company
FAQ

Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.

Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.

Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).

Q6.What are the OS do your computers support?
Re: Support Win7, Win8, Win10, Linux ubuntu , pfsense etc.  Some model is support XP, such as 1037U,Core CPU is not support XP.

Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
