Farm Boss 5KW UTV / Farm UTV 4 X 4 / Electric Utility Vehicle

Product details
Warranty:12 Months;Max forward speed:60km/h;
Fuel Type:Electric;Motor:51V, AC, 5KW;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Net Weight:788KG;
Description:4 Wheel UTV;Transmission Type:Automatic;
Model Number:KW500;Fuel:Electric;
Color:Optional;Final Drive:2WD;
Supply Ability:2500 Set/Sets per Month;Place of Origin:Henan China;
Port:Ningbo/Shanghai/Lianyungang/Qingdao;Delivery Detail:Shipped in 25 days after payment;
Certificate:EEC,COC;Size (L*W*H):2950x1430x1780mm;
Certificate:Eec;Packaging Detail:Inner Steel Frame and Outer Carton 6 sets/20'GP 15 sets/40'HQ;
Type:5KW Motor;Brand Name:Kingwoo;
Product Description

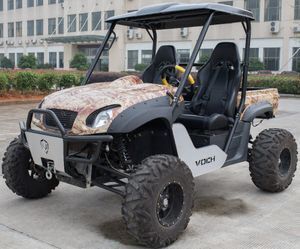

Farm Boss 5KW UTV / Farm UTV 4 X 4 / Electric Utility Vehicle
Product Type:
KW500
Motor
5KW, 51V, 82AMP 102HZ
Battery
8V 150Ah X 9 lead-acid battery
Max Power
15kW
Max Torque
70N.M
Running on 1 full charge
80km
Cargo bed Dimensions(LXWXH)
1180×930×340mm
Overall Vehicle Size: (L x W x H)
2950x1375x1860mm
Max Speed ( km/h )
60
Detailed     Specification
                                           Motor
                           Suspension
Motor Type:5KW, 51V, 82AMP 102HZ
Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Electricity Consumption of Sigle Charge: 10Kwh
Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
                                  Brakes
                                    Tires
Front/Rear Brakes: 4-Wheel Hydraulic Disc
Front Tires: 175/65 R14 82H
Parking Brakes: Hand-Actuated
Rear Tires: 175/65 R14 82H
                                                     Function/ Dimensions/ Capacities
Wheelbase: 1905mm
Drive System: RWD
Dry Weight: 788kgs
Battery: 8V, 150Ahx9
Overall Vehicle Size: (L x W x H)2950x1375x1860mm
Overall Vehicle Load Weight: 340kgs
Min Ground Clearance: 220mm
Hitch Towing Rating: 500kgs
Cargo bed Dimensions: (L x W x H)1180×930×340mm
Cargo bed  Capacity : 185kgs

KW500 is one type of Electric Utility Vehicle ( Electric UTV ).
It is preferred by Euroepan customers because of pretty appearance and good performance.
It can be used in many fields such as Farm, Sport,Hunting, Logistics,ect.
This type of UTV is equipped with 5KW AC Motor and 72V Free-maintenance Battery.
Its max speed can reach 80-90 km/h.
Meanwhile,This UTV is also equipped with many optional spare parts for customers to choose.

Details  Description



Plastics :

Intensive PP Materials



Steering Wheel :


Comfortable Handling


steering wheel



Battery :


8V 150Ah X 9 lead-acid battery

Chinese Famous Brand





Motor :


5KW, 51V, 82AMP 102HZ

Good Quality



Seats :


Adjustable  and Confortable  Seat


The Seat is with safety belt.

Cargo  Bed :


Cargo bed Dimensions
(L x W x H) : 1180×930×340mm

Cargo bed Capacity : 185kgs



Optional Spare Parts

Certifications
Packing & Delivery
Related Products

            600CC  4X4  EEC UTV


     5KW  Electric UTV with EEC


                   Electric    UTV


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample . But need sample fee.

Q: What is your terms of payment ?
A: Payment 50% T/T in advance ,balance before shippment.
