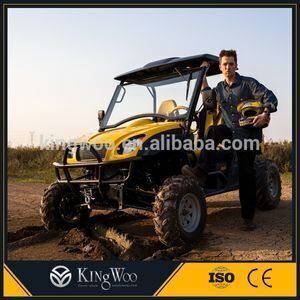

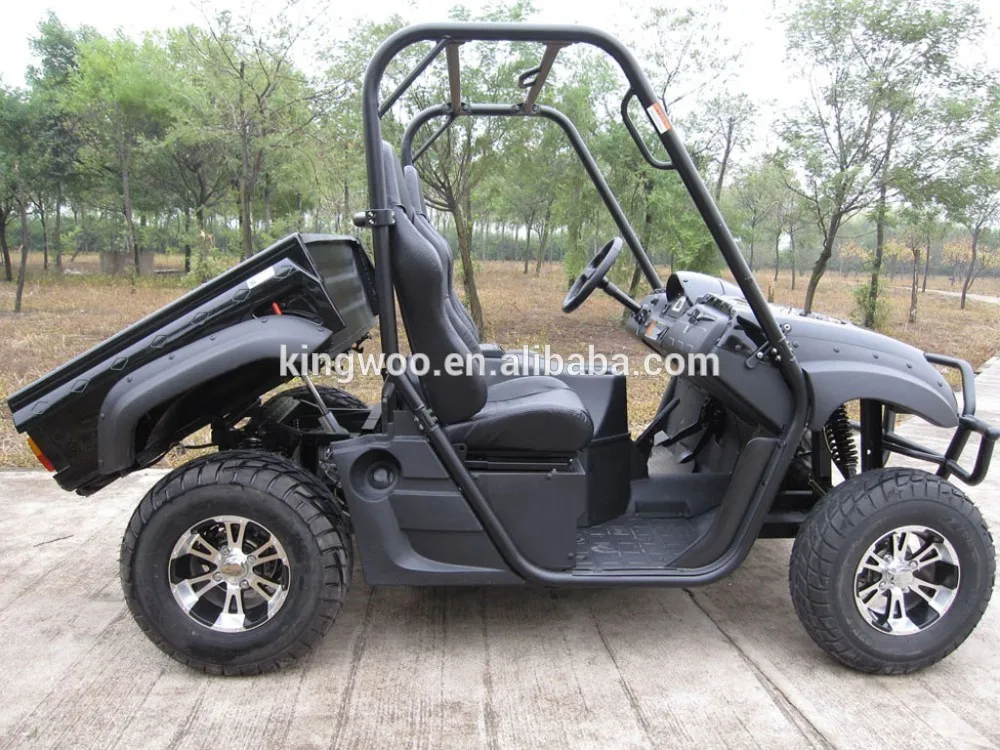

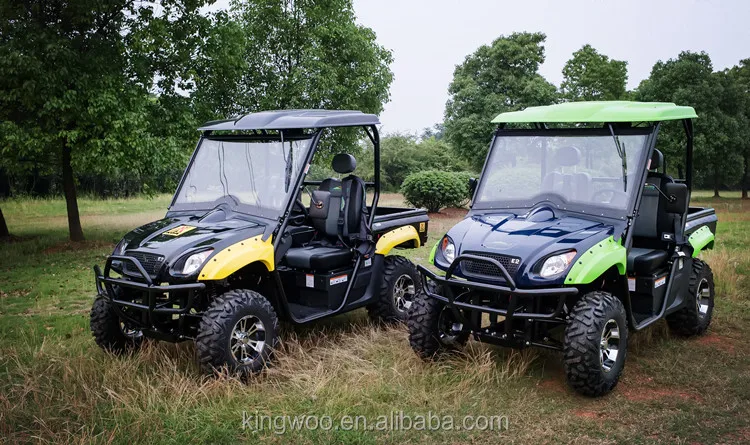

Kingwoo Widely Used Electric UTV 4x4 for Sale with EEC Certification

Supplier: Henan Kingwoo Electric Vehicle Trading Co., Ltd.
Region: Henan, China
Contact: Mr Mr. Wang
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

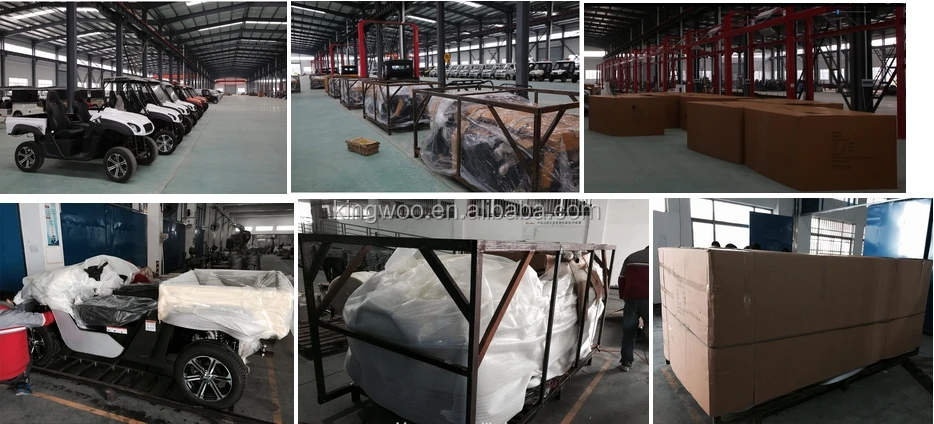

Packaging Detail:	Steel structure fixed, metal pallet supprot, then carton or wood case, the last container.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:	Henan China (Mainland);	Model Number:	KWE500;
Parking brake:	Hand-Actuated;	Voltage:	51V;
Transmission System:	Shaft Drive;	Certification:	EEC, COC;
Color:	as customer demand;	Charge time:	8-10 hours;
Battery:	8V 150Ah X 9;	Item:	Electric UTV;
Power:	> 1000W;	Brand Name:	Kingwoo;
Supply Ability:	100 Set/Sets per Month;	Delivery Detail:	Within 15-20 days after balance payment;
MOQ:	1 set;	Port:	Qingdao, Shanghai, Ningbo, Guangzhou;
Charger:	Full automatic efficiency pulse charger;	Motor type:	5kw, 51v;
Dimension(LWH):	2950mmx1375mmx1860 mm;	Drive mode:	RWD;
Fuel:	Electric;

Kingwoo Widely Used Electric UTV 4x4 for Sale with EEC Certification

Product Description

Parameter table

Motor					Suspension
Motor Type:5KW, 51V, 82AMP 102HZ					Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Electricity Consumption of Sigle Charge: 10Kwh					Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
Brakes					Tires
Front/Rear Brakes: 4-Wheel Hydraulic Disc					Front Tires: 175/65 R14 82H
Parking Brakes: Hand-Actuated					Rear Tires: 175/65 R14 82H
Function/ Dimensions/ Capacities
Wheelbase: 1905mm					Drive System: RWD
Net Weight: 788kgs					Battery: 8V, 150Ahx9
Overall Vehicle Size: (L x W x H)2950x1375x1860mm					Overall Vehicle Load Weight: 340kgs
Min Ground Clearance: 220mm					Hitch Towing Rating: 500kgs
Min turning radius: 3.5m					Carrying capacity: 340KGS
Max forward speed: 60(km/h)					Climbing ability: <=20°
Cargo bed Dimensions: (L x W x H)1180×930×340mm					Cargo bed: Capacity185kgs

Optional Tires

1. HT is made for the main purpose of driving on road with the feature of soft side-wall, lower tread depth and closer tread pattern than MT.

2. MT is designed for the purpose of eliminate mud in low speed or throw away mud with high speed. It can also increase the adhesion on rough terrain such as bump rocky road.
