Standard or Nonstandard: | Standard; | Brand Name: | ZALY; |
Delivery Detail: | 20 days against sight LC or down payment; | Structure: | Ball; |
Place of Origin: | Jiangsu China; | Model Number: | TCH series; |
Port: | Lianyungang; | Port Size: | 1; |
Payment Terms: | L/C,T/T,Western Union; | Pressure: | High Pressure; |
Material: | Ceramic; | Supply Ability: | 10000 Piece/Pieces per Month; |
Temperature of Media: | High Temperature; | Packaging Detail: | packaging as per customers' requirements.; |
Specifications
1.Advanced ceramic material
2.Long useful life period & low cost
3.Acid & alkali resistant
Features:
1. Low wear loss can protect material from pollution
2. Applicable to high viscosity, wet grinding and dispersion situation
3. High grinding efficiency
4. Extremely long useful time, low overal operating costs
Application :
High strength and high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics; Ceramics: electronic ceramics, refractory ceramics, structural ceramics

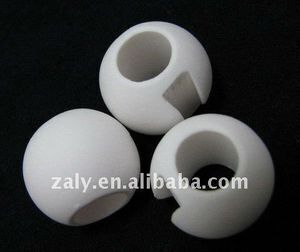

Item:Ceramic Ball Valve Material :95 Alumina Ceramic
Name | Unit | Alumina | Zirconia | ||
Content | % | ≥95 | ≥99 | ≥99.7 | ≥94 |
Density | g/cm3 | 3.65 | 3.80 | 3.90 | 6.00 |
Hardness (Hv0.5) | GPa | 13.1 | 15.0 | 17.1 | 13.2 |
flexural strength
| MPa≥ | 340 | 310 | 370 | 1000 |
Elasticity | GPa | 300 | 330 | 350 | 200 |
Poisson's ratio
| 0.23 | 0.23 | 0.23 | 0.30 | |
Max Tem. | °C≥ | 1400 | 1750 | 1800 | 1050 |
Heat expansion | ×10-6/°C(40-800°C) | 7.8 | 8.0 | 8.0 | 11.0 |
Thermo conductivity
| W/m·K( 20°C) | 22 | 28 | 31 | 2.6 |
Thermal Resistance | °C | 200 | 200 | 230 | 300 |
dielectric strength
| V/m | 15×106 | 15×106 | 15×106 | 11×106 |
dielectric phase angle (1MHz) | ×10-4 | 4 | 2 | 1 | 16 |
SIC(1MHz) | 9.2 | 9.8 | 9.9 | 33 | |
Nitric Acid (60%)90°C | WT Loss mg/cm2/day≤ | 0.12 | 0.10 | 0.05 | ≠0 |
Sodium hudroxide (30%)80°C | WT Loss mg/cm2/day≤ | 0.53 | 0.26 | 0.04 | 0.08 |
.
