DAS Milling cnc lathe machine for production car accessories and gear
-
Supplier: Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Louisa LuA -
Price: $35800.00 /set -
Min. Order: 1 set
| Spindle Speed: | 1-4500r/min(factory setting); | X axis travel: | 1040mm; |
| Max.maching length: | 250mm; | Port: | ShunDe/ShenZhen; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Controlling Mode: | Taiwan syntec(other brand); |
| Chuck size: | 6 inch; | Brand Name: | DAS; |
| Dimension(L*W*H): | 2100*1550*1800 mm; | Keyword: | china milling machine; |
| CNC or Not: | CNC; | Condition: | New; |
| Weight: | 2300 KG; | Packaging Detail: | Plastic stretch film for the first layer, EPE packaging film for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box. china milling machine; |
| Warranty: | 1 Year; | Certification: | ISO9001, CE; |
| With Bar feeder and Chip conveyor: | Yes; | OEM: | Accept; |
| Y axis travel: | 250mm; | Voltage: | 220V/380V,50HZ; |
| Place of Origin: | Guangdong China; | Power(W): | 10 KW; |
| Spindle bore: | diameter 56mm; | Type: | Whirlwind milling; |
| Supply Ability: | 200 Set/Sets per Month china milling machine; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
China Milling Machine Cnc Lathe Features
- X axis to 1040 mm;
- Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity;
- High-precision main spindle of Taiwan; the spindle flange can be directly installed with Φ160 3-jaw self-centering oil-pressure chuck or other collets; - Servo motor for spindle motor, more optimized performance;
- Accessories imported from Japan and Taiwan;

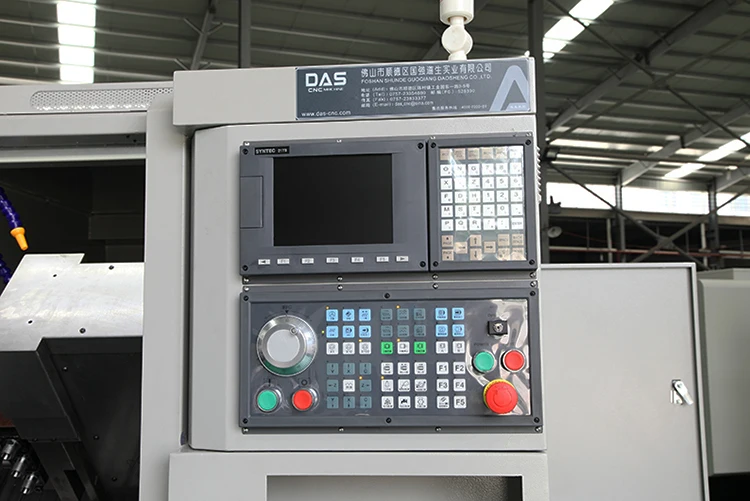

- Taiwan controller system, four-axis ; Or other controler opption;
- Computer-aided automatic lubricating system to lubricate linear guide rail and ball screw, guaranteeing the service life of guide rail and ball screw;
| Name | DS-6LES |
| Adjacent tool change time (s) | 0.3 |
| Tool change style | Random |
| Square knife knife holder (mm) | 20X20 |
| Round hole knife holder (mm) | φ20 |
| With chuck size | 6 Inch |
| Spindle speed (r/min) | 1-4500 |
| Spindle bore (mm) | φ56 |
| Center height (mm) | 56 |
| The maximum diameter of rotation (mm) | 380 |
| Spindle motor power (KW) | 5.5 |
| Minimum system Resolution | 0.001 |
| X/Z Axis stroke (mm) | 1040/250 |
| X/Z axis fast moving speed (m/min) | 30 |
| X/Z axis Repetitive positioning accuracy (mm) | ±0.003 |
| Taper (mm) | ≤0.003/100 |
| Card position size (mm) | ≤0.003 |
| X servo-motor (KW) | 1.3 |
| Z servo-motor (KW) | 1.3 |
| Hydraulic station (KW) | 0.75 |
| Water tank motor power (KW) | 150W |
| Cooling water tank capacity (L) | 60 |
| Bar feeder center height (mm) | 1120 |
| Weight (KG) | 2900 |
| Size (L*W*H mm) | 2250x1500x1950 |
| Power (KW) | 13 |
Click here to send inquiry
| Slant bed cnc lathe | Horizontal cnc lathe |
| Slant bed Turret cnc lathe | Whirlwind milling cnc lathe |
| Slant bed cnc lathe with unit type head | Y Axis Type Turning Center |
| Slant bed cnc lathe with long travel | Sliding headstock type cnc lathe |
| Back to Home | |
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .

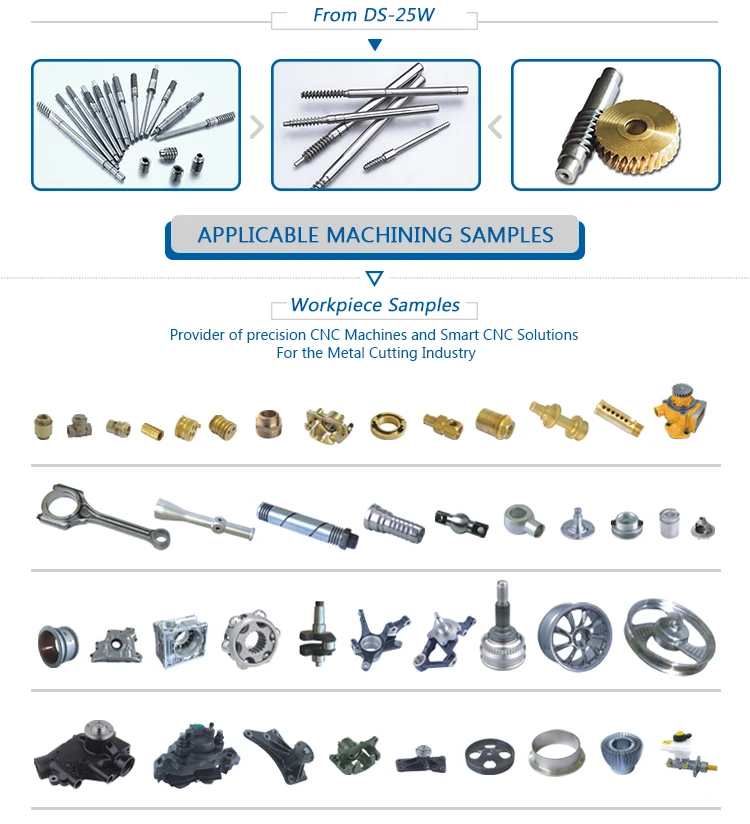

Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof, electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools.
| 1. Dear: How do I pay for my purchase order? |
| Trasa: T/T , Western Union , Escrow , Paypal , Alipay. |
| 2. Dear: How can I visit your company? |
| Trasa: A: You can take underground to South of Station Guangzhou,then we will pick you up to our company. Just one hour from Baiyun airport to our company.Warmly welcome you to visit our company. |
| 3. Dear: What is the MOQ? |
| Trasa: One set. |
| 4. Dear: What is the delivery time? |
| Trasa: 30-45days. |
| 5. Dear: Can I have my own order customized products? |
| Trasa: Yes, your customized requirements for color , logo , design , package , carton mark , ect. are very welcome. |
| 6. Dear: Do you have quality control? |
| Trasa: Yes, we attach great important to quality problem accurs |
| 7. Dear: How about the waranty? |
| Trasa:12 months |
-
