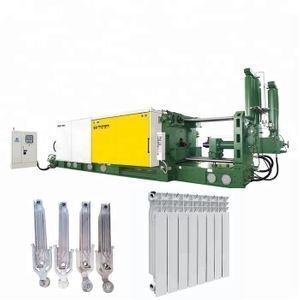

Haichen horizontal aluminium radiator cold chamber injection machine

Supplier: Ningbo Haichen Servo Information Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr kevin shen
Price: $73500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Construction works ;	Space between tie bars:	760*760mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Material:	aluminium;
Condition:	New;	Dimension(LWH):	801019852940mm;
Port:	Ningbo Port;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal and so on;
Voltage:	380/220/440V;	Brand Name:	HAICHEN;
Injection weight:	4.1-6.8kgs;	Die thickness(min~max):	90-1200;
Warranty:	1 Year;	Power(W):	30KW;
casting area:	344-1433CM2;	Supply Ability:	226 Set/Sets per Month cold chamber die casting machine;
Packaging Detail:	Standard package of aluminium injection machine;	Certification:	CE, ISO;
open stroke:	610mm;	Weight:	24000;
MOQ:	1set;	Place of Origin:	Zhejiang China;
Condition:	New;	Type:	cold chamber die casting machine;
After-sales Service Provided:	Video technical support,Online support;

Haichen horizontal aluminium radiator cold chamber injection machine

Product description

HAICHEN die casting machine factory supply the fully automactic production line.

Easy operation and professional design ensure quality and precision.

Our machine is suitable for industry departments of automobile and motorbike fittings,apparatus,meter,miscellaneous hardware,household appliances,etc.

• Multi-stage pressure and speed control to mode-locked opening,it is equipped with low pressure locking protection function.

• Hydraulic friver gear die regulating device.

• Cenral electric lubrication system.

• Rapid hydraulic ejecting device and core puller.

• Injections of two sections of pressure and speed control,high-speed injection of piston type accumlator.

• German and Japanese famous brands hydraulic elements.

• Advanced injection system can stabilize the injection speed effectively,and the air injection speed can reach 4m/s.

• Furnace uses digital temperature control to control the temperature of the alloy material precisely to avoid the condition that temperature is too high or too low,which improve the quality of die cast parts.

• Hotkey of nozzle and gooseneck uses steel materials with high temperature and hot working,to make sure their wearing life is long.

Product name: aluminium radiator

Length: 50cm

Weight: 1200g

Name	Aluminum radiator for heating In House
Working Pressure	1.5 MPa
Water Capacity	0.27-0.39L
Weight	0.93-1.48Kg

aluminium radiator mould

PLC CONTROLLED UNIT

PLC with LCD Touch Screen provides function as parameter setrtings and production monitoring.Machine adopts the world famous brand electrical components to ensure stable,safe and reliable performance.

CLAMPING UNIT

High strength and wear resistant casting platens and toggles.toggle system adopts double link tie bar guidance,achieves the effect of rapid,strong,durable and stable.Hydarlic driven gear type die thickness adjusting device makes the operation quickly and guarantees the accuracy.

HYDRAULIC SYSTEM

oil hydralic system adopts proportional controlled system pressure and flow,achieves multi-stage pressure& speed control,and low pressure die clamping function.European or japanese famous valve and oil seals ensure quality and durability;The well-known brands improve the performance.The high-low double pump or single pump with low noise save energy and improve production efficiency.

INJECTION UNIT

2 stages Injection controls with piston type accumulator and high flow cartridge valve achieves high speed operation & stable injection.All hot parts are made of high-quality steel to ensure stable operation in the environment of high temperature,high pressure and high speed.
