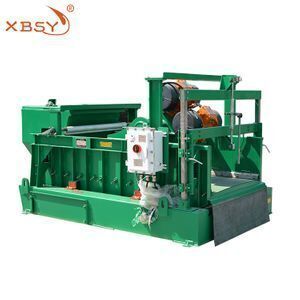

Linear Shale Shaker,China Mud Shale Shaker Vibration Screen Machine Manufacturer,Drill Rig Drilling Fluids Shale Shaker Price

Supplier: Chengdu West Petroleum Equipment Co., Ltd.
Region: Sichuan, China
Contact: Mr Hermes Lei
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Dimension(LWH):	see the chart;
Production Capacity:	high;	Place of Origin:	Sichuan China;
Payment Terms:	T/T;	Weight:	see the chart;
Supply Ability:	5000 Set/Sets per Year new shale shaker;	Brand Name:	slove xbsy;
key words:	shale shaker;	Model Number:	ZS/z-1;
Warranty:	1 year;	Screen amount:	3 pieces / 4 pieces;
Power:	50Hz/60Hz;	Splash prevention:	Availible;
Certification:	ISO9001, API;	After-sales Service Provided:	Engineers available to service machinery overseas;
Imported part:	Italy short motor;	Voltage:	380/460V;
Port:	Shanghai / Tianjing;	Features:	High strength and quality;
Application:	oilfied sand shaker;	Obliquity:	Adjustable;
Material:	High corrosion resistance;	Power(W):	2*1.865kw;
Packaging Detail:	wooden case or according to customer's request;

Linear Shale Shaker,China Mud Shale Shaker Vibration Screen Machine Manufacturer,Drill Rig Drilling Fluids Shale Shaker Price

Product Description

Product Specification:

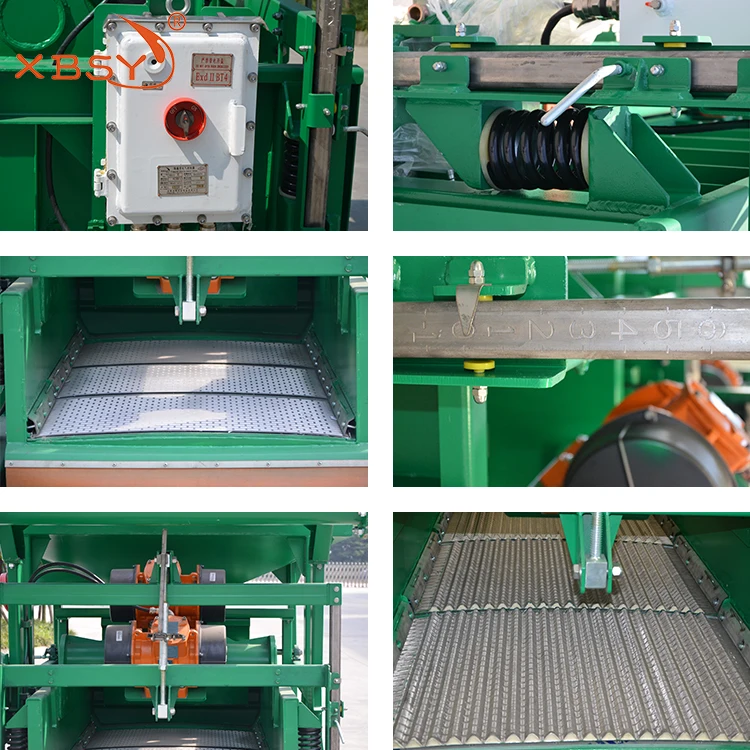

The crochet screen with a quick-speed tighten bolt, obliquity-adjusting mechanical ratchet mechanism and patent-technology-based splatter shield made of high-strength cloth are used for convenient usage and clearly environment.

Type	ZS/Z-1
Screen specification	Crochet screen 3-1053*697 mm
Excitation motor	2-1.865 kw
Vibration amplitude	≥5.5 mm
Vibration intensity	≥6.5 g
Explosion-proof grade	Exd II BT4
Protection grade	IP55
*Dimension(LWH)*	294519201680 mm
Weight	1850 kg
