MachineryOffers

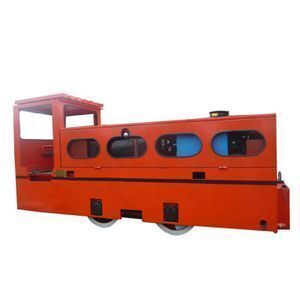

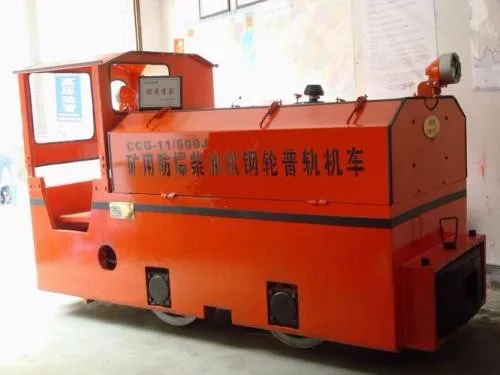

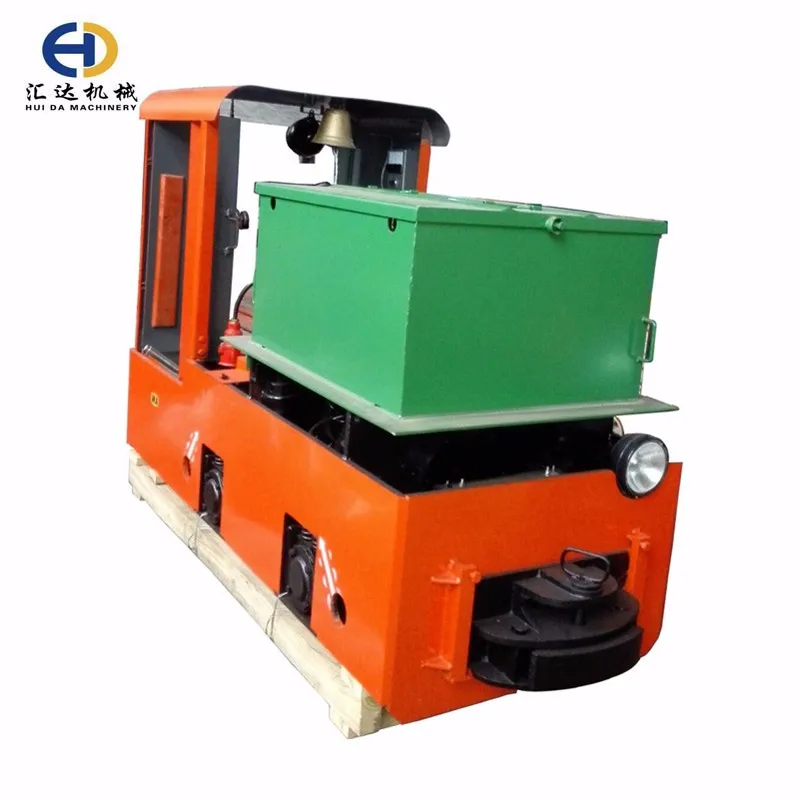

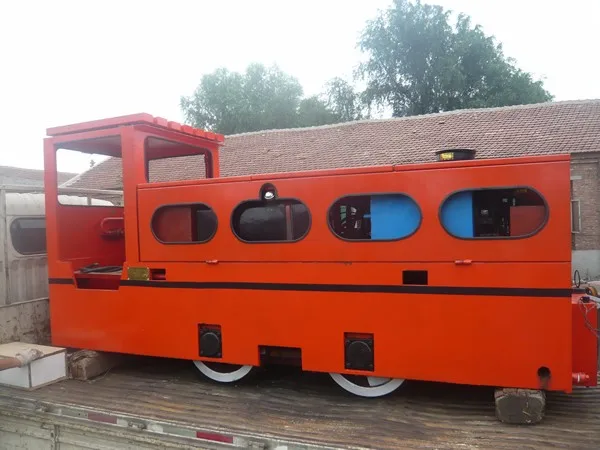

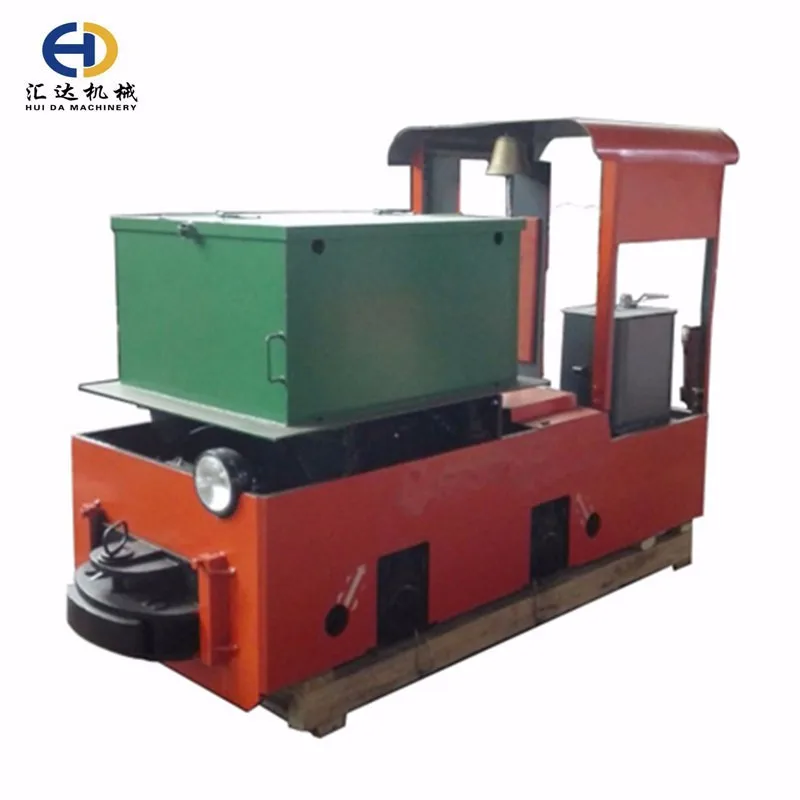

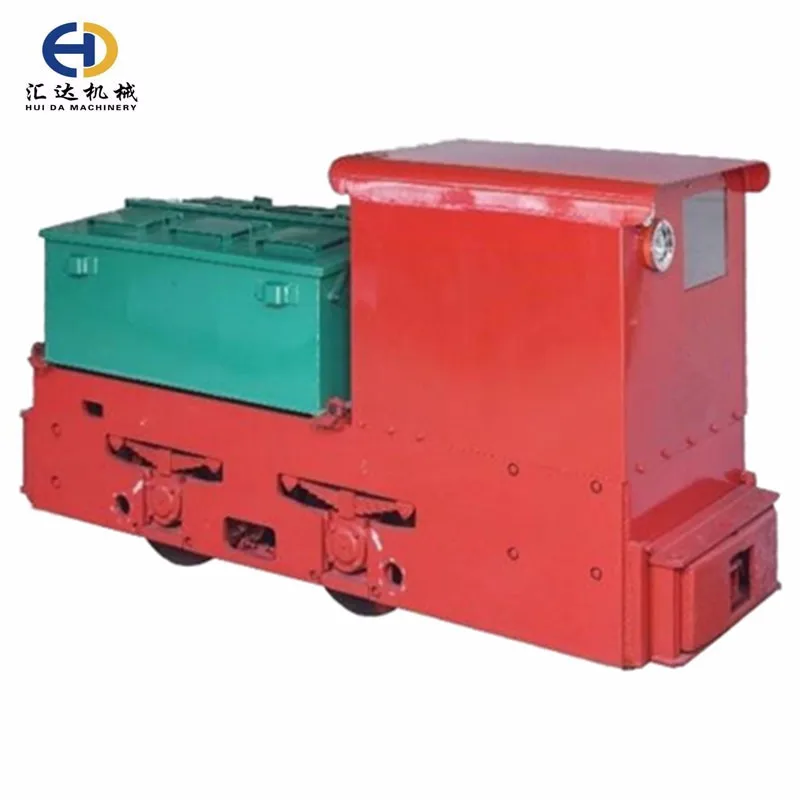

3 ton explosion-proof underground diesel locomotive for sale

Product details
Payment Terms:L/C,T/T,Western Union;Packaging Detail:wooden pallet;
Traction tonnage:25t;Horsepower:> 4.5KN;
Color:as customer's requirement;Fuel Type:Electric;
Brand Name:Huida;Max. speed:10km/h;
Place of Origin:Shandong China;Speed (km/h):3-10KM/H;
Way of Speed Control:Resistance or Chopped wave;Wheel base:600mm;
Track Gauge:600/762/900mm;Port:Tianjin, Shanghai, Qingdao, Shenzhen;
Weight:3 TON;Application:subway tunnel;
Dimensions (L x W x H) (mm):2460*950*1600mm;Supply Ability:1 Set/Sets per Month;
Power of motor:11kw;Product name:Diesel locomotive;
Product Description

These locomotives are designed for horizontal rail transport; they are certified according to European safety standards and meet their requirements. They can work on slopes of rail tracks to 35‰, with track gauge from 500 up to 1435 mm, at ambient temperatures from -35 to +40 °C.

Locomotives are weighing from 5 t to 22 tons; single cabin of compact design, the cabin is elevated with views to both driving directions. Diesel engines are with power from 35 to 250 kW.

Specification
PARAMETER FOR CCG3.0/6 DIESEL LOCOMOTIVE
Item
CCG-3.0/600
CCG-5.0/600
Weight kg
3
5
Pulling Tonnage T
20
37
Greatest Traction Force KN
6.5
10
Max Speed (no-load km/h)
forward:14.6 after:12.5
forward:14.6 after:12.5
Max Speed (rated load km/h)
forward:11.6 after:10
forward:11.6 after:10
Smallest Railway Orbit m
5
6
Wheelbase mm
700
900
Gauge mm
600
600
Traction Height mm
270 320 430
270 320 430
Dimension (L*W*H) mm
2600*950*1580
2900*1000*1580
Diesel Engine Power (kw)/Rotating Speed (r/min)
11/2200
13.97/2200
Max torque (N.m)/Rotating Speed (r/min)
64.3/1650
87.64/1650
Volume of fuel tank (L*W*H mm)
320*280*180
Braking mode
Mechanism
Mechanism
Detailed Image

Diesel engine

Lamp

Gear


Charger


More parts
Our advantage

1. Quick shipping, within 3 days.

2. Factory price.

3. Custom acceptable

4. 12 months of warranty

5. Support 7 days refund

6. Payment online

Our Company

Jining Huida Machinery CO., LTD, an ISO 9001-2015 and ISO 14001:2015 certificated company was founded in 1996 in Jining, Shandong province, manufacture machinery & equipment for mining equipment : mining wagon, mining locomotives, mining tools, mining truck....
With hundreds of machines in stock in our 5000 quare meters, and 22 years' experience in souring farm machinery.
We are a team of highly motivated individuals working together to fulfil our mission for miners 'to put what you need, within you reach'. We have contacts across the globe, we can source the machinery you need to ship anywhere in the world, Jining Huida have many satisfied customer thoughout more than 30 different counties.
