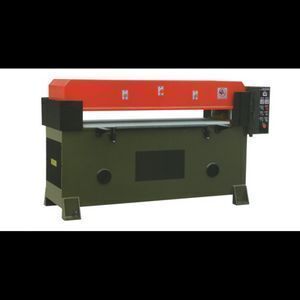

40ton Precise 4-Column high speed plane hydraulic cutting machine for shoes

Product details
Maximum Cutting Force:40TON;Applicable Industries:cutting machine;
Place of Origin:Jiangsu China;Rated Power:5HP;
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:GSB;
Selling Units:Single item;Single package size:210X120X140 cm;
Condition:New;Motor:5HP;
Type:Hydraulic Cutting Machine;Certification:CE;
Net weight:1800,2000kg;Package Type:plastic film cover packing;
Dimensions:2100x1200x1420mm;Power(W):5.5kw;
After-sales Service Provided:Video technical support,Online support;Voltage:220V/380V/415V;
Warranty:1 Year;Max. Cutting Depth:120mm;
Single gross weight:1,800 KG;Cutting area:1470x610,710mm;
Open daylight:50-180mm;Machine bed:2100x1200x1420mm;
Application:many;Saw Blade Diameter:1470x610,710mm;

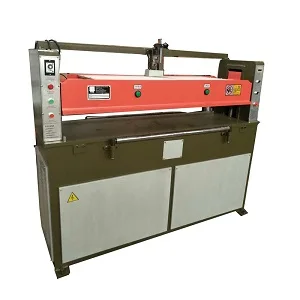

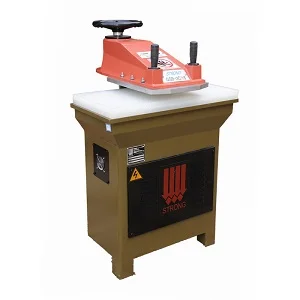

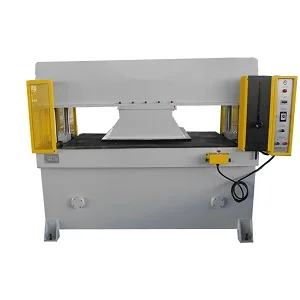

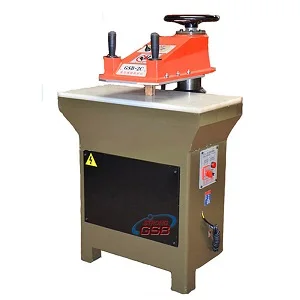

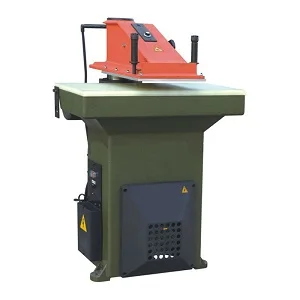

Below are the cutting machines of our related models











Precise 4 Tetrastyle Plane Hydraulic Bag Rubber Leather Die Press Machine, High Quality Die Press Machine,Plane Cutting Shoes Machine,Precise 4-column Shoes Machine



USE AND CHARACTER

The machine is suitable for cutting single layer or multiple layers of leather, rubber , plastic, plastic packing, textile products, textile products, chemical fiber and other materials by forming cutter.

  • The operation is labor-saving and simple, with low malfunction, strong cutting force and high cutting speed.
  • The mechanism of double oil cylinder and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
  • When the cutting board is pressed downwards to contact the cutter, it carries out automatic and slow cutting to make no size error between the uppermost layer and lowermost layer of the cut materials.
  • Operation with both hands makes high safety.



TECHNICAL SPECIFICATION



Model

Cutting force

Machine bed

Motor

cutting area

Open daylight

Net weight

509-30T

30TON

1780x1000x1350mm

3HP

1250x500mm

50-180mm

1400kg

2050x1000x1350mm

1470x500mm

1500kg

2180x1000x1350mm

1600x500mm

1700kg

509-40T

40TON

1830x1200x1420mm

5HP

1250x610,710mm

50-180mm

1700,1800kg

2100x1200x1420mm

1470x610,710mm

1800,2000kg

2230x1200x1420mm

1600x610,710mm

2000,2200kg

509-50T

60T

50TON

60TON

1880x1300x1520mm

6HP

1250x800mm

50-240mm

2500kg

2150x1300x1520mm

1470x800mm

2800kg

2280x1300x1520mm

1600x800mm

3000kg
