Export products list KG935 Crawler Drill Rig heavy duty drill machine import from china

Product details
Dimension(L*W*H):5400*2330*2020mm;Brand Name:Kaishan;
Drilling Speed:100 r/min;Weight:6500kg;
Ground Clearance:320 mm;Certification:ISO9001 ISO14001 GC ASME CE;
CNC or Not:CNC;Rock Rigidity:F=6-20;
Working Air Pressure:1.05-2.46Mpa;Gradeability:30°;
Supply Ability:3000 Set/Sets per Month heavy duty drill machine;Packaging Detail:seaworthy packing.;
Place of Origin:Zhejiang China;After-sales Service Provided:Engineers available to service machinery overseas;
Rotation Torque:2800 N.m;Payment Terms:T/T,30% deposit and balance before shipment.;
Diameter of Hole:80-115mm;Condition:New;
Voltage:-;Port:Ningbo, CHINA.;
Power(W):25 KN;
Product Description

Export products list KG935 Crawler Drill Rig heavy duty drill machine import from china



KG935 Crawler Drill Rig

Rock Rigidity

F=6-20

Diameter of Hole

Φ105-140mm

Drilling Depth

25

Working Air Pressure

1.05-2.46Mpa

Air Consumption

9-18 m³/min

Rotation Speed

100 r/min

Rotation Torque

2800 N.m

Lift Power

25 KN

Feed Distance

3000mm

Walk Speed

0-2.5 km/h

Gradeability

30°

Ground Clearance

320 mm

Weight

6500kg

Dimension

5400*2330*2020mm

Pitch Angle of Carriage

180°

Pivot Angle of Carriage

145°

Drill Boom Pitch Angle

90°

Sliding Carriage Suppling Length

1200mm

Diesel Engine

YC4D80(58Kw 2400r/min)

Diameter of Drill Pipe

Φ76 or Φ89

Matched Air Compressor

Model

LGCY-18/17

Capacity

18 m3/min

Pressure

17 bar

Compression Grade

First

Engine

Cummins 6CTA8.3-C260

Rated Power

194(260)kw(HP)

Cooling Model

Water-cooled

Wheel Size *Qty

6.50-16×4

Bore*Stroke*Cylinders

114mm×135mm×6

Dimensions

3980*1800*2450

Weight

3400KG

Voltage

24 v

Head Model

SKY1817

Air Supply Valve  Specification×No.

G2×1,G3/4×1



KG920B pen-air crawler drill rig originated from KG910B, innovative designed to the drill pipe, racks and console etc, mainly has the following characteristics:

 1 Innovative design and drill carriage arm members, making a fulcrum of the swing angle can play horizontal and vertical hole and horizontal hole low;

 (2) can lift the drill pipe racks, easy to operate, and effort;

 3 operating handle concentrated furnished and equipped with pedals, neat appearance, easy to operate;

4 speed rotary speed (maximum 120r/min), to meet market demand;Low vehicle design, flexible rail bracket for easy transport.

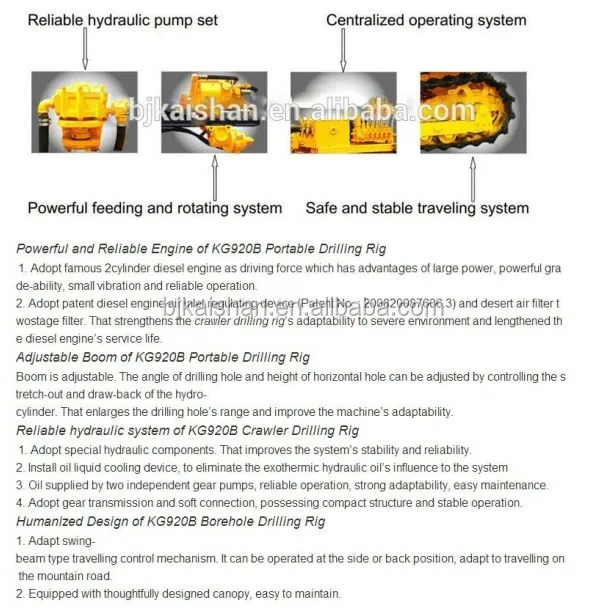

Features:

Safe and Stable Traveling System

  1. Low gravity, great ground clearance, makes it easily go through rugged road.
  2. The advanced automatic balance system, not only makes drilling stable, also reduced the impact of the car greatly, and ensures the safe moving.
  3. High powered motor gives strong climbing ability with great traction.
  4. Brakes and walking operation method adopt linkage way, making parking as braking, thus safe guarded car in slope rock drill and driving on stability and security.
  5. Often set the state of the brake control valve to walk around the track, control crawler action, respectively about realize forward, backward and steering, convenient and flexible.

Centralized Operating System

  1. Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.
  2. Centralized control is operated easily. Hydraulic maneuvering valve can be achieved lift, swing and drilling rigs pitching,swing, forward and back, also can make track equal. Ensuring the stability of drilling rock hole in full dimension. Operating pneumatic manoeuvring valve can realize the pump opening and drill the advancement of car (ascension), and turn to dust collector, impactor, impact and set the dust collection, the blow function, ensure efficient car rock drill.

Powerful Feeding and Rotating System

  1. Promote reducer drives adopt turbine and worm, which have a big push-pull effort and can realize self-locking. By adjusting the press of the reducing valve, the push-pull effort and lifting speed can adjust easily as your needs.
  2. Slewing reducer drives adopt planet wheel, rotate speed is slow and torque is large. By adjusting the press of slewing reducer, the rotate speed and torque can adjust easily according to needs which guarantees the highest efficiency of down-hole and hammer drilling.

Adjustable Boom

Adopting adjustable boom, the dip angle of hole and level hole height can be adjusted by controlling the oil tank stretch out and draw back.

Introductions:

KG935 pen-air crawler drill rig originated from KG930B, innovative designed to the drill pipe, racks and console etc, it can drill vertical and horizontal blast holes in the fields of mines, national defence, water conservation, road building and stonework. It has low center of gravity and its detachability is good. It is essential for open mining drilling equipment, especially for the other drill rigs that do not work in the uneven rugged terrain; It is with the characteristic of compact structure, easy operation, fast cutting speed, high efficiency and good removable.

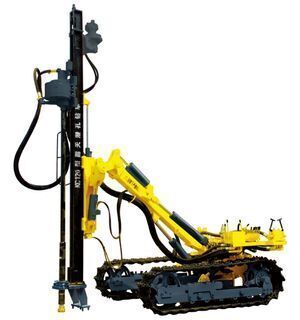

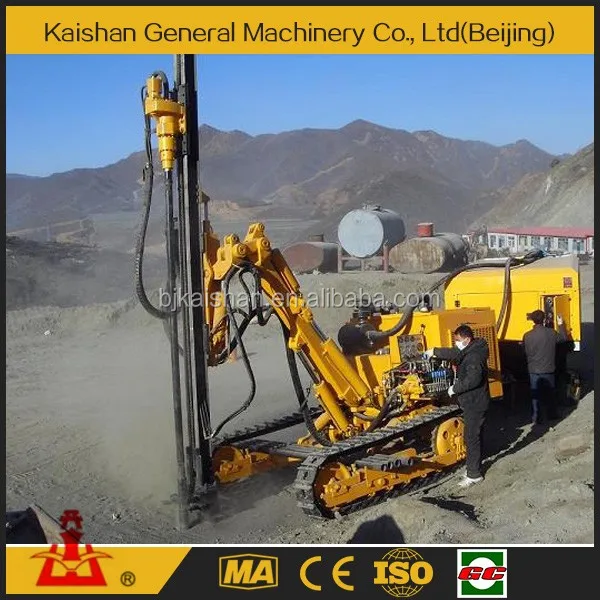

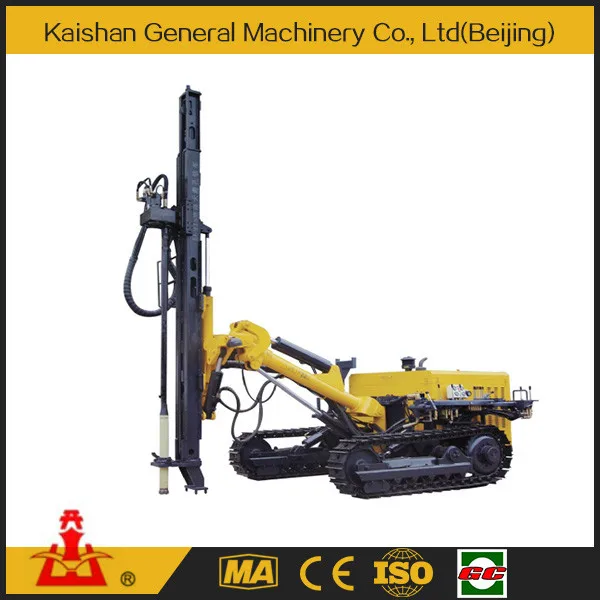

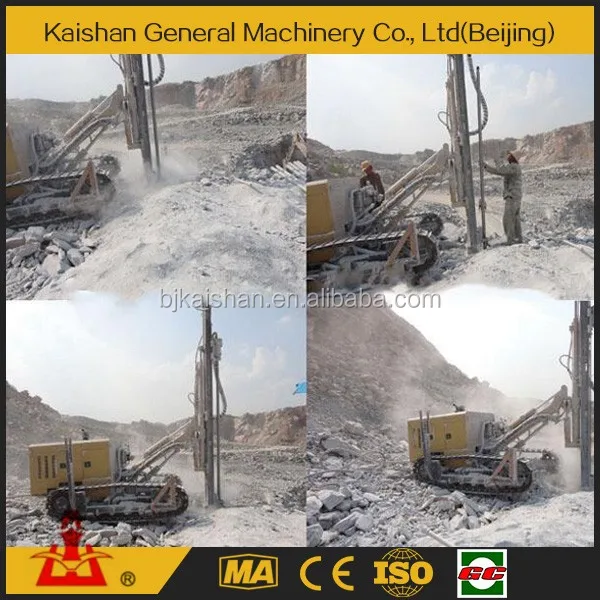

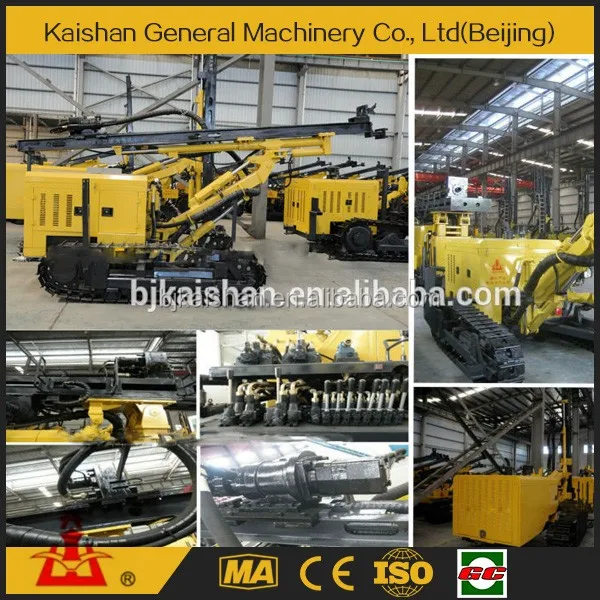

Product Pictures

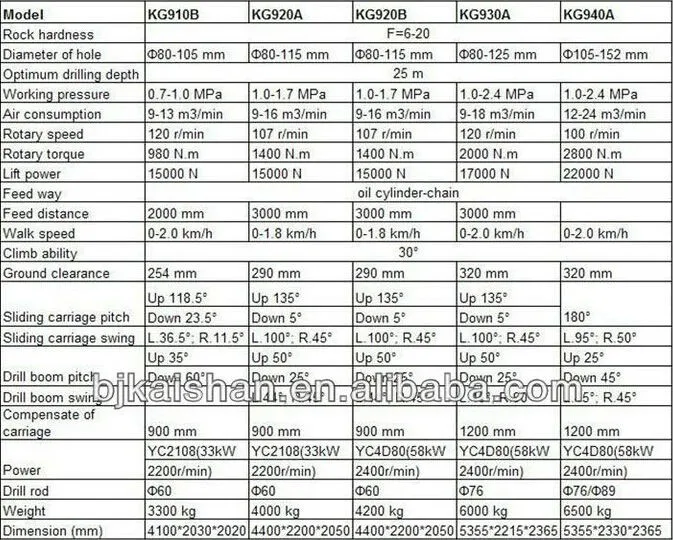

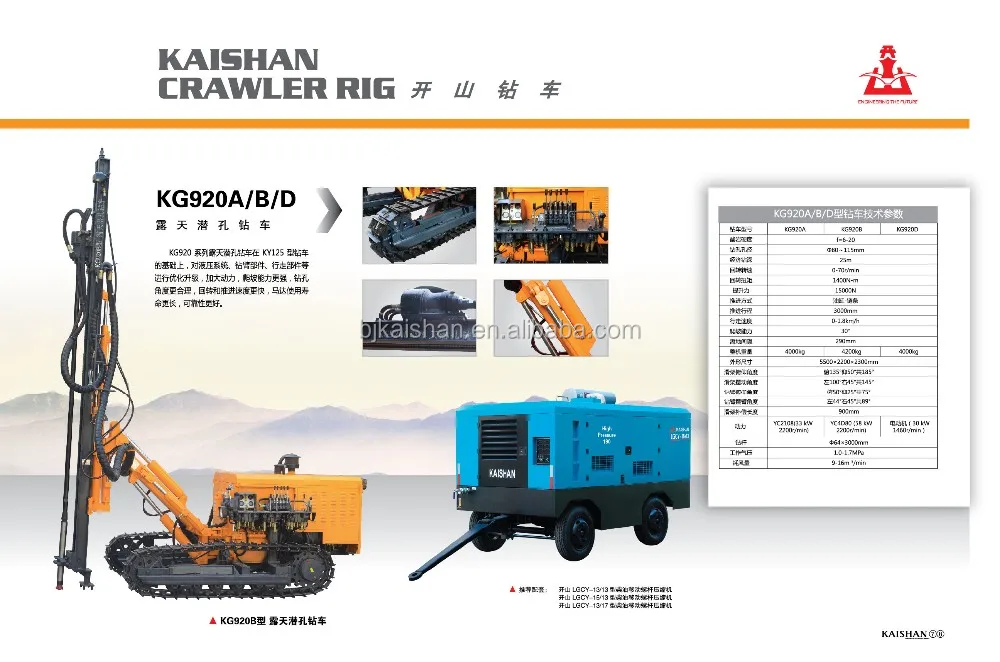

Other models

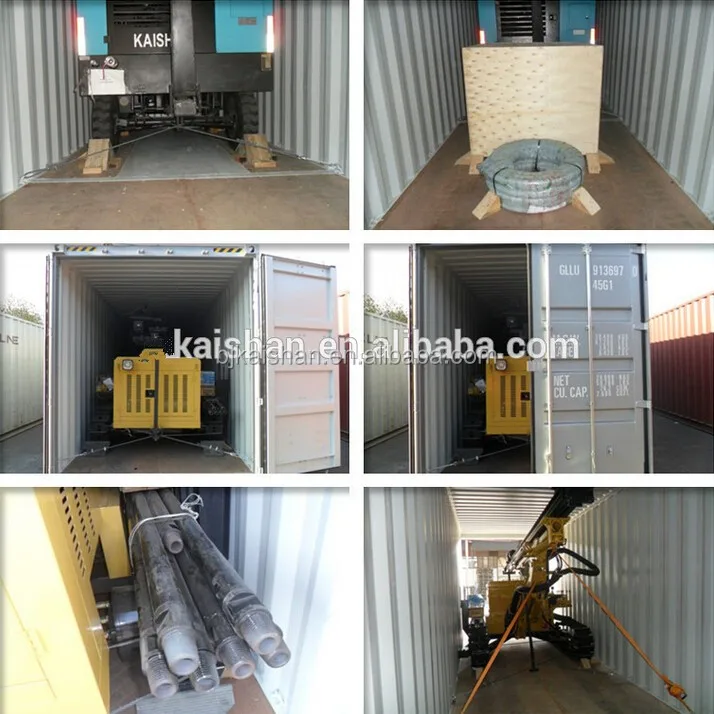

Packaging&Shipping





Delivery terms



Delivery terms:

1. Time of Shipment: about 15 days after receiving your advance payment.

2. Packing: seaworthy packing.

3. Loading Port: Ningbo, CHINA.

4. Terms of Payment: T/T 30% deposit and balance before shipment.

5.Validity of the quotation: 31 Dec, 2016
6. Quality Guarantee: One year from delivery date(quick-wear part except)

7. After-sale service: For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)



Company Information

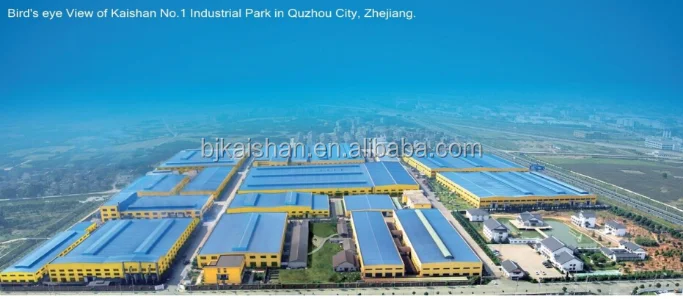

1.Our company is in Beijing and our factory is in Quzhou city Zhejiang province, which covers an area of 514,800 square meters with a total assets of one billion dollars. There are 6000 staffs including 1075 technicians.



2.We are the largest compressor and the main pneumatic tool manufacturer in China. In 2010 it produced and shipped 27,000 screw compressor units and 200,000 reciprocating compressor units.



3.KAISHAN compressor has a complete vertical integrated production line for compressor from the foundry plant, the air end plant, the pressure vessel plant, the sheet metal plant and the heat exchanger plant to the final unit and system assembly plant.



4.We are over 10 years professional manufacturer of air compressor and drill rig, good quality and competitive price which is guaranteed with CE,ISO9001,ISO14001, ASME, GC energy saving certificate.

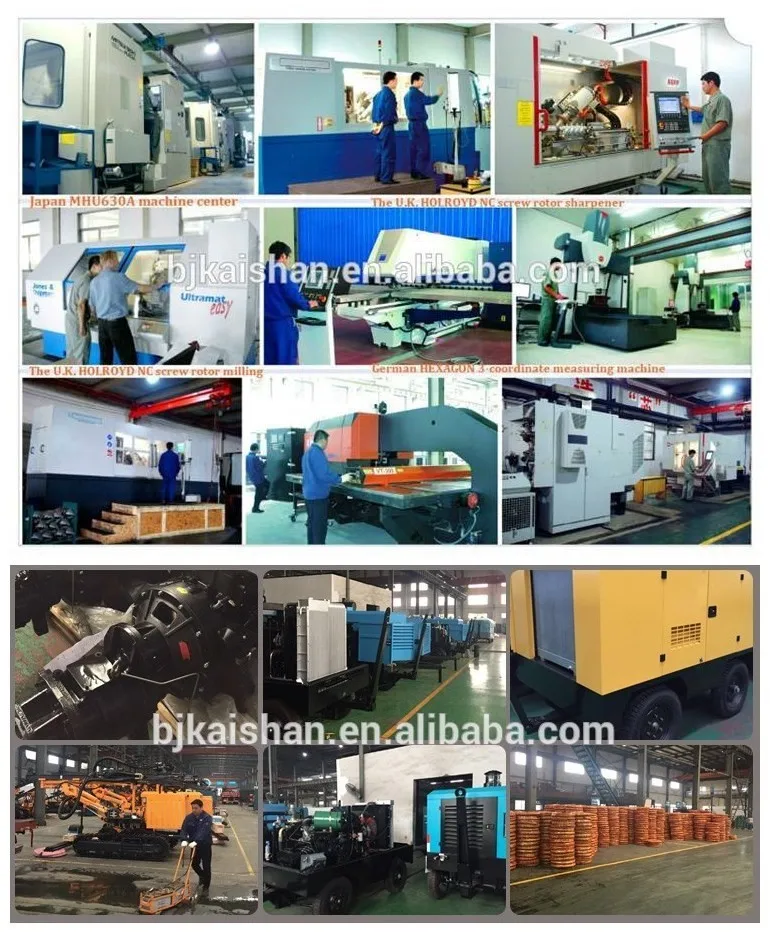

The technical team
