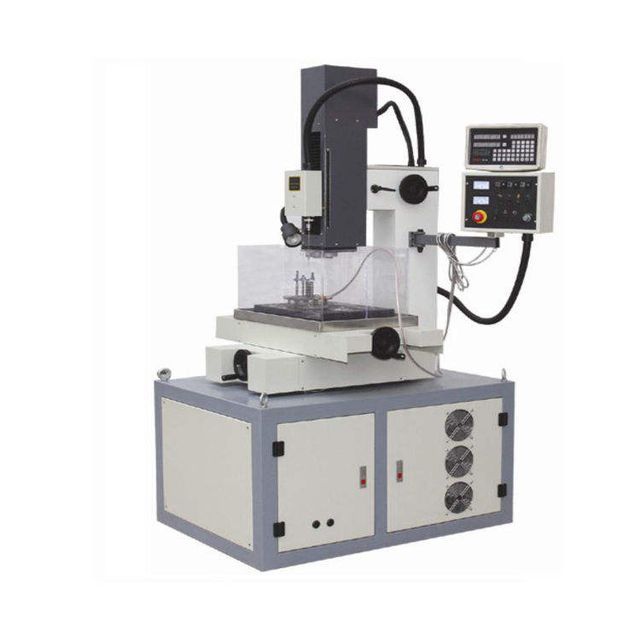

DD703 cnc edm drilling machine

Product details
Local service location:not anyMain selling points:competitive price
model:DD703Origin:Jiangsu, China
After warranty service:Video technical support, online supportApplicable industries:Manufacturing plants, machinery repair shops
Drilling speed:20-120rpmSpindle speed range (rpm):20 - 120 rpm
brand:HuazhengCore component warranty:1 year
Mechanical test report:ifWarranty:1 year, 1 year
Voltage:220 voltsproduct name:EDM Small Hole Drilling Machine DD703
payment terms:L/C, Western Union, T/T, PaypalVideo shipment inspection:if
type:fast drillingWeight (kg):600 kg
type:newPackage preview:
Supply capacity:50 sets/month high-speed EDM punching machine small hole EDM machineCore components:other
Showroom location:not anyPower (watts):3000
Approach:automaticMOQ:1
maximum. Drilling diameter (mm):3mmmain material:HT250
Health status:newport:China Shanghai
Dimensions (L*W*H):1060*750*1700Processing type:fast drilling
Control System:optionalCNC or not:CNC
accurate:accuracyMarketing Type:New Products 2020

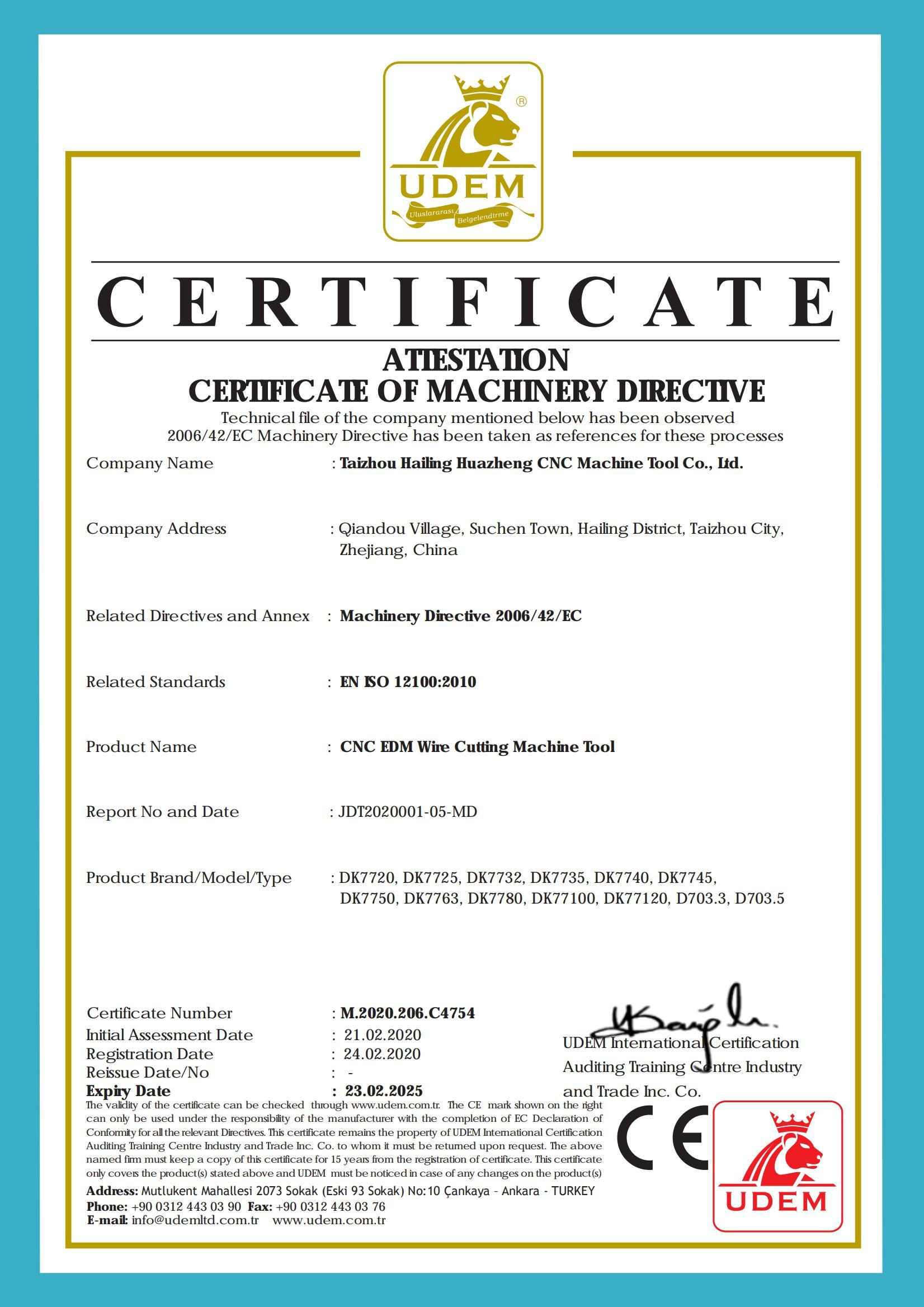

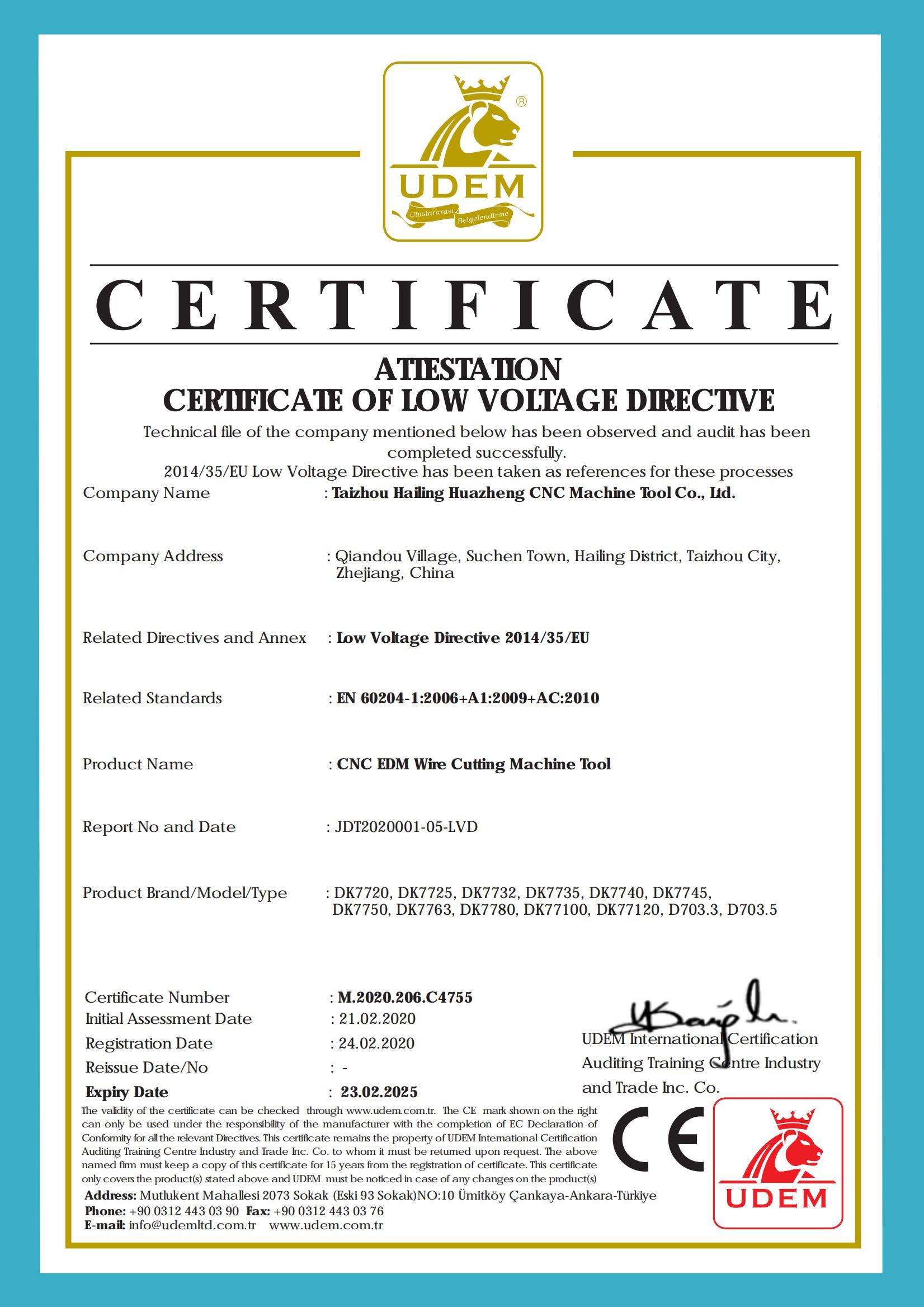

Certification:CE certificationPackaging Details:waterproof wooden box
After-sales service provided:online support

High-speed EDM drilling machine small hole EDM drilling machineDD703Factory use

Machine model

DD703 DD703.50
Table size(mm) 360×480 700×1000
X Y

Stroke(mm)

300×400 500×630
Spindle servo stroke(mm) 300 600
Spindle travel (mm) 200 500

Spindle head speed

(revolutions per minute)
20–120 20–120
Clamping electrode diameter (mm) 0.3-3 0.3-3
Maximum distance between guide rail and workbench (mm) 300 500
Indoor input power (kw) 3 3
Host weight(kg) 650 2500
Host appearance size (mm) 1060×750×1700 1950×1500×1600





FAQ

Q: Do you sell at factory direct price? ?

A: Yes, our company is factory direct sales, welcome to buy.

Q: How about the after-sales service?

A: The warranty period is one year.

Q: What payment terms do you accept?

A: There are many payment methods, and the payment methods are flexible.
