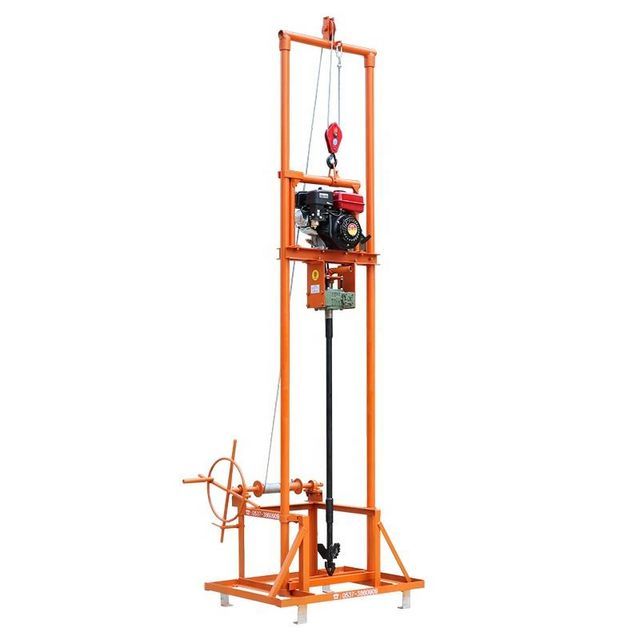

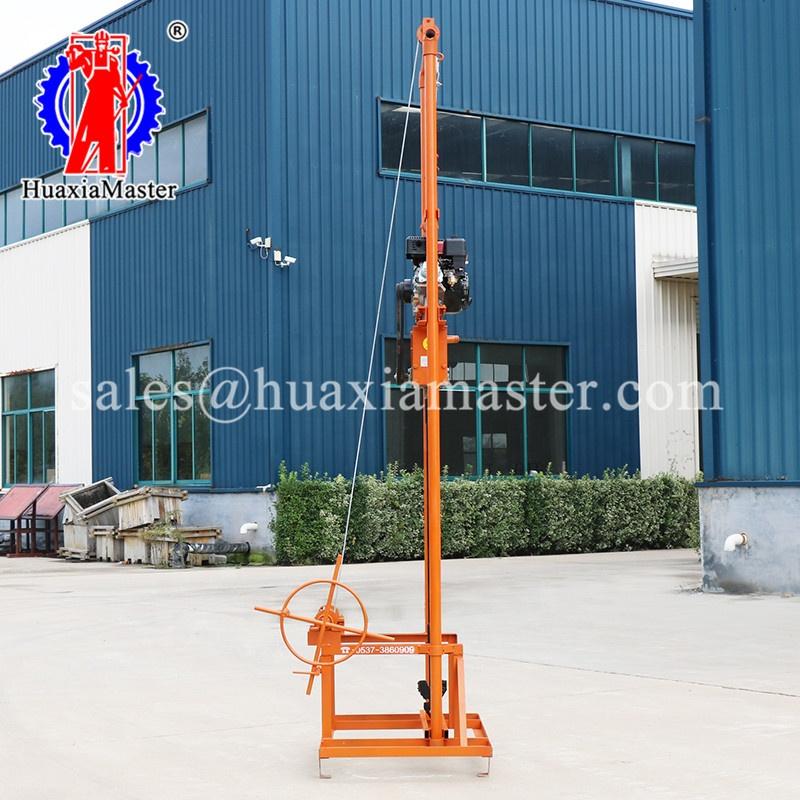

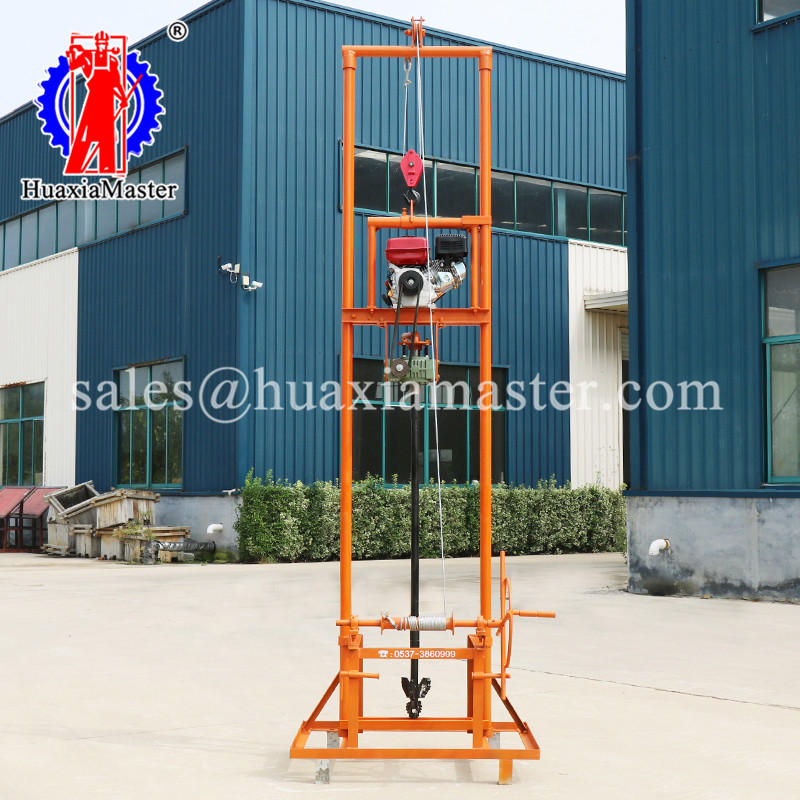

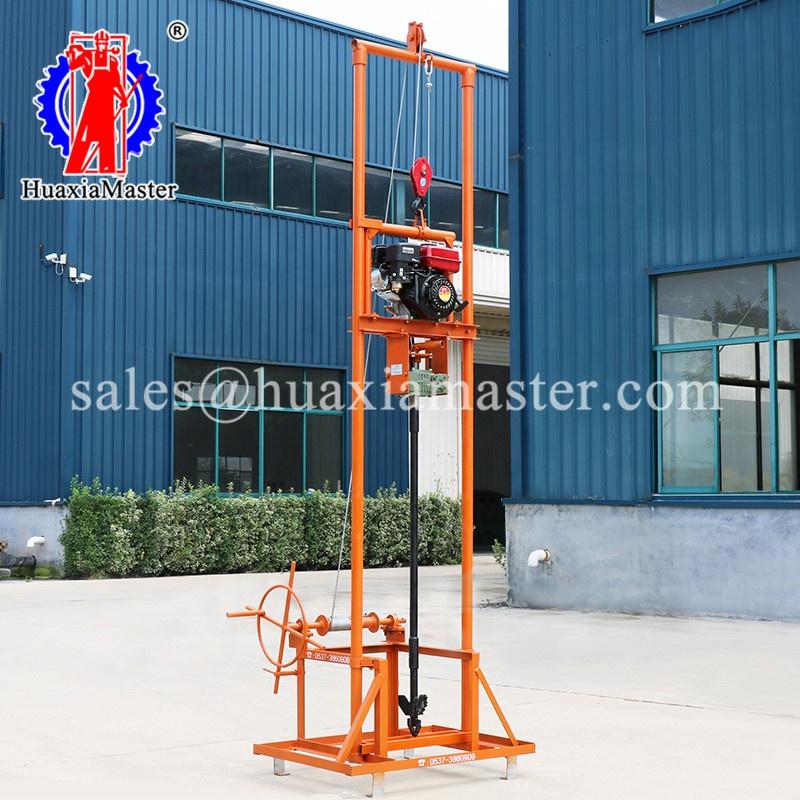

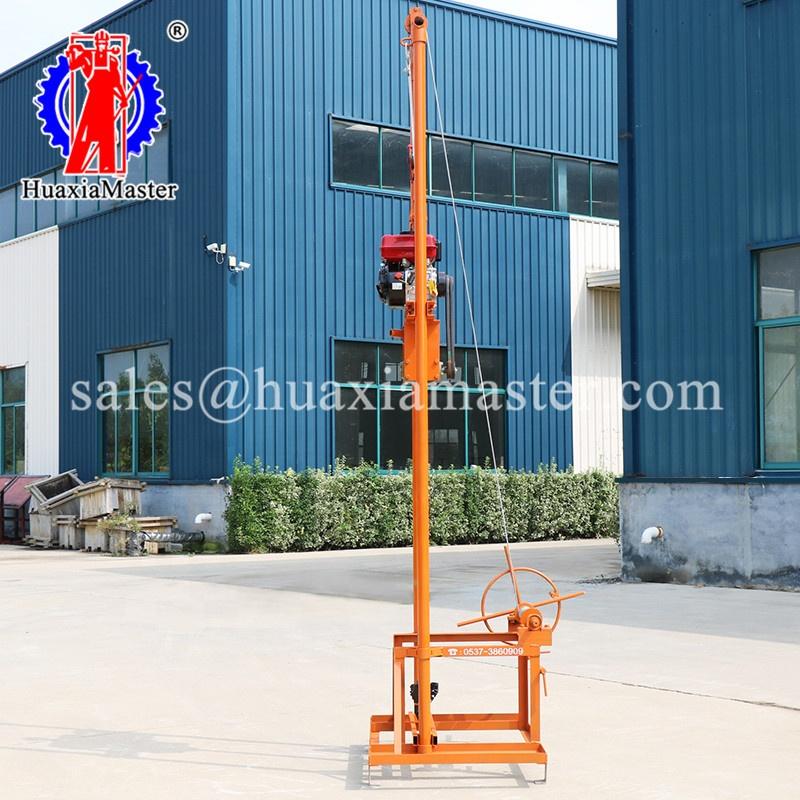

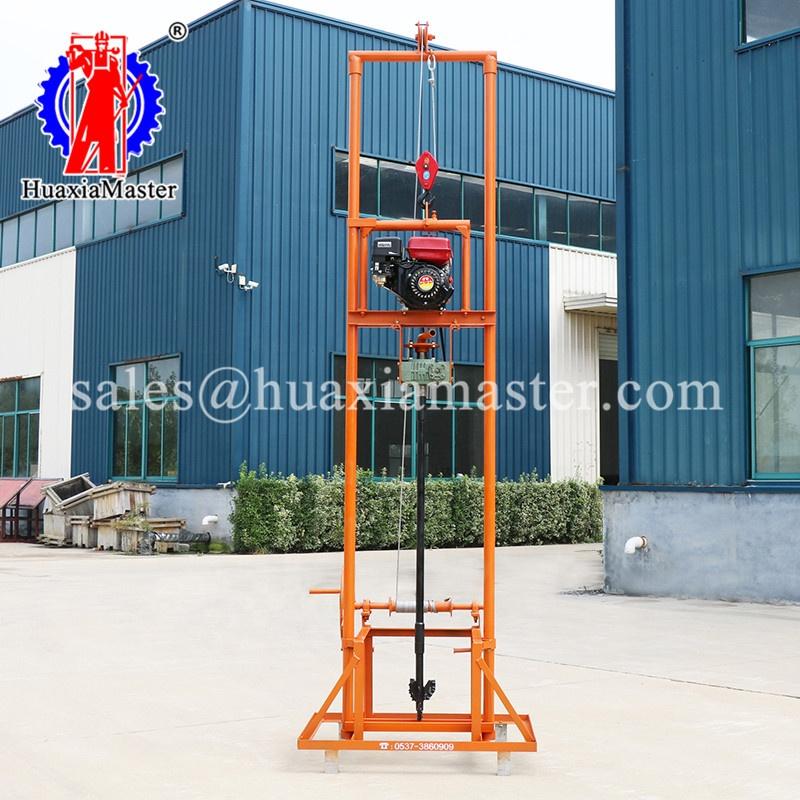

SJQ 80m to 100m depth portable cheap small water well drilling rig

Product details
Weight (kg):680 kgMarketing Type:normal product
Drilling speed:520-2620 rpmport:Qingdao/Shanghai/Tianjin/Guangzhou port
Supply capacity:2000 sets per monthCertification:CE ISO9001
Spindle speed range (rpm):520 - 2620 rpmPackaging Details:WeChat 008618865479502
maximum. Drilling diameter:70-300mmWarranty:1 year
maximum. Drilling depth:80 metersPump:2.2kw, 220V (water head 46m)
Origin:Shandong ChinaLocal service location:not any
Dimensions (L*W*H):43x33x22.5cmVideo shipment inspection:if
maximum. Drilling diameter (mm):300Model:QUR
Mechanical test report:ifmodel:QUR
After warranty service:Video technical support, on-site maintenance and repair servicesPackage preview:
type:Drilling and Milling MachineHealth status:new
Boost power:1.0kwTotal power:8.8 kW
Core components:motor, engineEngine power:1.2kw
Core component warranty:1 yearHoist capacity:1.0 tons
Voltage:2.2kw, 220V (water head 46m)CNC or not:normal
Showroom location:not anyAfter-sales service provided:Online support, video technical support, on-site installation and commissioning training, on-site maintenance and repair services
brand:Chinese masterMain selling points:easy to operate
product name:SJQ gasoline engine water well drilling rigPower (kW):2.2kw
Applicable industries:Energy and MiningDrill pipe diameter:42mm
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description
Portable Gasoline Engine Mini Water Well Drilling Rig Price
This machine is mainly used for geothermal drilling, farmland irrigation, courtyard, garden and water well drilling, the drilling diameter is 70-300mm, and the drilling depth is 60-80m. It can also be used for piling in small buildings such as farmhouses and workshops. The drilling diameter can reach 500mm and the depth can reach more than 10m.
feature:
1. Light weight. The main engine weighs only 0.135 tons;
2. Unique design, simple drilling structure;
3. It is easy to transport and can learn to operate the machine in a short time;
4. Can drill through hard formations, unless it is a thick rock formation;
5. Can drill deep. Equipped with a laser machine to reduce labor intensity;
6. High efficiency, the drilling speed in plain areas can reach 20 meters per hour;
7. Guaranteed simple operation and long life, saving labor and money for you;
8. The machine is packed in a wooden box, the CBM is about 2.0m³, and the total weight (complete set) is about 850KG.
Specification
Water well drilling rig technical parameters
type
QUR
maximum. Drilling diameter
70-300mm
maximum. Drilling depth
60-80 meters
total power
8.8 kW
engine power
1.2kw
lifting force
1.0kw
Pump
2.2kw, 220V (water head 46m)
Hoist capacity
1.0 tons
tower height
3 meters
gross weight
700kgs (150m pipeline)
Drill pipe length
2m/piece
Drill pipe diameter
42mm
