weight: | 70 kg | Drill pipe diameter: | 33mm |
Warranty: | 6 months | Drilling diameter: | 60-250mm |
Certification: | ISO9001 | type: | Rotary Drilling Rig |
Health status: | new | Power type: | electrical |
usage: | well | Origin: | Shandong China |
brand: | Chinese master | Voltage: | 220c |
port: | Qingdao | Packaging Details: | standard packaging |
Dimensions (L*W*H): | 900*700*2200mm | After-sales service provided: | Video technical support Free spare parts online support On-site installation and commissioning training On-site maintenance and repair services |
payment terms: | L/C, D/P, D/P, T/T | Drilling depth: | 70m |
Supply capacity: | 100 sets per month |

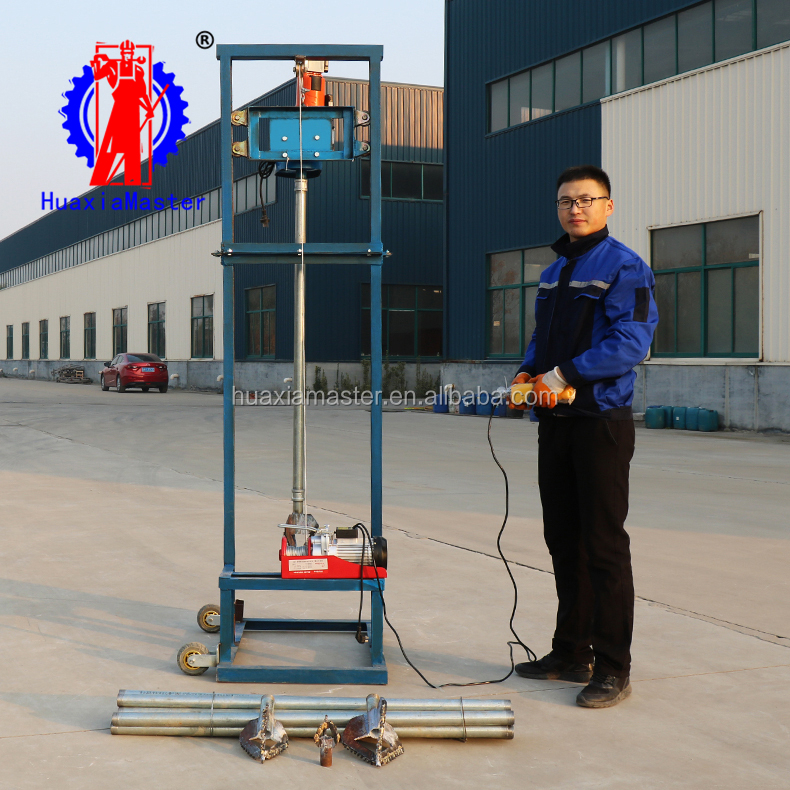

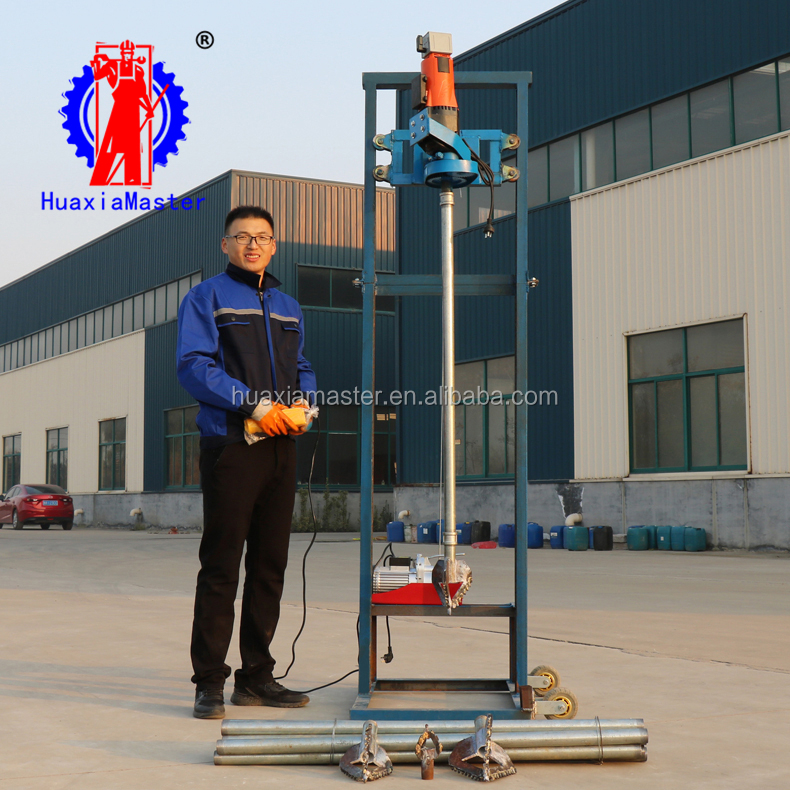

1.IntroductionfoldableGantry small civil electric well drilling rig

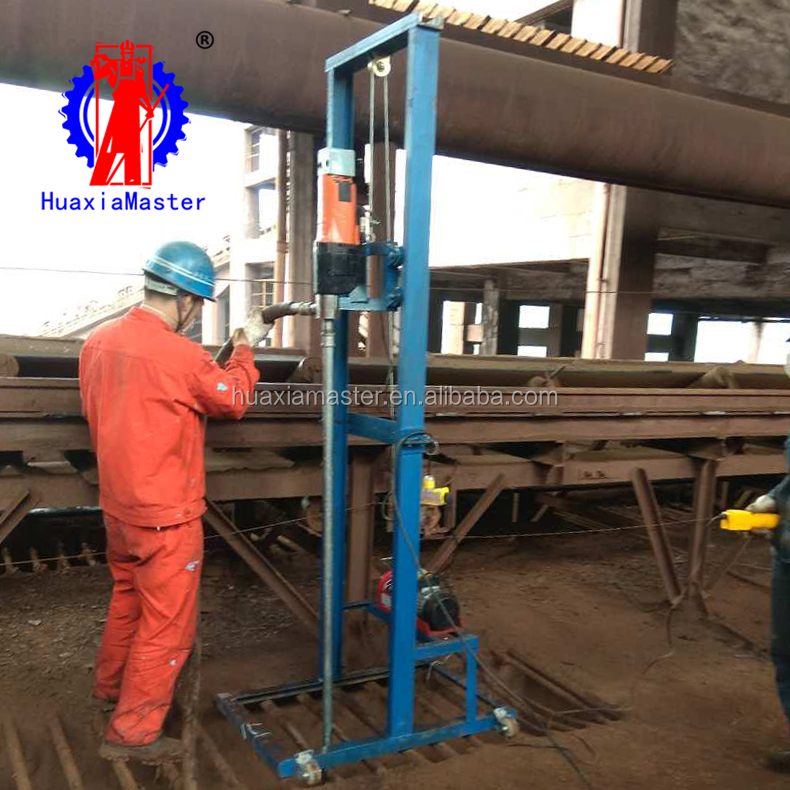

The foldable gantry small civilian electric well drilling rig is widely used in household/factory water wells, farmland irrigation wells, water air conditioners, construction piling, etc.
1.SpecificationfoldableportableelectronicFrame small civil electric well drilling rig.
l Punching range: 60-250mm;
l Drill pipe diameter: 1.2 inches;
l Drilling depth: 100mm hole diameter up to 70 meters, 250mm hole diameter up to 30 meters.
l Voltage: 220V

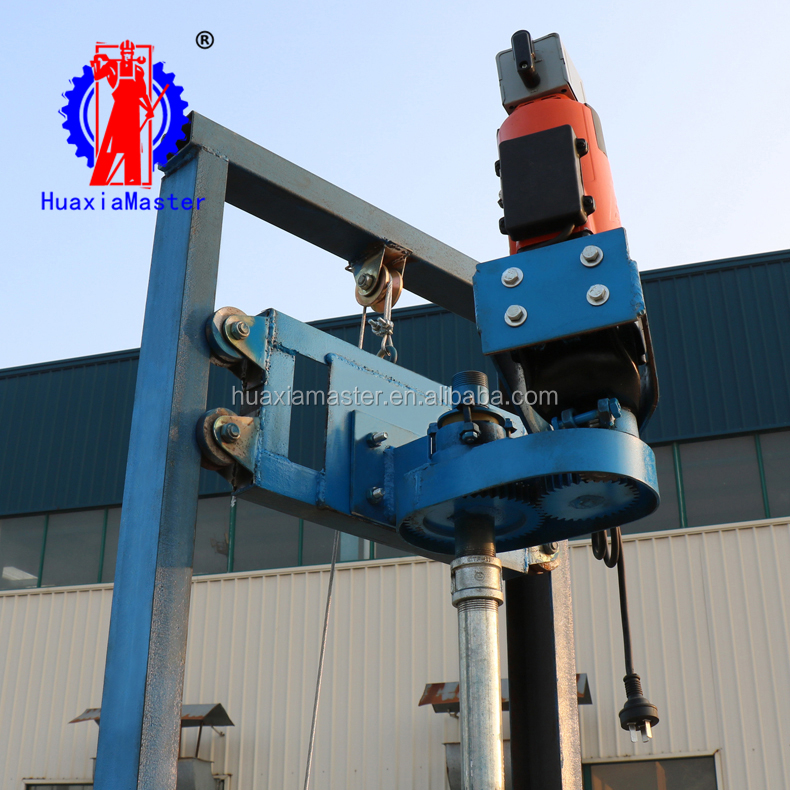

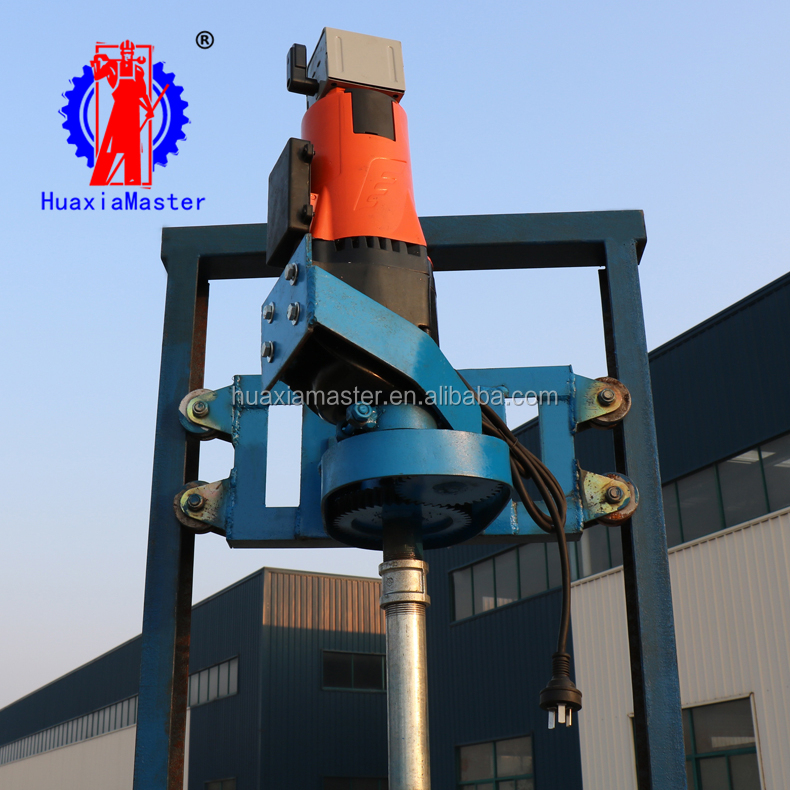

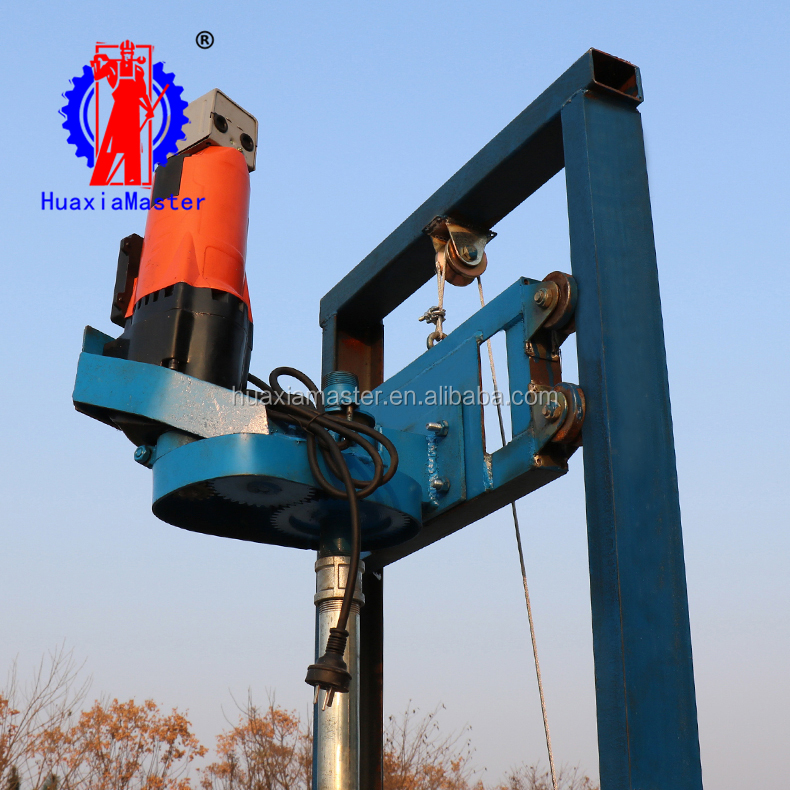

l Rotary motor: 4000W;
l Rotational speed: 80r/min, forward and reverse; lifting motor: 1000W;
l Overall dimensions of the whole machine are 900mm long, 700mm wide and 2200mm high (foldable).
l The weight of the whole machine is 70KG (including drill stand/slewing motor/lifting motor).
