Type: | Rotogravure Printing Machine; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Place of Origin: | Zhejiang China; | Printing width: | 600-1200mm; |
Supply Ability: | 30 Set/Sets per Month; | Packaging Detail: | standard export packing include the stretch film packing and wooden case packing; |
Item: | Rotogravure Printing Machine; | Printing speed: | 50-150m/min; |
Condition: | New; | Brand Name: | shunfeng; |
After-sales Service Provided: | Online support; | Warranty: | 1 Year; |
Color & Page: | Multicolor; | Usage: | Bill Printer,Label Printer,Paper Printer,Film Printer; |
Port: | Wenzhou or Ningbo port shanghai; | Drying tunnel power: | 12kw/color; |
Automatic Grade: | Automatic; | Motor: | Three-Motor Drive; |
Diameter of core: | 76mm; | bear: | germeny; |
Precision of overprint: | ±0.15mm; | Dimensions(L*W*H): | 12500x2450x2550mm; |
Voltage: | 380V 50Hz 3Phase; | Certification: | CE ISO SGS; |
Weight: | 15000kg; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Diameter Of Unwind/Rewind: | 800mm; |
Description:

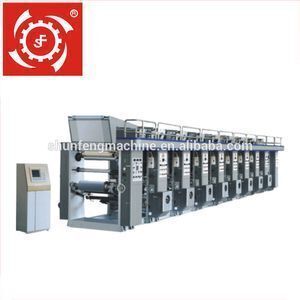

This machine is suitable for printing various plastic film (BOPP, PET, CPP, PE NYLON, PVC), thin paper, foil, and other reel type material. The printing speed is 100m/min, mechanical speed 120m/min.
1. Main driving structure: Controlled by INOVANCE frequency controlled motor, axle coupling driving.
Feature: Stable running.
2. Shaftless printing roller fixing System: adopt pneumatic cylinder fixing style to drive the printing roller core, and transverse adjustment through screw.
Feature: Swift printing roller replacement, so as to insure the concentric of printing rollers to improve printing precision.
3. Ink scraper structure: use air diaphragm pump to cycling and feeding ink; doctor blade slowing drive by low speed synchro-motor which can be up & down and angle adjusted; the pressure controlled by double pneumatic cylinder.
Feature: increase service life of printing roller and easy use.
4. Imprinting ascending and descending structure: controlled by twin pneumatic cylinder synchronous ascend and descend; oscillating arm type cylinder seat to insure the stability of material tension.
Feature: insure the pressure equalization, decrease chromatic aberration.
5. Overprint Mechanical hand: longitudinal automatic overprinting adjusted by micro-computer (through photocell detecting) and synchronous motor (through screw rod slow driving).
Feature: flexible, stable, and high overprint precision.
6. Rewinding and unwinding system: double stations, auto-cutting and connecting for rewinding, and controlled by moment motor; Rewinding traction adopt vector frequency controlled motor. Unwinding adopt magnetic powder brake constant tension controlling. Feature: low tension variety, to reduce waste and cost-cutting.
7. Drying & cooling system: drying tunnel wind cycling by centrifugal blower; temperature controlled by intelligent temperature controller; material cooling by singe unit wind cooling device.
Feature: insured drying and cooling effect, increase product quality.
high speed gravure printing machine Main Technical Specification:
Model | YAD-A8600 | YAD-A8800 | YAD-A81100 |
Printing width | 600mm | 800mm | 1100mm |
Precision of overprint | ±0.15mm | ±0.15mm | ±0.15mm |
Diameter of printing roller | 100-300mm | 100-300mm | 100-300mm |
Printing speed | 50-100m/min | 50-100m/min | 50-150m/min |
Diameter of material | 600mm | 600mm | 600mm |
Diameter of core | 76mm | 76mm | 76mm |
Voltage | 380V | 380V | 380V |
Fan power | Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each) | Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each) | Heat wind:2.2kw Cold wind:1.5kw Air draft: 3kw(each) |
Main motor power | 5.5kw | 5.5kw | 7.5kw |
Drying tunnel power | 9kw/color | 10kw/color | 12kw/color |
Total power | 115kw | 135kw | 145kw |
Overall dimensions | 12500x1950x2550mm | 12500x2150x2550mm | 12500x2450x2550mm |
Weight | 10000kg | 12000kg | 15000kg |
Configuration:
Contactor | CHINT |
Breaker | CHINT |
Counter | Omron |
Revolve Button Switch | Schneider |
Urgent Stop Switch | Schneider |
Mini Relay | Omron |
Frequency Conversion Controller | CHINA |
Button Switch | Schneider |
Temperature Meter | Schneider |
Electric-thermal Couple | CHINA |
Hint Light | Schneider |
Automatic Tension Control | CHINA |
Main Motor | CHINA |
Edge Position Controller | CHINA CHONGQING |
01 | Inner hexagonal spanner | 1 SET |
02 | Phillip screwdriver | 1 PC |
03 | Slotted screwdriver | 1PC |
04 | Screw | 15 PC |
05 | Scissors | 1PC |
06 | Operating manual | 1 PCS |
Zhejiang Lifeng Machinery Co., Ltd,which has a long history, grand scale, self-research, sales service is professionally manufacturing plastic soft packaging machine with high technology.The quality of its products had firstly passed the certification of quality management system ISO9001-2008 and CE certification of European Union.
We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard, etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
