Flexo ink proofer for gravure and flexo printing factories

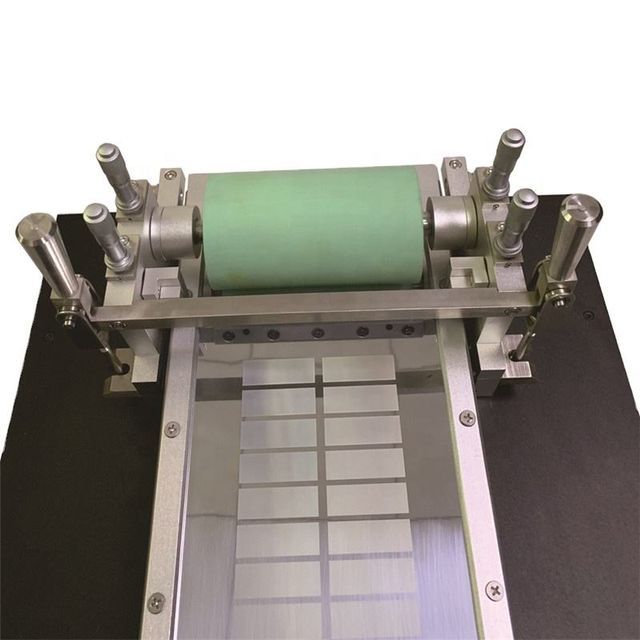

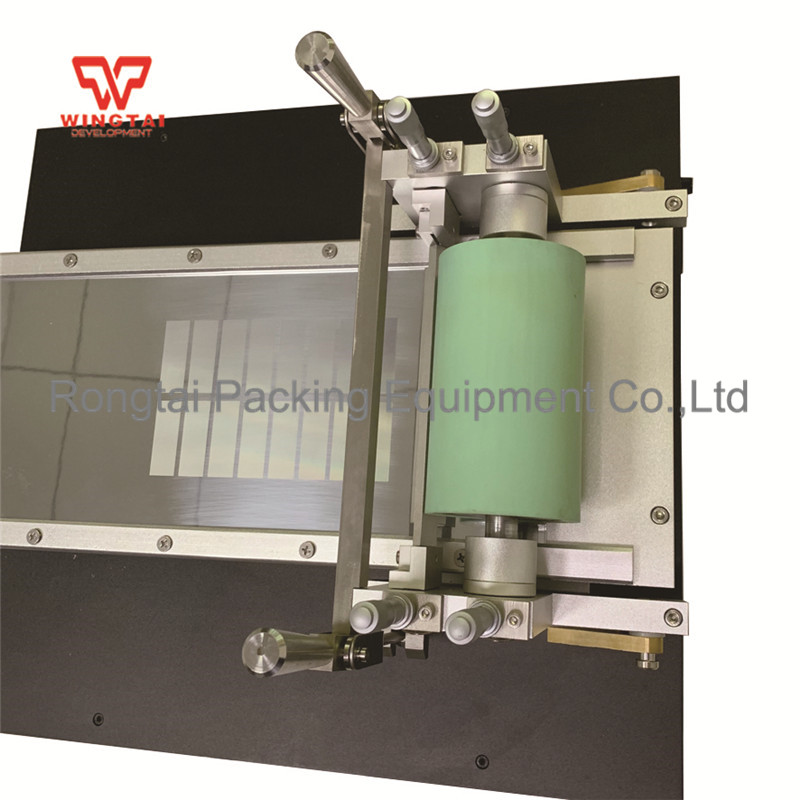

Related standardsGravure ink proofing machine is also called ink printing proofing machine. The gravure proofing machine can quickly produce gravure ink samples in a way close to actual printing under laboratory conditions. It is often used in the production of laboratory printing samples, the inspection of ink printing suitability and the research and development of ink products.Key wordsGravure printing ink proofing machine Flexo printing ink proofing machine Ink printing verification machine Ink proofing machineoverviewThe gravure/flexo ink proofer is used to verify the printability of liquid inks (gravure inks, flexo inks) in the laboratory. Suitable for all kinds of flexible substrates (paper, plastic film, etc.). This is direct gravure printing (usually with solvent gravure or flexo inks). There are many styles of intaglio engraving.The main technical parameters1. Power supply: 220V 50Hz 2. Motor power: 120W 3. Rubber roller specification: 76*130mm 4. Rubber roller hardness: Shore A 55 5. Scraper fixture specification: L140mm 6. Scraper specification: W12mm*L140mm 7. Proofing speed: 20/30/40/45 m/min (four levels optional) 8. Dimple range: 95*149 mm 9. Random gravure: 150 lines/inch (A, B, C, D optional) 10. Sample specification: 120 x 240 mm (recommended) 11. Overall dimensions: 500 x 425 x 350 mm 12. Net weight of the whole machine: 27kg

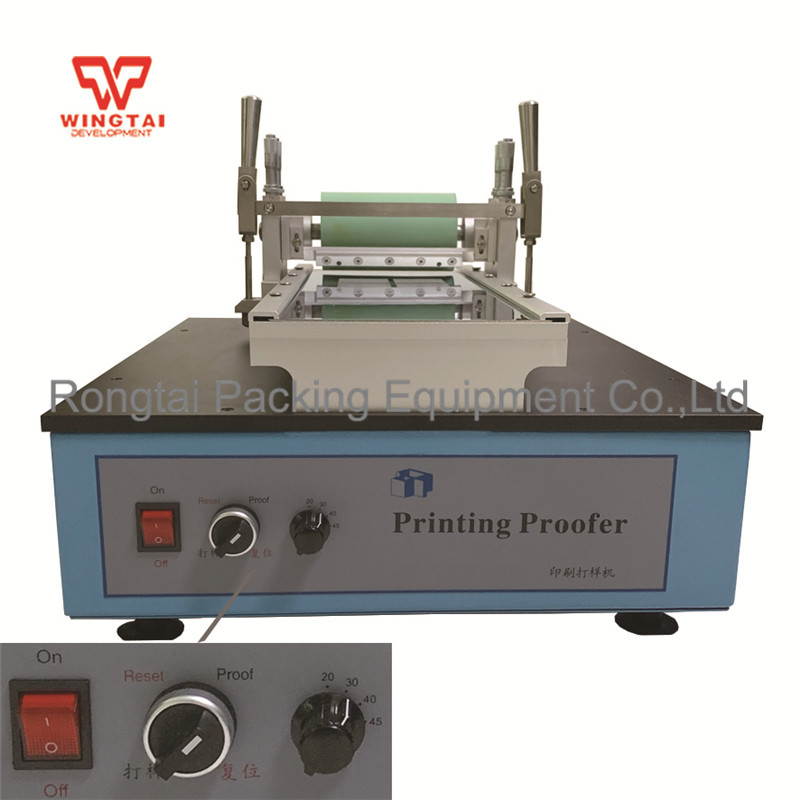

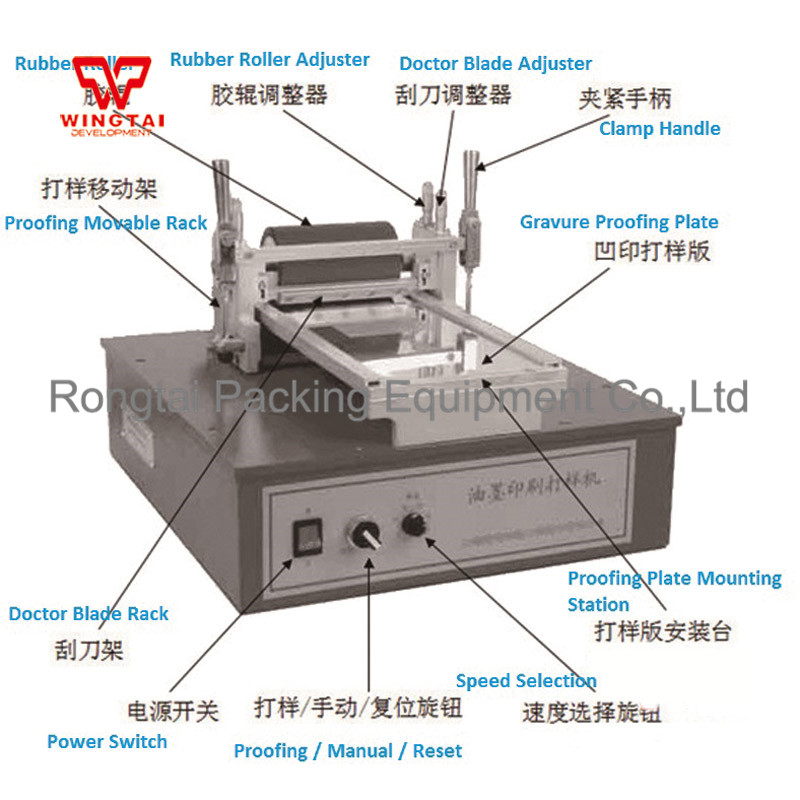

notes1. This machine is used for the test process of chemical raw materials. Users should establish appropriate safety and health protection measures and determine regulations before use. Safety issues related to contact with chemical raw materials should be determined by users themselves, and are not within the scope of this specification. 2. If there is protective paper on the first proofing board, please remove it. 3. When the proofing mobile moves forward with no load, do not choose the "4" gear (45m/s) proofing speed. 4. Lubricate the sliding guide rail at the lower part of the proofing installation table in time. 5. After each proofing operation is completed, the residual ink on the proofing board must be cleaned in time and thoroughly to avoid "pasting". Confirm that there is no residue in the recess before proofing. 6. The proofing pattern, ink scraper and rubber roller play an important role in the proofing effect. Avoid collisions and scratches during use, and clean and maintain in time. 7. If you need to manually move the proofing mobile frame during use, please put the "proofing/manual/reset" knob in it. If the "proofing" gear is selected, the proofing mobile frame will move forward rapidly at the selected speed. If the "reset" file is selected, the proofing mobile frame will move backward at a preset speed. The return speed is preset at the factory and usually requires no adjustment (adjustable through a small opening at the bottom of the machine).Contour plot:

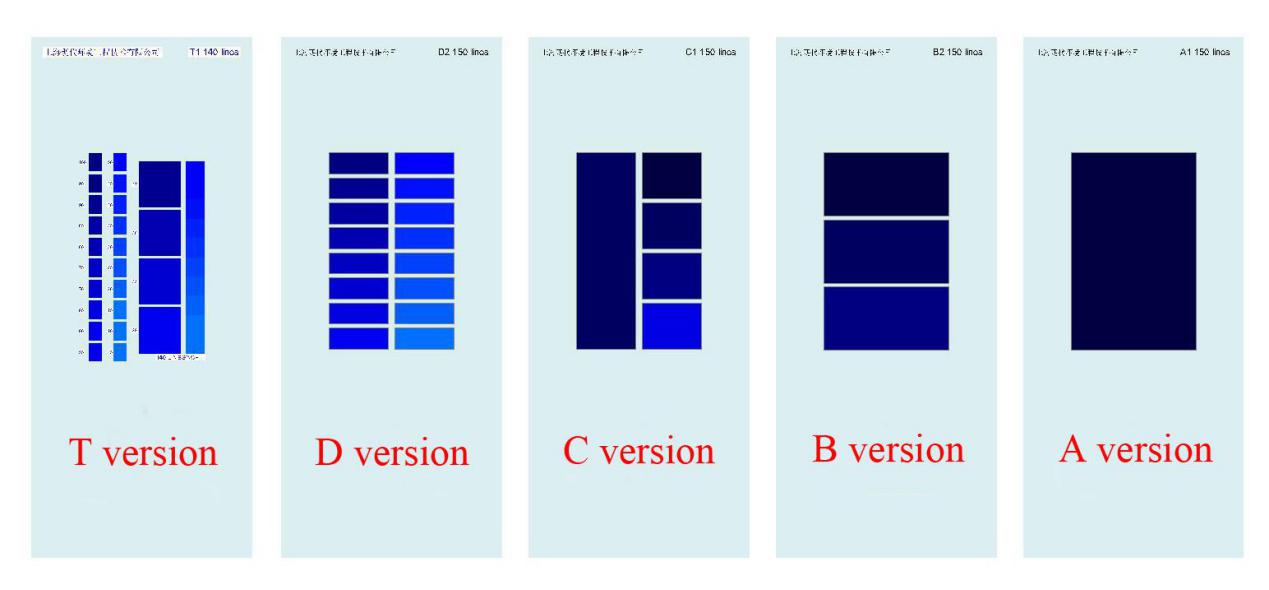

Packing List Host 1Proofing plate 1 (1 choose one of five. Note: The standard configuration is selected based on version D.)Doctor Blade 2 Power Cord 1 Instruction Manual 1 Proofing Sheet: Choose one according to your needs
