#4 Viscosity Coating Cup Viscometer for glue/paint/print industry/press

Supplier: Shantou Rongtai Packing Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Xia Lin
Price: $89.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Cup size:	100±1ml	type:	Viscosity Cup
Packaging Details:	carton	K value:	0.99
Sales unit:	single product	Single package size:	35X13X14 cm
Gross weight per piece:	3.000 kg	usage:	Used to measure the viscosity of liquids.
Packaging Preview:		brand:	Rongtai
Cup material:	brass	place of origin; place of origin:	Guangdong, China
Cup No.:	356	Applicable industries:	Printing industry, ink glue and paint coating industry, etc.
model:	4#	Custom Support:	Do not
Warranty:	#

Product Description

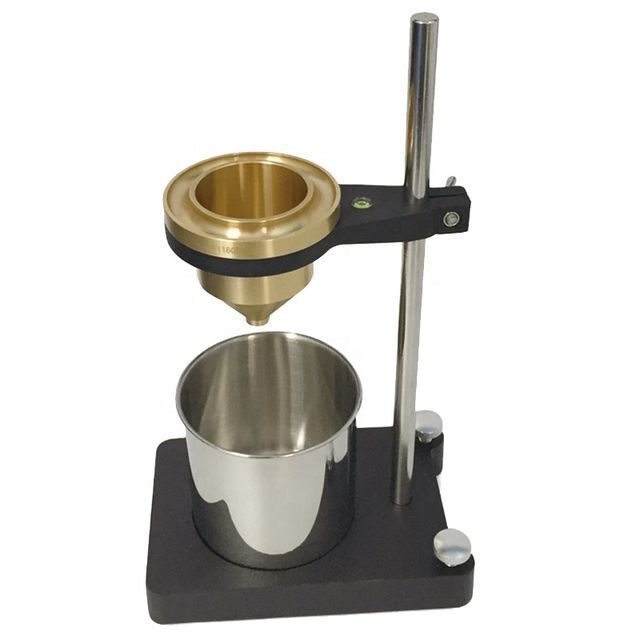

#4 Benchtop Viscosity Cup (with stand)

Product Name: Table 4 Viscosity Cup, 4 Viscosity Cup

Place of Origin: China Cup Material: Brass Model Number: 4# Capacity: 100 ± 1ml Inner Diameter: Φ 49.5 +/- 0.2 mm Inner Cone Angle: 81°± 15' Leak Length: 4 ± 0.02 mm Nozzle Orifice: Φ 4 +/- 0.2 mm 0.02 mm

Material	brass	the inside diameter of	Φ 49.5 +/- 0.2 mm
Model	4#	Inner cone angle	81°±15'
capacity	100±1ml	leak length	4 ± 0.02 mm
origin	China	Nozzle Aperture	Φ 4 +/- 0.02 mm

use: This instrument is suitable for measuring the viscosity of paint products from 30s to 100s. It is a portable instrument for measuring paint viscosity, that is, after the liquid to be measured is filled, it measures the time it takes to flow out of the hole, and the viscosity unit

Main technical features: The viscosity cup is made of brass with a capacity of about 100ml, and the bottom drain hole is made of stainless steel. The K value means that at the set temperature (such as 20°C ± 0.1°C), after the viscosity cup is filled with secondary standard oil, the flow time should be in the range of 30s to 100s, and the K value should be in the range of 0.97-1.03. K value = 0.99 Units 356

Structure brief: Place the viscosity cup on the measuring cup ring with the horizontal bubble and adjust the horizontal screw on the base to center the bubble. The capacity of the thermos is about 150 ml.

detailed image
