Product details

port:	Shanghai	color:	white
model:	ZS06111J	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Supply capacity:	1000 sets per month	place of origin; place of origin:	Anhui, China
Packaging Details:	carton or wooden case	brand:	in the sun

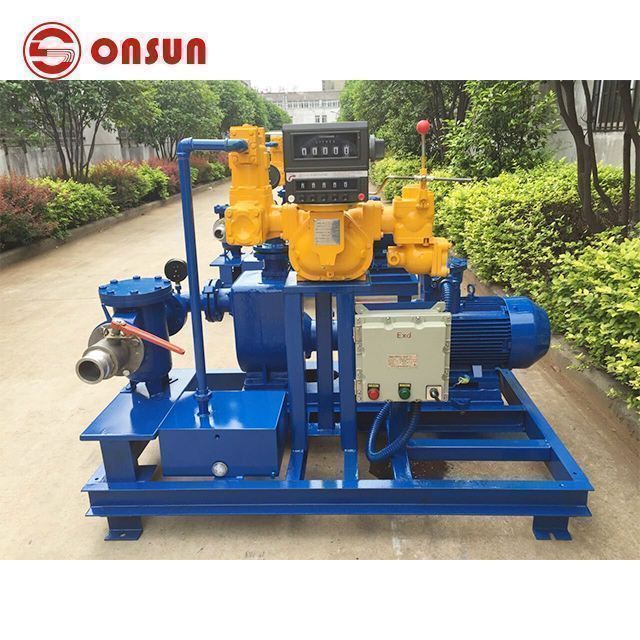

Mechanical transfer pump system and Adblue skids for trucks 1 ton

(1) Size: 1000*450*1600mm (L*D*H)

Weight 173KGS(GW), 193KGS(GW)

One nozzle, one pump, one flow meter, two displays. Flow range (5~55) L

(2) Accuracy ±0.3%

(3) Pumping distance 4m

(4) Working environment

Adapt to temperature -30°C ~ +70°C

Relative humidity <95%

Air pressure 86~106kpa

(5) Power supply:

Voltage AC220V±20% AC380V±20%

Frequency (50/ 60) Hz

(6) Number of digits displayed on the display

6-digit ascending area

Amount area 6 digits

Unit price area 4 digits

(7) Unit price setting range:

0.00~999.9 base currency (eg $)/liter

(8) One-time refueling counting range: volume (0.00—9999.99) liters

Amount$(0.00—99999.9)

(9) Counting range of preset filling volume

Preset volume (0.50—9999.99) liters

Preset

If the unit price is $(0.00~9.99)/liter, then

Default amount $(0.00—9999.99)

If the unit price exceeds $10.00/liter, then

Default amount $(0.0—99999)

(10) Accumulated count range:

Volume (0.00—99999999.99) liters

Amount$(0.00—9999999999.99)

(11) Shift accumulative count range:

Volume (0.00—99999999.99) liters

Amount$(0.00—9999999999.99)

(12) A communication port is reserved for communication with the gas station management system.

(13) All important data should be kept for ten years in case of power outage
