SAM-85 85L Large screen LCD and PID controller design Cell CO2 Incubator Lab Equipment

Product details
Application:Culture of biological cells, tissues and bacteria;Place of Origin:Beijing China;
Volume:85L;Type:Laboratory Research Instruments;
Temperature range:RT+3~60℃;Model Number:SAM-85;
Power Supply:AC220V,50HZ;Model:SAM-85;
Display:large lcd screen;Port:BEIJING/SHANGHAI;
Name:CO2 Laboratory Incubator;Power:600W;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Classification:Laboratory Thermostatic Devices;
Product name:CO2 Incubator Lab Equipment;Packaging Detail:Packing carton for SAM-85 Large screen LCD and PID controller design Cell CO2 Incubator.;
Brand Name:SAMYON;Supply Ability:270 Set/Sets per Month 85l CO2 Incubator Lab Equipment;

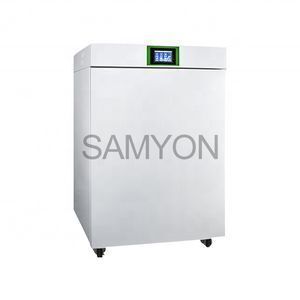

SAM-85 Large screen LCD and PID controller design Cell CO2 Incubator



Features:



1.Water jacket and air jacket structure are available, polished stainless-steel chamber with air duct. Equipped with fan for forced convection, ensuring good temperature uniformity and the balance of CO2 concentration inside.



2.When door opened, the fan is automatically turned off and stop heating to reduce the pollution caused by the entry of air.



3.Large LCD screen and PID controller design. PID microprocessor is used to control temperature and air,meanwhile,the temperature of box ,water and door are separately controlled by three probes to ensure high accuracy. ( Air jacket is equipped with two probes to control door temperature and main body temperature.)



4.Flexible switch, each working status has LCD indication.



5.Alarm function for over-heating, lack of water, unaspirated, ensuring the safe operation of the equipment.



6.Equipped with sterile air filtration devices and UV light system to reduce pollution.



7.Natural evaporation for humidification, so that the chamber can maintain good humidity and the humidity can be displayed on screen.



8.Adopt gilded infrared probe in the detection of CO2 for precise measurement. The sensor life expectancy is up to 15 years. With alarm function for over concentration, slow concentration rising and unaspirated.



9.Equipped with leakage protection and auxiliary thermostat.



 Options:

1.RS485/232 connector

2.CO2 pressure releasing valve

3.Wireless alarm system (SMS alarm system)

4. HEPA filter system

    5. Automatic humidification system

    6. 90℃ High temperature sterilization





 Specifications:



Model



SAM-85/SAM-85T

SAM-165/SAM-165T

SAM-270/SAM-270T

Chamber Volume

85L

165L

270L

Temperature Range

RT+3~60℃

Display Resolution

0.1℃

Temperature Fluctuation

≤±0.2℃

Temperature Uniformity

≤±0.3℃

CO2  Range

0~20%

COControl Resolution

±0.1%(imported sensor)

Humidity Method

Natural Vaporization

Power Supply

AC220V,50HZ

Power Rating

600W

900W

1400W

Chamber Size (W×D×H)cm

40×42.5×50

50×51×65

60×60×75

Exterior Size((W×D×H)cm

55×57×80

65×73×103

72×75×110

Net/Gross Weight(kg)

59/92

83/120

132/165
