Single package size: | 215X150X260 cm; | Function: | Reliable Operation; |
Weight: | 6200kg; | Certificate: | CE; |
Voltage: | 380V 50Hz; | WARRANTY: | 1 Year; |
Applicable Industries: | Manufacturing Plant; | Place of Origin: | Guangdong China; |
Single gross weight: | 5,500 KG; | Package Type: | Standard packing for MA 300A good quality automatic hydraulic press melamine crockery making machine.; |
Application: | machine; | Power: | Hydraulic; |
Brand Name: | YIHAO; | Service: | Professinal After-sale Service Team; |
Type: | melamine forming machine; | Name: | Melamine tableware forming machine; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Package Preview: | https://sc01.alicdn.com/kf/HTB1YV3QTgTqK1RjSZPhq6xfOFXaY.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1.WSjavc3T1VjSZPfq6AWHXXaT.jpg_640x640.jpg; |
Selling Units: | Single item; |

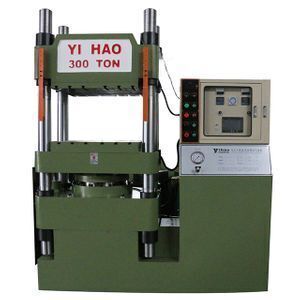

MA 300A good quality automatic hydraulic press melamine crockery making machine
Product Description
Application

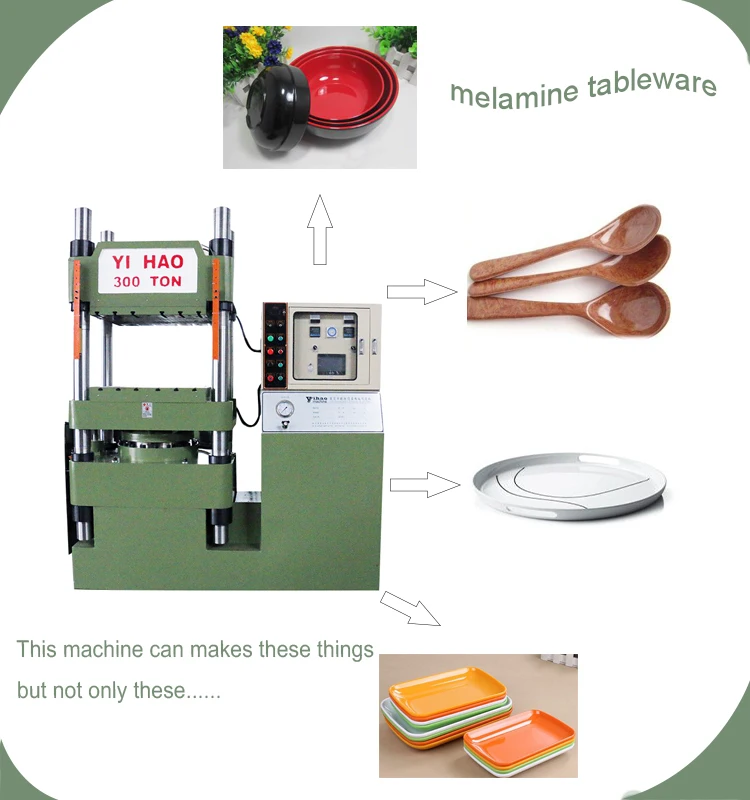

Suitable for the melamine, urea, bakelite, fiber and other thermosetting material production of tableware products.
|
| Model | ||||
Items | Unit | MA-100A | MA-200A | MA-300A | MA-300A | MA-450A |
Clamping Force | TON | 100 | 200 | 300 | 300 | 450 |
Piston Diameter | mm | 265 | 350 | 430 | 430 | 525 |
Platen Size | mm | 400*650 | 600*650 | 720*720 | 800*900 | 800*800 |
Opening Stroke | mm | 450 | 500 | 500 | 600 | 600 |
Maximum Opening Stroke | mm | 600 | 750 | 700 | 800 | 750 |
Pump pressure | kg/cm² | 210 | 210 | 210 | 210 | 210 |
Oil Tank Volume | L | 330 | 405 | 450 | 660 | 660 |
Motor Power | HP (kw) | 7.5 (5.5) | 10 (7.5) | 10 (7.5) | 15 (11) | 15 (11) |
Heating Power | kw | 8.8 | 12 | 11.4 | 12.4 | 12.4 |
Total Wattage | kw | 14.3 | 19.5 | 18.9 | 23.4 | 23.4 |
Machine Dimensions | m | 1.8*1.26*2.1 | 1.85*1.5*2.4 | 2.15*1.5*2.6 | 2.5*1.5*2.9 | 2.4*1.5*2.85 |
(L*W*H) | ||||||
Weight | TON | 2.5 | 4 | 5.5 | 8.3 | 8.3 |
Product features
1.PLC control system, the operation is simple, low failure rate, the maintenance is convenient.
2.High and low pressure loop system,the machine moves smoothly without noise, fast and slow speed free adjustment.
3.The main structure accord with 3D mechanical design, strong and durable.
4.Equipped with safety grating in order to ensure safe operation.
5.Suitable for use in melamine, urea resin, bakelite, fiber etc hot hard raw material produce tableware products.
Packing
Standard Packing
Delivery
Within 60 days after payment
FAQ
Q1. How to get machines I want?
1. Please advise all details of your need. We offer best solution.
2. You can get all machines with lowest purchasing cost and least sourcing time.
Q2. How to use the machine?
1. We suggest you coming to our factory for free and full training till you know it.
2. User manual is offered along with the machine, making it easy to operate.
Q3. What can I do when the machine can’t work well?
To save your time and money when use our machines, we always have strict quality control from the beginning to the end. In case the machine can`t work well, pls get our services:
Our engineers are online for 24 hours, and offer a solution quickly.
About us

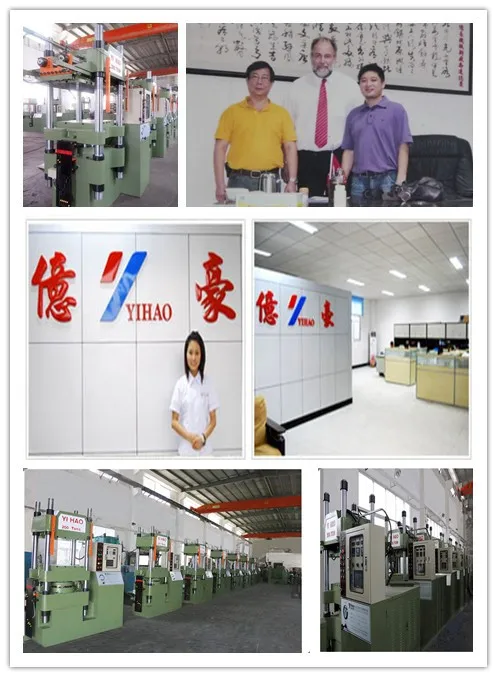

In June 2003, due to business expansion, we set up factories in Dongguan Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory engaged in professional R & D and manufacturing high precision hydraulic rubber forming machine, toilet seat cover forming machine, melamine tableware molding machine, melamine tableware molding machine, double color melamine forming machine, cup mode melamine tableware molding machine, double-Layer toilet seat cover forming machine, mahjong forming machine, and the like.
After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.
The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.
We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.
We are willing to work with new and old customers to create a better future.
