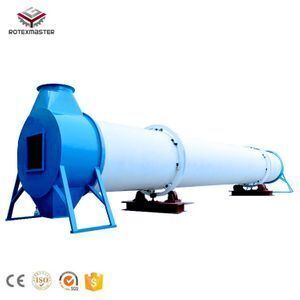

Biomass Sawdust Wood Chip Wood Shaving Rotary Dryer

Supplier: Shandong Rotex Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Nancy Chai
Price: $68000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	13 months;	Dimension(LWH):	24m2m2m;
Warranty:	1 Year;	Name:	rotary dryer;
Type:	Rotary Drying Equipment;	Type:	Rotary drum dryer;
Condition:	New;	Power(W):	15kw;
Application:	biomass drying machinery;	Certification:	CE ISO;
Certificate:	CE, ISO, SGS;	Fuel:	coal, barks, wood waste, sawdust, wood chips, etc;
After-sales Service Provided:	Field installation, commissioning and training;	Payment Terms:	L/C,T/T,Western Union;
Packaging Detail:	Standard container with 40'GQ, 40'HQ, 40'OT or in bulk for rotary dryer;	Application:	For drying sawdust wood chip wood shavings EFB fiber sands;
Applicable Industries:	drying;	Supply Ability:	1000 Set/Sets per Year;
Weight:	20T;	Port:	Qingdao / Shanghai / Tianjin / Ningbo;
Drying Oven Application:	dry raw material into suitable moisture;	Brand Name:	Rotexmaster;
Voltage:	380V/50Hz/3-Phase or customized;	Color:	white & blue or as requirement;
Key Selling Points:	High Productivity;	Dimension(LWH):	according to the model;
Voltage:	380V/50HZ;	Place of Origin:	Shandong China;

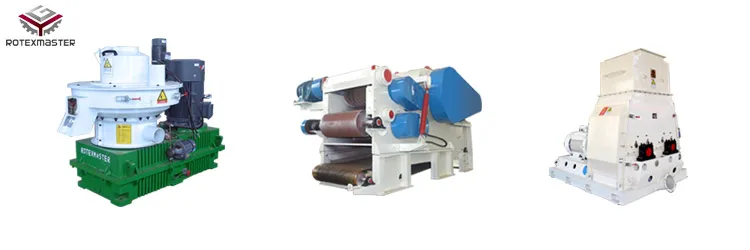

New Wood Pellet Machine	Drum Wood Chipper	Hammer Mill

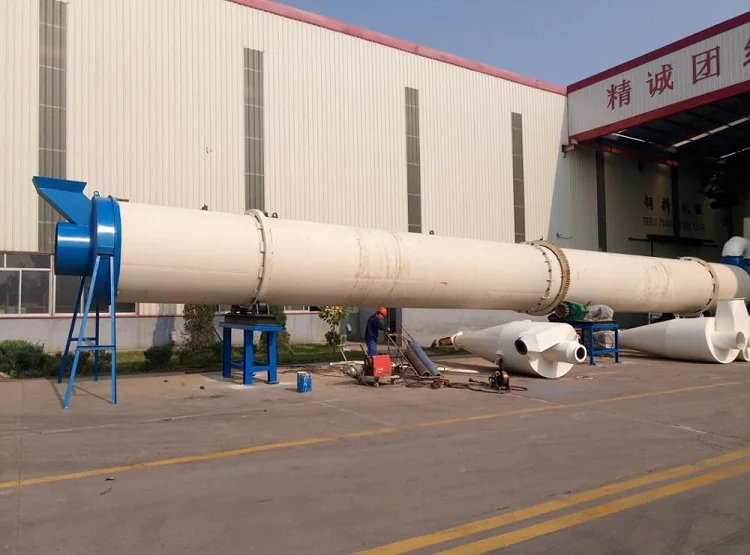

Biomass Sawdust Wood Chip Wood Shaving Rotary Dryer

Introduction of Sawdust Rotary Dryer

Sawdust dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.

Sawdust dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, etc

Technical Parameter of Sawdust Rotary Dryer

Model	Cylinder diameter (mm)	Cylinder Length (m)	Power (kw)	evaporation capacity(t/h)	Feeding moisture	Discharge moisture
YGHGφ1.5*12m	1.5	12	7.5+18.5+4	0.42-0.85	20-50%	13-15%
YGHGφ1.8*12m	1.8	12	7.5+18.5+4	0.8	20-50%	13-15%
YGHGφ1.8*18m	1.8	18	11+22+4	1	20-50%	13-15%
YGHGφ1.8*24m	1.8	24	11+30+4	1.22-2.44	20-50%	13-15%
YGHGφ2.0*24m	2.0	24	15+37+7.5	1-1.5	20-50%	13-15%
YGHGφ2.2*24m	2.2	24	15+37+5.5	2	20-50%	13-15%
YGHGφ2.5*24m	2.5	24	15+37+5.5	2.5	20-50%	13-15%

> Why Choose ROTEXMASTER Rotary Dryer Machine?

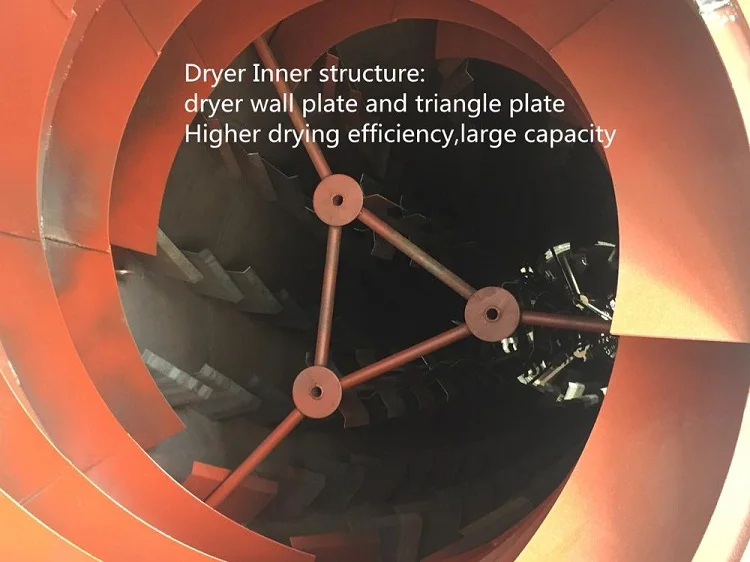

Inner Sturcture of RotexMaster Rotary Dryer Machine

The inner structure of Rotary Dryer Machine for Drying Sawdust is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity. It is mainly used for drying wood chips,wood sawdust,efb fiber etc.

Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.

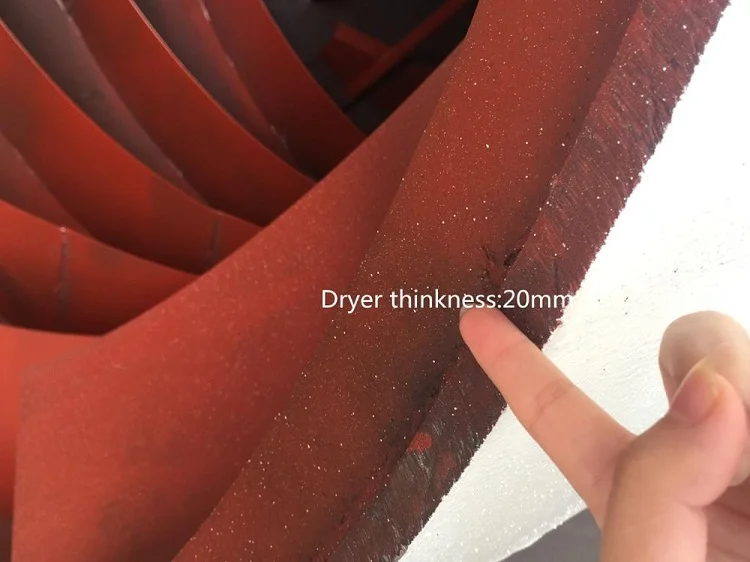

Material of RotexMaster Rotary Dryer Machine

The toral weight of Rotary Dryer Machine for Drying Sawdust is 10t-30t, which makes sure the dryer work stable,firmly enough.

Material: Q235 carbon steel

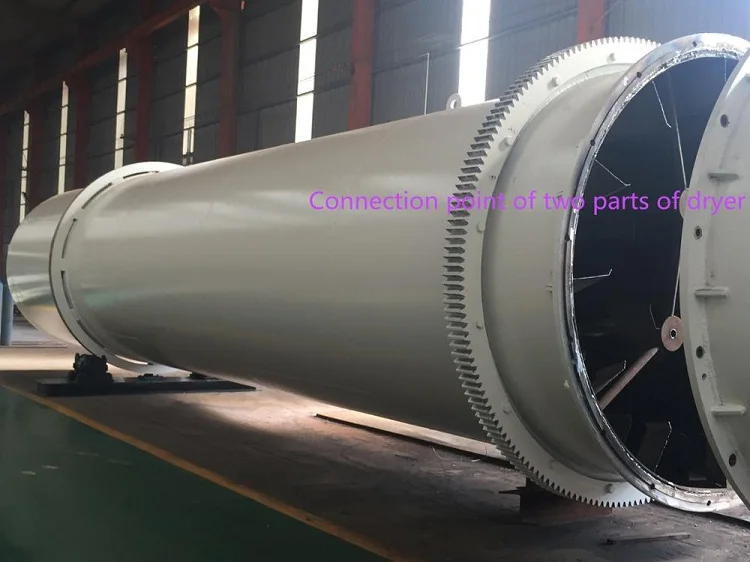

Two Parts design of RotexMaster Rotary Dryer Machine

The Rotary Dryer Machine for Drying Sawdust length 18m or 24m, when ship the dryer to customer, the rotary dryer will be took apart two parts, after dryer arrived at the customer factory site, our engineer will guide and teach them to install the dryer.

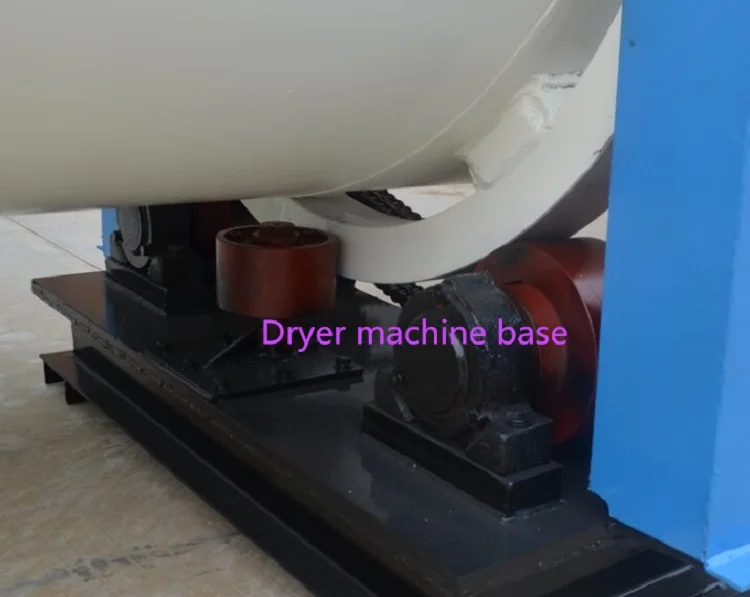

Bearing Base of RotexMaster Rotary Dryer Machine

The Rotary Dryer Machine for Drying Sawdust has two units reducer, the bearing is Harbin bearing, highest configuration, most brand part,long service life.

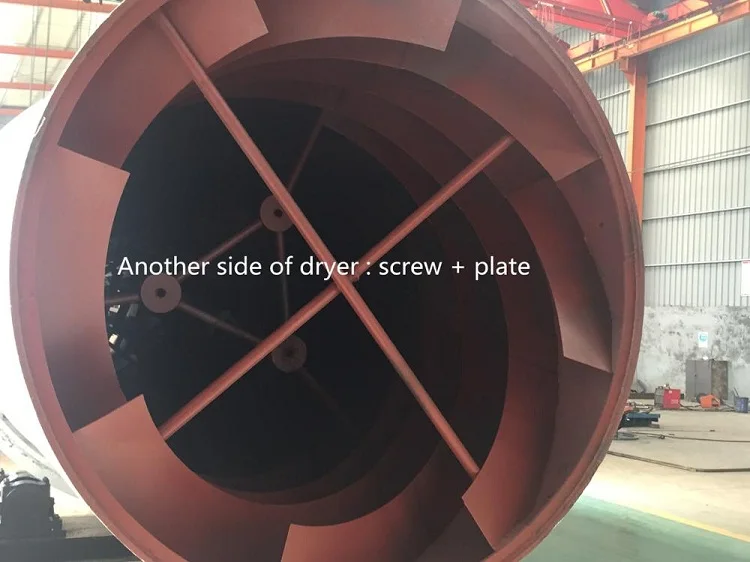

Different design of RotexMaster Rotary Dryer Machine

The another design of Rotary Dryer Machine for Drying Sawdust used the screw + plate structure, the raw materials entered from one side of dryer, and discharged from the another side of dryer, that makes sure the drying efficiency.

The Stove of RotexMaster Rotary Dryer Machine

The stove of Rotary Dryer Machine consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Reasonal design can avoid open flame. It run steadily, safely and have long life.

Comstomer Cases of RotexMaster Rotary Dryer Machine

Rotary Dryer for Sawdust/Straw	Rotary Dryer for Bagasse

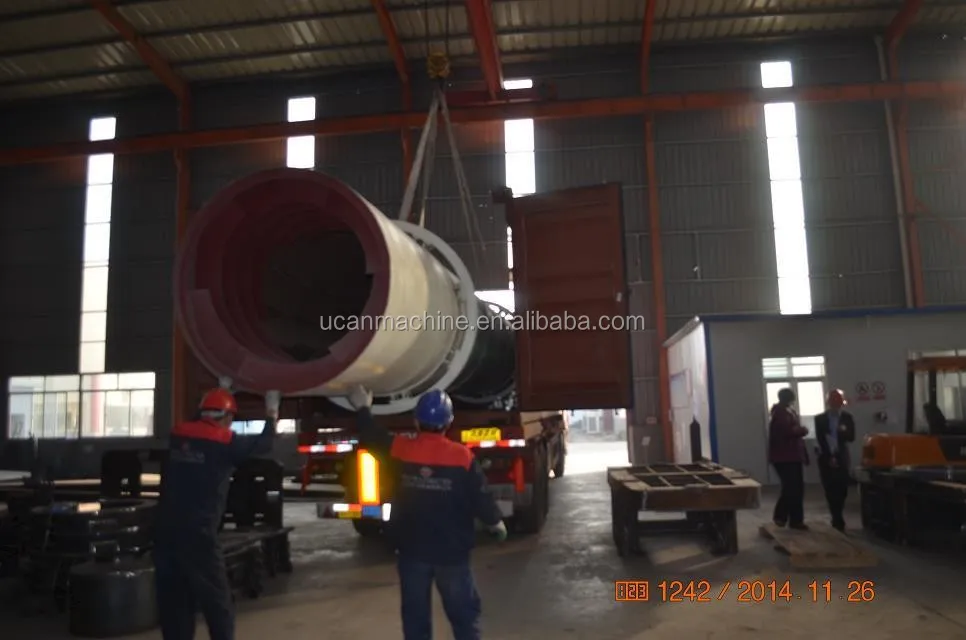

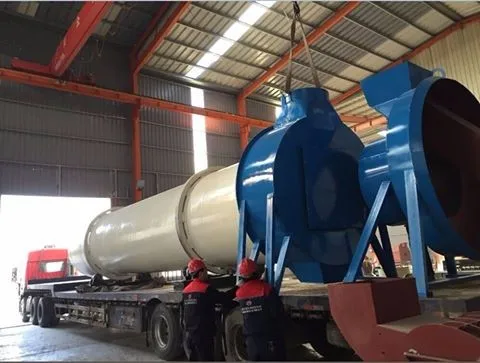

Packing & Delivery of RotexMaster Rotary Dryer Machine

Packing & Delivery Type: Frame	Packing & Delivery Type: 40"OT Container

About Us

Shandong Rotex Machinery Co.,ltd is the leading enterprise in manufacturing, marketing and R&D of biomass pellet machinery, crushing, drying equipment, feed pellet production equipment, cooling equipment in China.

Our Mission: Offer The World A Blue Sky

Principle: Service First, Customer First

FAQ

1. Are you manufacturer or Trading Company

Yes, we are professional Manufacturer

2. What is the Capacity per hour can you do?

1t/h to 20t/h.

3. Do you send engineer to clients' place to install the equipment ?

Yes, we have professional After-sales Department.

4.What kind of raw material can dry? what is the requirement?

Raw material: sawdust, agricultural staw, efb fiber, rice husk, peanut shell etc.
