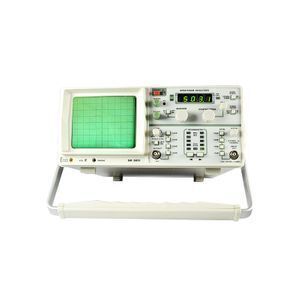

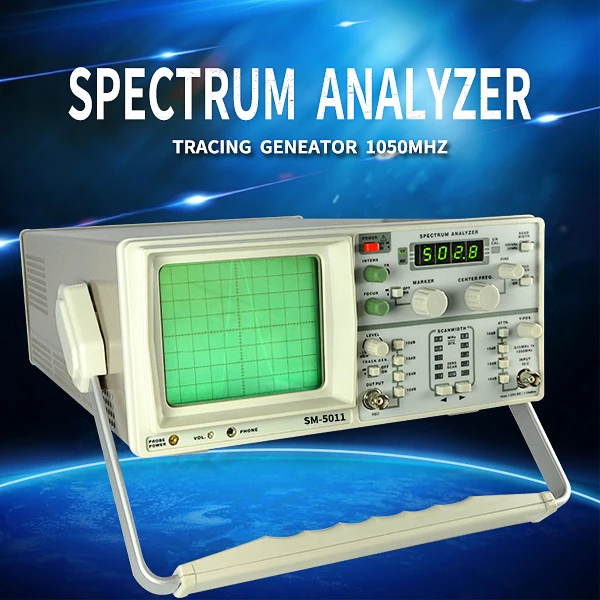

Electronic Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer

  • Supplier: Mch Instruments Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms S.E. MCH Electornic Factory
  • Price: $720.00 /unit
  • Min. Order: 1 unit
Product details
Input frequency Response:1050MHz, 3dB;AM demodulation output:Impendance of load≥16Ω;
OEM:YES, MOQ>50PCS;Model Number:SM-5011;
Single package size:50X38X23 cm;Tracking feature:YES;
CE:YES;Brand Name:MCH;
ROSH:YES;Single gross weight:10 KG;
Delivery Detail:0 days after payment;Input Power Supply:220V or 110V option;
Selling Units:Single item;Warranty:Factory warranty 1 year;
Place of Origin:Guangdong China (Mainland);DC Output:Probe +6V;
Frequency Display Resolution:100KHz;
Products



Electronic  Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer

Input frequency response0.15-1050MHz, 3dB
Display accuracy of central frequency+/-200KHz (frequency sweep width +200KHz)
Accuracy of mark frequency+/-0.1% (frequency sweep width +100KHz)
Frequency display resolution100KHz (4½ bit LED display)
Frequency sweep width0.1MHz/div-100KHz/div with 1, 2 and 5 step system
And 0Hz/div (0 frequency sweep) Accuracy: +/-10% (each range)
Intermediate frequency bandwidth20KHz and 400KHz
Video filter(When on) 4KHz
Amplitude range-107~+13dB
Reference level-27dB~+13dB (10dB for every step) +/-2dB
Average noise level-97dB(20KHz intermediate frequency width)
Display range of CRT screen80 dB(10dB/div)
Display range of vertical display+/-2dB (2 With attenuator) 250MHz signal
Input attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Maximum input level+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB)
Frequency stabilityOver 150KHz/hour
Input jack typeBNC
Input impedance50Ω
Power supply220V/110V; +/-10%; 50Hz/60Hz
Tracing signal generator (SM-5011 ONLY)
Input frequency response0.15-1050MHz, 3dB
Output level range-50~+1dBm (4x10dB) +/-3dB
Output attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Input jack typeBNC
Input impedance50Ω
Others
DC output+6V (for probe)
AM demodulation outputLoad impedance ≥16Ω



Packaging & Shipping

Electronic  Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer



standard export cartons:
1.2 units per carton
2.carton dimension: 500*390*240mm
3.Gross weigth: 8kg/pc



Our Services

 Electronic  Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer

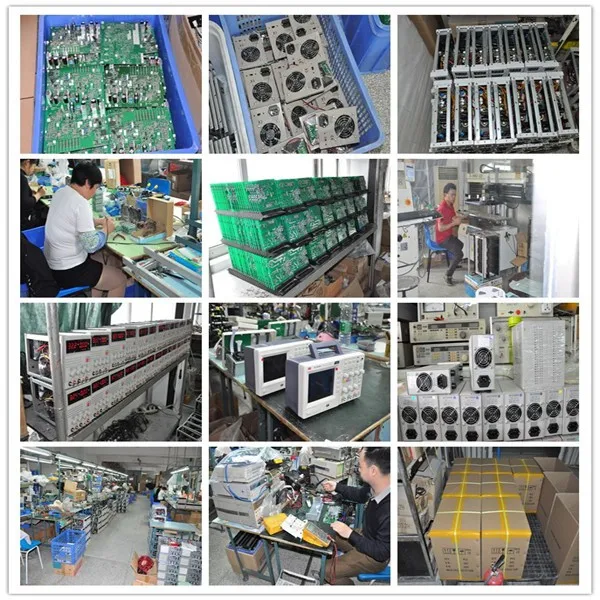

Company Information

 Electronic  Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer

FAQ

Electronic  Tracking Signal Generator SM-5011 150KHz~1050MHz Spectrum Analyzer





Thank you for so much attention, your enquiry is appreciated!


Your information required:
1.Voltage and wire.
2.Machine Model
3.Performance data & color and other special requirments
4.Total Quantity
Our terms:
1.price terms: EXW,FOB shenzhen Or CIF your port
2.Payment terms: 30% TT,70% Against BL copy
3.Lead time: 7days/20GP(Ordinary Order)
