Electronic Online Dual Channel Spectral Frequency Fft Handheld Signal Auto Optical Usb Used Chinese Spectrum Vibration Analyzer

Supplier: Kunshan Kim-Mac Measurement And Control Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Sean Kim
Price: $7200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Single package size:	45X35X18 cm;	Package Preview:	https://sc02.alicdn.com/kf/HTB141iCKf9TBuNjy0Fcq6zeiFXak.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1hdonc6fguuRjSspaq6yXVXXaE.jpg_640x640.jpg;

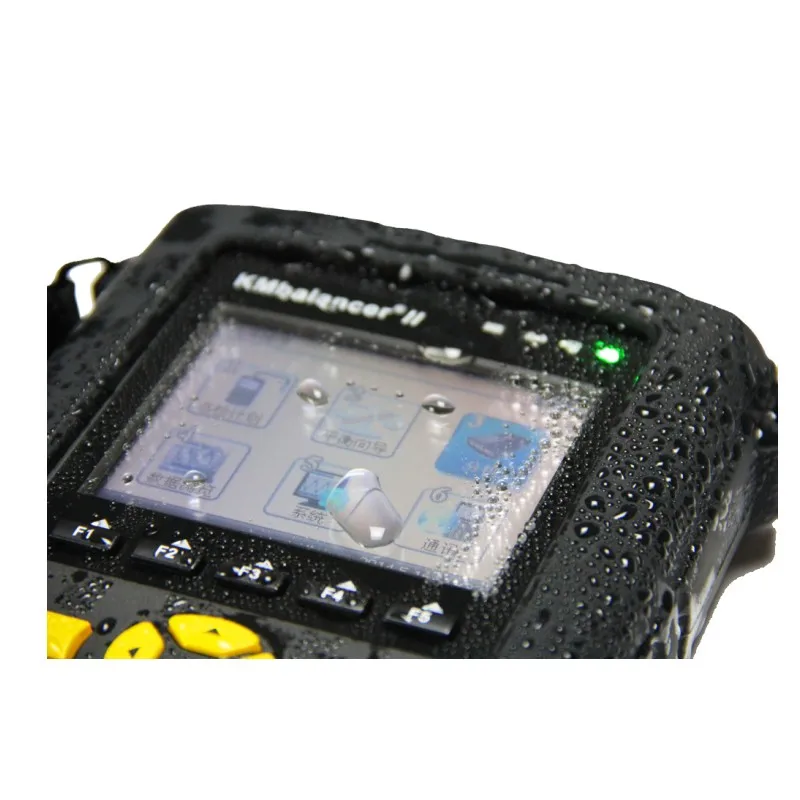

Communication:	USB2.0 Full Speed;	Enclosure:	IP65 Dust-tight and splash-resistant;
Product name:	Chinese Spectrum Vibration Analyzer;	Brand Name:	KM;
Drop test:	1.2M;	Selling Units:	Single item;
Humidity range:	0% ~ 80% Relative humidity;	Single gross weight:	8 KG;
Delivery Detail:	0 days after payment;	Size:	190 x 110 x 38mm;
Storage:	RAM 64M & Flash 1GB;	Place of Origin:	Jiangsu China (Mainland);
Model Number:	KMbalancer//;	Display:	Colorful backlit LCD screen, 320*240pixels, TFT 65536;
Operation temperature:	-10℃~ 50℃;	Package Type:	1 unit with all accessories into a toolbox 1 toolbox into a carton;
Weight:	900g;

Company Profile

KMInstrument

---- 30 years experience in measuring and controlling instrument manufacturers

Description

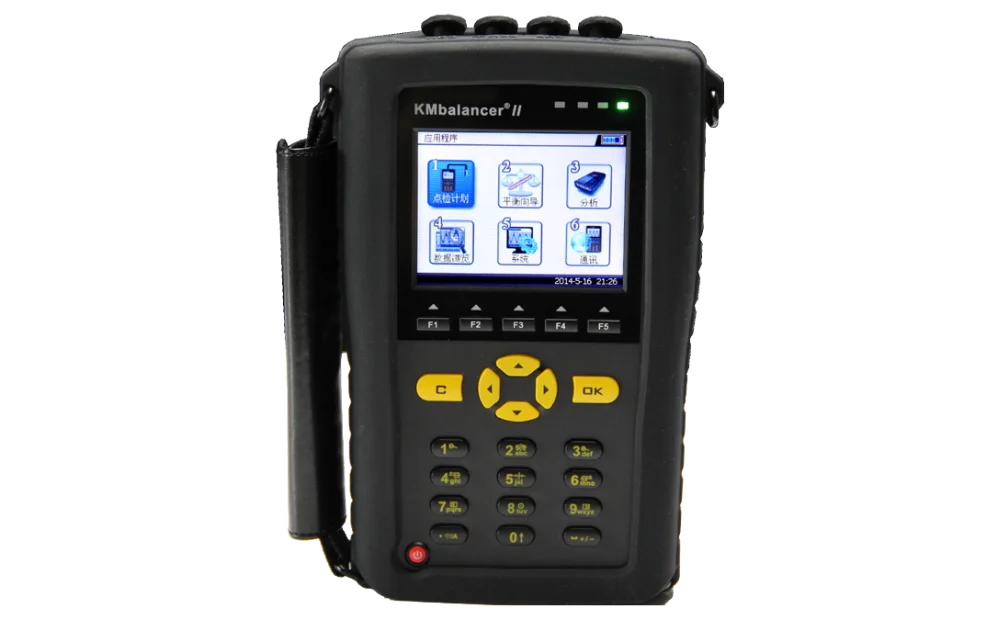

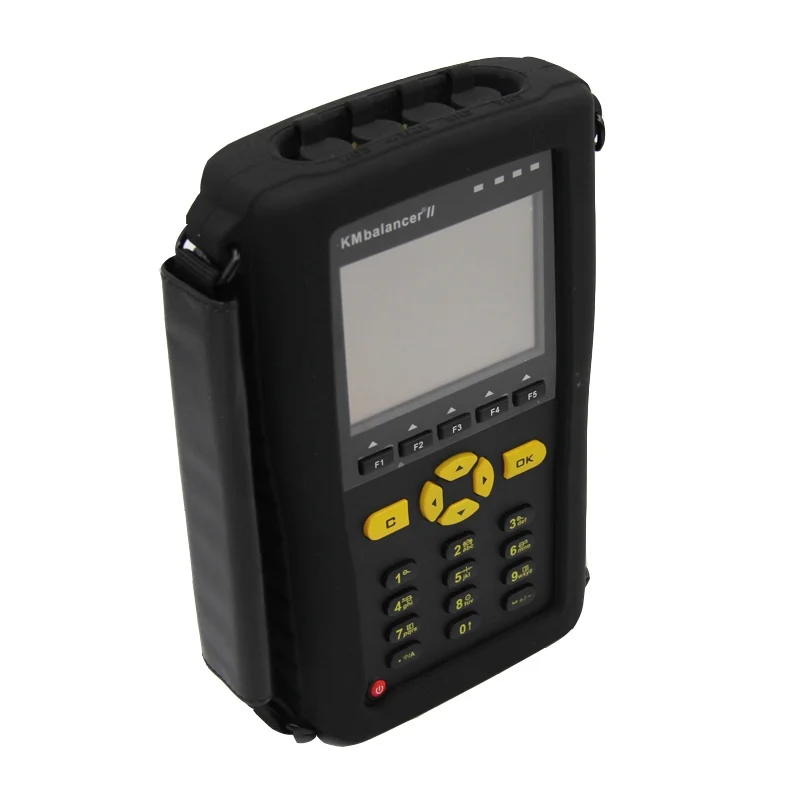

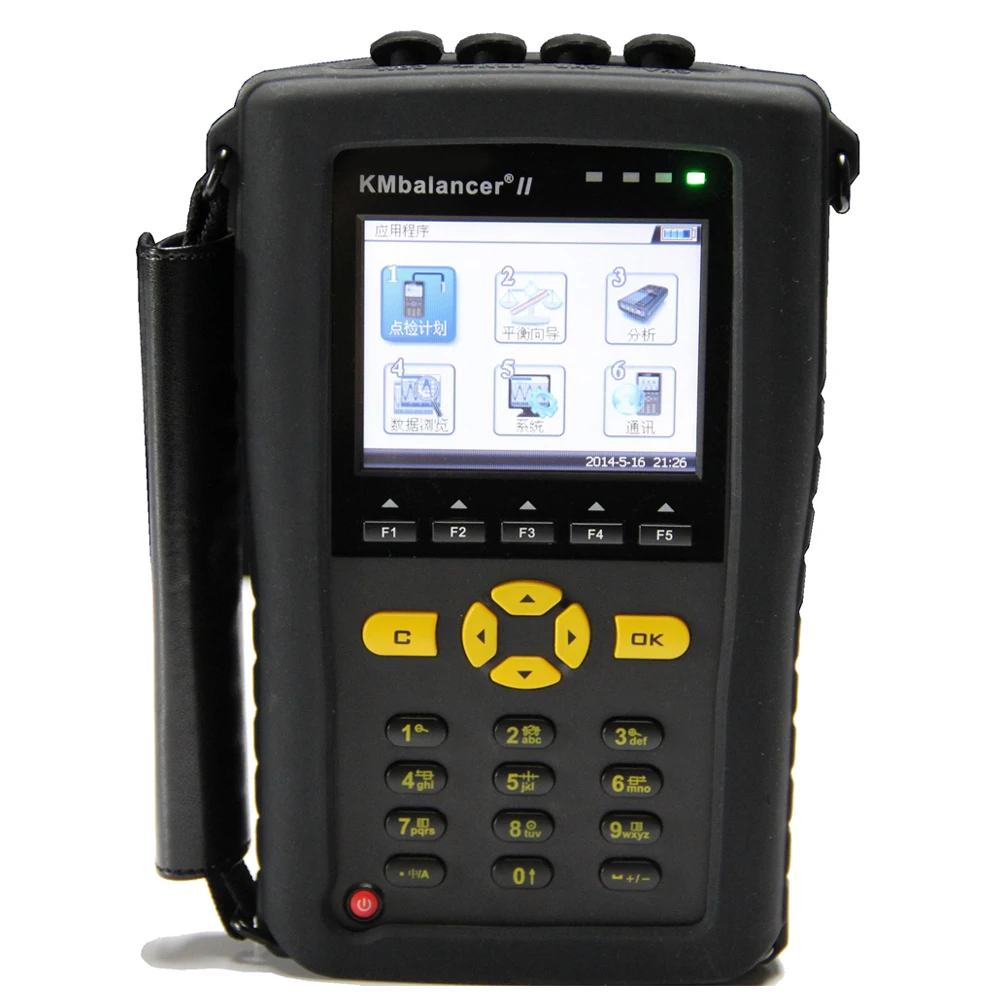

KMbalancer II
The Expert in data collection, vibration analysis and field balancing

KMbalancer II is an all-in-one data collector, vibration analyzer and field balancer based on latest technology.

Fastest measurements using trending spectra
User-friendly and intuitive operation
Powerful analysis and diagnostic tools for machine trouble shooting
Automatic switchbox support
Long-lived battery
Customer Voices
"Great tool to trend and diagnose wear
and possible failure of power transmission
equipment!!"

Most of the abnormal vibrations on rotating equipment are caused by unbalance, misalignment, defective bearings, gear damage or looseness. These defects may occur at short intervals. In-depth analysis allows identifying the root cause of such recurring defects.

Useful analysis tools are e.g. resonance tests, bump testing, modal analysis, ODS analysis, cross channel phase, orbit measurements, high resolution spectra analysis, long time wave recording and shaft centerline plots.

KMbalancer II offers all these powerful analysis tools in one user friendly system. KMbalancer II has a modular structure that allows you to upgrade the device at any time from a basic package for fast route-based data collection to a full-blown 2 channel analyzer with advanced analysis functionalities.

Besides the high-end analysis measurements capabilities, field balancing options and route data collection functionalities, KMbalancer II also offers a special machine template mode which is typically used to perform acceptance measurements of newly produced or installed rotating equipment such as fans, pumps, electric motors or generators. The machine templates includes all relevant machine information such as RPM, roller bearing defect frequencies, warning and alarm thresholds, which allow you to provide a standardized, fast and easy acceptance inspection.

As with all our data collectors and vibration analyzers, you will benefit from free software and firmware updates, and low ownership cost.

Specifications

Electronic Online Dual Channel Spectral Frequency Fft Handheld Signal Auto Optical Usb Used Chinese Spectrum Vibration Analyzer

Power	Lithium-ion, Operating time >8 hours continuous, Recharge time 2-3 hours

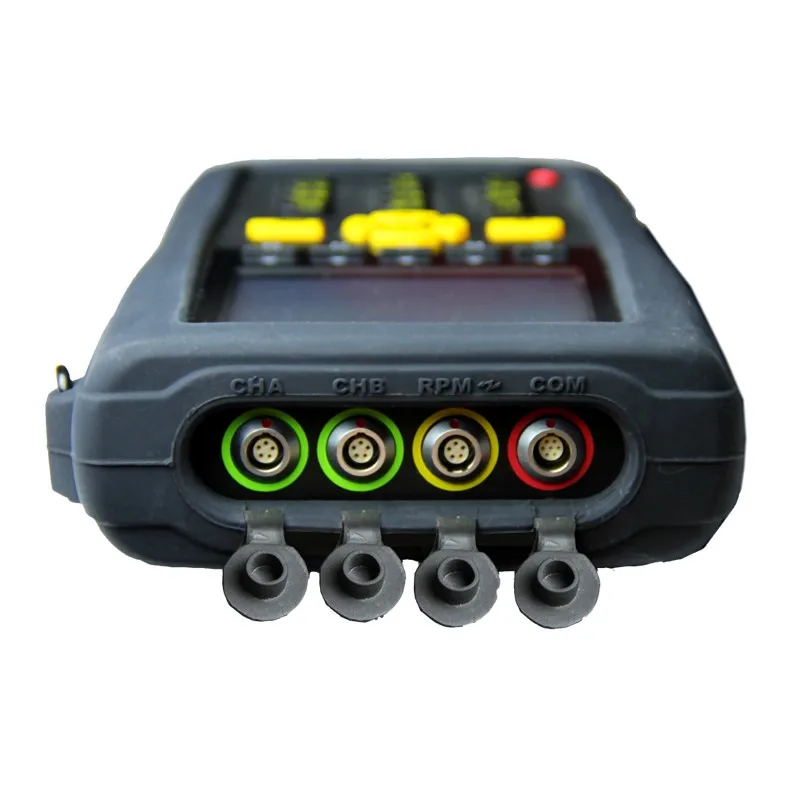

Collection	Channel 2 vibration +1speed
	Signal types Speed, acceleration, displacement, AC/DC voltage, AC/DC current
	Simulation of coupling AC/DC/ICP(20V at 2.4mA)
	Signal ±25V
	Dynamic range >80dB
	FFT resolution 400~12800 lines
	Analog filter High(2Hz / 10Hz / 100Hz / 1000Hz),Low(10Hz / 100Hz / 1000Hz / 40kHz)
	Anti aliasing filter 50Hz~40kHz
	Window function type rectangular,Hanning,Hamming,Flat Top
	Lines Linear, peak, square root
Dynamic balancing	Speed range 60~300,000 RPM
	Dynamic balancing Single, double-plane dynamic balancing, vibration analysis, rapid dynamic balancing analysis
	Acquisition signal type The signal and units can be set free
	Operation Guided mode of operation.
	Toolbox time/frequency domain analysis, history browsing, manually entered, data review, vector decomposition/synthetic, ISO permissible unbalance query, add calculation

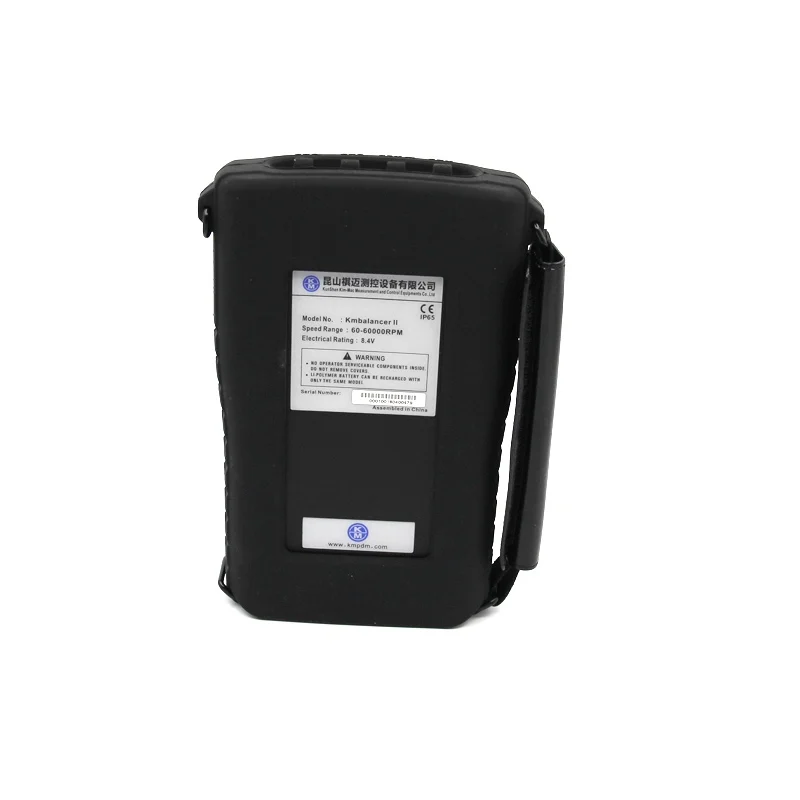

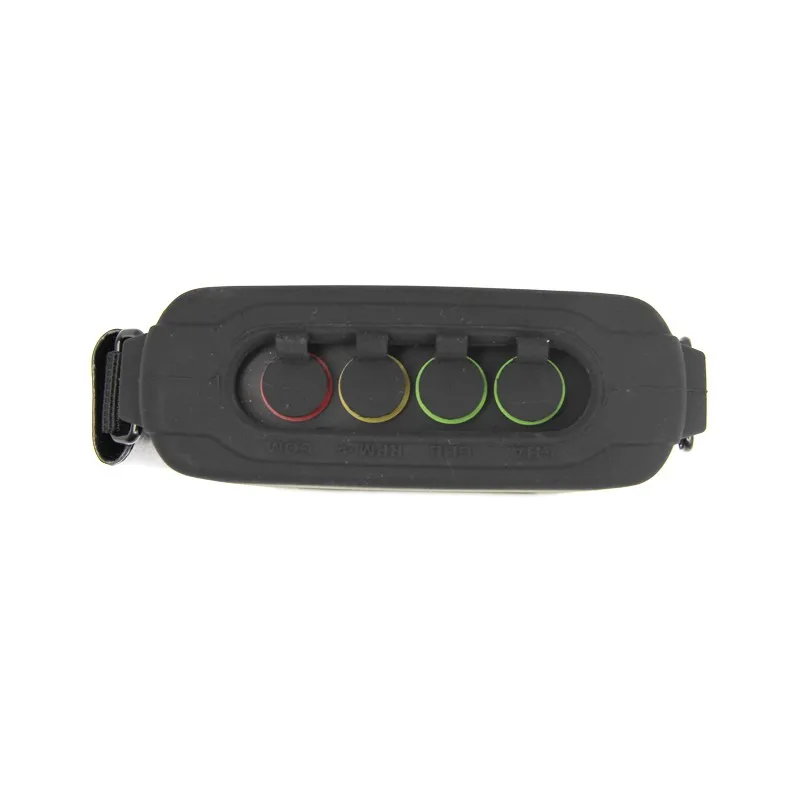

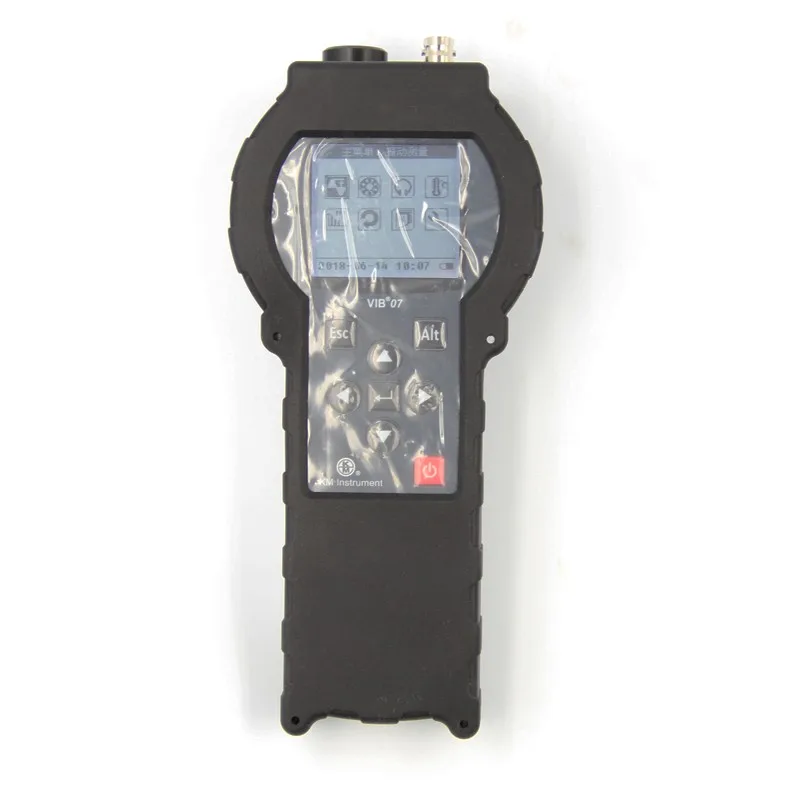

Detailed Image

Analysis Software

KMVS Pro- plant planning, Visual management, Condition monitoring, Data upload and download.

Whole plant planning, make equipment condition clear at a glance
As the software platform of predictive maintenance system, KMVS Pro has the functions of equipment condition data collection and management, machine status alarm, trends and fault diagnosis.It provides the user with a convenient and flexible work platform, which enables it to manage machine status data, collect schedule data, evaluate machine status, analyze machine fault and put forward predictive maintenance report.

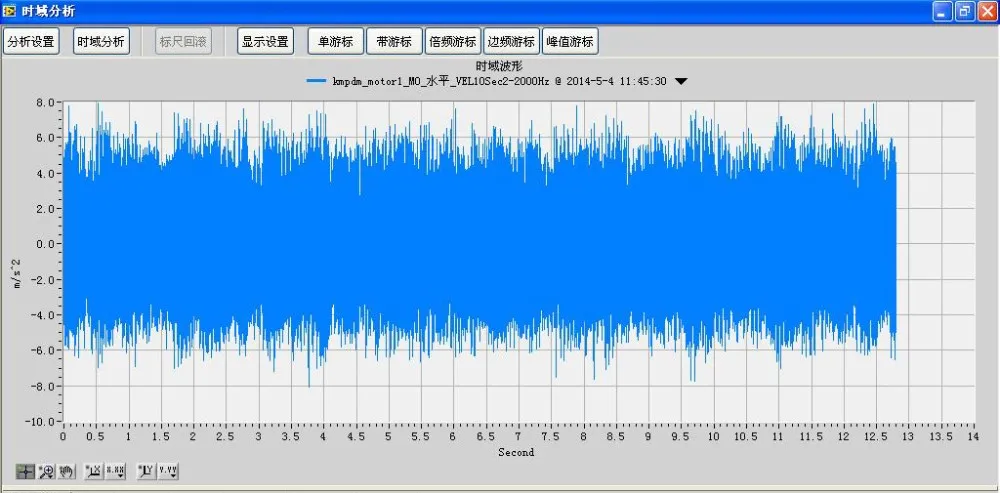

Time waveform analysis.

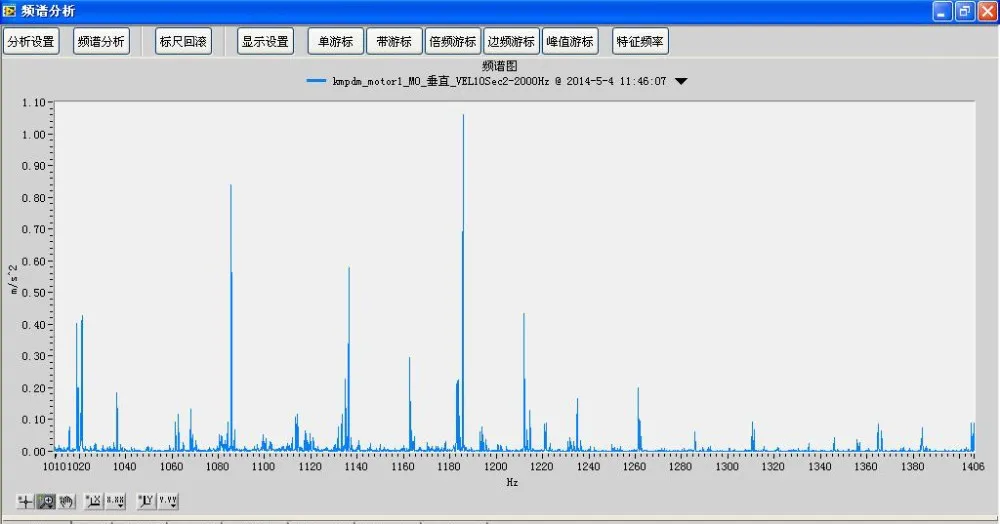

FFT analysis.

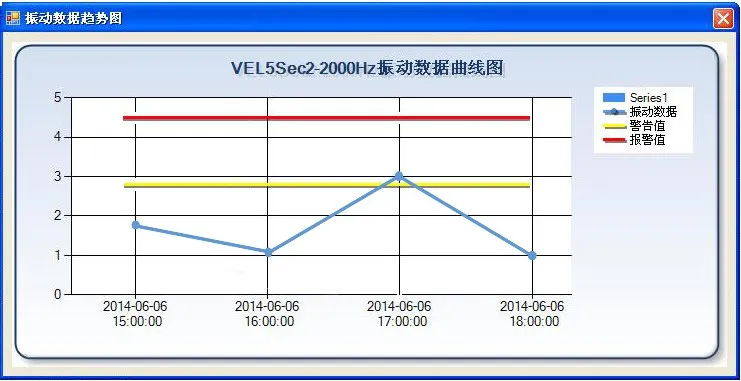

Trend analysis.

ISO10816-3 Vibration .

Reports.

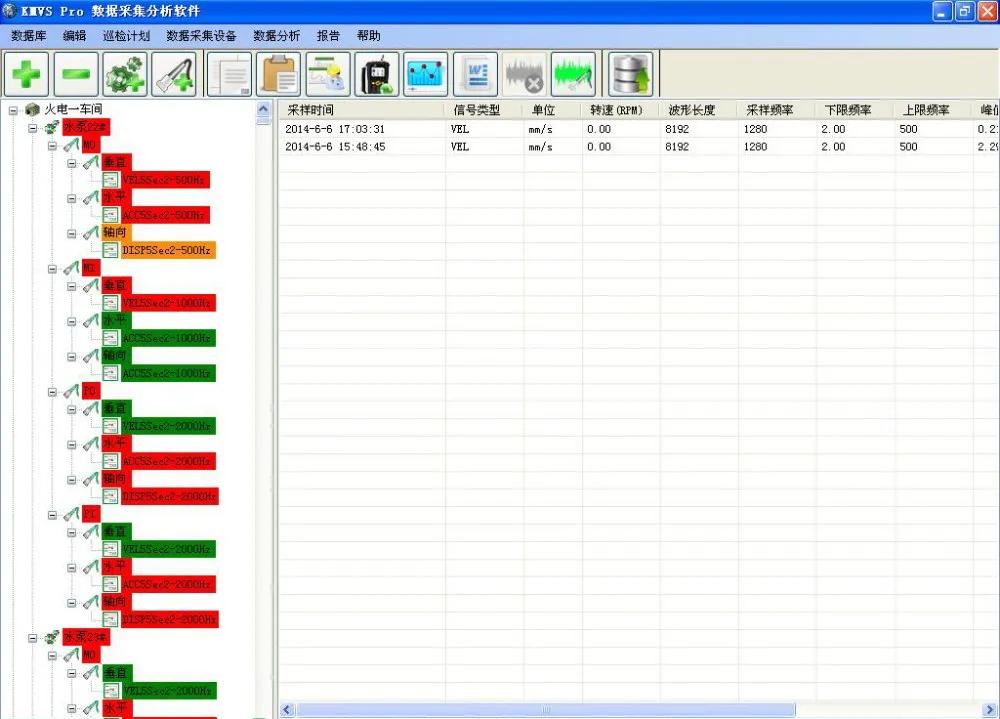

Route and database setting.

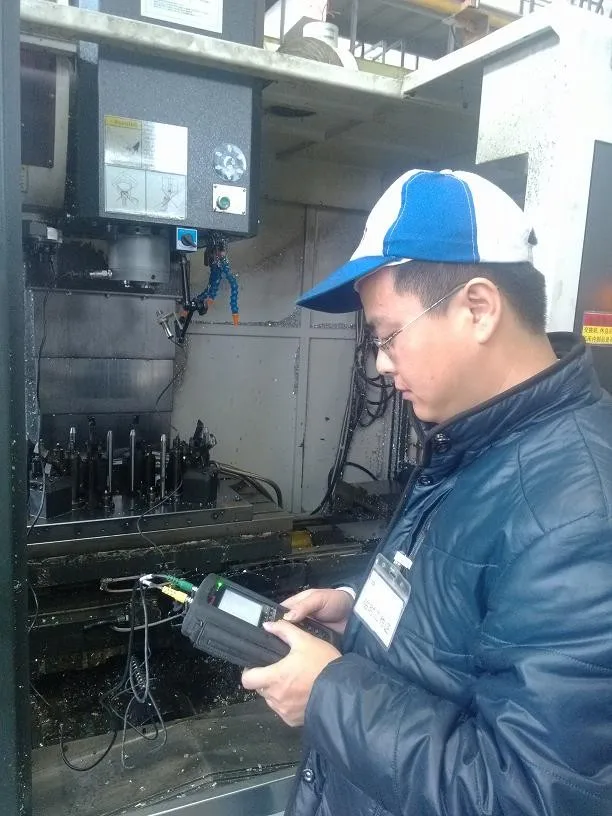

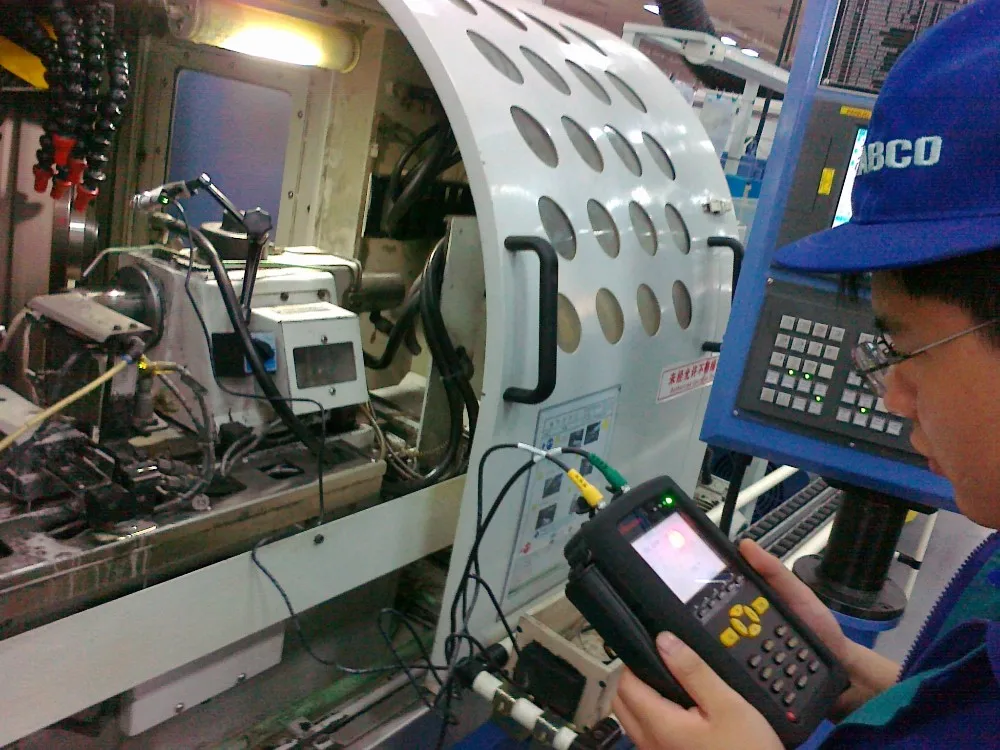

Exhibition and Field

Name: Sean Kim

Tel: +86-512-50333915

Fax: +86-512-50333916

Mobile/wechat/whatsapp: +86-15962500070
Skype: kmpdm-seankim

Add: No.579, QianJin East Road, KunShan ,Jiang Su 215334, China

Http://www.KMinstrument.com
