Power Source: | Diesel Engine; | Outer Diameter Of Drilling Rod: | 51mm; |
Inner Diameter Of Drilling Rod: | 44mm; | Place of Origin: | Henan China; |
Applicable Industries: | Building Material Shops,Farms,Construction works ,Energy & Mining; | Type: | Rotary Drilling Rig; |
Warranty: | One Year; | Brand Name: | HT; |
Usage: | Water Well; | Area Of Working Platform: | 1 M2; |

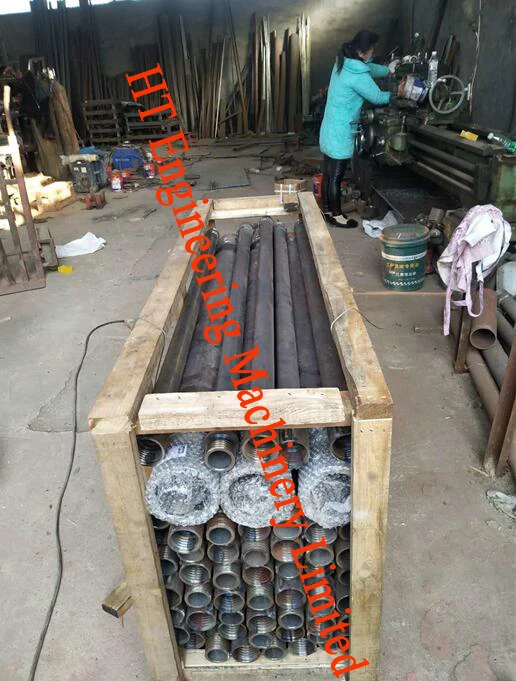

Packaging Detail: | All parts are in two steel cases Water Well Drilling Rig Small Water Well Rig Portable Water Well Rig; | Rock Drilling Capacity: | Can drill rocks with diamond bit; |
After-sales Service Provided: | Video technical support,Online support; | Max Drilling Depth: | 150m; |
Working Principle: | Hydraulic; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Power Type: | Diesel; | Height OF Well Stand: | 2m; |
Supply Ability: | 500 Set/Sets per Month; | Port: | Tianjin/Qingdao/Shanghai/Guangzhou; |
Max Drilling Diameter: | 420mm; | Certification: | ISO9001:2008; |
Drilling Rod Length: | 1.5m/piece; | Condition: | New; |
Weight: | 750kg; | Dimension(L*W*H): | 170cm x 90cm x 185cmm; |
Voltage: | Diesel Engine Driving; |

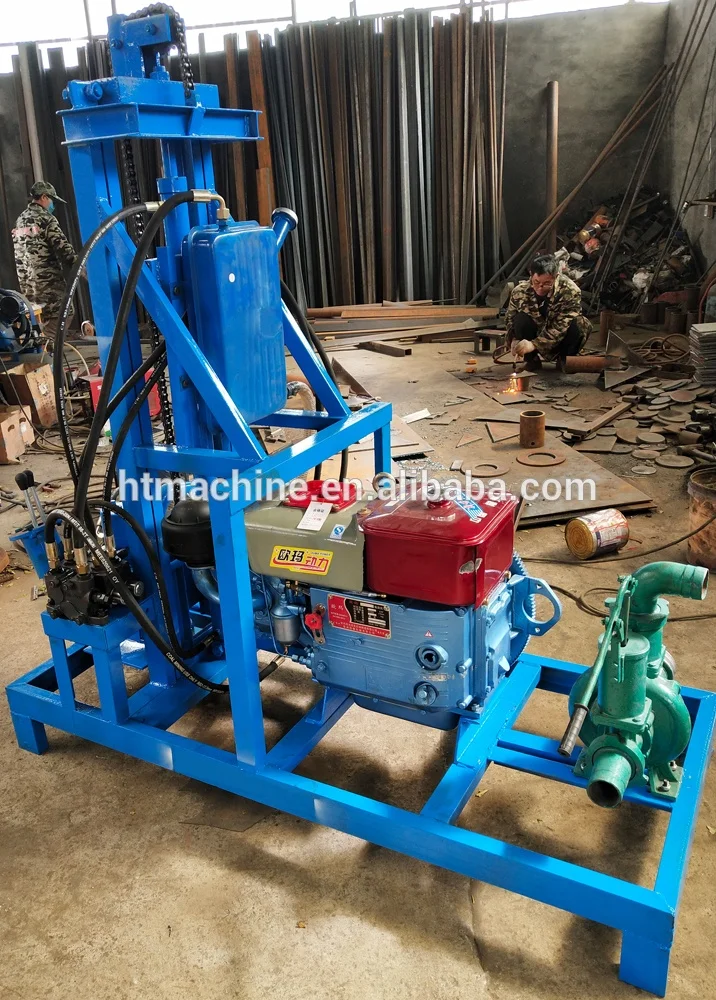

Applications And Features :
1 This small drilling machine occupies a small area ( 1square meters), a height of 2 meters stand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site.
2 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.
3 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.
4 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.
5 Advantages :
5.1 One person operation, save labor cost.
5.2 With universal wheel,convenient to transport.
5.3 Economical,can be owned by common families.
5.4 Light weight, simple operation,very easy to install.
Model | DH150 | |
Principle | Positive Cycle | |
Hydraulic Power | 10Hp-Diesel Engine | |
Centrifugal Pump Power | 8Hp-Diesel Engine | |
Max Drilling Depth | 150m | |
Max Drilling Diameter | 420mm | |
Drilling Pipe | 51mm diameter, 1.5m/piece | |
Drilling Bit | Alloy Steel For Soil | one small bit (60mm,90mm) +one big bit (160-300mm) |
PDC For Rocks | diameter should be less than 150mm | |
Other Parts For One Complete Machine | High pressure water pump-1 unit | |
High pressure water pipe-5m | ||
Tools,seat,oil seal,English manual,Etc |

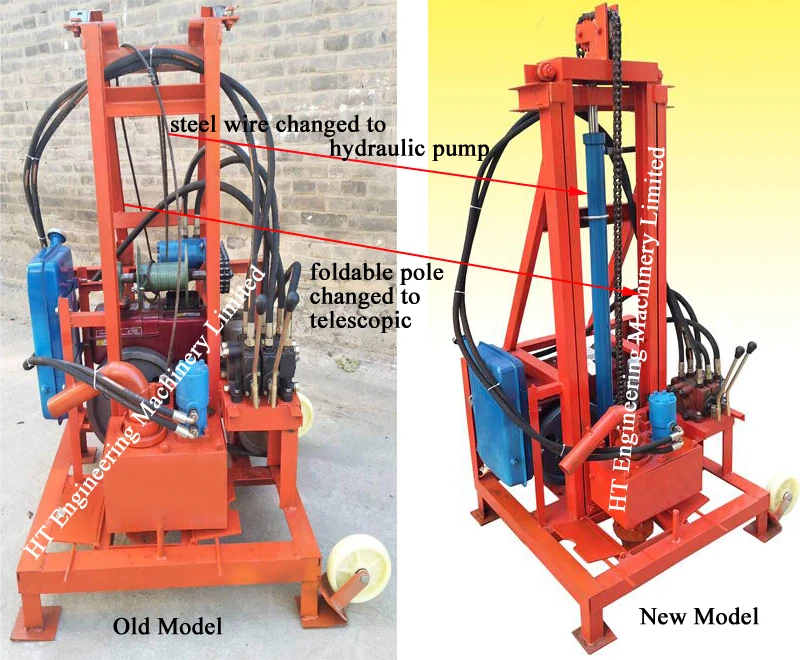

Now Our Portable Diesel Hydraulic Rig Has Been Upgraded To New Model, Here Is The Comparation Between New And Old Model :

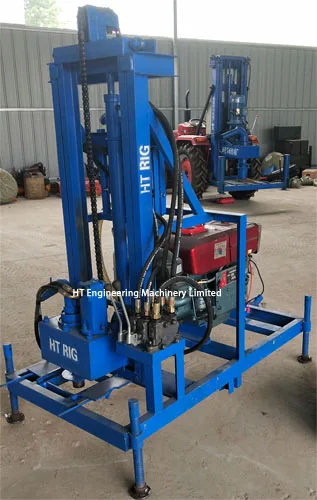

Without 2 Wheeels And 4 Legs :

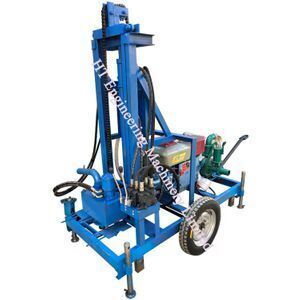

Trailer Type With 2 Wheeels And 4 Legs :
1 What is drilling Bit ?
-----It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
We can customize the drilling bit according to your requirement.
Alloy steel bit for soil :
PDC bit for rocks :
2 What is drilling Pipe(rod)?
-------It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/50/110mm.
3 What is the suction water pump?
------With the high pressure,It is used to flush the sand,soil and other residues out of the well,and can clean the well after the well is finished.
