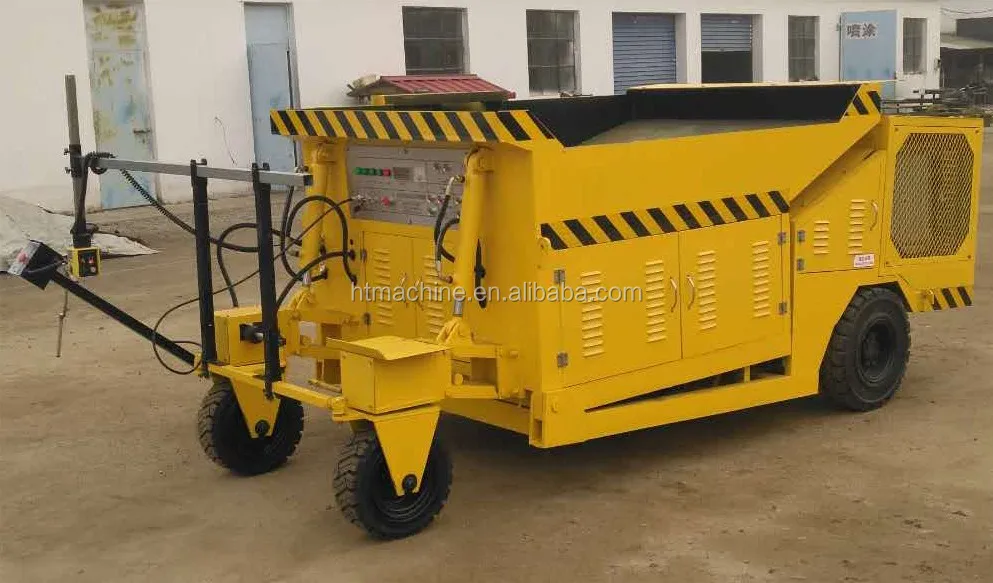

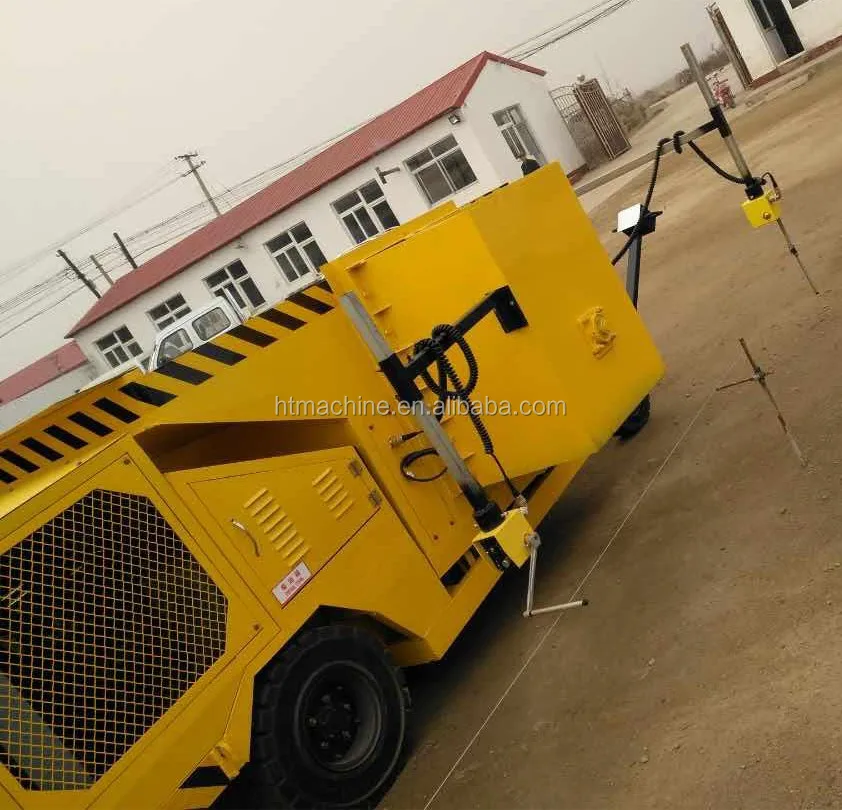

2019 Most Advanced Road Curb Paver

Product details
Package Type:Standard Export Wooden Case Curb Paver Road Paver Curb Road Paver;Weight:2150kg;
Place of Origin:Hebei China;Production Capacity:1.3-26m/min;
Condition:New;Max. Paving Thickness:600mm;
Applicable Industries:Construction works ;UNIQUE SELLING POINT:High operating efficiency;
Weight:2150kg;Single gross weight:1,500 KG;
Package Preview:https://sc01.alicdn.com/kf/HTB1rkVubL5G3KVjSZPxq6zI3XXaE.jpg_640x640.jpg;Dimension:3300mmx2100mmx1300mm;
Warranty:1 Year;Brand Name:HT;
Dimension(L*W*H):3300mmx2100mmx1300mm;Power(W):25Kw;
Engine Brand:CHANGCHAI;Start-up Mode:Electric Start;
Selling Units:Single item;Hydraulic Valve Brand:Huade;
After-sales Service Provided:Engineers available to service machinery overseas;Paving Speed:1.3-26m/min;
Certification:ISO9001:2008;Hydraulic Pump Brand:Hengli;
Radiating Way:Water Cooling;Single package size:320X190X120 cm;
After-sales Service Provided:Video technical support, Online support;

Curb Road Paver,Road Paver :

Product Description



Application And Features:



This machine is the special equipment for asphalt mixture or cement concrete road-building curbs.



Widely used in highway and municipal road curbs molding.



The built curbs linear has smooth appearance,water reaining effect is good,easy to operate,high production efficiency.





Technical Parameters:

HT800

Specifactions

Features

Dimension

3300mm*2100mm*1300mm

Compact, easy to move

Weight

2150kg

Parameters

Of Engine

Fuel

Diesel

Electronic speed control, voltage stability, light weight, small vibration, low noise, long life.

High reliability and strong ability to adapt to the temperature.

Power

25kw

Output Voltage

380v,3 Phases

Start-up Mode

Electric Start

Rotation Speed

2000 Rpm

Radiating Way

Water Cooling

Digital Leveling System

Leveling Scope:±40mm

Automatic temperature adaptation

Voltage overload protection

Paving Speed

1.3-26m/Min

Imported CVT

(continuously variable transmission)

Adjust machine to the most suitable state

Hopper Capacity

0.9m³

Bigger volume, reduce the number of shutdowns caused by insufficient feeding

Operation Mode

Manual Control, Remote Control

Support short-range self-transition

(maximum travel speed to 26m/min)

Control Mode

Steering : Automatic, Manual.

Control linear and level height precision

Height: Automatic, Manual

Drive Mode

Two Back Wheels Drive

Adapt to the more complex working conditions

Self-Balancing

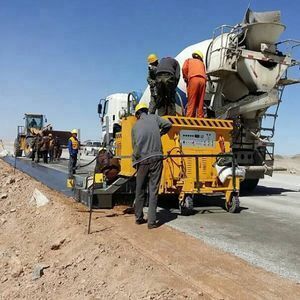

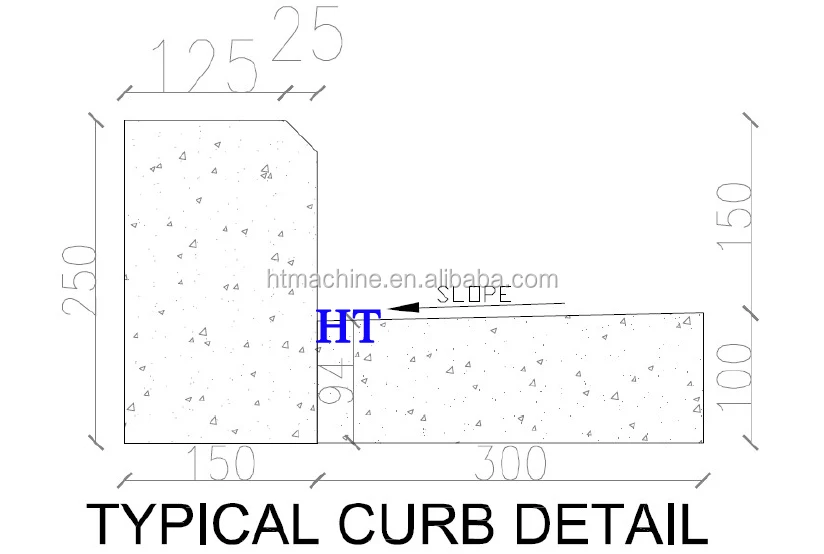

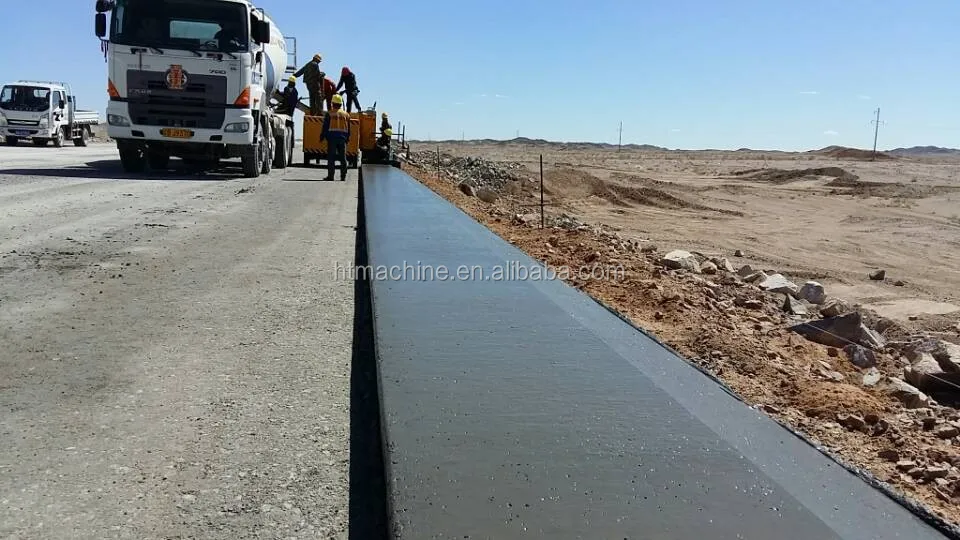

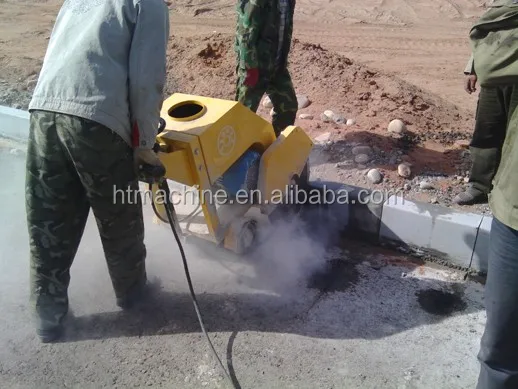

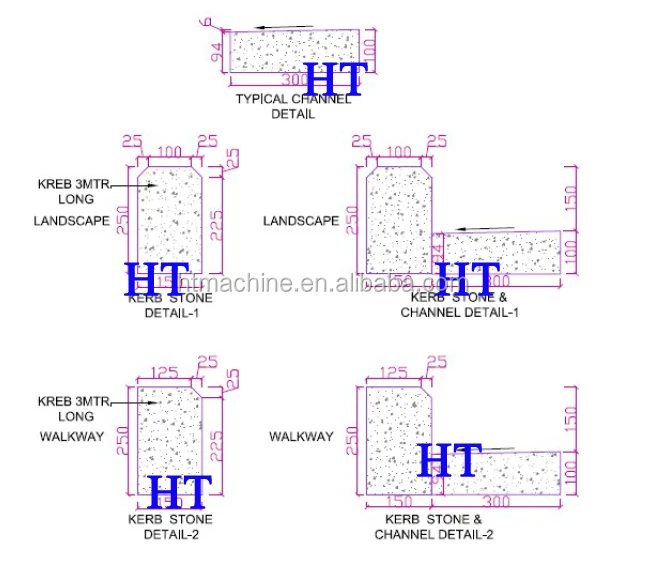

Draw Example From Our Clients :

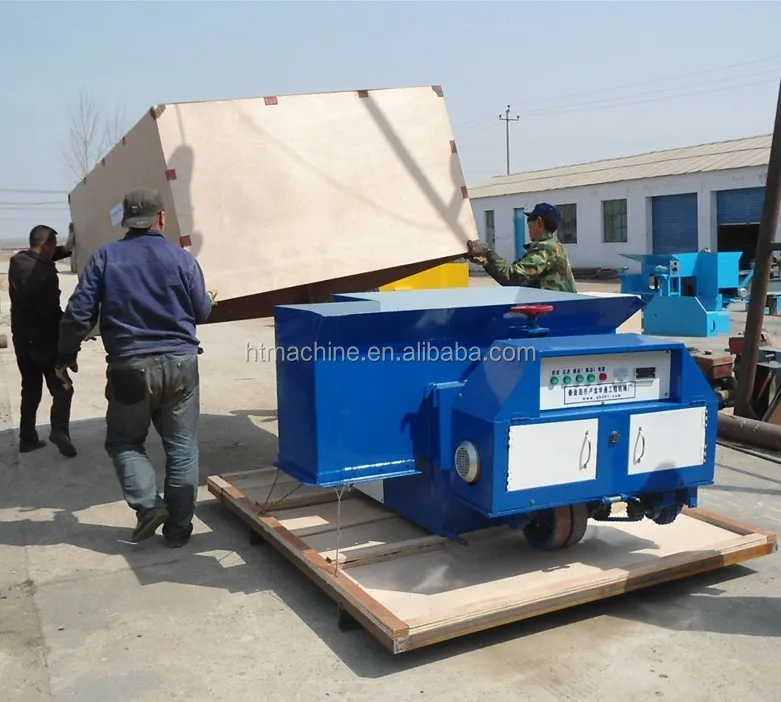

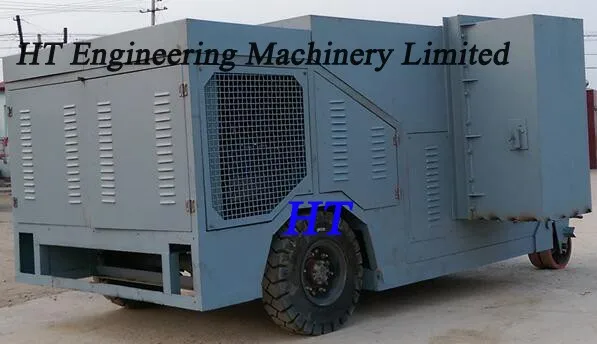

Packaging & Shipping









+
Related Products

1 Curb Machine--HT400



2 Curb Machine--HT450



3 Curb Machine--HT1000



4 Asphalt Curb Machine-LCX







FAQ



+
1 How about the quality of machines?
   Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and make    sure every finished product with high quality.
2 About the delivery time.
   Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order.
3 About warranty.
   We provide 12 months for warranty.
4 Which kind of payment is available for us?
    T/T, L/C and  Western Union are common for us.
5 How about the service?
   Provide overseas installation, debugging and training the relating work .







Our Services



High quality with low price :
Focus on water filter area,our factory has more than 20 years of professional experience,the price is directly from factory to our clients.



Multiple delivery choice :
We have big discount with forwarder,keep the goods reach yourside fast and safety.



Customer First, Credit-based :
7 x 24 hours service,every equiry will be treated carefully by us with authentic and quick replying.
