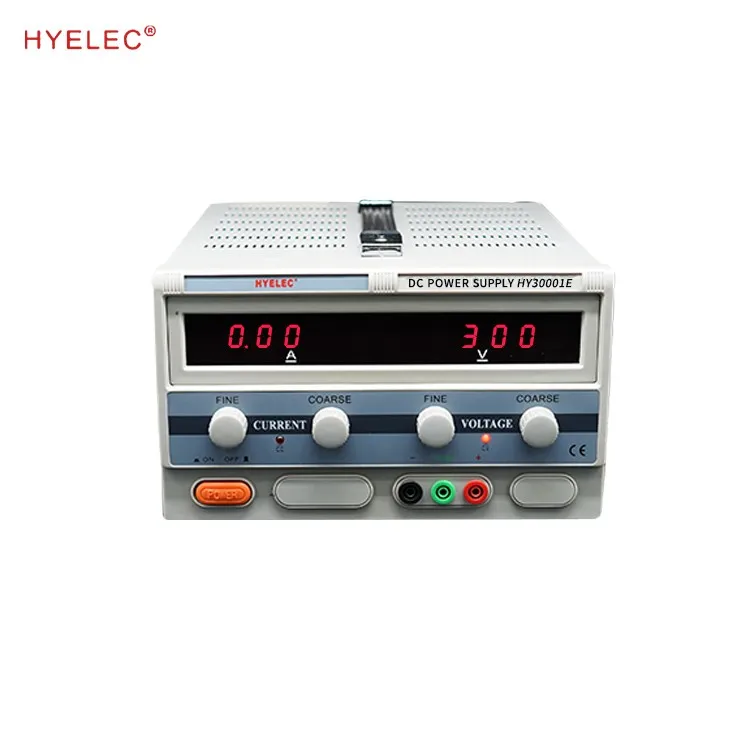

2019 High Quality HY30001E 300V 0- 1A AC DC POWER SUPPLY 400v variable dc power supply

Supplier: Hangzhou Heng'ao Electronics Industry Co., Ltd.
Region: Zhejiang, China
Contact: Ms. mao ade
Price: $161.68 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Current:	0-1A;	Input Voltage:	104V-253V AC;
Line regulation:	CV≤0.02%+3mV CC≤0.5%+3mA;	Voltage indication accuracy:	LED±1%+2digits;
relative humidity:	<90%;	Output Type:	Single;
Current indication accuracy:	LED±2%+2digits;	Selling Units:	Single item;
Brand Name:	HYELEC;	Place of Origin:	Zhejiang China;
Package Type:	DC power supply Standard Neutral shipping packing 1.1 pieces per carton 2.EPE Foam protection 3.Carton Size:402123cm 4.Carton G.W.:6KG;	Output Frequency:	50hz-60hz;
Protection:	constant current and short-circuit protection;	Output Power:	101 - 200W;
Output Voltage:	0-300V;	Environment:	0 ~+40 0C;
Single package size:	41X34X23 cm;	Package Preview:	https://sc02.alicdn.com/kf/H92291f1dc24d48178f86e583ce1138d2D.jpg_640x640.jpg;
Input voltage:	104~127V AC (60Hz), 207~253V AC (50Hz);	Load regulation:	CV≤0.02%+10mV(I≤6A) CC≤0.5%+10mA(I≤6A);
Model Number:	HY30001E;	Single gross weight:	6 KG;

Product Description

Model	HY30001E
OUTPUT VOLTAGE	0-300V
OUTPUT CURRENT	0-1A
Input voltage :	104~127V AC (60Hz), 207~253V AC (50Hz)
Load regulation:	CV≤0.02%+10mV(I≤6A) CC≤0.5%+10mA(I≤6A) CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A)
Ripple and noise:	CV≤5mVr.m.s CC≤20mAr.m.s
Protection:	constant current and short-circuit protection
Voltage indication accuracy:	LED±1%+2digits, analogue display 2.5%
Current indication accuracy:	LED±2%+2digits, analogue display 2.5%
Environment:	0 ~+40 0C

OPERATION

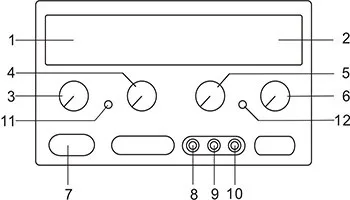

2.1 Front panel controls.
(1) Current indication.
(2) Voltage. Indication.
(3) Fine adjustment of current
(4) Coarse adjustment of current.
(5) Fine adjustment of output voltage.
(6) Coarse adjustment of output voltage.
(7) Power ON/OFF switch
(8) Negative output terminal.
