Automatic Tire Shredder Machine / Automatic waste tire recycling line / Rubber Crumb Production Line

Supplier: Xuchang Zhenda Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Elva Jin
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	30-160KW;	Packaging Detail:	wooden case or container;
Warranty:	2years for all the machine, 3years for the rollers;	Tire Machine Type:	Tire Recycling Machine;
Dimension(LWH):	40HQ and 20GP Container;	Supply Ability:	10 Set/Sets per Month Rubber Crumb Production Line;
Port:	Qingdao;	Condition:	New;

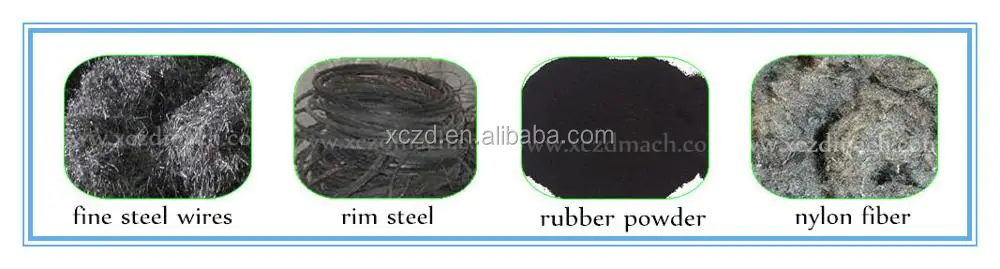

After-sales Service Provided:	Field maintenance and repair service;	End product:	rubber powder, fine steel wires, nylon fiber, rim steel wires;
Color:	Blue, Green or customized;	Weight:	14-25T;
Function:	Recycle Waste Rubber;	Place of Origin:	Henan China;
Voltage:	Customer Request;	Machine Type:	Automatic;
Type:	Tire Machine;	Name:	XKP-350/400/450/560/560D Rubber Crumb Production Line;
Capacity:	220-1600kg/h;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Model Number:	XKP-350/400/450/560/560D;	Brand Name:	Zhenda;
Certification:	ISO;	Warranty:	2 Years;
Application:	Rubbers Recycling Industry;	Out put:	rubber powder 5-40mesh;

Automatic Tire Shredder Machine / Automatic waste tire recycling line / Rubber Crumb Production Line

Production Line:

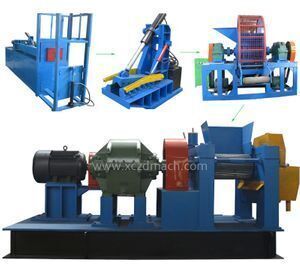

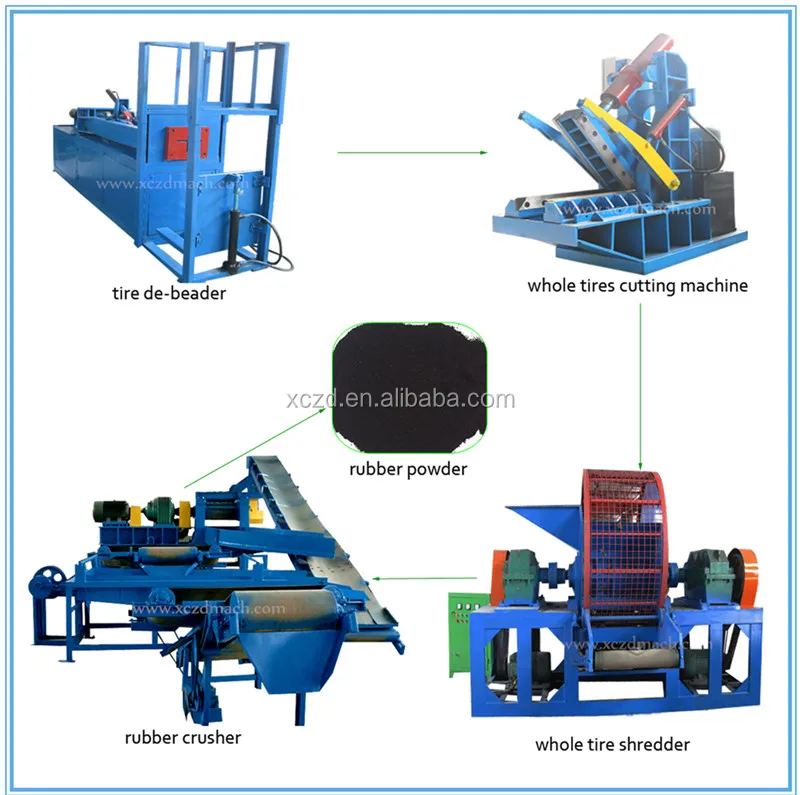

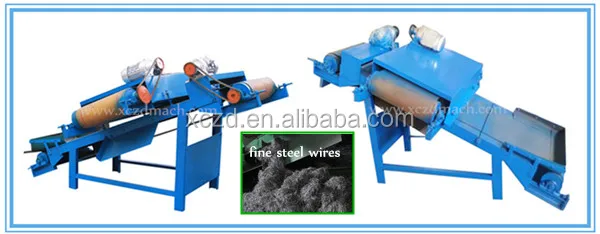

Waste tire - Tire wire drawing machine - whole tire cutting - tire shredding - Tire crushing - magnetic separator - fiber separator - Rubber powder

Specification:

1.Waste tire de-beader

Name

Power

Capacity

Weight

Waste tires range

DL-1200

tire wire drawing machine

11kw

30-40tires/h

≤∅1200mm

2.Whole tires cutter

Name

Power

Capacity

Weight

Waste tires range

DC-1200

whole tires cutter

7.5kw

30-40 tires/h

≤∅1200mm

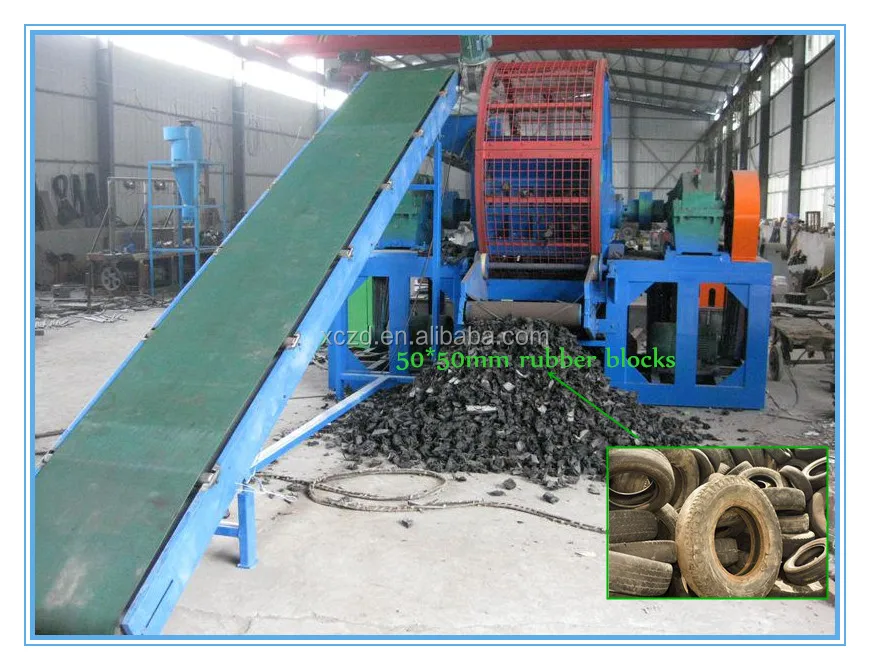

3.Waste tire shredder

Name	Power	Capacity	Weight	Waste tires range	Size of the slice
DS-800	(22/30*2+4+1.5)kw	1-2ton/h	8.5T	≤∅900mm	≤50*50mm
DS-1000	(45*2+4+1.5)kw	2-4ton/h	12T	≤∅1000mm	≤50*50mm
DS-1200	(75*2+5.5+1.5)kw	4-6ton/h	15.6T	≤∅1200mm	≤50*50mm

4.Waste tire crusher

Model	Diameter of roll	Drum length	Front roll liner speed	Roll speed ratio	Max roller spacing	Motor power
XKP-350	300mm	500mm	26.2m/min	1:2.5	10mm	30/37kw
XKP-400	400mm	600mm	34.5m/min	1:2.5	10mm	45/55kw
XKP-450	450mm	760mm	38m/min	1:2.5	10mm	75/90kw
XKP-560	560mm	800mm	40.6m/min	1:2.5	10mm	90/110kw
XKP-560D	560mm	1000mm	44m/min	1:2.5	10mm	132/160kw

Advantages of our tire crusher

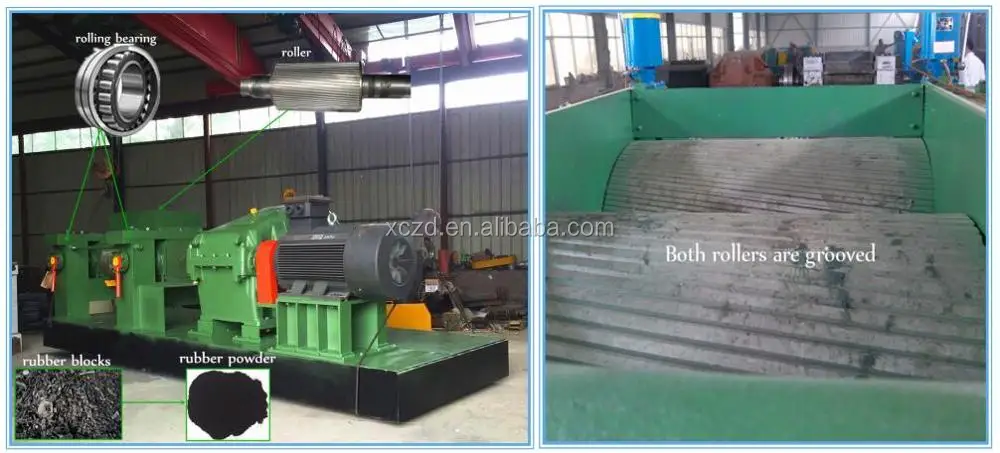

1).Both rollers are grooved which can improve the output.

2).Roller material is Alloy 5Cr6MnMo, it is life-long time using, no need to change, only welding and polishing after long time using.

3).There are 8 pieces double row long ball rolling bearing inside the machine , anti-friction bearing. This operation mode not only greatly reduce the friction and heat of the equipment, improve the work efficiency and working life of the equipment, but also reduce the energy loss, save 1/3 power consumption.

4).The speed ratios of our rollers is 1:2.5, as we know, the bigger speed ratio difference is,the bigger friction, and the bigger capacity you get.
