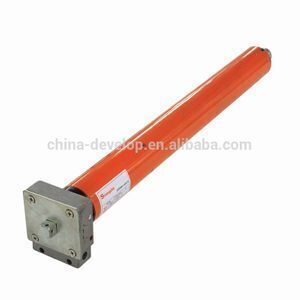

59M New electronic tubular motor Mechinal limit

Supplier: Huzhou Dp Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jessy Tan
Price: $30.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China (Mainland);	Current:	1.36A~1.62A;
Brand Name:	DEVELOP;	Power:	308w~352w;
Tube diameter:	59mm;	Voltage:	230v;
Payment Terms:	L/C,D/P,T/T,Western Union;	Packaging Detail:	standard export cartons and pallets;
Protection index:	IP44;	Running time:	S2 4min;
Port:	Shanghai/Ningbo;	Supply Ability:	3000 Piece/Pieces per Month;
Color:	Any color is available;	Torque:	60N.m, 80N.m, 100N.m, 120N.m, 140N.m;
Speed:	15rpm, 9rpm;	Frequency:	50HZ;

Eelectronic Tubular Motor

Tubular motor / tüp motor / moteur tubulaire / motore tubolare

DP59M New tubular motor(New Manual type) Features:

New type with factory price!!!

1. 59mm in diameter

2. 60N.m ~140N.m

3. Manual override type, new type

4. CE,CCC and TUV approved

---Technical Specifications

	Rated Torque (Nm)	Rated voltage (v)	Rated frequency (HZ)	Power (w)	Tube diameter (mm)	Rated current (A)	Running time (min)	Speed (rpm)	Protection index (IP)	Insulation class
XP59M New Manual	60N.m	230v	50HZ	288w	59mm	1.28A	S2 4min	12rpm	IP44	Class F
	80N.m	230v	50HZ	350w	59mm	1.50A	S2 4min	12rpm	IP44	Class F
	100N.m	230v	50HZ	440w	59mm	1.94A	S2 4min	12rpm	IP44	Class F
	120N.m	230v	50HZ	450w	59mm	2.00A	S2 4min	12rpm	IP44	Class F
	140N.m	230v	50HZ	460w	59mm	2.20A	S2 4min	9rpm	IP44	Class F

110V/60HZ is also available!!!

---Products

--- Munufactoring shop

---Package

--- Certifications

-Aboves are our regular specifacation, any Customizing request is also welcome!

-We are one of most competive manufacturers/exporters in China on tubular motor, Side motor, Central motor ,sliding motor etc, contact us directly for more items and better prices!

---About our factory
