IGBT Soft Switch Submerged ARC Welding Machine/Automatic Welding

Product details
Voltage:3phases 380/50Hz;After-sales Service Provided:Engineers available to service machinery overseas;
Diameter of welding wire:2-5, 2-6;Power(W):Customized;
Brand Name:Chaoyu;Arc Current:Customized;
Input current:83A/105A;Welding plate material:Carbon structural steel, stainless steel and composite steel;
Warranty:3 Years;Input voltage:three-phase 380V/50Hz;
Port:Guangzhou/Shenzhen/Shanghai;Dimensions:Customized;
Certification:ISO;Condition:New;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Visa;Packaging Detail:Carton Box, Wood Box, Wooden Frame;
Current range(A):50-1000, 50-1250;Motor Type:DC MOTOR;
Model Number:MZ-1000, MZ-1250;Delivery Detail:Within 20 days after we receive the deposit;
Function welding:can do submerged arc welding, manual arc welding, carbon arc gouging;Pilot Arc Current:Customized;
Usage:construction and installation(Welding);Welding plate thickness:≥3mm thickness plate welding;
Place of Origin:Hunan China;Pulse Frequency:Customized;
Supply Ability:50 Set/Sets per Week;Rated Duty Cycle:60%;

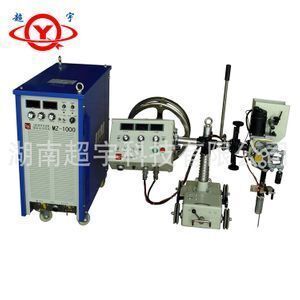

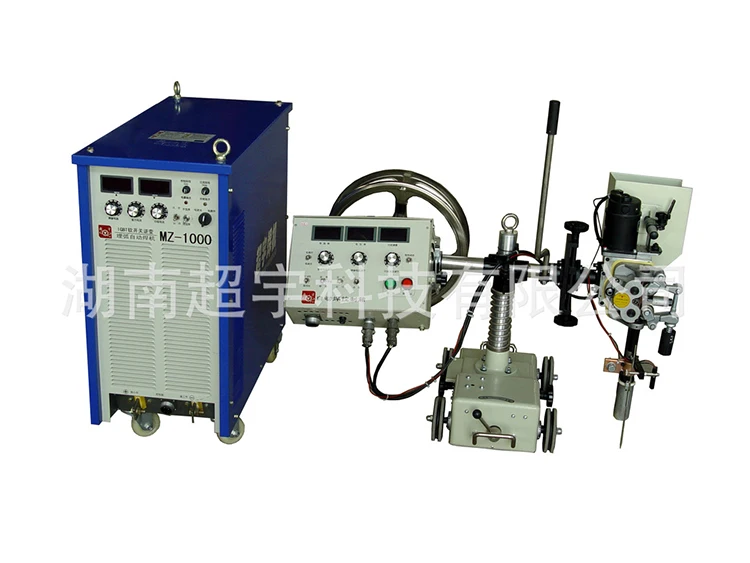

  Submerged ARC Welding Machine

  Specifications



ModelMZ-1000(IGBT)MZ-1250(IGBT)
Rated Input Voltage(V) 380/50Hz
Phase Number3 phases
Frequency(Hz)50Hz
Rated Power Current(A)83105
Rated Input Capacity(KVA)54.669
 Rated No-Load Voltage(V)7080
Current Adjustment Range(A)50-100050-1250
Diameter of  Welding Wire(mm)2-52-6
Voltage Adjustment Range(A)20-50
Rated Duty Cycle(%)60
Output No-load VoltageManual ARC Welding: 75±6
Insulation ClassF
Material of PlateStainless steel, carbon steel or other material
ApplicationMachinery manufacturing
OEM ServiceAccepted

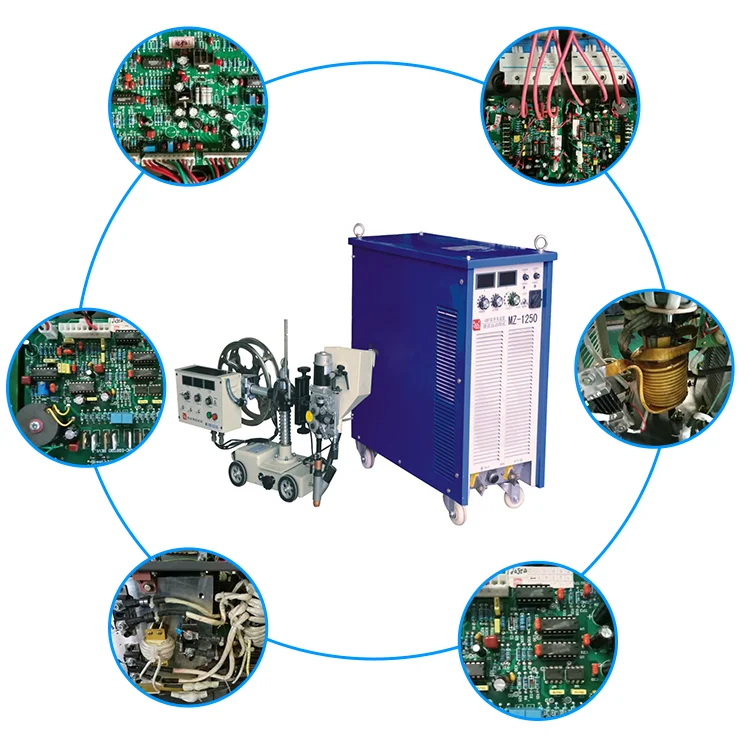

  Product Details

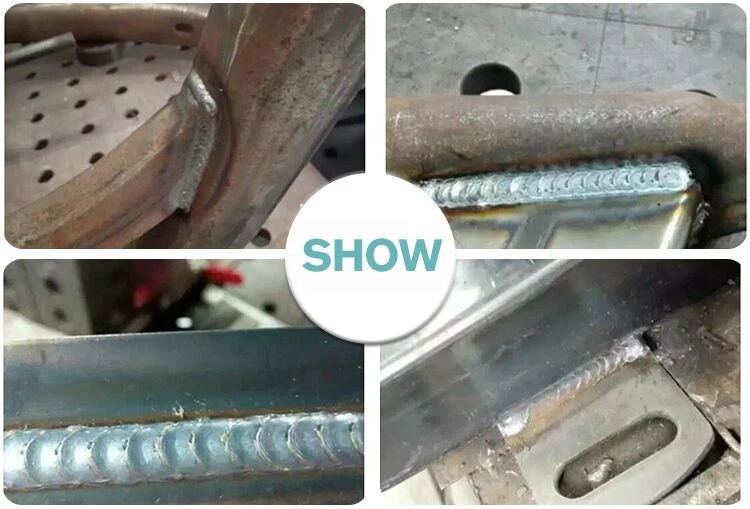

  Welding Products Show

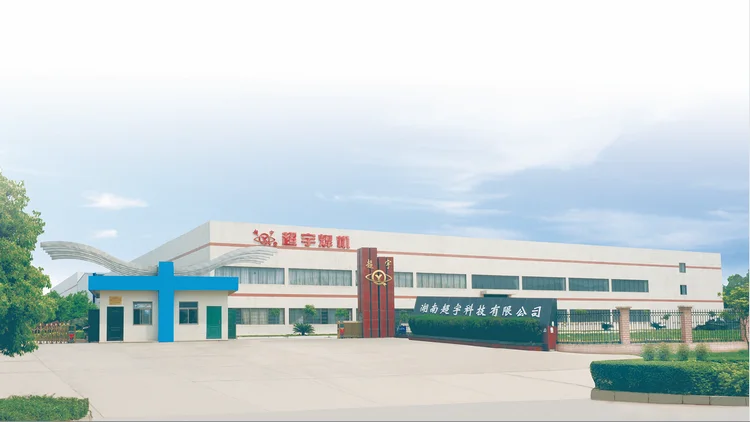

  Company Profile



    Established in 1978, Hunan Chaoyu Technology CO., LTD, crowned as National High-tech Enterprise, is a professional manufacturer and seller of the Welding CNC cutting and welding equipment. With the total area of 32500 square meters and building area of 12500 square meters, the company has become the largest production base of welding equipment, CNC cutting equipment, steel structure production line and automatic welding cutting machine equipment in Central-southern China. Our products have acquired "National Patent for Invention"and "Patent for Utility Model" and adopted ISO90001 Quality System Authorities.
    Now our company has developed and produced a dozen of series, almost one hundred products as followings: series of gas shielded welding machine, submerged arc welding machine, manual/argon arc welding machine, portable and gantry CNC flame/plasma cutting machine, gantry automatic submerged arc welding machine, roller, displacement of welding machine, cantilever welding.



1~Trading information

 Trade terms EXW, FOB, CIF, CFR
 Payment terms T/T, L/C
 Payment conditions 30% T/T as deposit,70% T/T balance before delivery
 Delivery date 20-60 days after receiving deposit
 Packing details In naked,wooden case,steel frame,export packing
 Shipping modes By sea, by air or express as your custom

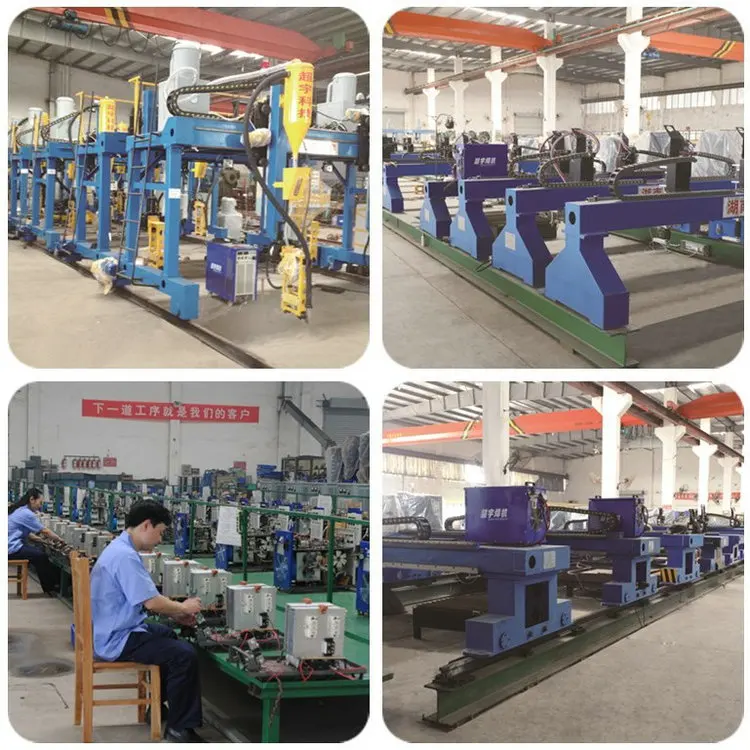

2~Production Workshop

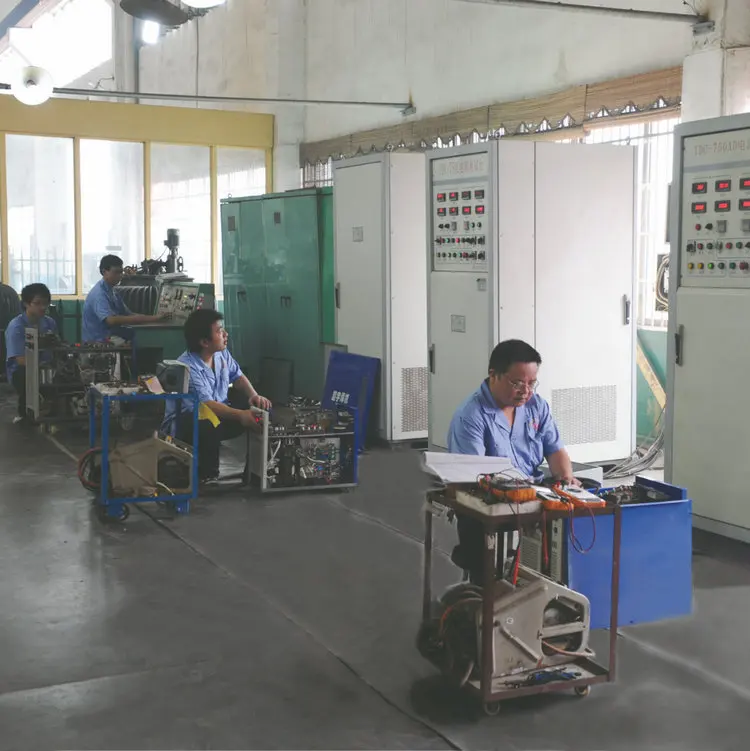

3~Quality control

4~Exhibition show

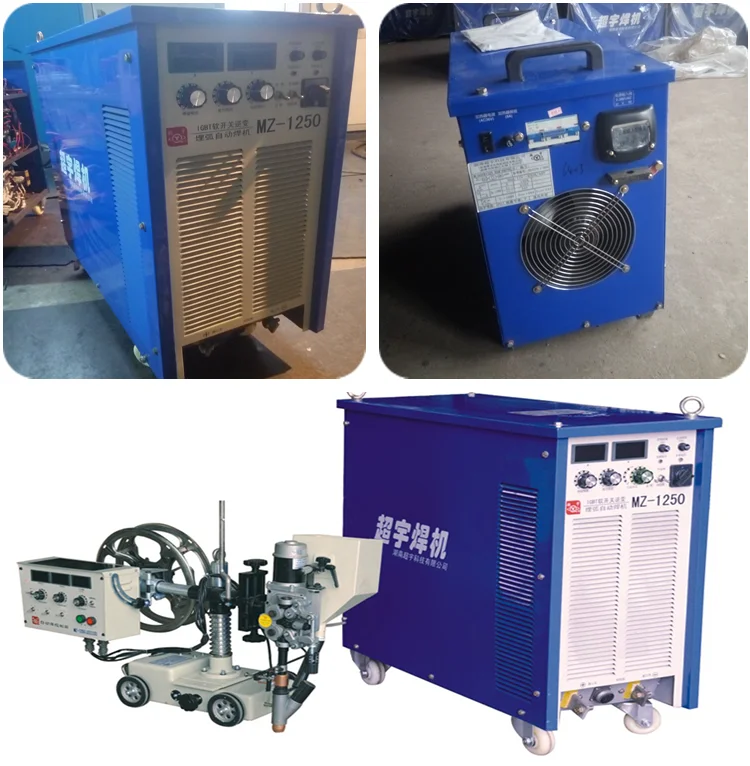

5~Packaging & Shipping





  FAQ



Q:Are you a factory or trading company?

A: We are a factory, established in 1978.



Q:How does your factory do regarding quality control?

A:Quality is priority.  Our factory has gained ISO, 3C, CE certificate.



Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.



Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.



Q: What's the payment?
A: Alibaba acceptable payment will be high appreicate, T/T, Paypal, or other payments you have can negotiable.
