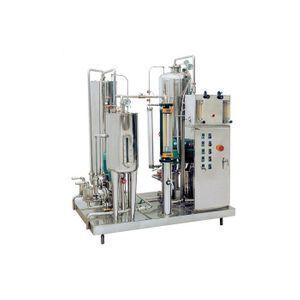

Carbonated drink CO2 mixer
CWM series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
Features:
1. Fine material: The parts which contact the liquid are all made of fine low carbon stainless steel in accordance with the requirement of food sanitation, inside and outside are all polished
2. Automation with alarm: The pressure in tanks and the liquid levels are all controlled automatically with PLC. Once a error occurs, the alarm lamp will light and the alarm will ring, then the mixer will stop automatically.
3. Easy operation and regulation: The operation of the mixer is especially convenient. Only turning around the buttons according to the pre-set program, then the normal operation can be achieved. The production capacity, water-syrup proportion and CO2 content can be adjusted without changing any parts.
4. Even mixing and accurate proportion: The mixture is even because of one time mixing process is adopted, the proportion of water and syrup is strictly controlled with measuring needle valve with fine regulation, the precision can reach around 0.5%.
5. Enough gas content: The mixer adopts vacuum desoxidation technology at normal temperature; The desoxidation ratio reaches above 90%. It also has a plate heat exchanger to cool the syrup-water mixture and achieves twice carbonation, in that way the CO2 content is especially high.
6. High cleaning: The mixer fixes CIP process with reasonable structure, so it is easy to clean and disinfect the mixer without disassembling any parts which meets with requirement of food hygiene law. The reproductive rate of bacteria per ml is lower than 5%, and there are no bacillus coli in beverage.
model | CWM-1500 | CWM-3000 | CWM-4000 | CWM-6000 |
production capacity | 1500kg/h | 2500kg/h | 4000kg/h | 6000kg/h |
carbon dioxide content | 2.6 |
inlet temperature of the chilled watere | 0-4°C |
power | 1.1kw | 2.42kw | 3.5kw | 5.1kw |
overall dimensions | 1030*1180*1930mm | 1550*1050*2000 | 1650*1300*2000mm | 1900*1300*2250 |
weight | 600kg | 800kg | 1300kg | 2500kg |
