1000L/H to 6000L/H Gas Juice Carbonated Beverage Single Tank Carbon Dioxide Co2 Blender

Supplier: Zhangjiagang City Bottling Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Phil Lane
Price: $5000.00 / 1 - 1 sets
$500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Name 3:	carbonated
weight:	1000 kg	Model 4:	High Ratio 5 Can Carbonator
Health status:	new	place of origin; place of origin:	Jiangsu
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	bottling
Marketing Type:	New Products 2020	Model 2:	double tank carbonator
application:	mix carbon dioxide into drinks	Material:	SUS304, SUS316
Model one:	single tank carbonator	Name 2:	CO2 mixer
port:	Shanghai Port or Ningbo Port	product name:	Co2 Beverage Mixer
Dimensions (LWH):	custom made	Showroom location:	not any
capacity:	500LPH-10000LPH	Warranty:	1 year
Processing type:	Carbonated drinks	Processing:	mixer
Core components:	Bearings, motors, pressure vessels	Core component warranty:	1 year
Packaging Details:	Seaworthy packaging	Video shipment inspection:	if
strength:	custom made	Voltage:	custom made
Applicable industries:	Hotels, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Retail, Food Stores, Energy and Mining, Food and Beverage Stores	Supply capacity:	15 sets per month
Model 3:	three tank carbonator

Product Description

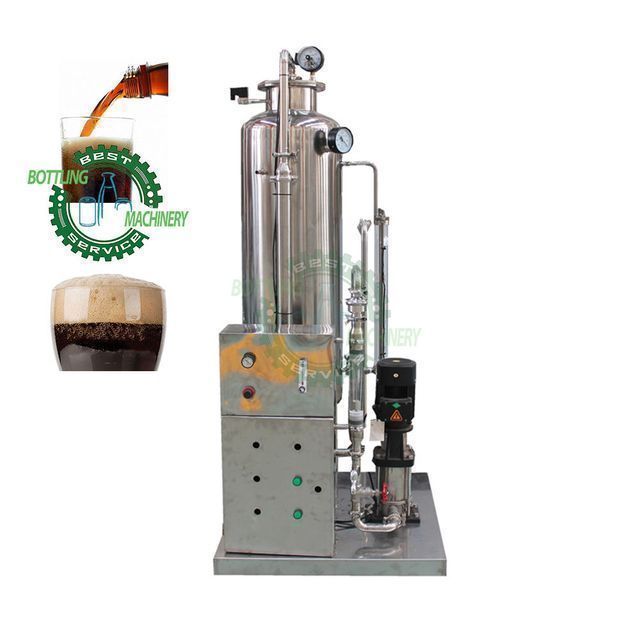

1. Single tank carbonator/CO2 mixer

Working principle: The beverage is pressurized by the high-pressure pump to the static mixing rod, then mixed with carbon dioxide gas, and finally enters the mixing tank for secondary mixing to increase the mixing effect, thus completing the carbonated beverage. Features: 1. Excellent material selection and precise processing: all contact parts are made of high-quality stainless steel, fully polished inside and outside, in line with international beverage machinery standards; 2. Automatic operation, stable equipment: the entire working process is electronically controlled; the alarm device works when a failure occurs; 3 , Easy to operate, easy to adjust, just press the start button to open according to the prescribed procedure, and then it can run normally. The production capacity and mixing ratio of beverages can be easily adjusted through the operating valve on the machine. 4. Mix evenly and the proportion is accurate. Flow meter and manual valve are used to control and adjust the proportion of liquid and CO2. 5. The structure is hygienic and easy to clean. The machine adopts a closed system made of stainless steel, and is installed with a CIP ball to connect the essence cleaning equipment. The equipment and pipelines are cleaned by acid, alkali and hot water to ensure that the drinks made by the machine meet the hygienic requirements.

capacity:	1000 liters/hour	2000 liters/hour	3000 liters/hour	4000 liters/hour	5000 liters/hour	6000 liters/hour
Gas content:	Virtual Reality 2.5
Beverage inlet temperature:	0-5℃
Stirring tank working pressure:	0.2-0.5Mpa
Compressed air consumption:	2.5 cubic meters per hour	5 cubic meters / hour	7.5 cubic meters per hour	10 cubic meters / hour	12.5 cubic meters per hour	15 cubic meters / hour
strength:	0.75KW	1.5KW	2.2KW	3KW	3KW	4.5KW
Stirring tank D*H(mm)	400*1500	400*1500	420*1500	450*1500	450*1500	550*1500
Dimensions (mm):	11009002200					120011002200
Weight (kg):	400	420	500	520	550	600

2. Double tank carbonator/CO2 mixer

1. Excellent materials and precise processing: All contact parts are made of high-quality stainless steel, fully polished inside and outside, in line with international beverage machinery standards; 2. Automatic operation, stable equipment: the entire working process is electronically controlled; when a fault occurs, the alarm device works; 3. Easy to operate, easy to adjust, just press the start button according to the prescribed procedure, and then it can run normally. The production capacity and mixing ratio of beverages can be easily adjusted through the operating valve on the machine. 4. Mix evenly and the proportion is accurate. Flow meter and manual valve are used to control and adjust the proportion of liquid and CO2. 5. The structure is hygienic and easy to clean. The machine adopts a closed system made of stainless steel, and is installed with a CIP ball to connect the essence cleaning equipment. The equipment and pipelines are cleaned by acid, alkali and hot water to ensure that the drinks made by the machine meet the hygienic requirements. 6. High-proportion carbonation with degasser to take out the oxygen in the beverage before CO2 mixing; it provides more space for carbon dioxide mixing; adopts plate heat exchanger, can use cold source to lower the temperature of the drink before direct mixing, Reduce the temperature rise on the way to achieve better gas mixing effect;

capacity:	1000 liters/hour	2000 liters/hour	3000 liters/hour	4000 liters/hour	5000 liters/hour	6000 liters/hour
Gas content:	virtual reality 4
Beverage inlet temperature:	0-5℃
Stirring tank working pressure:	0.2-0.5Mpa
Compressed air consumption:	4 cubic meters / hour	8 cubic meters / hour	12 cubic meters / hour	16 cubic meters / hour	20 cubic meters / hour	24 cubic meters / hour
strength:	3.5KW	3KW	3.7KW	4.5KW	4.5KW	6KW
Degassing tank D*H(mm)	400*1500	400*1500	420*1500	450*1500	450*1500	550*1500
Stirring tank D*H(mm)	400*1500	400*1500	420*1500	450*1500	450*1500	550*1500
Dimensions (mm):	140012002500					150014002500
Weight (kg):	480	500	580	600	630	680

Product structure and process:

1. This machine is composed of CO2 tank, syrup tank, liquid level device, static mixing device, tank body, electric control system, gas supply tank and necessary production pipeline and cleaning pipeline ball valve, magnetic valve, check valve, etc. (See Figure 1: Main Structure) 2. Main Workflow a. Cooling water→multistage pump→oxygenation CO2→volume control b. Cooling syrup→multistage pump→syrup tank→volume control (a, b→multistage pump→static mixing device→c.CO2 gas source→filter decompression→tank→filling machine

3. High ratio 5 tank carbonator/CO2blender

1. Provide degassing, mass flow mixing and bicarbonation of syrup and water. All pressure vessels are designed, manufactured and tested in accordance with the applicable provisions of the ISPESL Code (Standard). 2, A degassing system that removes air to a low level (1ppm residual oxygen) for stable foam-free filling. The system consists of a stainless steel degassing tank driven by a vacuum pump into which water is sprayed as a fine mist in a CO2 atmosphere. 3. A proportioner provides fully automatic control of two streams/syrup mixing. Flow control is recipe based. The system includes the following quality components: 4. The syrup tank is equipped with a liquid level control system and a syrup mass flow meter to ensure tight mixing and repeatable operation. Two control valves are used to regulate the syrup flow rate from the test results. 5. Two centrifugal mixing pumps and a linear carbonation injection control system to maintain +/-0.02 volume/volume carbonation control. This range is maintained by measuring the CO2 flow in a CO2 mass flow meter and controlling it through a modulating valve at a rate proportional to the product flow. 6. A buffer tank with capacitive liquid level control to control the system flow according to the formula reflected by the liquid level of the finished product in the tank. A capacitive level probe system provides continuous level indication to the PLC for fine tuning and adjustment of mixer flow. The finished product is discharged to the filling machine. 7. One Control Package provides automation system for precise process mixing control. Kits include a suitable PLC, control program, video graphic operator interface with information and control screens, and all necessary process sensors and safety protection equipment. System software includes system schematics, recipe manager, production displays, trends, alarm screens with full security password protection. 8. One control panel, made of stainless steel, with PLC; electrical switch; relay; and control flow meter system. A color touch screen operator interface is installed on the surface of the panel. The panel door is equipped with a safety electrical disconnect latch and the door is fitted with a gasket. 9. A set of pneumatic devices, including: all air valves, air switches and air pipes, and a tubular stainless steel base for mounting most of the components. The base is of welded construction and includes adjustable stainless steel legs and high density polyethylene mounting pads.

capacity:	4000 liters/hour	5000 liters/hour	6000 liters/hour
Gas content:	＞Virtual Reality 4.0
Beverage inlet temperature:	0-4℃
Stirring tank working pressure:	0.2-0.5Mpa
Compressed air consumption:	0.2 cubic meters per minute
Compressed air pressure:	0.6MPA
Water/Syrup Mixing Portion	3:1—6:1
strength:	5KW	5.5KW	6KW
Stirring tank (including pipe height) D*H(mm)	500*2100	500*2100	500*2100
Dimensions (mm):	100012002100
Weight (kg):	800	820	850
