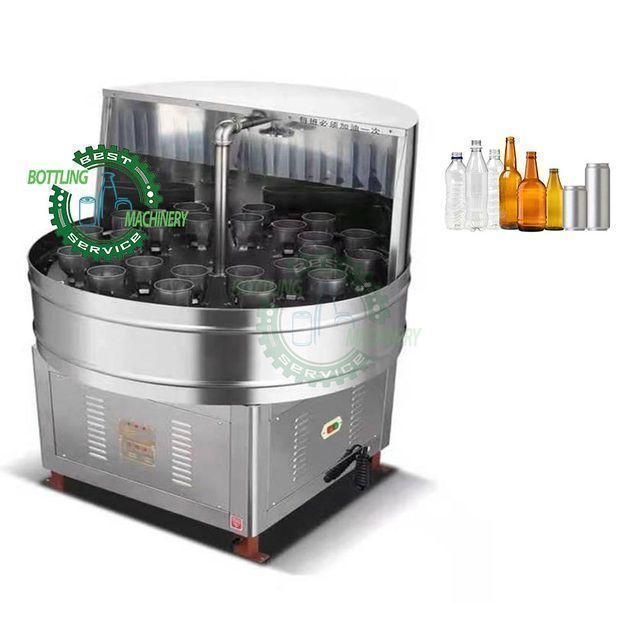

Semi-automatic small 2000bph rotary beer glass bottle 24 heads water spray washing machine with heater

Supplier: Zhangjiagang City Bottling Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Phil Lane
Price: $790.00 / 1 - 1 sets
$500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Material:	stainless steel 304	Mechanical test report:	if
Marketing Type:	New Products 2020	Voltage:	custom made
Applicable industries:	Hotels, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Food & Beverage Stores, Others	Warranty:	1 year
Processing:	washer	place of origin; place of origin:	Jiangsu
Water Consumption:	about 200 liters per hour	Application bottle:	Plastic glass bottles and jars, etc.
options:	water heating	Washing position:	24 or 30
Video shipment inspection:	if	Showroom location:	not any
Core components:	bearings, motors	Health status:	new
Dimensions (LWH):	8508501150mm	Certificate:	CE/ISO9001
pack:	wooden box	Water pump power:	0.37KW
Packaging Details:	Seaworthy packaging	brand:	bottling
Sales unit:	single product	Core component warranty:	1 year
Washing speed:	1500-3000BPH	Single package size:	25X24X25 cm
Gross weight per piece:	20.000 kg	product name:	Semi-automatic bottle washing machine
weight:	125 kg

Product Description

Semi-automatic flusher for all kinds of bottles

This bottle washing machine is suitable for cleaning glass bottles, plastic bottles and cans. This product is a semi-automatic bottle washing equipment for liquid filling containers, which is widely used in cleaning bottle containers in production units such as liquor, wine, sparkling wine, soda, juice drinks, soy sauce, and vinegar. It is especially suitable for small beverage production units: in addition to filling the product into the bottle, the bottle is manually operated. The scrubbing action is done automatically, compared to all manual cleaning. Can greatly improve work efficiency. This machine adopts continuous spray method to wash bottles. This machine is suitable for bottles of different sizes and can thoroughly clean the inside of the bottle. The material of the machine is 304 stainless steel. Working process: The staff puts the bottle upside down and inserts it into the flushing position, water will be generated to the height of the bottom of the bottle to rinse the dirt outside; there are water inlet and outlet holes on the machine. Structure: rack, washing platform, electrical part.

Model	workstation	output	Machine size	machine weight	Package dimensions	Packing
Plastic bottle semi-automatic bottle washing machine	24pcs	3000 bottles/hour	8508501150MM	125KG	940940 1250MM	wooden box
Glass bottle semi-automatic bottle washing machine	24pcs
Large bottle semi-automatic bottle washing machine (3-10L)	depending on the volume of the bottle
Semi-automatic bottle washing machine for cans	24pcs

Rotary 54 head washing machine

Product description: This machine is mainly used for cleaning glass bottles and polyester bottles before filling. It is suitable for cleaning disposable polyester bottles with slight dust and glass bottles cleaned by bottle washing machines. The continuous tracking spray method is adopted for bottle washing, which has high efficiency and good bottle washing effect. It is suitable for bottle types of different specifications, with a wide range and convenient operation and maintenance. Compared with traditional bottle washing machines, the machine consumes more than 80% of energy, water and space consumption. At the same time, it does not pollute the environment and is easy to maintain, so the operating cost is also very low. The flushing system is designed with water circulation and filtering devices, so that the flushing water can be recycled and energy consumption can be reduced. The rinsing process of this machine is reasonable, and the residual liquid is less.

Model	BL-54
capacity	1500-3000 bottles/hour
bottle size	100-750ml glass bottle
Applicable bottle height	50-320mm
Applicable bottle diameter	40-90mm
strength	0.75kw
Water Consumption	0.75 cubic meters per hour
Voltage	220V/380V
aspect	33007001100mm
weight	300 kg

Frameless Automatic Rotary Bottle Washing Machine

The bottles are sent to the bottle rinser by the conveyor belt, and each bottle is clamped by the spring clip when the turntable rotates. Driven by the motor, the spring clip advances one circle along the main shaft, the bottle reverses 180°, the bottle mouth faces the ground, and the water spray valve is opened at the same time , spray clean pressure water into the bottle, and as the water falls, the dirt inside the bottle will be taken away. Then the cleaned bottle will be rotated 180° again and sent to the next machine station. The whole machine is made of SUS304 material. The spring clip adopts Italian design, which can be fine-tuned according to the difference in the size of the bottle neck to protect the bottle neck. The sprinkler system comes from the United States to ensure even spraying. Easy to clean and maintain. Parameters: Lifting head: 12 Capacity: 0-3000BPH (each bottle flushing time 4s) Power: 0.92KW Size: 1050*950*1700mm Weight: 700KG Applicable bottle: D∮50-100mm, H 50-350mm

Outer frame automatic rotary bottle washing machine

The flushing speed is fast, clean, automatic operation, safe and stable. The PLC control system is easy to operate, and various parameters can be set quickly and conveniently, and the equipment runs automatically.

We have shampoo stations, 12 16 24 36 etc.

This machine is mainly used for cleaning polyester bottles and glass bottles. It is suitable for automatic bottle washing before filling in beverage manufacturers, wineries, sauce and vinegar factories and other food manufacturers. The whole machine adopts cycle operation and reverse rinsing structure, equipped with imported famous brand electric control components and automatic bottle turning manipulator. It has the functions of automatic clamping and positioning of the bottle mouth and automatic flushing, and the overall appearance is beautiful and durable.

1. 12 flushing nozzles, capable of flushing 2000-3000 bottles per hour, with high efficiency and labor saving. 2. The stamping parts and casting materials of the manipulator are all made of national standard 304 material, which ensures the corrosion resistance of the material. The manipulator has the characteristics of accurate positioning and convenient bottle turning. 3. Continuously track the flushing, flushing force and long flushing time. Rinse well. Each clamping part is equipped with a control water spray device, no bottle without flushing, water saving and economical. 4. The key is that the operation is simple and easy to understand. (1) Power switch. (2) Water pump switch. (3) Water pump switch. (4) Emergency stop switch. (5) Automatic and manual switching. (6) Adjustable speed switch. 5. The power control equipment of the AC motor is controlled by changing the operating power frequency of the motor.

Semi-automatic brush bottle washing machine for recycled bottles

XP-24 is specially used to recycle glass bottles; the principle is: the bottom plate is driven by a motor to rotate; after the machine is started, it will produce water when it is connected to a water source. The working process is: the worker inserts the bottle into the brush position, and the bottle rotates with the turntable; the brush rotates inside the bottle to clean the inside of the bottle; the flat brush can also clean the outside of the bottle, which is suitable for round bottles of various sizes and is easy to replace. The ideal bottle neck size is: 26-38 mm outside diameter. Structure: frame, water tank, partition, brush

parameter:

Capacity: 1800-2400BPH Washing position: 24 Power: 0.75KW Size: 1130*960*1370mm (without cover) Weight: 200kg

Labeling brush bottle washing machinefor recycling bottles

The semi-automatic bottle scrubbing machine is specially used for scrubbing inside and outside and removing paper labels of recycled glass bottles such as beer bottles, red wine bottles, and beverage bottles. It comes with nylon inner brushes and stainless steel outer brushes. The material is high-quality stainless steel, which meets food-grade requirements. The machine greatly improves the production efficiency. The structure is simple and beautiful. Easy operation and maintenance, high efficiency. First of all, before brushing your teeth, you should soak the recycled bottle in water for a period of time. If the bottle is heavily soiled with oily or other heavy stains, the bottle should be soaked in alkaline water or other chemicals for easy machine washing. 2. Manually put the soaked bottle in the scrubbing position, turn on the power, turn on the switch, the bottle rotates with the turntable, and the brush rotates inside and outside the bottle. After the rotation, the paper label is removed, and then the bottle is manually removed. Advantages: The brush bottle washing machine is used to clean the inner and outer bottles at the same time, which improves production efficiency and reduces labor. Reasonable design, compact structure, stable and reliable performance, high production efficiency, convenient operation and maintenance Precautions: A. Only suitable for round bottles. B. The bottle on the machine must be soaked first; if the bottle is polluted by oil, we suggest that you soak it in alkaline water or other chemicals before putting it on the machine.

Model	DSP-18	DSP-36
rinse head	18 pcs	36
capacity	2000 bottles/hour	4000 bottles/hour
strength	3KW	4KW
aspect	124012001300mm	190012401300mm
weight	800 kg	1200 kg
Applicable bottle	Can be rounded according to user needs	Can be rounded according to user needs

Cap glass bottle rotary blow molding machine

The washing machine is developed on the basis of digesting and absorbing the introduction of foreign advanced technology, and has the international advanced level. It is mainly used for foaming PET bottles or glass bottles. The machine has advanced structure, stable performance, safe operation, convenient maintenance, high production efficiency and stepless speed regulation. This rinsing machine is ideal for small and medium beverage factories. The bottles are sent to the bottle rinser by the conveyor belt, and each bottle is clamped by the spring clamp when the turntable rotates. Driven by the motor, the spring clamp advances one circle along the main shaft, the bottle reverses 180°, and the bottle mouth faces the ground. Clean air from the filter is sprayed inside the bottle, blowing the dirt out. Then the cleaned bottle will be rotated 180° again and sent to the next machine station. The whole machine is made of SUS304 material. The spring clip adopts Italian design, which can be fine-tuned according to the difference in the size of the bottle neck to protect the bottle neck. The air injection system comes from the USA and plugs into the bottleneck and ensures an average high power air injection. Easy to clean and maintain. Parameters: Lifting head: 12 Capacity: 0-4000BPH (each bottle flushing time 8s) Power: 0.75KW Size: 1650*1150*1700mm Weight: 1000KG Applicable bottle: Dφ50-100mm, H 50-350mm
