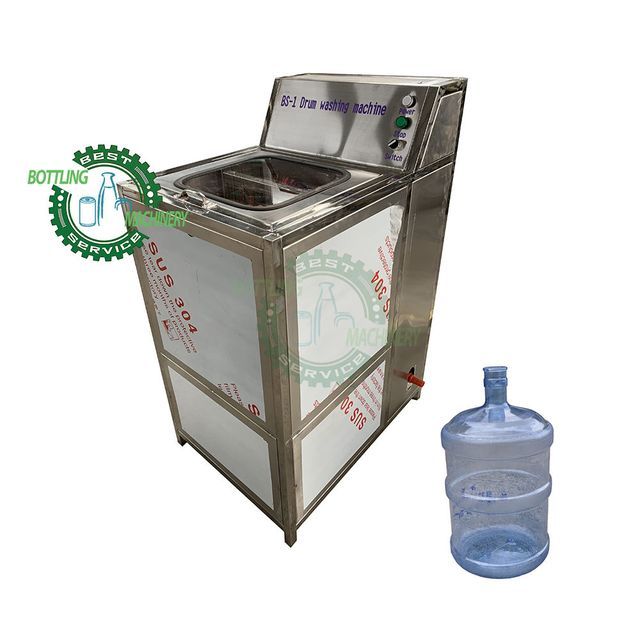

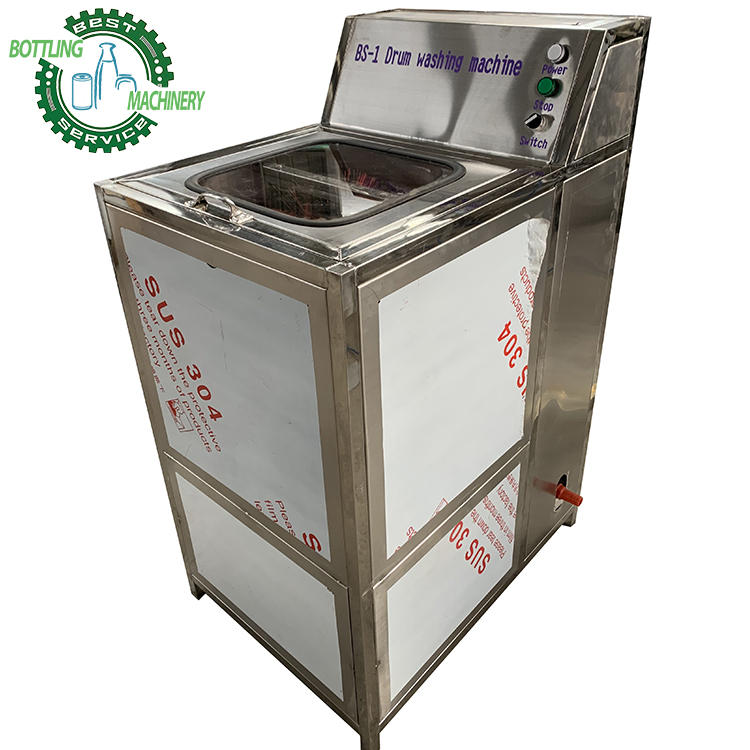

BS-1 cap remover, cap opener, empty cleaning 20L barrel PET 5-gallon bottle washer

Supplier: Zhangjiagang City Bottling Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Phil Lane
Price: $712.50 / 1 - 1 sets
$522.50 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Gross weight of single piece:	20.000kg
Showroom location:	not any	Sales unit:	Single product
Place of origin:	Jiangsu	application:	3-5 gallon wash bottle
Applicable industries:	Hotels, manufacturing plants, food and beverage plants, farms, restaurants, food and beverage stores, others	Marketing type:	2020 new products
Integrated washing machine-filling machine-capping machine:	8008001200mm	Core components:	engine
Processing type:	5 gallon wash bottle	Processing:	washer
Video outbound inspection:	if	Core component warranty:	1 year
Washing speed:	200 bottles/hour (18.9L bottles)	Warranty:	1 year
Certification:	EU CE, International Organization for Standardization	Dimensions (lengthwidthheight):	8008001200mm
Material:	SUS304	Packaging details:	Seaworthy packaging
Function 2:	Open the lid	Voltage:	custom made
Bottle volume:	10L-20L	strength:	1.12KW,1.12KW
Mechanical test report:	if	Automatic level:	Semi-automatic
Single piece packaging size:	25X24X25cm	weight:	110kg,110kg
brand:	bottling

Product Description

For all models of our 5 Gallon Bottle Washers, please check below:

Semi-automatic capping machine and brushing machine

Semi-automatic brushing machine (single station)

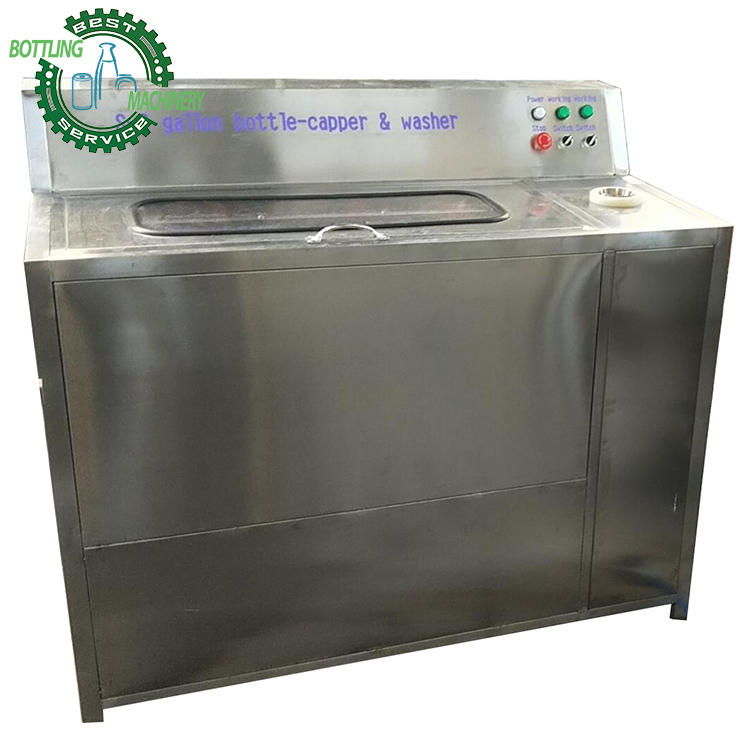

Fully automatic gallon bottle washing machine

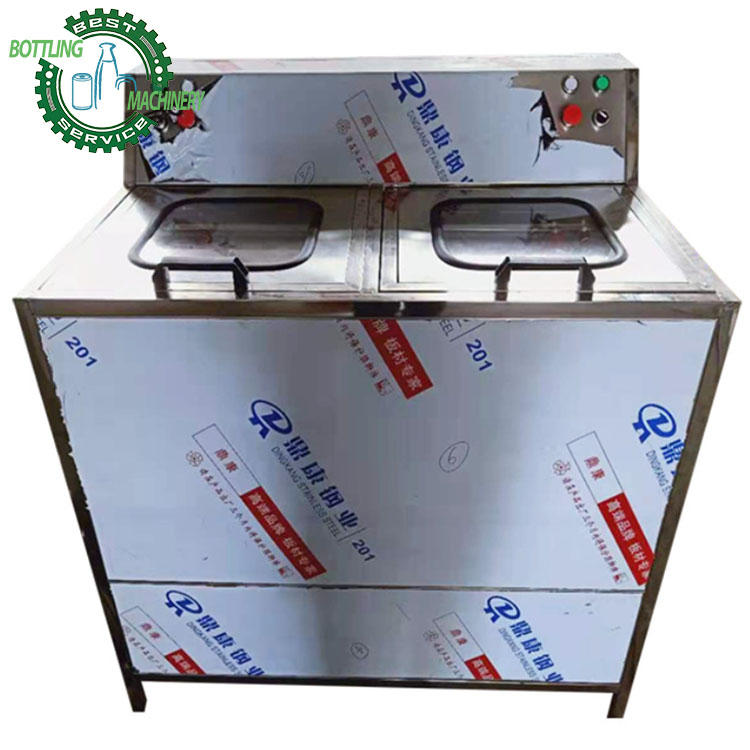

Semi-automatic cover opening and scrubbing machine (double station)

Semi-automatic brushing machine (double station)

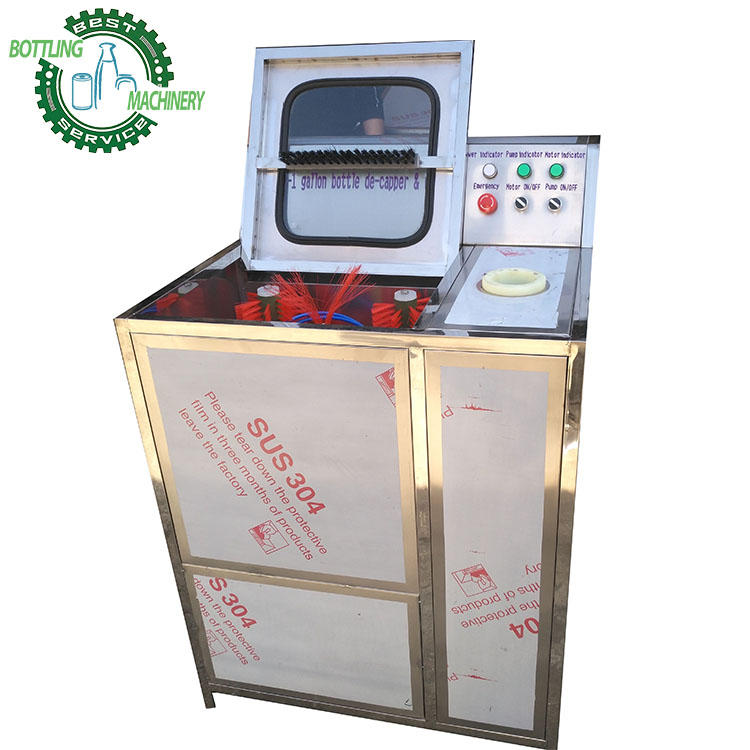

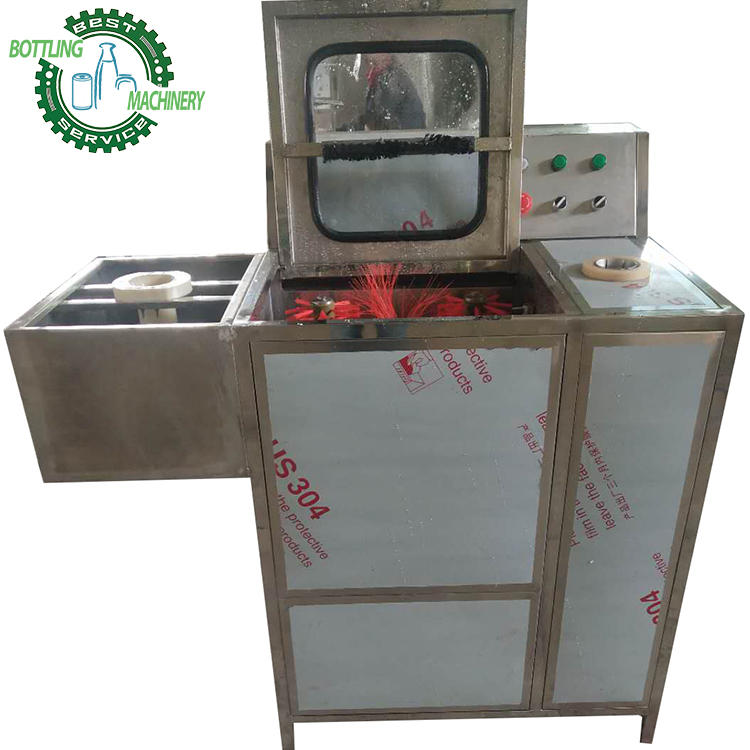

Semi-automatic decapper and scrubberInternal flushing station

Model	describe	Package	quantity	Dimensions (mm)	weight
BS-1	Decappers and scrubbers	wooden box	1 package	9009001250	250kg
S-1	Brushing machine (single station)			1 package	6007501150	200kg
BS-2	Decappers and scrubbers (double station)			1 package	13007501150	300kg
S-2	Brushing machine (double station)			1 package	13007501150	300kg
BSC-1	Decapper and scrubber with internal rinser			1 package	12007501150	280kg

5 gallon bottle washer

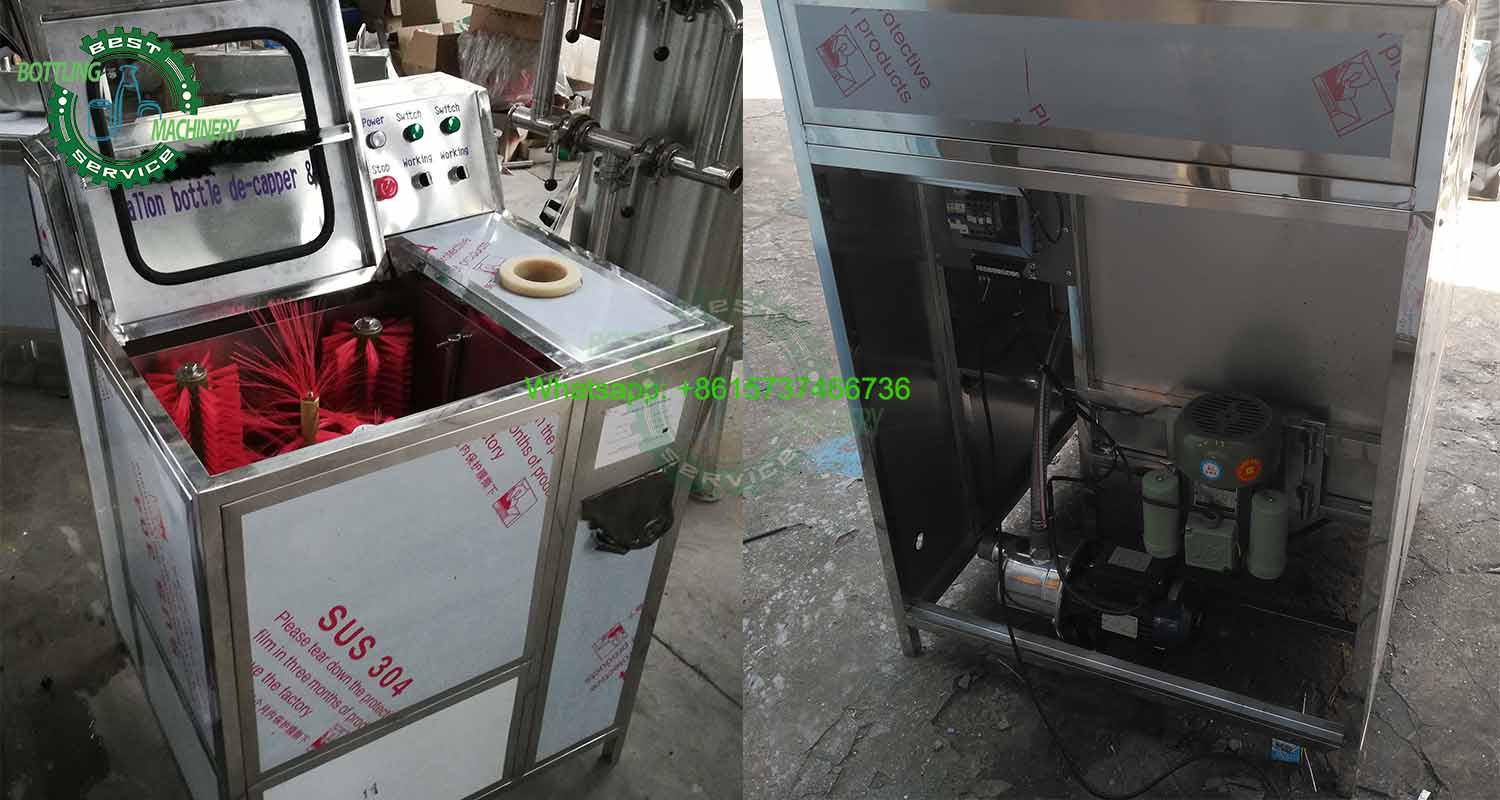

The BS-I series brush barrel cap removal unit is mainly designed to meet the needs of the majority of mineral water plants and purified water manufacturers, and to automate the tedious empty barrel processing process. The company introduced and absorbed advanced foreign barrel brushing technology, combined with the actual situation of existing manufacturers and the management requirements of the drinking water industry, to develop the BS-I series brush barrel capping machine. The equipment has reliable performance, easy operation and simple maintenance.

1. Complete self-produced accessories 2. The rotating central shaft can be used for internal and external flushing 2. The flushing pump adopts a stainless steel brand pump 4. Built-in circulating water tank for flushing 5. The brush is of good quality, durable and does not shed lint 6. Use a high-quality cap puller 7. Pull the cap The shape and thickness of the cover is 1.5mm

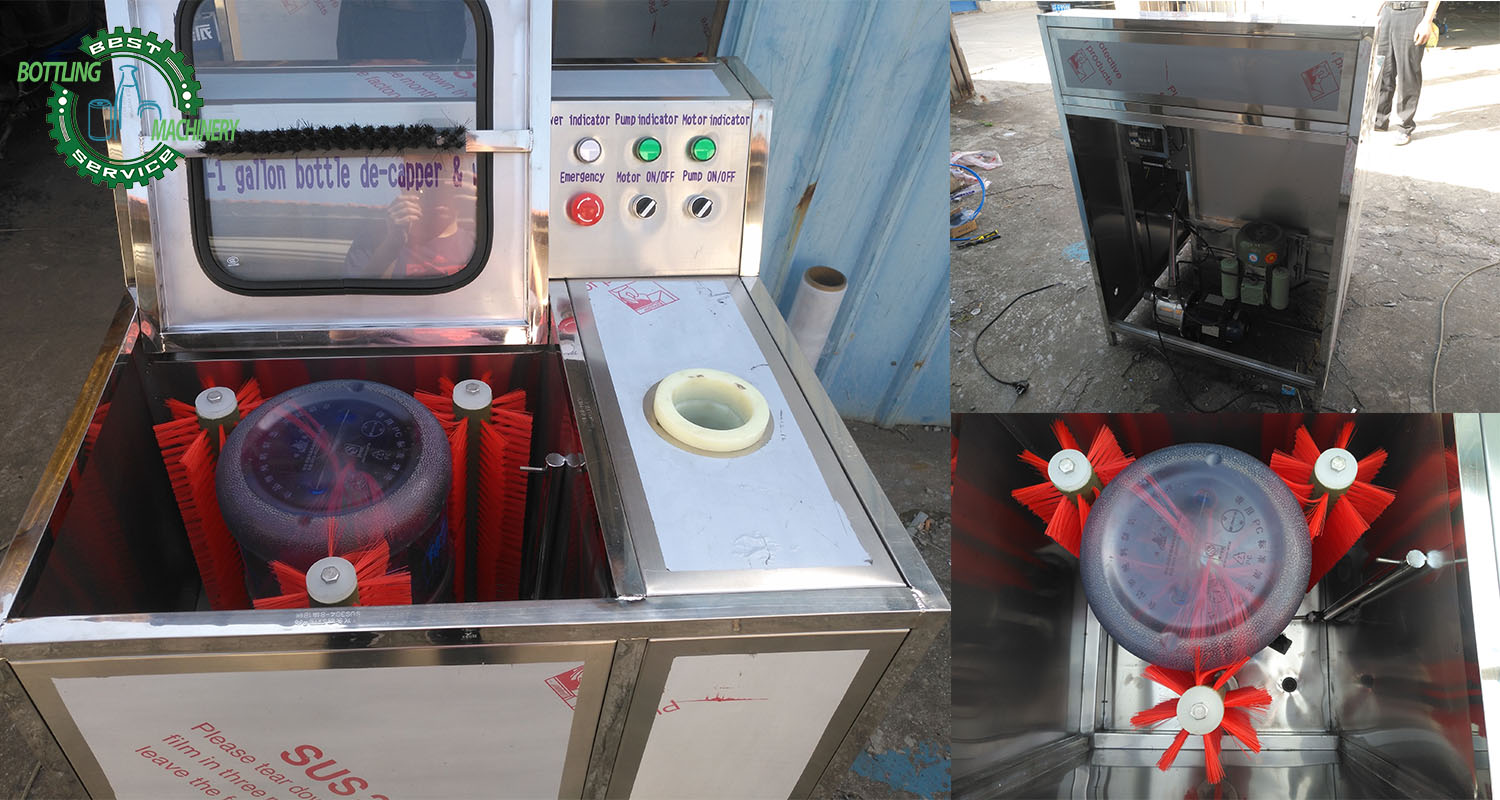

The main technical parameters:8 brushes (inner, outer, upper, lower) Number of headscarves removed: 1 Number of brush heads: 1 Adaptable to bucket specifications 5 gallons (Φ270*490*560mm) Processing speed 150-280 barrels/hour Rated voltage three-phase four-wire /380V size 800*800*1200mm total motor power 1.1kw weight 100kg

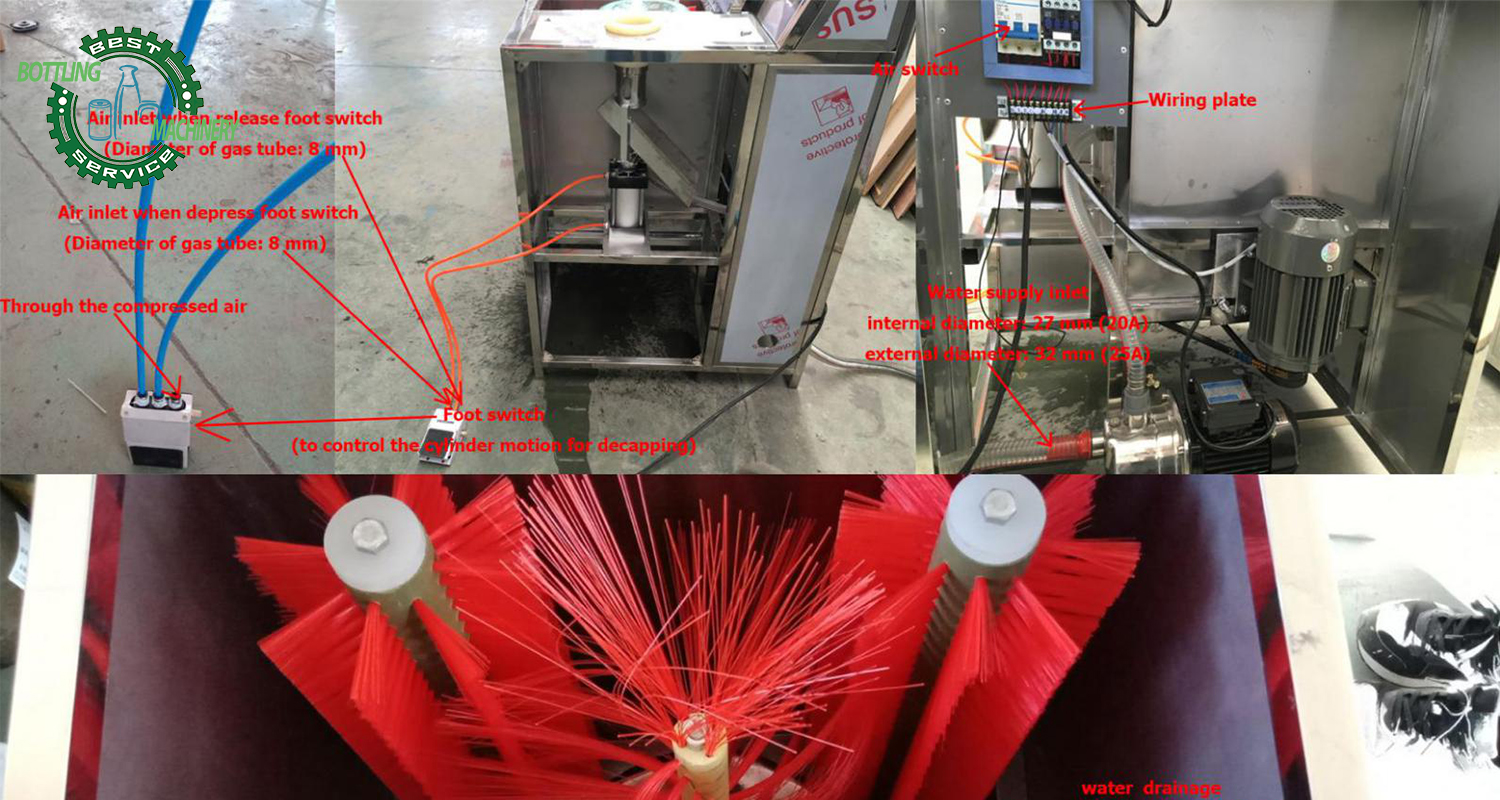

Structural features:1. This machine consists of 25×25 stainless steel square tube welding wire, transmission mechanism, pneumatic reversing cover, electrical control, water tank spray, etc. Welded parts are wear-resistant and corrosion-resistant. 2. It integrates air, external and spray into one, and the three working states are completed in the same working cycle, saving time, effort and electricity. 3. The water supply method adopts three coexisting water supply systems: circulating water supply, non-circulating water supply, and composite water supply, which can be reasonably selected according to user needs. 4. Good scrubbing effect. This machine is suitable for effective scrubbing in all directions inside and outside the barrel. 5. The operation is simple. You only need to open and close the door once to complete the entire floor washing process. 6. This machine uses a three-phase four-wire system for power supply, and N is the neutral line. After the power is turned on, the water tank is filled with water and the direction of the motor is confirmed. Close the DZ47 chamber, turn on the panel power switch, and then open the flip cover to start the test run. 7. The lid puller is used to separate the lid of the 3-gallon and 5-gallon drinking water recycling barrels from the barrel body. The separated bucket cover has no wear or deformation. It can be reused many times after disinfection to improve the utilization rate of the bucket cover. This machine uses pneumatic power, which is safe and reliable. The air source pressure is 0.5MP/cm2, the air source capacity is 0.1m2/min, the number of cap removers is 1, and the working capacity is 200-300 pieces/hour. Turn on the air source and connect the foot switch to the main lead outside the machine to start working.
